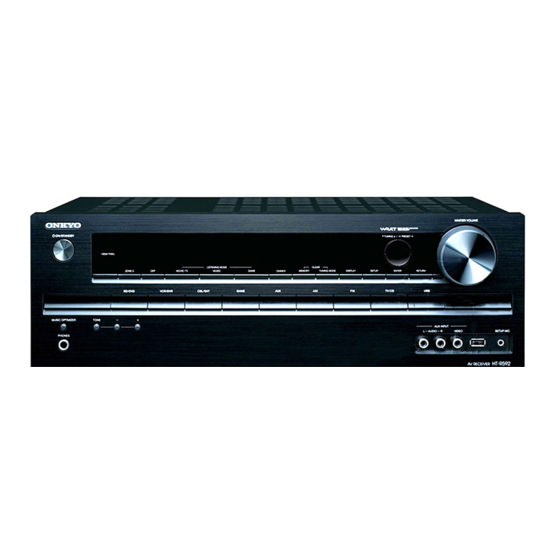

  • Page 1 HT-R592 Ref. No. 4438 032013 AV RECEIVER HT-R592(B) MODEL North American, Brazilian and Taiwanese models ---> “DIMMER” Asian models ---> “RT/PTY/TP” RC-863M Black model B MDF 120V AC, 60Hz Black model for HT-S5600 B MDC, B MDS 120V AC, 60Hz...

  • Page 2: Service Procedure

    HT-R592 SERVICE PROCEDURE 1. Replacing the fuses This symbol located near the fuse indicates that the fuse used is slow operating type, For continued protection against fire hazard, replace with same type fuse, For fuse rating, refer to [Notes] the marking adjacent to the symbol.
  • Page 3 HT-R592/ 2295 DEBUG MODE-1 AUDIO DEBUG MODE-1/3 The operations of DSP and DIR etc are able to checked by the information displayed on FL in this debug mode. This information will help to analysing digital audio no sound trouble. To set in Debug mode 1.
  • Page 4 HT-R592/ 2295 DEBUG MODE-2 AUDIO DEBUG MODE-2/3 NIC/DEC/SPI Busy/Exec wait Display Internal state Inferred state contents Stable state If the stop remains "1" is indicated, it is possible that there is an abnormality in the connection between the microcomputer and the NIC.
  • Page 5 HT-R592/ 2295 DEBUG MODE-3 AUDIO DEBUG MODE-3/3 DSP Sequence Display Possible Causes Inferred state contents Have not been able to communicate 1.There is a problem with the connection between the FlashROM and Stop at " " between the microcontroller and the DSP, and the SDRAM.

  • Page 6: Table Of Contents

    HT-R592/ 2295 DEBUG MODE-4 HDMI DEBUG MODE-1/4 HDMI-related operations can be checked to some extent by displaying HDMI debug mode. To enter this mode Hold down DISPLAY button for 3 seconds. Information display will last for about 8 seconds. Resolution display method Input resolution 6 0 →...

  • Page 7: Debug Mode

    HT-R592/ 2295 DEBUG MODE-5 HDMI DEBUG MODE-2/4 Dislay of Output Resolution For a video processor Via VSP → 1 0 8 0 i / Display the ” ” in column 4 VSP skip 1 0 8 0 i / DVI input signal...

  • Page 8: Ht-R592

    HT-R592/ 2295 DEBUG MODE-6 HDMI DEBUG MODE-3/4 Status Input Mode HDMI input H D M I 4 4 4 3 6 b i DVI input D V I 4 4 4 3 6 b i - - - 4 4 4...
  • Page 9 HT-R592/ 2295 DEBUG MODE-7 HDMI DEBUG MODE-4/4 PC Resolution Input Resolution 1 0 2 4 x 7 6 8 p / 6 0 → Output Resolution 1 0 2 4 x 7 6 8 p / Display of Input resolution * * * * x * * * * p / * * →...
  • Page 10 HT-R592/ 2295 DEBUG MODE-8 SERVICE INFORMATION MODE Displaying Service information This service information display system is helpful in analyze the status when the unit goes into Protect mode and is powered off. Pay attention that the status will change if a button is pushed.

  • Page 11: State

    After light "FM STEREO" on FL display , the relays RL641/642 is OFF and "FM STEREO"is off .(TEST 4-37 is only for HT-R592) b. Push ON/Standby button 2 times while pushing down DISPLAY button to display CPU Debug PROGRAM version.
  • Page 12 OPERATION CHECK-2 1.OPERATION CHECK(2/2) 1-9. CONFIRMATION OF OSD(ON SCREEN DISPLAY) OPERATION a. When SETUP(HT-R592) or HOME(TX-NR525/HT-RC550) button is pushed, confirm that setup menu is displayed in HDMI Out. b. Confirm that specified operations for ENTER(with 4-cursor) buttons are made. 1-11. VIDEO FUNCTION CHECK See “OPERATION CHECK-3,-6”...
  • Page 13 HT-RC550 2002 2002 HT-RC550 Dx R C 5 5 0 2 0 0 2 HT-R592 2028 2028 HT-R592 Dx H T 5 9 2 2 0 2 8 HT-R592 8028 8028 HT-R592 xx H T 5 9 2 8 0 2 8 2-2.
  • Page 14 TX-NR525/HT-R592/HT-RC550 OPERATION CHECK-4 2.TEST MODE(2/4) 2-2. TEST MODE FOR OPERATION(Continue) e. Test mode is as follows. TEST Analog Input Listening Mode/ VIDEO Compo- HDMI Digital Input Config. Master Vol. Speaker etc. [Rec Sel] Input Format Input nent V /Output NonTHX...
  • Page 15 2 mS 2 mS 20 mS *5 : VOLH is detected and H/L of SEC1H is changed. A detection level is the same as the normal mode. When it is detected, light "FM STEREO" on FL TUBE. *6 : SBL/SBR correspond only HT-R592.
  • Page 16 TX-NR525/HT-R592/HT-RC550 OPERATION CHECK-6 2.TEST MODE(4/4) 2-2. TEST MODE FOR OPERATION(Continue) VIDEO & HDMI TEST MODE TEST Input selector DIGITAL COMPO- Volume HDMI MODE INPUT NENT/D4 5-00 BD/DVD HDMI 5-01 BD/DVD HDMI 5-02 BD/DVD HDMI 5-03 BD/DVD HDMI 5-04 Only 525/550...

  • Page 17: Exploded View

    HT-R592 EXPLODED VIEW EXPLODED VIEW(OVERALL) U0041 A709 U0080 P8001 A723 A099 3TTB+8B(3BC) SCREW x 9 pcs. 3TTB+8B(3BC) MDS,MDF only SCREW 3TTB+8B(3BC) SCREW x 3 pscs. U0065 3TTF+10B(3BC) A101 U0062 x 2 pcs. U009 P900 U0030 A721 U0040 MDC only F901...
  • Page 18 PCM1690DCAR DIG SDO X171 HDMI BCK TX-NR626 RMII RX X-TO DTR-30.5 Q1005 TX-NR626 XTAL HDMI LRCK RMII TX PCM9211PTR DTR-30.5 HDMI FLR X-Tl MCLK MODEL NO. HT-R592/ TX-NR525/ HT-RC550/ TX-NR626/ HT-RC560/ DTR-30.5 BLOCK DIAGRAM (PART-1) AUDIO SECTION 2013. 01. 10.
  • Page 19 PBin1 PBin2 PBin3 PRin1 PRin2 PRin3 VCR/DVR COMPONENT CBL/SAT Vin2 GAME/TV Vin3 Vin4 Vin5 Vin1 AUX1 (FRONT) MONITOR Vin6 Vin7 COMPOSITE VIDEO INPUT VCR/DVR MUTE COMPOSITE VIDEO OUTPUT ISOOUT UPort ISOIN Model No. HT-R592 SCHEMATIC DIAGRAM (PART-2) BLOCK DIAGRAM(VIDEO) 08-11-2012...
  • Page 20 AXR0[5]/AFSX2/GP3[5] I2S1 DSD1A HBR2nd HDMI_CSW HDMI_CSW AP3_OUT AXR0[6]/ACLKR2/GP3[6] I2S2 DSD1B HBR3rd HDMI_SBLR HDMI_SBLR AP4_OUT UART1_RXD/AXR0[9]/GP3[9] I2S3 DSD2A HBR4th HDMI_SPDIF HDMI_SPDIF AP0_OUT EMA_OE/UHPI_HDS1/AXR0[13]/GP2[7] DSD0A UART1_TXD/AXR0[10]/GP3[10] USB DATA AXR0[11]/AXR2[0]/GP3[11] USB0_DP USB0_DM Model No. HT-R592 SCHEMATIC DIAGRAM (PART-3) BLOCK DIAGRAM (DIGITAL AUDIO) 08-11-2012...
  • Page 21 C4186,4187 220/25V D4171,4172 UDZS7.5B Table:R C4078,4079 Z2NET *R4524 P5508 R4138,4139 D4173,4174 UDZS6.8B [DAC] J4484,4485 CHISSIS HOLE *C4317 R4174,4175 68(1W) 22(1W) 47u 50V R4176,4177 47(1W) 33(1W) *C4316 47u 50V MODEL NO. HT-R592/ TX-NR525/ HT-RC550/ TX-NR626/ HT-RC560/ DTR-30.5 SCHEMATIC DIAGRAM(PART-4) ASP 2013.01.11...
  • Page 22 TO BAHDM-1347(PART14):TX-NR525 D3 DD: 22 1W AC_S1L- TO BAHDM-1357(PART14):TX-NR626/DTR-30.5 P968 D3 MM/JJ: 33 1W 2.0mm JUMPER LEAD P6400B(BLK) P969 TP6005 TO BAAF-1310(PART-5) MAIN AC_S1L+ P970 P971 P6404B(GRN) MODEL NO. HT-R592/2295/ TX-NR525/ HT-RC550/ TX-NR626/ HT-RC560/ DTR-30.5 SCHEMATIC DIAGRAM (PART-5) AMP 2013.01.11...
  • Page 23 +BSBR INC6006AP1-T111-1W Q6042 +BSBR2 2SA1930(ONK_Q) 2.2k -BSBR2 (1/4W) TRIMSBR R5192 10 *R5046 *R5296 1.8k *Q5056 2SC2412K-R *Q5046 *Q6046 INC6006AP1-T111-1W 2SA1930(ONK_Q) (1/4W) *R5196 10 1 2 3 4 1 2 3 4 P5509B P5507B NTM-1P233(M1969) NTM-1P233(M1969) Model No. HT-R592/ TX-NR525/ HT-RC550(PART-6)
  • Page 24 LBC2518T470M COAX2 GND_CH JSR1165-001recieving R1012 RI_DATA TP1002 U1002 NPJ-2PDOO626 L1001 R1003 C1003 LBC2518T2R2M 104K COAX1 COAX2 L1002 R1004 C1004 104K LBC2518T2R2M P1001 TP1003 R1010 P1000 MSJ-035-22 C1015 L1000 R1000 LBC2518T2R2M 104Z MODEL NO.HT-R592 SCHEMATIC DIAGRAM (PART-7) DIGITAL INPUT SECTION 2013/1/10...
  • Page 25 HT-R592 SCHEMATIC DIAGRAMS-08(PART-8) VIDEO SECTION BAVD-1372 VIDEO FrontUSB needparts R2602 R2603 R2604 Q2600 C2601-C2605 AUX_V R2601-R2603 U0062 VIDEO PC BOARD VOUT_1 YOUT_1 PBOUT_1 PROUT_1 104Z 10u 50V ISOOUT C9031 C2602 V+_5 R2601 C2000 104Z VOUT1 VIN_LOS C9029 104Z VOUT_LOS C2603...
  • Page 26 M type only *L6605 SC-0.8X5.5X18.5T *R6605 NRL-2P5A-DC24-129 *J6705 D6607 DA2J10100 C6607 *L6606 NC 102J SC-0.8X5.5X18.5T *R6606 RL667 ~SPRLZ2 *J6706 NRL-2P5A-DC24-129 P6600 E6603 E6602 (JOINT) (JOINT) JL620B FROM BAAF-1310 (PART-5) HT-R592 FROM AMP MODEL No. HT-R592 SCHEMATIC DIAGRAM (PART-9) SPEAKER OUT SECTION 2012/12/13...
  • Page 27 HT-R592 HT-R592 SCHEMATIC DIAGRAMS-10(PART-10) DISPLAY SECTION BADIS-1370 DISPLAY U0060 DISPLAY PC BOARD Q7002 16-BT-168GNK FLAC2 C7012 Ek(+8.2V) C7011 223K 223K C7010 223K R7007 R7008 CODE MODEL HT59 HT-R592 FLDCLK FLDSDO L7032 FLDCS LBC2518T2R2M KEYINT0 FLDRST KEYINT1 REMIN R7022 +3.3S VP(-32V)
  • Page 28 TYPE HT59 RL901 AC CORD NSCT-1P2031 NRL-1P5A-DC9-179 D,F,S NPT-1520JQ F901C F901D NPT-1520GQ 3/100A,250V OR *F901 C901 NSCT-1P2031 3A/120V,250V 0.01uF/275V/X2 INLET HT-R592 MDF/MDS ONLY *F901 CODE MODEL TYPE TYPE HT59 120V /60Hz D,F,S 8A125V HT59 HT-R592 220-240V /50/60Hz T4AL250V *T901 RL901...
  • Page 29 FR9888CSPCTR FR9888CSPCTR FR9888CSPCTR NPLG-5P918 +12V C8931 NC 4 GND_VD 106K BU18TD3WG-TR +5.2V_VD GND_DCDC GND_VD +12V TP25 TP26 POWER SUPPLY For HDMI POWER SUPPLY (STB) POWER SUPPLY (DC/DC) POWER SUPPLY (MPU) GNDDG C8950 106K Model No.HT-R592 SCHEMATIC DIAGRAM (PART-14) MPU SECTION...
  • Page 30 RN1401(TE85L_F) HOT PLUG C-DIODE or list HDMI TERMINAL Part spec D8100 0099ABAC19DBACDN DA2J10100 223303R2 DA2J10100 or TCX3423-311387 1SS352 223234R2 or HDMI(47266-4101) Q8104 VOUT 5 NC 4 MM3404A50NRE GNDDG P8901 NSCT-8P2471 SPI MEMORY Writer Model No.HT-R592 SCHEMATIC DIAGRAM (PART-16) HDMI SECTION...
  • Page 31 TC7WH241FU(TE12L_F) Part spec L308 GND_VD GND_CH DA2J10100 223303R2 MMZ1608Y601BT SBR+ R365 1SS352 223234R2 +3.3V AMUT SBL+ +5.0VA VOLDATA L351 +5.0VA LBC2518T4R7M 18mA VOLCLK PROTECT L352 +3.3V SBZ2MUT_1 LBC2518T4R7M IPROTECT Z2MUT_1 SEC1H MICMUT VOLH Model No.HT-R592 SCHEMATIC DIAGRAM (PART-19) DSP/DIR/DAC SECTION...

  • Page 32: Exploded View Parts List

    1/31 PAGE HT-R592_C(B)MDC <Note> Parts marked by "NSP" are generally unavailable because <Notes> they are not in our Master Spare Parts List. (B) : Black color model <MDC> : 120V,Canadian/USA/(Mexico) model NOTE : THE COMPONENTS IDENTIFIED BY THE MARK for HT-S5600 ! ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
  • Page 33 (CUR) 28326907B A701 KNOB (VOL)AS(B) 28326914 A709 COVER (B) (Bent) 28210089A A709 COVER (B) (Not Bent) 28210089AZ A721 LABEL HOOKUP-ONKYO 29363194 A723 LABEL (COVER) 29390767 [TRANS COIL] T901 P TRANS NPT-1629D 2302067 [SW TRM] F6401 FUSE 10A-UL/T-233 252330GR F6401 or...
  • Page 34 3/31 PAGE D4173 or ZENER D UDZS6.8B ( 1) 224550680R2 D4174 ZENER D DZ2J068M0L 224760680R2 D4174 or ZENER D UDZS6.8B ( 1) 224550680R2 D4207 C-DIODE DA2J10100 223303R2 D4207 or C-DIODE 1SS352 ( 1) 223234R2 D4208 C-DIODE DA2J10100 223303R2 D4208 or C-DIODE 1SS352 ( 1)
  • Page 35 4/31 PAGE Q4302 or RTAN430C-T112-1 ( 1) 2217780R2 Q4303 RN1441 2215410R2 Q4303 or RTAN430C-T112-1 ( 1) 2217780R2 Q4400 2SC2881-Y(TE12L,CF) 2217564R2 Q6000 2SC2412K-R 2214653R2 Q6000 or KTC3875-GR ( 1) 2216175R2 Q6001 2SC2412K-R 2214653R2 Q6001 or KTC3875-GR ( 1) 2216175R2 Q6002 2SC2412K-R 2214653R2 Q6002 or KTC3875-GR...
  • Page 36 5/31 PAGE C4091 C-CERA C CC725CH1H-101J1 342101014R1 C4093 C-CERA C CC725CH1H-220J1 342102204R1 C4094 C-CERA C CC725CH1H-220J1 342102204R1 C4100 UTSP C CE04W50V 47M(UTSP) 397584707AT C4101 UTSP C CE04W50V 47M(UTSP) 397584707AT C4102 UTSP C CE04W50V 47M(UTSP) 397584707AT C4103 UTSP C CE04W50V 47M(UTSP) 397584707AT C4104 UTSP C...
  • Page 37 6/31 PAGE C6401 or ELECT C CE69W63V-8200MB ( 1) 3504420 C6402 ELECT C CE69W63V-8200MA 3504419 C6402 or ELECT C CE69W63V-8200MB ( 1) 3504420 C6403 TF C ECQ-V100V-334J 374733344T C6404 TF C ECQ-V100V-334J 374733344T C6411 C-CERA C CC725CH1H-102J1 342101024R1 C6451 UTSP C CE04W25V-100M(UTSP) 397551017AT C6452...
  • Page 38 7/31 PAGE R4121 C-CARBON R RN72K1J-000JE 435030004R1 R4122 C-CARBON R RN72K1J-000JE 435030004R1 R4123 C-CARBON R RN72K1J-000JE 435030004R1 R4124 C-CARBON R RN72K1J-000JE 435030004R1 R4125 C-CARBON R RN72K1J-000JE 435030004R1 R4126 C-CARBON R RN72K1J-000JE 435030004R1 R4127 C-CARBON R RN72K1J-101JE 435031014R1 R4130 C-CARBON R RN72K1J-221JE 435032214R1 R4131...
  • Page 39 8/31 PAGE R4450 C-CARBON R RN72K1J-561JE 435035614R1 R4451 C-CARBON R RN72K1J-561JE 435035614R1 R4452 C-CARBON R RN72K1J-561JE 435035614R1 R4453 C-CARBON R RN72K1J-561JE 435035614R1 R4454 C-CARBON R RN72K1J-561JE 435035614R1 R4455 C-CARBON R RN72K1J-561JE 435035614R1 R4456 C-CARBON R RN72K1J-561JE 435035614R1 R4457 C-CARBON R RN72K1J-561JE 435035614R1 R4522...
  • Page 40 9/31 PAGE R6186 C-CARBON R RN72K1J-473JE 435034734R1 R6191 C-CARBON R RN72K1J-000JE 435030004R1 R6200 C-CARBON R RN72K1J-562JE 435035624R1 R6201 C-CARBON R RN72K1J-562JE 435035624R1 R6202 C-CARBON R RN72K1J-562JE 435035624R1 R6203 C-CARBON R RN72K1J-562JE 435035624R1 R6204 C-CARBON R RN72K1J-562JE 435035624R1 R6205 C-CARBON R RN72K1J-562JE 435035624R1 R6206...
  • Page 41 10/31 PAGE P603 SOCKET AS NSAS-9P2223 2009991412UL P603A WIRE HOL NSCT-9P900 25051113 P6080 PLUG NPLG-2P29 25055038 P6081 PLUG NPLG-2P29 25055038 P6082 PLUG NPLG-2P29 25055038 P6083 PLUG NPLG-2P29 25055038 P6084 PLUG NPLG-2P29 25055038 P6085 PLUG NPLG-2P29 25055038 P6086 PLUG NPLG-2P29 25055038 P6400B CRIMP AS CRIMP AS...
  • Page 42 11/31 PAGE Q5036 or 2SA1200-Y(2LONK_ZE) ( 1) 2217584R2 Q5040 INC6006AP1-T111 2217990R2 Q5040 or 2SC2880-Y(2LONK_ZE) ( 1) 2217594R2 Q5041 INC6006AP1-T111 2217990R2 Q5041 or 2SC2880-Y(2LONK_ZE) ( 1) 2217594R2 Q5042 INC6006AP1-T111 2217990R2 Q5042 or 2SC2880-Y(2LONK_ZE) ( 1) 2217594R2 Q5043 INC6006AP1-T111 2217990R2 Q5043 or 2SC2880-Y(2LONK_ZE) ( 1) 2217594R2...
  • Page 43 12/31 PAGE C5013 UTSP C CE04W50V 47M(UTSP) 397584707AT C5014 UTSP C CE04W50V 47M(UTSP) 397584707AT C5015 UTSP C CE04W50V 47M(UTSP) 397584707AT C5016 UTSP C CE04W50V 47M(UTSP) 397584707AT C5020 UTSP C CE04W50V-10M(UTSP) 397581007AT C5021 UTSP C CE04W50V-10M(UTSP) 397581007AT C5022 UTSP C CE04W50V-10M(UTSP) 397581007AT C5023 UTSP C...
  • Page 44 13/31 PAGE R5021 C-CARBON R RN72K1J-331JE 435033314R1 R5022 C-CARBON R RN72K1J-331JE 435033314R1 R5023 C-CARBON R RN72K1J-331JE 435033314R1 R5024 C-CARBON R RN72K1J-331JE 435033314R1 R5025 C-CARBON R RN72K1J-331JE 435033314R1 R5026 C-CARBON R RN72K1J-331JE 435033314R1 R5030 NF CARBON R R25J-56K 415475634T R5031 NF CARBON R R25J-56K 415475634T R5032...
  • Page 45 14/31 PAGE R5160 NF CARBON R R25J-220 415472214T R5161 NF CARBON R R25J-220 415472214T R5162 NF CARBON R R25J-220 415472214T R5163 NF CARBON R R25J-220 415472214T R5164 NF CARBON R R25J-220 415472214T R5165 NF CARBON R R25J-220 415472214T R5166 NF CARBON R R25J-220 415472214T R5170...
  • Page 46 15/31 PAGE R6046 TRIM R N06HR1KBB 5211401T R6050 C-CARBON R RN72K1J-332JE 435033324R1 R6051 C-CARBON R RN72K1J-332JE 435033324R1 R6052 C-CARBON R RN72K1J-332JE 435033324R1 R6053 C-CARBON R RN72K1J-332JE 435033324R1 R6054 C-CARBON R RN72K1J-332JE 435033324R1 R6055 C-CARBON R RN72K1J-332JE 435033324R1 R6056 C-CARBON R RN72K1J-332JE 435033324R1 R6070...
  • Page 47 16/31 PAGE [RESISTOR] R1000 C-CARBON R RN72K1J-331JE 435033314R1 R1001 C-CARBON R RN72K1J-750JE 435037504R1 R1002 C-CARBON R RN72K1J-750JE 435037504R1 R1003 C-CARBON R RN72K1J-100JE 435031004R1 R1004 C-CARBON R RN72K1J-100JE 435031004R1 R1005 C-CARBON R RN72K1J-224JE 435032244R1 R1006 C-CARBON R RN72K1J-224JE 435032244R1 R1007 C-CARBON R RN72K1J-103JE 435031034R1 R1008...
  • Page 48 17/31 PAGE D912 C-DIODE DA2J10100 223303R2 D912 or C-DIODE 1SS352 ( 1) 223234R2 D921 C-DIODE DA2J10100 223303R2 D921 or C-DIODE 1SS352 ( 1) 223234R2 D922 C-DIODE DA2J10100 223303R2 D922 or C-DIODE 1SS352 ( 1) 223234R2 D923 C-DIODE DA2J10100 223303R2 D923 or C-DIODE 1SS352 ( 1)
  • Page 49 18/31 PAGE C2102 or JAMICON CE04W6.3V-470M ( 1) 398524717T C2103 VR C CE04W50V-2.2M(VR) 394680227T C2103 or JAMICON CE04W50V-2.2M ( 1) 398580227T C2104 VR C CE04W50V-2.2M(VR) 394680227T C2104 or JAMICON CE04W50V-2.2M ( 1) 398580227T C2105 VR C CE04W6.3V-470M(VR) 394624717T C2105 or JAMICON CE04W6.3V-470M ( 1)
  • Page 50 19/31 PAGE C7301 C-CERA C CC725CH1H-471J1 342104714R1 C7302 C-CERA C CC725CH1H-471J1 342104714R1 C7304 C-CERA C CK725F1E-104Z1 332161040R1 C7305 C-CERA C CK725F1E-104Z1 332161040R1 C7306 C-CERA C CK725F1E-104Z1 332161040R1 C7319 C-CERA C CC725CH1H-470J1 342104704R1 C7401 ELECT C CE04W16V-10M(S) 353741009T C7402 C-CERA C CC725CH1H-101J1 342101014R1 C7403...
  • Page 51 20/31 PAGE R2156 C-CARBON R RN72K1J-000JE 435030004R1 R2157 C-CARBON R RN72K1J-000JE 435030004R1 R2601 C-CARBON R RN72K1J-220JE 435032204R1 R2602 C-CARBON R RN72K1J-220JE 435032204R1 R4520 C-CARBON R RN72K1J-104JE 435031044R1 R4521 C-CARBON R RN72K1J-104JE 435031044R1 R4523 C-CARBON R RN72K1J-104JE 435031044R1 R4524 C-CARBON R RN72K1J-104JE 435031044R1 R7001...
  • Page 52 21/31 PAGE R7410 C-CARBON R RN72K1J-221JE 435032214R1 R7411 C-CARBON R RN72K1J-471JE 435034714R1 R7412 C-CARBON R RN72K1J-471JE 435034714R1 R7413 C-CARBON R RN72K1J-224JE 435032244R1 R7414 C-CARBON R RN72K1J-104JE 435031044R1 R7420 C-CARBON R RN72K1J-473JE 435034734R1 R9014 C-CARBON R RN72K1J-104JE 435031044R1 R921 METAL O R RS1/2WBJ-47 443524704T R922...
  • Page 53 22/31 PAGE S7113 PUSH SW NPS-111-S681 25035718T S7114 PUSH SW NPS-111-S681 25035718T S7115 PUSH SW NPS-111-S681 25035718T S7119 PUSH SW NPS-111-S681 25035718T S7120 PUSH SW NPS-111-S681 25035718T S7121 PUSH SW NPS-111-S681 25035718T S7122 PUSH SW NPS-111-S681 25035718T S7123 PUSH SW NPS-111-S681 25035718T S7124...
  • Page 54 23/31 PAGE Q703 S-812C56AUA-C3K 22242207R2 Q704 SN74CB3Q3305PWR 22242258R2 Q746 BU33TD3WG-TR 22242715R2 Q751 KRC104S 2216210R2 Q751 or RN1404 ( 1) 2214490R2 Q752 KRA102S 2216220R2 Q752 or RN2402 ( 1) 2214530R2 Q753 KRA107S 2216350R2 Q753 or RN2407(TE85L_F) ( 1) 2216360R2 Q754 KRC102S 2216190R2 Q754 or RN1402...
  • Page 55 24/31 PAGE L8912 CORE BLM18PG181SN1D 2350005R1 L8921 CORE BLM18PG181SN1D 2350005R1 L8922 CORE BLM18PG181SN1D 2350005R1 L8923 CORE BLM18PG181SN1D 2350005R1 L8931 CHOKE COIL 1264EY-100M=P3 231447M100R2 L8932 CORE BLM18PG181SN1D 2350005R1 L8933 CORE BLM18PG181SN1D 2350005R1 L8934 CORE BLM18PG181SN1D 2350005R1 L8937 CORE BLM18PG181SN1D 2350005R1 L8938 CORE BLM18PG181SN1D 2350005R1...
  • Page 56 25/31 PAGE C265 C-CERA C CC725CH1H-180J0 342031804R1 C266 C-CERA C CC725CH1H-180J0 342031804R1 C267 C-CERA C CK725B1H-102K0 332031025R1 C268 C-CERA C CK725B1A-105K0 332001055R1 C269 C-CERA C CK725B1A-105K0 332001055R1 C270 C-CERA C CK732B16V-106K 332071065R2 C271 C-CERA C CK732B16V-106K 332071065R2 C272 C-CERA C CK732B16V-106K 332071065R2 C273...
  • Page 57 26/31 PAGE C702 C-CERA C CK732B16V-106K 332071065R2 C703 C-CERA C CK732B16V-106K 332071065R2 C705 C-CERA C CK732B16V-106K 332071065R2 C706 C-CERA C CK725B1E-106K 332221065R2 C707 C-CERA C CK732B16V-106K 332071065R2 C708 C-CERA C CK732B16V-106K 332071065R2 C709 C-CERA C CK725B1E-106K 332221065R2 C710 C-CERA C CK725B1C-104K0 332011045R1 C745...
  • Page 58 27/31 PAGE C8165 C-CERA C CK725B1H-102K0 332031025R1 C8166 C-CERA C CK725B1H-102K0 332031025R1 C8168 C-CERA C CK725B1H-102K0 332031025R1 C8170 C-CERA C CK725B1C-104K0 332011045R1 C8175 C-CERA C CK725B1H-102K0 332031025R1 C8176 C-CERA C CK725B1A-105K0 332001055R1 C8177 C-CERA C CK725B1A-105K0 332001055R1 C8911 C-CERA C CK732B16V-106K 332071065R2 C8921...
  • Page 59 28/31 PAGE R224 C-R NET RM7LJ330X04 43484733004R2 R225 C-R NET RM7LJ330X04 43484733004R2 R226 C-R NET RM7LJ330X04 43484733004R2 R227 C-R NET RM7LJ330X04 43484733004R2 R228 C-R NET RM7LJ330X04 43484733004R2 R229 C-R NET RM7LJ330X04 43484733004R2 R231 C-CARBON R RN72K1J-103JE 435031034R1 R232 C-CARBON R RN72K1J-103JE 435031034R1 R234...
  • Page 60 29/31 PAGE R501 C-CARBON R RN72K1J-473JE 435034734R1 R503 C-CARBON R RN72K1J-103JE 435031034R1 R504 C-CARBON R RN72K1J-000JE 435030004R1 R505 C-CARBON R RN72K1J-103JE 435031034R1 R508 C-CARBON R RN72K1J-105JE 435031054R1 R509 C-CARBON R RN72K1J-221JE 435032214R1 R510 C-CARBON R RN72K1J-470JE 435034704R1 R511 C-CARBON R RN72K1J-103JE 435031034R1 R512...
  • Page 61 30/31 PAGE R655 C-CARBON R RN72K1J-223JE 435032234R1 R656 C-CARBON R RN72K1J-223JE 435032234R1 R657 C-CARBON R RN72K1J-224JE 435032244R1 R660 C-CARBON R RN72K1J-221JE 435032214R1 R661 C-CARBON R RN72K1J-221JE 435032214R1 R670 C-CARBON R RN72K1J-472JE 435034724R1 R671 C-CARBON R RN72K1J-272JE 435032724R1 R672 C-CARBON R RN72K1J-472JE 435034724R1 R673...
  • Page 62 31/31 PAGE R8931 C-CARBON R RN72K1J-104JE 435031044R1 R8933 C-CARBON R RN72K1J-563FE 435035632R1 R8934 C-CARBON R RN72K1J-274FE 435032742R1 R8935 C-CARBON R RN72K1J-103FE 435031032R1 R8936 C-CARBON R RN72K1J-103FE 435031032R1 R8951 C-CARBON R RN72K1J-103JE 435031034R1 R8953 C-CARBON R RN72K1J-333FE 435033332R1 R8954 C-CARBON R RN72K1J-124FE 435031242R1 R8955...
  • Page 63 HT-R592 Technical Support, Service Department 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8163 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 800-229-1687, 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/ Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4208-213 http://www.eu.onkyo.com/...
