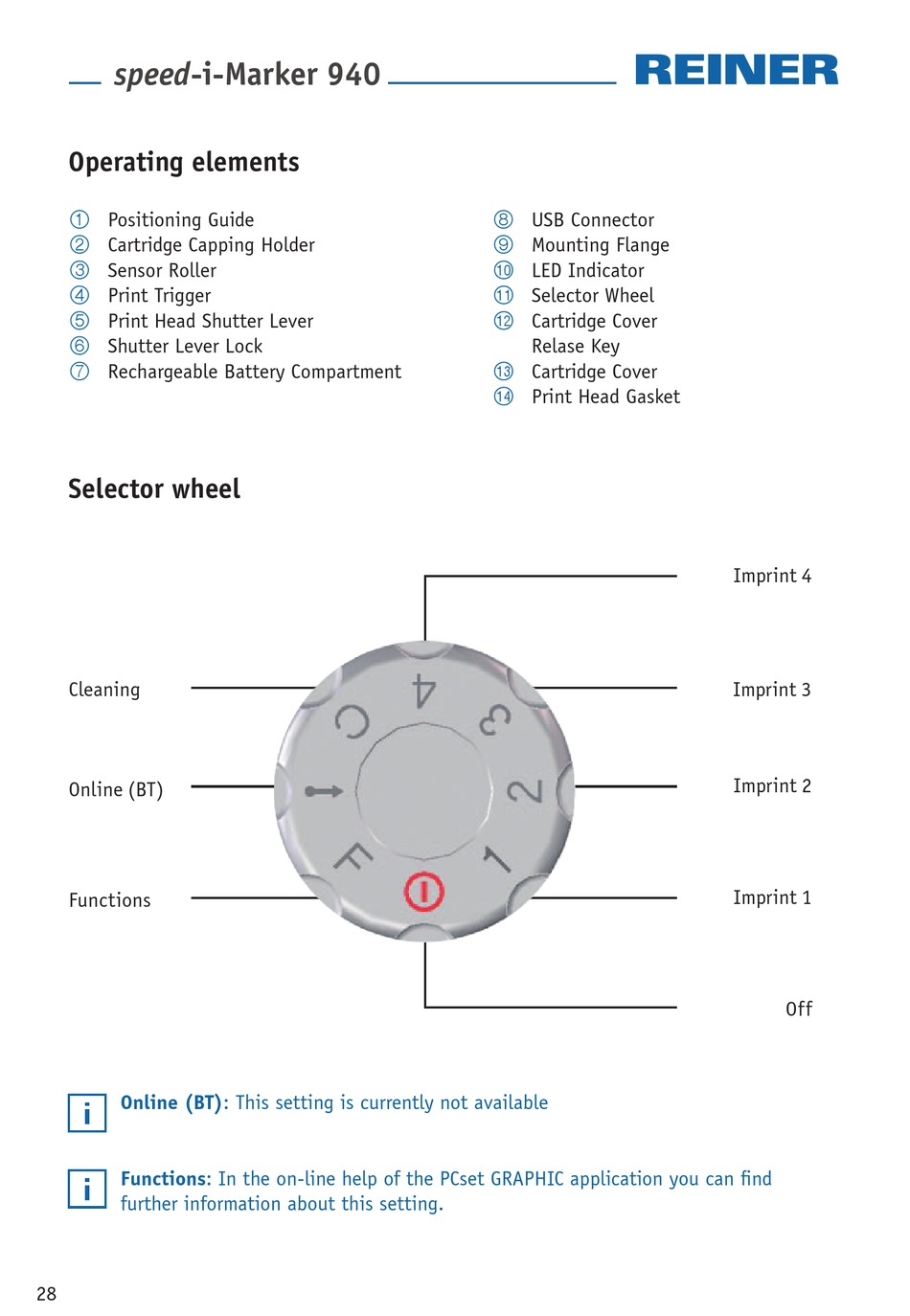

speed-i-Marker 940
Operating elements
Positioning Guide
1
Cartridge Capping Holder
2
Sensor Roller
3
Print Trigger
4
Print Head Shutter Lever
5
Shutter Lever Lock
6
Rechargeable Battery Compartment
7
Selector wheel
Cleaning
Online (BT)
Functions
Online (BT): This setting is currently not available
Functions: In the on-line help of the PCset GRAPHIC application you can find
further information about this setting.
28
USB Connector
8
Mounting Flange
9
LED Indicator

Selector Wheel

Cartridge Cover

Relase Key
Cartridge Cover

Print Head Gasket
o
Imprint 4
Imprint 3
Imprint 2
Imprint 1
Off
