OptEnet Chassis should already be installed, power supplies installed, and power connections
made before installing OptEnet 1000 Mb/s Media Converter Modules. Media converter
modules can be safely removed and installed into a powered chassis. Module installation is
shown in Figure 3.
1. Locate the designated slot in the chassis for the module.
Danger: To avoid the possibility of severe and potentially fatal electric shock, never install
electrical equipment in a wet location or during a lightning storm.
Caution: Electronic modules can be damaged by electrostatic discharge (ESD). To prevent this,
take the following precautions:
• Wear an anti-static-discharge wrist strap while handling modules.
• Place modules in anti-static packing material when transporting or storing them.
• Place modules on an approved, electrically grounded, anti-static mat when working on them.
2. Set the DIP switches to the desired settings.
3. Slide OptEnet 1000 Mb/s converter module into slot and plug it into connector on the
backplane. Modules can be plugged into any empty slot in the chassis. All fiber connectors
are mounted in straight retainers. Module is held in place with thumbscrew fasteners.
MEDIA
CONVERTER
MODULE
4. Secure the module in place by tightening the captive thumbscrews on each end. Be sure
that they are properly threaded before tightening.
5. Verify that the POWER LED is lit.
Caution: Always allow sufficient fiber length to permit routing without severe bends. Fibers
may be permanently damaged if bent/curved to a radius of less than 1.5 in. (3.81 cm).

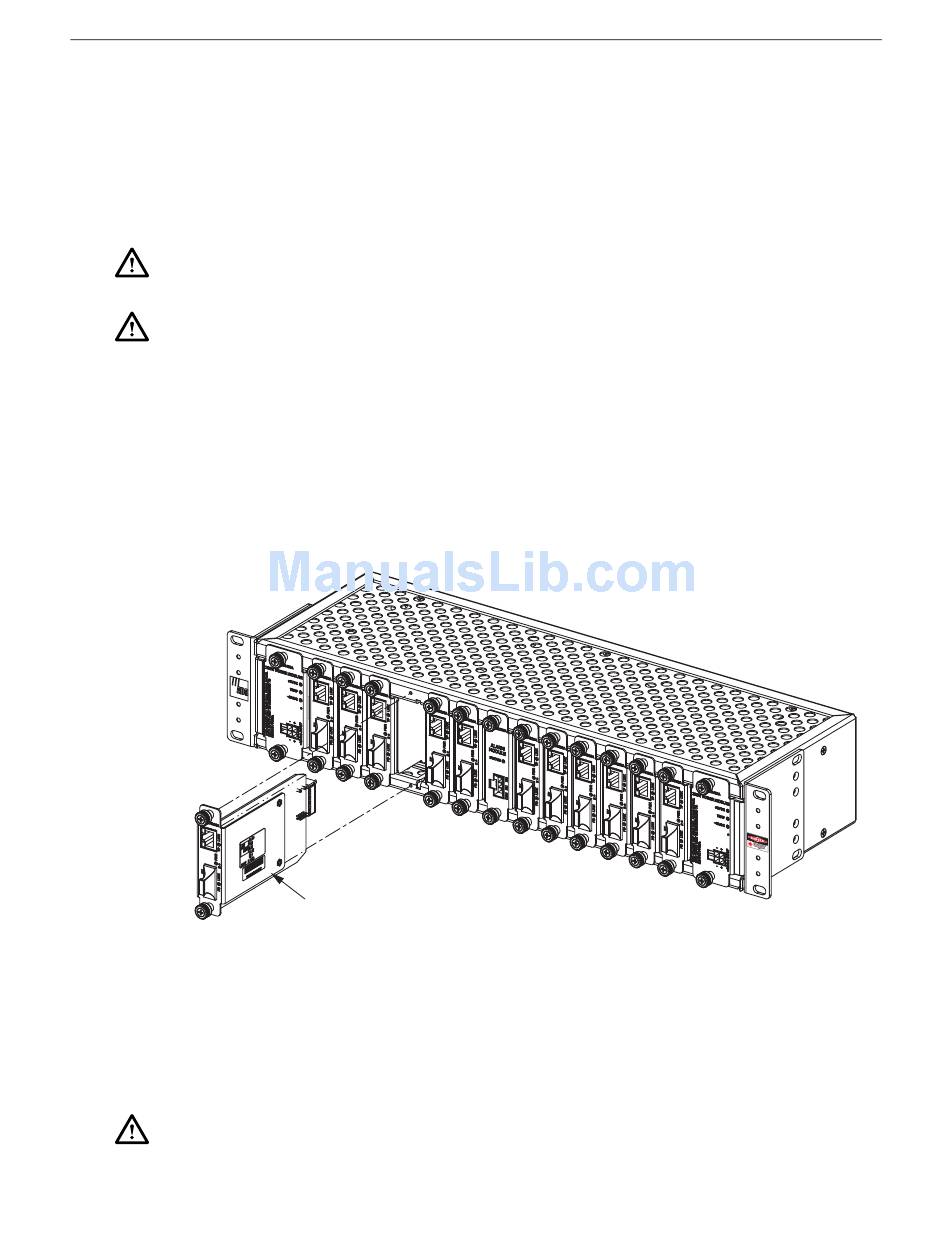

Figure 3. Installing Media Converter Module
