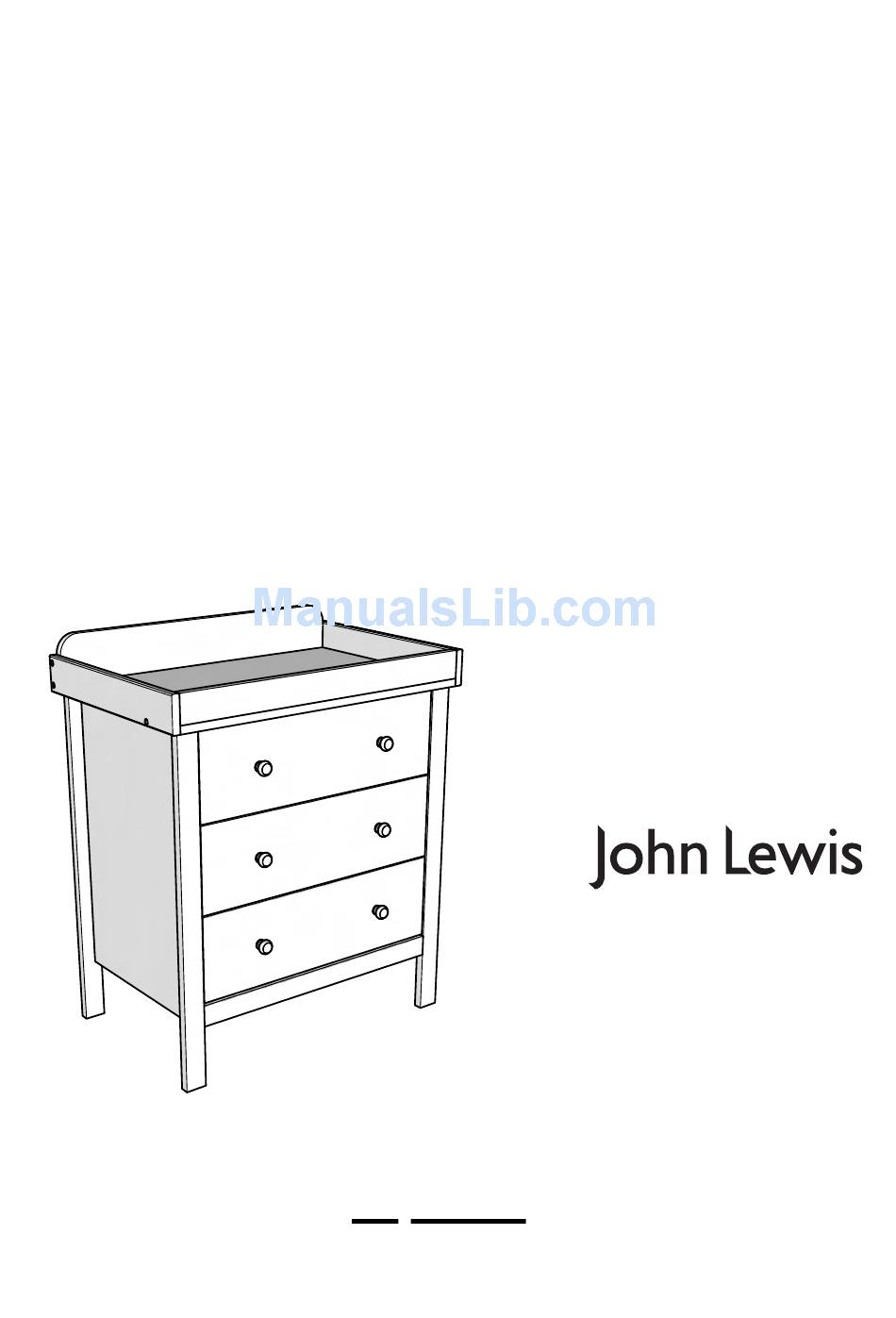

- Page 1 Instruction manual Important retain for future reference please read carefully...
- Page 2 Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact your nearest John Lewis department store. Lay out the parts on a soft level surface and compare to the part/fixing checklist on pages 2 and 3.
- Page 3 Wooden Parts Crossbar x 1 Top Panel x 1 Drawer Brace x 3 Drawer Back x 3 Side Panel x 2 (L & R) Base x 1 Drawer Side (L & R) x 6 Drawer Base x 3 Changer Front x 1 Changer Side x 2 (L &...
-
Page 4: Assembly
Assembly 1 NOTE: Take care to insert the dowels into the correct holes as indicated. Repeat for the opposite end of the crossbar and base. (Total 8 dowels) Base Crossbar E x 4 Assembly 2 Top Panel Base Crossbar D x 3 D x 3 Side Panel... - Page 5 Assembly 3 Side Panel D x 6 Assembly 4 Back Panel (Top) Back Panel (Bottom) G x 12 (each panel) NOTE: Ensure that the slot in the Back Panel (Top) is toward the upper edge when attached to the dresser frame. When fitting the Back Panels, push into the corner so that the side and top edges contact the rebate evenly all the way around the frame of the dresser.
-
Page 6: Each Side
Assembly 5 Drawer Front B x 2 Drawer Side Drawer Base J x 2 A x 2 Drawer Side (each side) NOTE: Repeat for remaining drawers Assembly 6 Drawer Brace Drawer Back K x 4 F x 2 (each side) NOTE: Repeat for remaining drawers... - Page 7 Assembly 7 Assembly 8 Changer Back Changer Front E x 3 (Each end)
- Page 8 Assembly 9 Changer Back Changer Side D x 2 D x 3 Assembly 10 Changer Front Changer Side D x 3...
- Page 9 Assembly 11 The dresser is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Screw (15mm) Screw (25mm) Washer x 2...
-
Page 10: Care And Maintenance
Do not use the changing unit if any of the parts are broken, torn or missing. Any additional or replacement parts can only be obtained from the manufacturer or the distributer. This changing unit complies with BSEN 12221:2008 +A1:2013. John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com...
