Thermaltake TR2 RX User Manual

Thermaltake TR2 RX User Manual

Cable management 550w atx 12v 2.2 version
Hide thumbs Also See for TR2 RX:

Advertisement

T R 2 R X
C a b l e M a n a g e m e n t
E193705
www.thermaltake.com
thermaltake@thermaltake.com
Thermaltake TR2 Power Supply
www.tr2tt.com
sales.tr@tr2tt.com
5 5 0 W
>> >>
ATX 12V 2.2 Version
Revision A 2007.04
T R 2 R X
C a b l e M a n a g e m e n t
TR2 RX
Cable Management
User's M anual > >

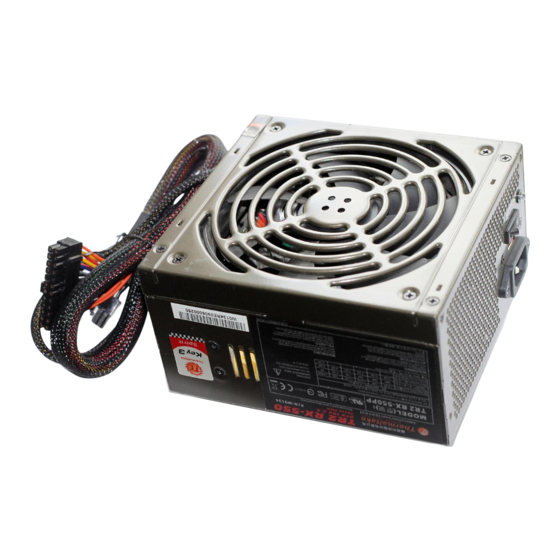

TR2 RX Cable Management 550W Power Supply
Thermaltake TR2 Power Supply
5 5 0 W
ATX 12V 2.2 Version
550W

power Supply

ATX 12V 2.2 Version
>> >>

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR2 RX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Thermaltake TR2 RX

  • Page 1: Power Supply

    ATX 12V 2.2 Version TR2 RX 550W Cable Management power Supply ATX 12V 2.2 Version User's M anual > > TR2 RX Cable Management 550W Power Supply E193705 www.thermaltake.com thermaltake@thermaltake.com Revision A 2007.04 Thermaltake TR2 Power Supply Thermaltake TR2 Power Supply www.tr2tt.com...
  • Page 2: Table Of Contents

    ATX 12V 2.2 Version ATX 12V 2.2 Version 1. Introduction Table of contents We live up to the promise of Thermaltake logo in 1. Introduction ------------------------------------ our unending quest for excellence. 2. Components Check ----------------------- Shall you have any suggestion or comments, please access our web site : 3.
  • Page 4: Embedded Socket And Modularized Cable Management

    3.2.2 TR2 RX Cable Management 550W unit: On the power supply, 3.3.6 Connect the 6-pin PCI Express connector to PCI Express you will find sockets to connect with those cables. Users can graphic card if you need.
  • Page 5: Product Specification

    PCI Express connector (6 pin) Color Signal Yellow 12V DC Yellow 12V DC Yellow 12V DC Black Floppy disk connector (4 pin) Black Color Signal Black +5VDC Black Black Yellow +12V DC Thermaltake TR2 Power Supply Thermaltake TR2 Power Supply...
  • Page 6: Tr2 Rx Cable Management 550W

    C a b l e M a n a g e m e n t C a b l e M a n a g e m e n t ATX 12V 2.2 Version ATX 12V 2.2 Version TR2 RX Cable Management 550W Specification Features: Serial ATA Power Connector Color Signal - Complies with ATX 12V 2.2 Version.
  • Page 7: Other Specification

    0.0 A 0.0 A Load 100KHrs minimum Peak 3.5 A load Load +5% ~ -5% +5% ~ -5% +5% ~ -5% +5% ~ -5% +10% ~ -10% +5% ~ -5% Reg. Ripple V(p-p) Thermaltake TR2 Power Supply Thermaltake TR2 Power Supply...
  • Page 8: Protection

    4.5.5 Operating Altitude 0 to 10,000 feet 4.5.6 Storage Altitude 0 to 50,000 feet 4.6 Hi-Pot: (Input/Output isolation) 4.6.1 Primary to Secondary 3535Vdc for 1 minute 4.6.2 Insulation Resistance Primary to earth ground 500Vdc, 50M ohms Min. Thermaltake TR2 Power Supply Thermaltake TR2 Power Supply...
  • Page 9: Trouble Shooting

    I f t h e p o w e r s u p p l y s t i l l c a n n o t o r i s s t i l l u n a b l e t o p o w e r u p a f t e r Thermaltake Australia and New Zealand Pty Ltd...

This manual is also suitable for:

W0134
