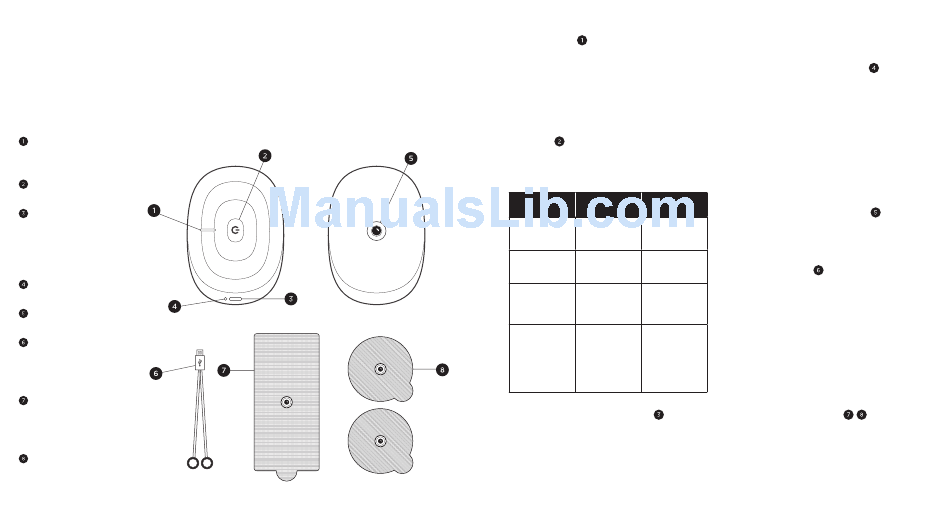

POWERDOT
DEVICE
& ACCESSORIES
Power/Stimulation
Indicator
Multifunction Button
Micro USB connector
(dual function:
connects either leads
or charging cable)
Charging Indicator
Snap-on connector
Lead cable with two
3.5 mm female snap
connectors
Rectangular pad with
2.2 mm male snap
connector
Round pad with
3.5 mm male snap
connector
10
POWER/STIMULATION
INDICATOR :
Can be either WHITE (when
PowerDot is on or on standby mode)
or ORANGE (when it's being used for
stimulation).
MULTIFUNCTION BUTTON
MODES :
The touch-enabled Multifunction Button
carries out these PowerDot functions:
Multifunction PowerDot PowerDot Re-
Button Action Initial State sulting State
PowerDot is
Hold for ~1 PowerDot is
now ON (white
second OFF (no lights)
light is on)
PowerDot is PowerDot is
Quick Click ON (white light now OFF
is on) (no lights)
PowerDot is Stimulation
in Stimulation stops
Quick Click
(orange light (orange light
is on) is on)
Activation lock
is released,
Power LED
Hold for 5
Device is ON blinks several
seconds
times, and the
PowerDot is
OFF
MICRO-USB CONNECTOR :
PowerDot uses the same high voltage
micro-USB connector (3) for lead cable
connection and for charging.
If the device is being used for stimulation,
it will immediately stop once the lead
cables are disconnected from the micro-
USB connector.
the
CHARGING INDICATOR
While the device is still charging, you
will see the ORANGE Charging Indicator
(4) next to the micro-USB charging
connector.
Refer to the Recharging
section below for more information on
PowerDot charging.
SNAP-ON CONNECTOR
Used to attach and hold the PowerDot
device in place on the rectangular pad.
LEAD CABLE :
For an easier, more
PowerDot stimulation, two lead cables of
different lengths (10 cm and 30 cm) (6)
are provided with each PowerDot. These
give you the option to choose the right
cable to reach the muscle group you're
targeting, depending on your physical
measurements.
ELECTRODE PADS , :
PowerDot uses two types of electrode
pads – one 9x5 cm (3.5"x2") rectangular
pad (7) and a pair of 5.5 cm (2.1") round
pads (8). The rectangular pad also acts as
a holder for the PowerDot device itself.
11
:
PowerDot
:
comfortable
