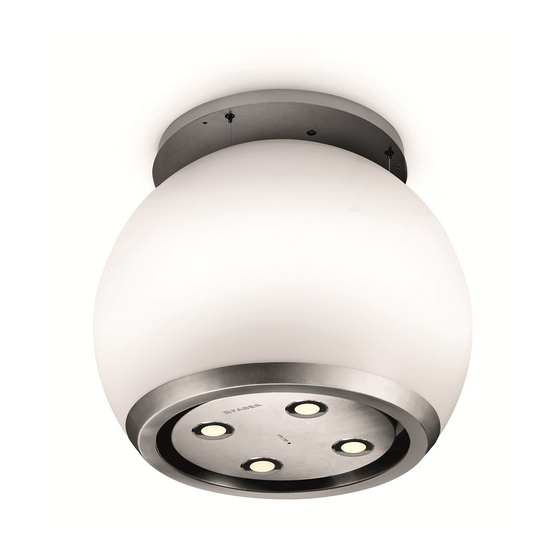

Summary of Contents for Faber ARKEA

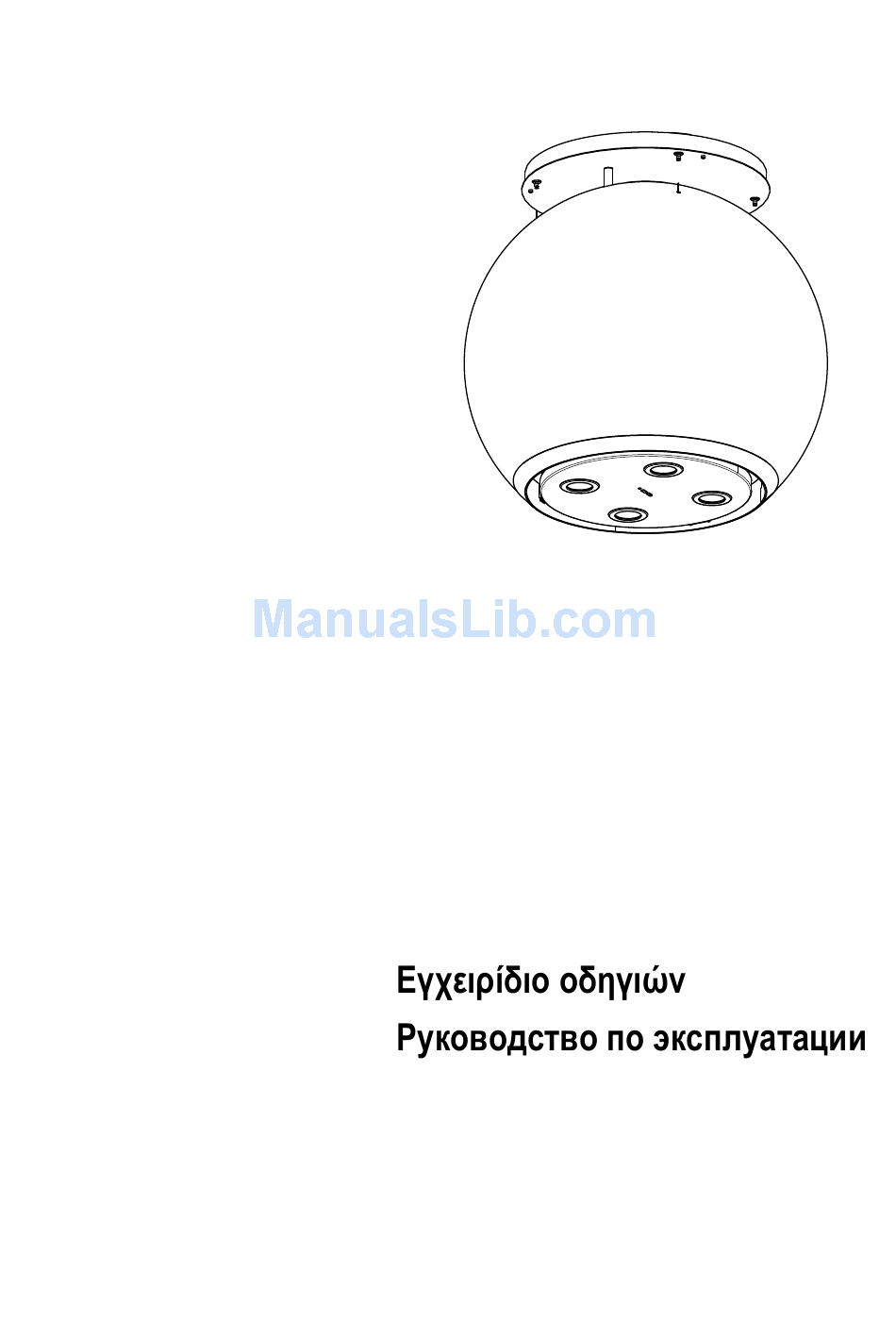

- Page 1 Instructions Manual Manuel d’Instructions Bedienungsanleitung Manual de instrucciones Gebruiksaanwijzing Kullanim Kilavuzu...
-
Page 2: Table Of Contents
INDEX RECOMMENDATIONS AND SUGGESTIONS ........................4 CHARACTERISTICS ................................7 INSTALLATION..................................8 USE ...................................... 15 MAINTENANCE ................................... 17 SOMMAIRE CONSEILS ET SUGGESTIONS............................20 CARACTERISTIQUES................................. 23 INSTALLATION..................................24 UTILISATION ..................................31 ENTRETIEN ..................................33 INHALTSVERZEICHNIS EMPFEHLUNGEN UND HINWEISE ........................... 36 CHARAKTERISTIKEN ................................. 39 MONTAGE ................................... - Page 3 INHOUDSOPGAVE ADVIEZEN EN SUGGESTIES............................100 EIGENSCHAPPEN ................................103 INSTALLATIE..................................104 GEBRUIK ................................... 111 ONDERHOUD..................................113 IÇERIKLER TAVSIYELER VE ÖNERILER............................116 ÖZELLIKLER..................................119 MONTAJ..................................... 120 KULLANIM ..................................127 BAKIM ....................................129...
-
Page 4: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. - Page 5 • If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled. • Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
- Page 6 • “CAUTION: Accessible parts may become hot when used with cooking appliances.” MAINTENANCE • Switch off or unplug the appliance from the mains supply before carrying out any maintenance work. • Clean and/or replace the Filters after the specified time period (Fire hazard). •...
-
Page 7: Characteristics
CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components Hood Canopy complete with: Controls, Light, Filters, Motor. Hood support plate. Ref. Q.ty Installation Components Wall plugs ø 10 Screws 4.2 x 44.4 Q.ty Documentation Instruction Manual... -
Page 8: Installation
INSTALLATION This hood is designed to be mounted on the ceiling/on a shelf, above a free-standing Hob (min. 650 mm), in: • Recirculation version: Internal recirculation. Sequence of operations - Installation • Preparing for installation • Drilling the Ceiling/Shelf and Fixing the support plate •... - Page 9 Ceiling/Shelf drilling and Plate Fixing CEILING/SHELF DRILLING • Use a plumb-line and mark the centre of the cooking hob on the Support Ceiling/Shelf • Rest the Plate against the Ceiling/Shelf, making sure it is the right way up, as shown in the figure.
- Page 10 FIXING THE PLATE • Lift up the Fixing plate and fit the slots onto the two screws previously inserted in the ceiling, and turn un- til they are at the centre of the adjustment slot. Warning: The plate must be facing in the direction shown in the figure •...
- Page 11 CONNECTING HOOD-PLATE CABLES N.B. Before proceeding with installation the Hood must be raised to a height of at least 650 mm above the cooker hob by means of a support or with the assistance of another person. Take care not to exceed the maximum hood extension indicated in the dimensional drawing.
- Page 12 • Pay attention to the direction of the plate fixed to the ceiling (the plate limit pawl has a corresponding hole on the plate cover and on the hood canopy). • Insert the safety knobs (c) into the respective cables, with the thread to the top.
- Page 13 • Pass the Cables into the slots on the threaded pawls (a) and tighten the cable locking screws (b) into the pawls themselves. • When the operation has been completed, the result should be as shown in the figure for all 4 cables.
-
Page 14: Maintenance
FIXING THE POWER SUPPLY CABLE • Tighten the power supply cable and fix it to the bracket on the ceiling- mounted plate, using the tongue already mounted and 2 screws. • Slot the rubber cable raceway already threaded onto the power cable into the slot to prevent future damage. -
Page 15: Control Panel
Control panel Button Function Display Turns the lights On/Off. Hood Down On/Off Press for 2 seconds to raise the Hood. Press briefly to turn the Motor On/Off. Hood Up Off/Off Press once: The Hood lowers. Press a second time: The Hood Stops. When the movement has been completed the motor turns on at Speed two. -
Page 16: Remote Control
REMOTE CONTROL The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03- AAA type (not included). • Do not place the remote control near to heat sources. • Used batteries must be disposed of in the proper manner. Control panel Button Function... - Page 17 MAINTENANCE Grease filter The filter must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. CLEANING METAL SELF- SUPPORTING GREASE FILTER • Open the lighting unit by pulling on the nocth. •...
-
Page 18: Installation
Additional information for the installation technician Hood canopy lighting It is possible to adjust the colour and intensity of the hood canopy lighting • Open the lighting unit by pulling on the notch provided. • Adjust the lighting, using the buttons on button pad B, following the indications provided on the label Procedure to be used in case of malfunction on the movement •... - Page 19 Adjusting Hood canopy lighting Button Colour Function Manages the intensity of the colour Red. Press and hold the button to increase or decrease the intensity each time you press. The maximum and minimum intensity limits are marked by a brief flash of the selected colour on the lamp.
-
Page 20: Utilisation
CONSEILS ET SUGGESTIONS Les instructions pour l’utilisation se réfèrent aux différents modèles de cet appareil. Par conséquent, certaines descriptions de caractéristiques particulières pourraient ne pas appartenir spécifiquement à cet appareil. INSTALLATION • En aucun cas le fabricant ne peut être tenu pour responsable d’éventuels dommages dus à...
