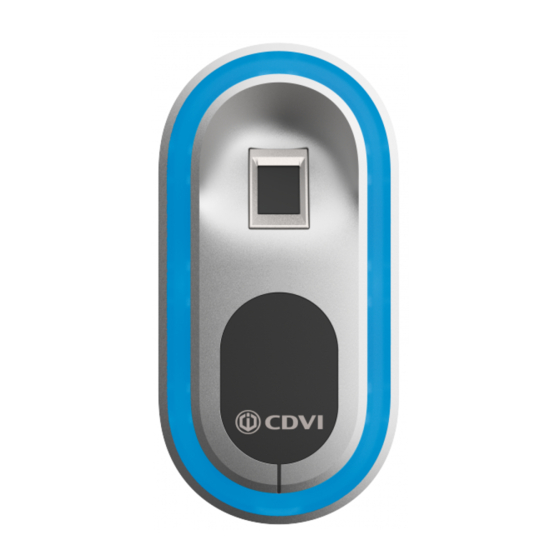

- Page 1 BIOSYS 1 Stand alone fingerprint reader...
- Page 2 User Card Part No: MASTERBIO Part No: USERBIO IP52 -10°C to +50°C DEEE The BIOSYS 1 product complies with Directive 1999/5/CE REMINDERS & RECOMMENDATIONS Wiring Reminder The maximum distance between the controller and the reader head is 50m. Surround Indicator LED’s Beware of mains (240Vac) connections.
- Page 3 MOUNTING 90° 35 mm ¿5 1.38 po ¿8 35 mm ø5 1.38 po www.cdvigroup.com...
- Page 4 WIRING Make sure the drain wire PE is connected...
- Page 5 IP52 < 50 m / 164 ft SYT 3P 24AWG IP52 12VDC (-10% / +20%) 12VDC Make sure the drain wire PE is connected www.cdvigroup.com...
- Page 6 PARAMETERS Reset mastercard LOCK RELAY TIME System default WIEGAND 12 V 1 sec. 26 bits 5 sec. Common Ground 30 bits 10 sec. Clock Data 0 15 sec. Data 1 44 bits DIP switch NOT USED...
- Page 7 INSTALLATION WITH ONE READER HEAD Buzzer NOT USED Permanently lit Tamper alarm Make sure the drain INSTALLATION WITH TWO READER HEADS wire PE is connected www.cdvigroup.com...
-
Page 8: First Time Power Up
FIRST TIME POWER UP START BIOSYS1 Master Card BEEP BEEP BEEP 20 secs 1/2/3 Return to section 1,2 & 3 REGISTRATION OF FINGERPRINTS UP TO 500 USERS Master Card Note: If registration is not completed within 60 seconds, the unit will revert to standby User Card BEEP BEEP... -
Page 9: Normal Use
NORMAL USE BEEP If “Permanently Lit” is selected, then the LED surround will indicate all the time. If “Permanently Lit” is not selected, then the LED surround will be off, and will only BEEP indicate when it senses a finger present - with no activity, the LED surround will Unrecognised fingerprint remain lit for 30 seconds then switch off. - Page 10 MORE PROGRAMMING DUPLICATE THE MASTER CARD BEEP BEEP New Master Card Existing Master Card MASTER CARD CANCELLATION DIP switch Note: After deleting a Master Card, the next Master Card presented will automatically be added - as indicated by the green LED RESET DIP switch Note: Leave DIP 2 on until the FIRST red LED flash with an audible “chirp”...
- Page 11 A General Alarm will be activated: • If the door contact (CP) is connected and there has been an attempt to force the door; or the door was not closed within 60 seconds of a valid transaction. • If there is loss of communication between the controller and the reader head for more than 25 seconds.
