Page 1: Installation Guide

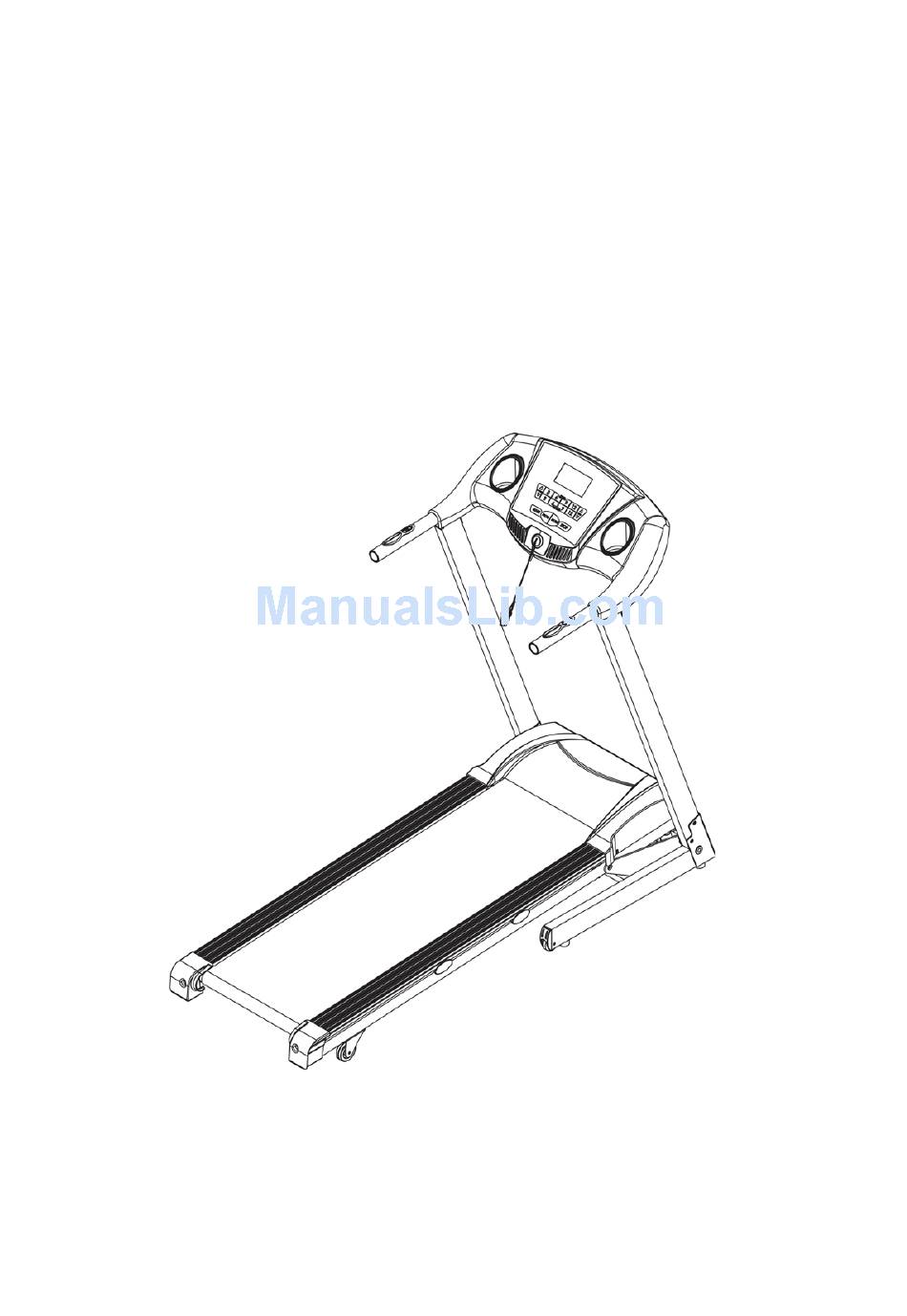

Installation Guide Reach T-3i... -
Page 2: Part List
ASSEMBLY INSTRUCTIONS When you open the carton, you will have below spare parts: PART LIST： DISCREPTION SPECS DISCREPTION SPECS Bolt M8*45 Main Frame Safety key 5# Allen Wrench M8*16 Oil bottle Bolt Lock washer FIXING TOOLS: 5# Allen Wrench 5mm 1pc Notice: Do not get through power before complete assembly... -
Page 3: Assembly Instruction
Assembly Instruction Open the carton, get out the above spare parts, and put the Main Frame onto the level ground. Holding computer frame ,use the 5# Allen wrench， Lock the base and right upright tube tight by screw M8*16(51) and lock washer（ 64） See as left picture. - Page 4 Use the 5# Allen wrench (12) ，lock the screw M8*45 (70) and lock washer （64） to the base frame through base And right upright tube. Notice: Support the upright with hand avoid falling down to have any hurt. Put the safety key (71) on the computer and start your exercise.
- Page 5 Pull up the base frame at position A, till hearing the sound that the air pressure bar B is locked into the round tube Support place A with hand, kick the place of air pressure bar, then the base frame will fall down automatically (Please keep...
-
Page 6: Technical Parameter
Technical Parameter BUILT UP 1580.5*670*1327mm POWER As the rating label showing SIZE(mm) FOLDED MAXIMUM 850*670*1470mm As the rating label showing SIZE(mm) OUTPUT POWER RUNNING 400*1200mm SPEED RANGE 0.8-12KM/H AREA(mm) MAX USER 100KG NET WEIGHT 53KG WEIGHT 1 LCD WINDOW SPEED/ TIME /DISTANCE/CALORIE/ PULSE DISPLAY Grounding Methods This product must be grounded. -
Page 7: Running Belt Adjustment
RUNNING BELT ADJUSTMENT Warning: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET BEFORE CLEANING OR SERVICING THE UNIT. Clean: General cleaning or the unit will greatly prolong the treadmill. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails. - Page 8 Center the running belt Place treadmill on a level surface. Run Treadmill approximately 6-8KM/H, checking the running condition. If the belt has drifted to the right, pull out of the save clock and switch, turn the right adjusting bolt 1/4 turn clockwise, then start running until centering the belt.
- Page 10 DISCREPTION SPECS QTY. DISCREPTION SPECS QTY. Rubber pad 2 MAIN FRAME Magnetic ring BASE FRAME Upright bracket Blue single wire Bottle holder bolt M8*25 Motor frame Lock nut Computer Bracket Bolt ST4.2*28 Bolt M6*45 rubber pad Bolt M6*65 TURNING BUSHING Bolt M8*16 FRONT ROLLER...
- Page 11 Fault Code Main reason Solution 1 ． Check the connection wire between The wire from computer to bottom Computer a n d c o n t r o l b o a r d w a s control board didn’t connected well w e l l connected.
