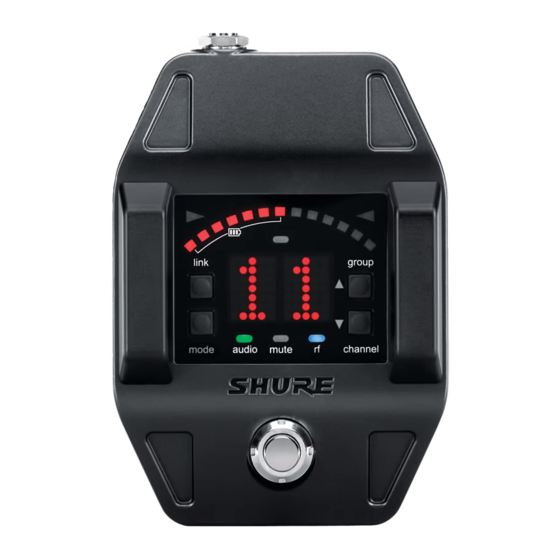

Shure GLXD6 User Manual
Guitar pedal receiver / tuner
Hide thumbs
Also See for GLXD6:
- User manual (68 pages) ,
- Manual (33 pages) ,
- Instructions manual (18 pages)
Table of Contents
Advertisement
GLXD6 Guitar Pedal Receiver / Tuner
© 2013 Shure Incorporated
27A20637 (Rev. Preliminary)
Shure Incorporated Confidential
Please Note: The following document layout is preliminary to identify,
organize, and prioritize content. All copy including titles, descriptions,
photos, specifications, and artwork are not final at this time.
User Guide
Printed in U.S.A.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shure GLXD6
Summary of Contents for Shure GLXD6

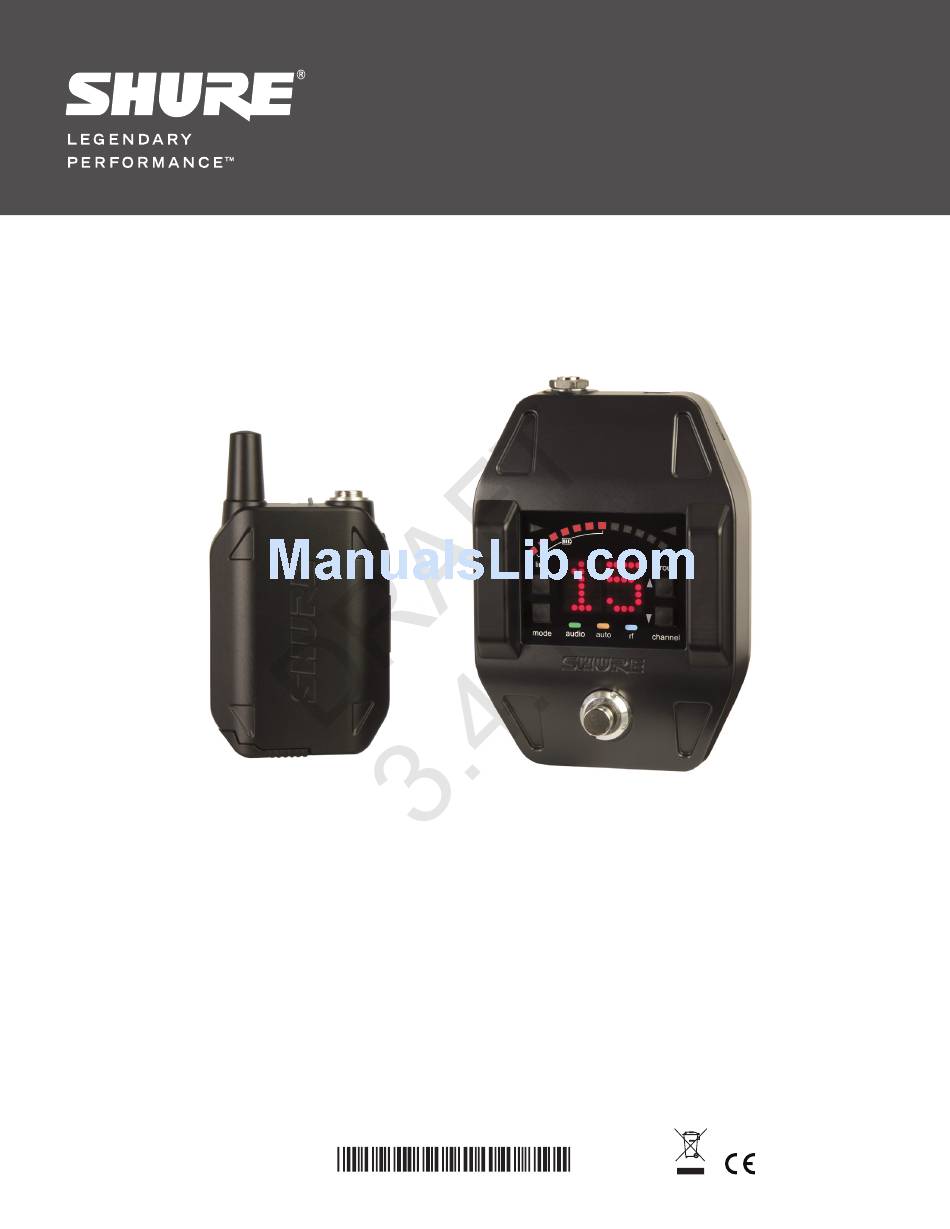

- Page 1 GLXD6 Guitar Pedal Receiver / Tuner User Guide Shure Incorporated Confidential Please Note: The following document layout is preliminary to identify, organize, and prioritize content. All copy including titles, descriptions, photos, specifications, and artwork are not final at this time.
- Page 3 • EMC conformance is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC performance. • Use this battery charger only with the Shure charging modules and battery packs for which it is designed. Use with other than the specified modules and battery packs may increase the risk of fire or explosion.
-
Page 4: System Overview
• Automatic transmitter power-off to conserve battery life when transmitter is not in use. • Rechargeable transmitter batteries deliver cost-efficiency and up to 16 hours of runtime Included Components Optional Accessories Shure Rechargeable Battery SB902 Car Battery Charger SBC-CAR Micro USB Battery Charger SBC-USB... -
Page 5: Guitar Pedal Receiver Overview
Guitar Pedal Receiver Overview ① Power Switch Turns power on or off. ② DC Power Connector Connect DC power supply (9 to 15 V DC, 250 mA min.) Compatible with positive tip or negative tip Note: power supplies. ③ Audio Output Jack Connect to amplifier or mixer. -
Page 6: Transmitter Status Led
• Press momentarily to activate Remote ID function to a linked receiver ⑦ Battery Compartment Holds Shure rechargeable battery. Transmitter Status LED Wearing the Bodypack Transmitter LED is green during normal operation. Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown. - Page 7 Batteries and Charging GLX-D transmitters are powered by Shure SB902 lithium-ion rechargeable batteries. Advanced battery chemistry maximizes runtimes with zero memory effects, eliminating the need to discharge batteries prior to charging. When not in use, recommended battery storage temperature is 10°C (50°F) to 25°C (77°F).
-
Page 8: Multiple Receiver Systems
Multiple Receiver Systems If several channels of wireless audio are needed, up to 8 GLX-D receivers can operate simultaneously in the 2.4 GHz spectrum. For ease of set up, available frequencies are divided into three groups based on the number of receivers supported. All receivers in the system must be set to the same group. - Page 9 • Reposition the receiver so there is nothing obstructing a line of a movie. sight to the transmitter (including the audience) • Locate GLX-D receivers away from non-Shure 2.4 GHz receivers • Keep the transmitter and receiver more than 2 meters (6 feet) apart •...
-
Page 10: Receiver Operation
Receiver Operation Audio Gain Adjustment Transmitter gain has an adjustment range from -20 dB to +40 dB, in 1 dB increments. link group link group Tip: Try the 0 dB (unity gain) setting as a starting point, and then make gain adjustments if necessary. 1. -
Page 11: Tuner Menu
Tuner Menu Enter tuner mode by pressing the footswitch. In tuner mode, the controls will only affect tuner functions. Receiver RF setting will not be affected. Tuner Options Selecting and Editing Tuner Menu Settings Use the following buttons to select and edit the tuner •... -
Page 12: Using The Tuner
Using the Tuner 1. Press the footswitch to enter tuner mode. 2. Play each note individually. The display shows the name of the note. 3. Adjust tuning until both indicators illuminate and the needle or strobe indicate that tuning is correct. Needle Mode Strobe Mode Both tuning indicators and the center green segment will... -
Page 13: Troubleshooting
Troubleshooting Issue Indicator Status Solution No sound or faint sound Receiver RF LED on • Verify all sound system connections or adjust gain as needed (see Adjusting Gain) • Verify that the receiver is connected to mixer/amplifier Receiver RF LED off •... -
Page 14: Specifications
Specifications Tuning Bandwidth Total Harmonic Distortion 2400–2483.5 MHz 0.2%, typical Working Range RF Output Power 60 m (200 ft) typical 10 mW E.I.R.P. max Note: Actual range depends on RF signal absorption, reflection and interference. Operating Temperature Range -18°C (0°F) to 57°C (135°F) Transmit Mode Note: Battery characteristics may limit this range. -
Page 15: Output Connections
GLXD6 Dimensions Pin Assignments 46 x 95 x 133 mm (1.8 x 3.7 x 5.2 in.), H x W x D 6.35 mm (1/4") connector Tip=audio, Ring=no audio, Weight Sleeve=ground 504 g (17.8 oz.) Housing Receiver Antenna Input Cast Metal, Black Powdercoat... -
Page 16: Information To The User
: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact information please visit www.shure.com The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance... - Page 17 Europe, Middle East, Africa: Shure Europe GmbH Jakob-Dieffenbacher-Str. 12, 75031 Eppingen, Germany Phone: 49-7262-92490 Fax: 49-7262-9249114 Email: info@shure.de PT. GOSHEN SWARA INDONESIA Kompleks Harco Mangga Dua Blok L No. 35 Jakarta Pusat 2013 Shure Incorporated I.16.GSI31.00501.0211...
