Multi 210 Instruction Manual

Ac current mini digital clamp tester
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

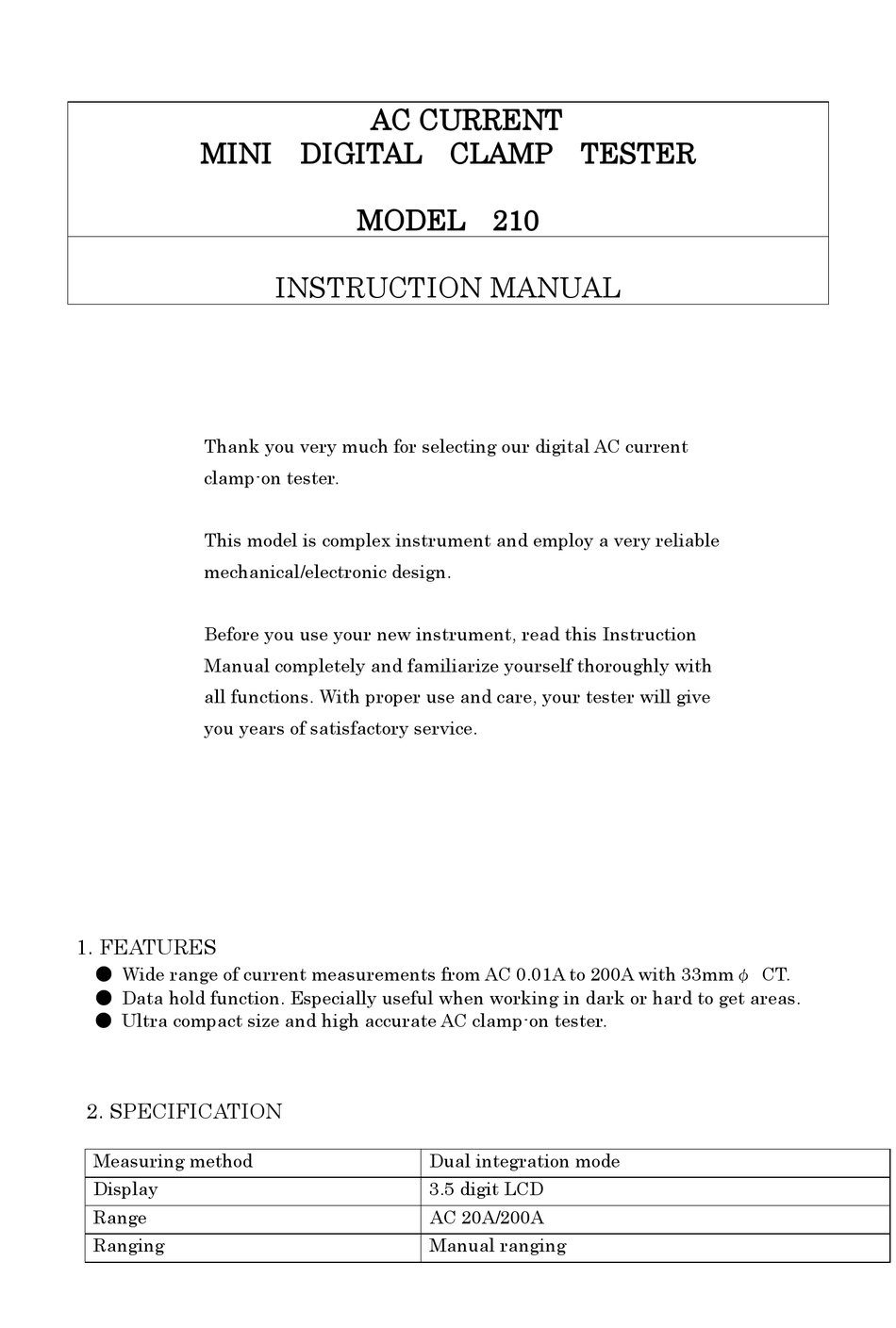

MINI DIGITAL CLAMP TESTER
Thank you very much for selecting our digital AC current
clamp-on tester.
This model is complex instrument and employ a very reliable
mechanical/electronic design.
Before you use your new instrument, read this Instruction
Manual completely and familiarize yourself thoroughly with
all functions. With proper use and care, your tester will give
you years of satisfactory service.

1. FEATURES

● Wide range of current measurements from AC 0.01A to 200A with 33mmφ CT.
● Data hold function. Especially useful when working in dark or hard to get areas.
● Ultra compact size and high accurate AC clamp-on tester.

2. SPECIFICATION

Measuring method
Display
Range
Ranging
AC CURRENT
MODEL 210

INSTRUCTION MANUAL

Dual integration mode
3.5 digit LCD
AC 20A/200A
Manual ranging

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 210 and is the answer not in the manual?

Questions and answers

Related Manuals for Multi 210

Summary of Contents for Multi 210

  • Page 1: Instruction Manual

    AC CURRENT MINI DIGITAL CLAMP TESTER MODEL 210 INSTRUCTION MANUAL Thank you very much for selecting our digital AC current clamp-on tester. This model is complex instrument and employ a very reliable mechanical/electronic design. Before you use your new instrument, read this Instruction Manual completely and familiarize yourself thoroughly with all functions.
  • Page 2 Accuracy: AC 50/60Hz (23℃③5℃, less than 80% RH) Range Mini. Resolution Accuracy AC 20A 0.01A ③1.2%rdg ③5dgt AC 200A 0.1A Jaw opening capability 23mmφ Over range indication Blanking of all digits except MSD1 Maximum indication 1999 count Low battery indication "B"...
  • Page 3 4. DIMENSIONS AND PANEL FUNCTION Current transducer (Jaw) Hand strap Jaw opening lever Range switch Data hold switch Power switch LCD display Battery cover 5. METHOD OF MEASUREMENT 5-1 Preparation and Caution before Measurement Before making measurement, install the batteries. (Two LR-44 or SR-44) ●...
  • Page 4 The warranty period is 12 months from the date of purchase and the instrument shall be repaired at free of charge, provided that we judge the cause of defect is obviously resulted from our responsibility. MULTI MEASURING INSTRUMENTS CO.,LTD. Akihabara Murai Bldg., 7F, 1-26 Kanda Sakuma-cho, Chiyoda-ku, Tokyo,101-0025 Japan...
