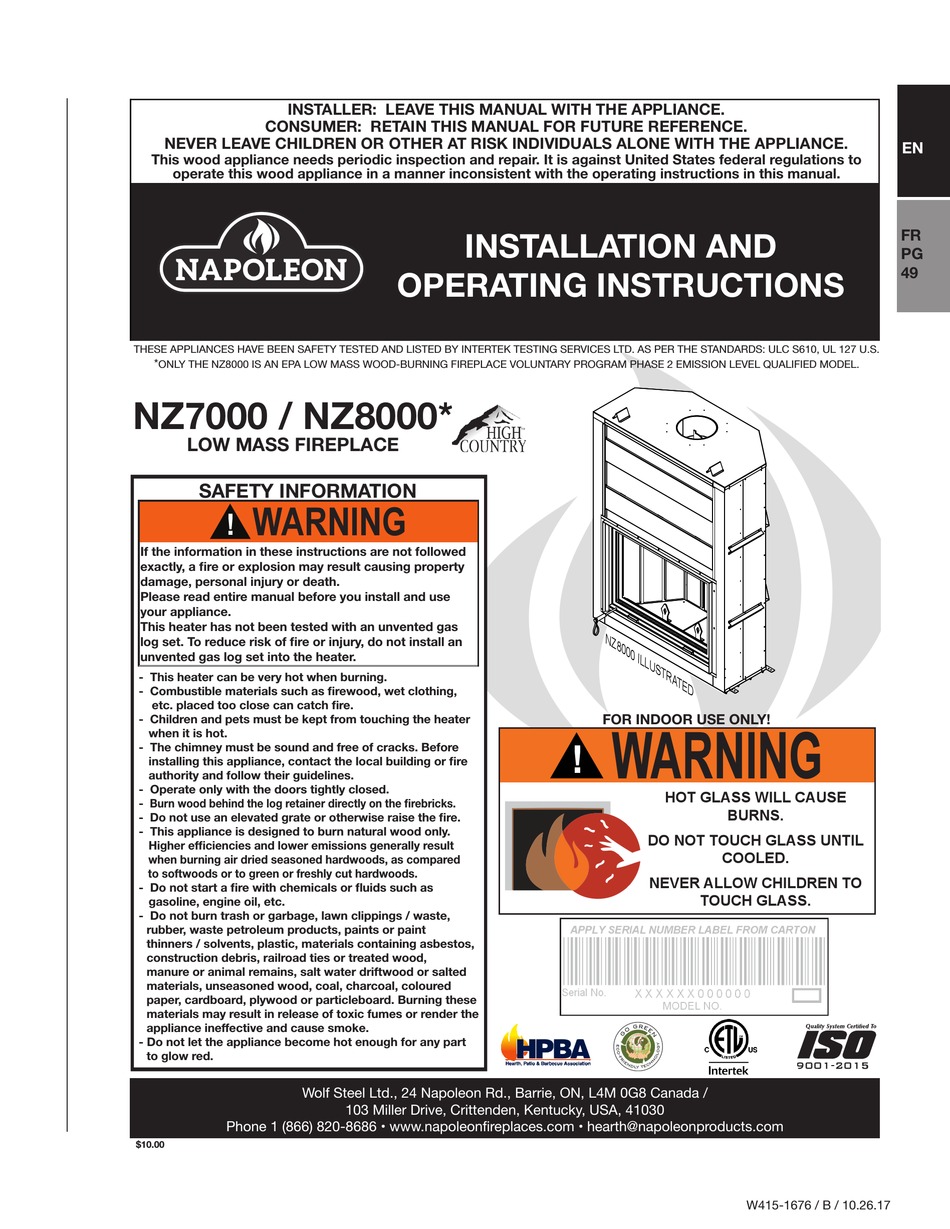

NZ7000 / NZ8000*
LOW MASS FIREPLACE

SAFETY INFORMATION

WARNING
!
If the information in these instructions are not followed
exactly, a fire or explosion may result causing property
damage, personal injury or death.
Please read entire manual before you install and use
your appliance.
This heater has not been tested with an unvented gas
log set. To reduce risk of fire or injury, do not install an
unvented gas log set into the heater.
- This heater can be very hot when burning.
DANGER
- Combustible materials such as firewood, wet clothing,
etc. placed too close can catch fire.
!
- Children and pets must be kept from touching the heater
when it is hot.
- The chimney must be sound and free of cracks. Before
HOT GLASS WILL CAUSE
installing this appliance, contact the local building or fire
authority and follow their guidelines.
- Operate only with the doors tightly closed.
DO NOT TOUCH GLASS UNTIL
- Burn wood behind the log retainer directly on the firebricks.
- Do not use an elevated grate or otherwise raise the fire.
- This appliance is designed to burn natural wood only.
Higher efficiencies and lower emissions generally result
NEVER ALLOW CHILDREN TO
when burning air dried seasoned hardwoods, as compared
to softwoods or to green or freshly cut hardwoods.
A barrier designed to reduce the risk of burns from
- Do not start a fire with chemicals or fluids such as
the hot viewing glass is provided with this appliance
gasoline, engine oil, etc.
- Do not burn trash or garbage, lawn clippings / waste,
and shall be installed for the protection of children
rubber, waste petroleum products, paints or paint
and other at-risk individuals.
thinners / solvents, plastic, materials containing asbestos,
construction debris, railroad ties or treated wood,
AVERTISSEMENT
manure or animal remains, salt water driftwood or salted
!
materials, unseasoned wood, coal, charcoal, coloured
paper, cardboard, plywood or particleboard. Burning these
materials may result in release of toxic fumes or render the
appliance ineffective and cause smoke.
LA VITRE CHAUDE CAUSERA
- Do not let the appliance become hot enough for any part
to glow red .
NE PAS TOUCHER LA VITRE
AVANT QU'ELLE AIT REFROIDI.
NE JAMAIS LAISSER LES
Phone 1 (866) 820-8686 • www.napoleonfireplaces.com • hearth@napoleonproducts.com
ENFANTS TOUCHER LA VITRE.
$10.00
Une barriére conçu à réduire le risque de brûlures
causées par le verre chaud est fourni avec l'appareil
et sera installé pour la protection des enfants et
d'autres personnes à risque.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
OPERATING INSTRUCTIONS
BURNS.
COOLED.
TOUCH GLASS.
DES BRÛLURES.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
WARNING
FOR INDOOR USE ONLY!
!
AVERTISSEMENT
!
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
LA VITRE CHAUDE CAUSERA
DES BRÛLURES.
NE PAS TOUCHER LA VITRE
AVANT QU'ELLE AIT REFROIDI.
NE JAMAIS LAISSER LES
ENFANTS TOUCHER LA VITRE.
W415-1676 / B / 10.26.17
EN
FR
PG
