Page 1 TABLE OF CONTENTS Adjusting and operating features such as door locks, mirrors, Before driving and steering column. When driving Driving, stopping and safe-driving information. Air conditioning and audio systems, as well as other Interior features interior features for a comfortable driving experience. Maintenance and Cleaning and protecting your vehicle, performing do-it- care...
Page 2: Table Of Contents
TABLE OF CONTENTS Index 1-6. Theft deterrent system....43 Before driving Engine immobilizer system..43 Alarm............ 44 1-1. Key information ......2 Theft prevention labels (U.S.A. Only) ......... 46 Keys ............2 1-7. Safety information....... 47 1-2. Opening, closing and locking Correct driving posture ....
Page 3 2-3. Operating the headlight and Using the radio....... 133 windshield wipers...... 96 Using the cassette player ..137 Using the CD changer ....140 Headlight switch......96 Optimal use of the audio Fog light switch ......100 system ..........147 Windshield wipers and Using the steering switches..
Page 4 Maintenance data....... 300 Fuel information......309 Tire information......312 5-1. Essential information....248 If your vehicle needs to be 6-2. Owner’s customize....322 towed..........248 Customizable features....322 If you think something is Initializing your Lexus....324 wrong ..........253...
Page 5 For US owners Reporting safety defects for US owners ........... 326 Index Alphabetical index...... 328 What to do if........335...
Page 6 Pictorial index Exterior Retractable hardtop P.35 Windshield wipers P.101 Side mirrors P.30 Hood P.194 Fuel filler door P.39 Turn signal light (front) P.89 Headlight P.96 Front fog light P.100...
Page 7 Trunk P.10 Rear window defogger Doors P.129 Turn signal light (rear) Tire P.89 Rotation P.212 Replacement P.272 Inflation pressure P.219 Information P.312...
Page 8 Pictorial index Interior Ashtray P.163 SRS airbags P.49 Power window switches P.32 Driving position memory buttons P.15 SRS airbag P.49 Cup holder P.159 Front seats P.13 SRS side airbags P.49...
Page 9 Sun visors P.161 Vanity mirrors P.161 Personal lights P.154 Garage door opener buttons P.170 Auto anti-glare mirror P.29 Door lock switch Window lock switch P.32 Power window switches P.32 Door lock switch Power window switch P.32...
Page 10 Pictorial index Instrument panel  Navigation system Emergency flasher switch P.44 Navigation System Owner’s Manual Windshield wiper and washer switch P.101 Clock P.162 Cruise control Rear window defogger switch switch P.104 P.129 Steering switches P.149 Glove box P.156 Driving pattern selector switch P.86 Cigarette lighter P.164...
Page 11 Headlight cleaner switch P.103 Headlight switch P.96 Tilt and telescopic light control P.27 Instrument panel light control P.92 Rear view mirror adjusting switch P.30 Parking brake release lever P.90 Hood lock release lever P.194 Trunk lid opener P.10 Adaptive front lighting system cancel switch P.98 Fuel filler door opener P.39...
Page 12: For Your Information
SRS airbag sys- tem and seat belt pretensioner system, be sure to check with your Lexus dealer for precautionary measures or special instructions regarding installation.
Page 13 Scrapping of your Lexus The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Lexus dealer before you scrap your vehicle.
Page 14 This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Lexus and its equipment. Safety symbol In this manual, you will also see a circle with a slash through it.
Page 15: Before Driving
Before driving 1-1. Key information ......2 Retractable hardtop ....35 Keys ............2 1-5. Removing the fuel tank cap ..........39 1-2. Opening, closing and locking the doors and trunk ....4 Removing the fuel tank cap ..........39 Wireless remote control ....4 Doors............
Page 16: Key Information
Key number plate ■ Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a key is lost, a new key can be made at your Lexus dealer using the key number plate.
Page 17 1-1. Key information NOTICE To prevent key damage ■ Do not bend the keys, expose them to high temperatures by placing them in ● direct sunlight, or get them wet. Do not expose the keys to electromagnetic materials or any material that blocks ●...
Page 18: Opening, Closing And Locking The Doors And Trunk
1-2. Opening, closing and locking the doors and trunk Wireless remote control The wireless remote control can be used to lock and unlock the vehicle and the trunk from outside the vehicle. Locks doors Push and hold to sound alarm. Unlocks both side...
Page 19 1-2. Opening, closing and locking the doors and trunk Security feature ■ If a door is not opened for approximately 30 seconds after the vehicle is unlocked, the anti-theft system automatically locks the vehicle again. Door lock buzzer ■ If a door is not fully closed, a buzzer sounds continuously if an attempt to lock the door is made.
Page 20 1-2. Opening, closing and locking the doors and trunk FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. Certification for the wireless remote control (for vehicles sold in Canada) ■...
Page 21: Doors
1-2. Opening, closing and locking the doors and trunk Doors The vehicle can be locked and unlocked using the remote entry system, a key or the door lock switch. ■ Wireless remote control P.4 ■ Locks both side doors Closes the side windows (turn and hold) Unlocks doors Turning the key rearward unlocks...
Page 22 1-2. Opening, closing and locking the doors and trunk ■ Inside lock button Locks the door Unlocks the door The side doors can be opened by pulling the inside handles even if the lock buttons are in the locked position. Locking the side doors from the outside without a key Push the lock lever to the lock position.
Page 23 1-2. Opening, closing and locking the doors and trunk Automatic door unlocking system ■ The vehicle unlocks both side doors automatically when the automatic transmission selector lever is moved to the P position with the ignition switch in the ON position. This feature can be deactivated or changed.
Page 24: Trunk
1-2. Opening, closing and locking the doors and trunk Trunk The trunk can be opened using the trunk opener or a wireless remote control. ■ Trunk opener Push the switch to release the trunk lid. ■ Wireless remote control P.4...
Page 25 1-2. Opening, closing and locking the doors and trunk Locking the trunk lid opener feature Operative Inoperative The main switch is on the left side in the glove box. When required to leave a key to the vehicle with a parking atten- dant, provide the attendant with the valet key.
Page 26 1-2. Opening, closing and locking the doors and trunk Internal trunk release handle ■ The trunk lid can be opened by pulling down on the glow-in-the-dark handle located on the inside of trunk lid. The handle will continue to glow for some time after the trunk lid is closed.
Page 27: Adjustable Components
1-3. Adjustable components Front seats Adjust the seat positions using the switches. Seat position fore/aft control switch Seatback angle control switch Seat cushion (front) angle control switch Vertical height adjust switch Vertical height adjust switch Seatback lock release lever...
Page 28 1-3. Adjustable components The rear seat contact avoidance function ■ If you push back the seat backward when the seatback reclined too far backward, the seat will adjust the seatback angle forward. If you recline the seatback too far backward when the seat is in the pushed back position, the seat will adjust the seat position forward.
Page 29: Driving Position Memory System
1-3. Adjustable components Driving position memory system The vehicle will memorize the positions of the driver’s seat, the tilt-and-tele- scopic steering column and outside rear view mirrors. Two different driving position profiles can be entered into the computer’s memory. The same buttons are found on the front passenger’s side, allowing the posi- tion of the front passenger’s seat to be memorized.
Page 30 1-3. Adjustable components ■ Recalling the memorized position The driving position will be automatically adjusted to the position recorded for that button when: The transmission selector lever is in the “P” position. The ignition switch is in the “ON” position. Pushing button “1”...
Page 31 1-3. Adjustable components CAUTION Seat adjustment precaution ■ Take care during seat adjustment that the seat does not strike the rear passenger or squeeze your body against the steering wheel. If this happens, you can stop the movement by pressing another driving position memory button.
Page 32: Head Restraints
1-3. Adjustable components Head restraints The vertical and horizontal positions of the front head restraints can be adjusted. Grip head restraint and twist to tilt forward or backward. Grip head restraint and move it up or down. Push and hold the lock release but- ton when lowering or removing the head restraint.
Page 33 1-3. Adjustable components CAUTION Head restraint precautions ■ Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury. Adjust the head restraint to the correct position at all times. ● Do not drive with head restraints removed. ●...
Page 34: Seat Belts
1-3. Adjustable components Seat belts Make sure that all occupants are wearing their seat belt before driving the vehicle. ■ Correctly using seat belt Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.
Page 35 1-3. Adjustable components Seat belt guide The seat belt guides are attached on the shoulders of the front seats so that smaller front occupants can easily use the seat belts. When you get into or out of the rear seats, release the seat belt from the seat belt guide.
Page 36 1-3. Adjustable components Rear seat belt holders Hold the rear seat belt with the holder when not in use. Emergency locking retractor (ELR) ■ The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly.
Page 37 P.20 regarding seat belt usage. Replacing the belt after activation of the pretensioner ■ The seat belts cannot be used if a pretensioner has activated. After an accident, have your Lexus dealer inspect the pretensioners and replace them, if necessary.
Page 38 ■ If your seat belts cannot be fastened securely because they are not long enough, a person- alized seat belt extender is available from your Lexus dealer free of charge. CAUTION Wearing a seat belt ■ Observe the following precautions to reduce the risk of injury in the event of sud- den braking or an accident.
Page 39 Do not attempt to install, remove, modify, disassemble or dispose of a seat belt. ● Have any necessary repairs carried out by your Lexus dealer. Inappropriate han- dling of the pretensioner may cause it to activate or operate improperly and may cause death or serious injury.
Page 40: Interior
1-3. Adjustable components NOTICE When using a seat belt extender ■ When releasing the seat belt, press on the buckle release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and the extender itself.
Page 41: Steering Wheel
1-3. Adjustable components Steering wheel The steering wheel can be adjusted to a comfortable position for the driver while the key is inserted in the ignition switch. Down Toward the driver Away from the driver Auto tilt away and auto return The steering wheel returns to its stowed position by moving up and away to enable easier driver entry and exit.* Remove...
Page 42 1-3. Adjustable components CAUTION Caution while driving ■ Do not adjust the steering wheel or column while driving. Doing so may cause the driver to mishandle the vehicle and an accident, resulting in death or serious injury.
Page 43: Auto Anti-Glare Mirror
1-3. Adjustable components Auto anti-glare mirror In “AUTO” mode, the inside and side mirror surfaces dim slightly to prevent the driver’s vision being affected by the headlights of other vehicles. “DAY” mode: The mirror reflects normally. “AUTO” mode: The mirror surfaces dim auto- matically to reduce the reflected light.
Page 44: Side Mirrors
1-3. Adjustable components Side mirrors Adjust the mirror angle using the switch. Select the mirror to adjust (L: left or R: right). Adjust the mirror up, down, in or out using the switch. Folding the side mirrors Push backward. Adjusting the side mirrors downward when reversing ■...
Page 45 1-3. Adjustable components Side mirror operating conditions ■ The ignition switch must be turned to ACC or ON. When the mirrors are fogged up ■ Turn on the mirror heaters to defog the mirrors. (P.129) CAUTION When driving the vehicle ■...
Page 46: Opening And Closing The Windows And Retractable Hardtop
1-4. Opening and closing the windows and retractable hardtop Power windows The power windows can be opened and closed using the following switches: Closing One-touch closing* Opening One-touch opening* * Pushing the switch in the oppo- site direction will stop window travel partway.
Page 47 Lower each window halfway using the power window on the door for that window. Close each window and continue holding the switch for a second, after the window has fully closed. Make sure the windows open and close correctly. If not, see your Lexus dealer.
Page 48 1-4. Opening and closing the windows and retractable hardtop CAUTION When closing a window ■ Observe the following precautions. Failing to do so may result in death or serious injury. Check to make sure that all passengers do not have any part of their body in a ●...
Page 49: Retractable Hardtop
1-4. Opening and closing the windows and retractable hardtop Retractable hardtop The retractable hardtop is opened or closed with a switch located on the auto- matic air conditioning control panel. Opening Hold down the switch. Closing Hold down the switch. The indicator remains on while the retractable hardtop is operating.
Page 50 If the indicator remains on or off with the switch pushed, and the retractable hard- ■ top does not activate Have your vehicle checked by your Lexus dealer. If the quarter windows are not opened (closed) completely with the retractable ■...
Page 51 1-4. Opening and closing the windows and retractable hardtop Audio sound adjustment ■ When you open or close the retractable hardtop, audio sound is automatically adjusted. (P.148) CAUTION To avoid serious injury, you must do the following: When opening or closing the retractable hardtop ■...
Page 52: Interior
1-4. Opening and closing the windows and retractable hardtop NOTICE When opening or closing the retractable hardtop ■ Make sure there is nothing above the vehicle. ● Make sure there are no items or packages in the package tray. ● Do not sit or place excessive weight on the hardtop.
Page 53: Removing The Fuel Tank Cap
1-5. Removing the fuel tank cap Removing the fuel tank cap Perform the following steps to remove the fuel tank cap. ■ Before refueling the vehicle Stop the engine and ensure that all the doors and windows are closed. ■ Removing the fuel tank cap Push the fuel filler door opener to open the fuel filler door.
Page 54: Removing The Fuel Tank Cap
1-5. Removing the fuel tank cap Replacing the fuel tank cap After refueling, turn the cap clock- wise until you hear a click. Once you hear the click, release the fuel cap. The cap will revolve slightly in the opposite direction. Fuel types ■...
Page 55 This may cause static electricity to build up, resulting in a possible ignition hazard. Fuel cap precaution ■ Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle. Failure to do so may cause a fire or other incident which may result in death or seri- ous injury.
Page 56 1-5. Removing the fuel tank cap NOTICE Refueling ■ Observe the following precautions when refueling the vehicle. Failing to do so may damages the vehicle, such as causing the exhaust systems to operate abnormally or damaging fuel system components or the vehicle’ s painted surface.
Page 57: Theft Deterrent System
1-6. Theft deterrent system Engine immobilizer system The vehicle’s keys have built-in transponder chips that prevent the engine from starting, if the key has not been previously registered in the vehicle's on- board computer. The indicator light flashes to indi- cate that the system is operating, after the ignition switch has been turned to the Lock position.
Page 58: Alarm
1-6. Theft deterrent system Alarm The system is designed to trigger the alarm, if forcible entry is detected (horn sounds and emergency flashers flash). Shut the retractable hardtop if it is opened. After exiting the vehicle, shut the doors, trunk and hood, and lock both side doors.
Page 59 1-6. Theft deterrent system Items to check before locking the vehicle ■ To prevent unintended triggering of the alarm, check that there is no one in the vehi- cle and that all windows are closed before locking the vehicle. Alarm operation ■...
Page 60: Theft Prevention Labels (U.s.a. Only)
1-6. Theft deterrent system Theft prevention labels (U.S.A. Only) Your new vehicle carries theft prevention labels. These labels are attached to the vehicle to reduce vehicle theft by facilitating the tracing and recov- ery of parts from stolen vehicles. Do not remove under penalty of law.
Page 61: Safety Information
1-7. Safety information Correct driving posture Drive with good posture as follows: Sit upright and well back in the seat. (P.13) Adjust the position of the seat forward or backward to ensure the pedals can be reached and easily depressed to the extent required.
Page 62 1-7. Safety information CAUTION When driving: ■ Do not adjust the position of the driver’ s seat while driving. ● Doing so could cause the driver to lose control of the vehicle. Do not place a cushion between the driver or passenger and the seat back. ●...
Page 63: Srs Airbags
1-7. Safety information SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts, to help reduce the risk of death or serious injury. Front airbags Driver airbag/front passenger airbag Can help protect the head and chest of the driver and front passenger...
Page 64 1-7. Safety information Airbag system components Side airbags Airbag sensor assembly Front passenger airbag Front airbag sensors Side airbag sensors Door side airbag sensors Driver airbag Occupant detection sensor SRS warning light Front passenger’ s seat belt buckle switch The main SRS airbag system components are shown above. The SRS air- bag system is controlled by the airbag sensor assembly.
Page 65: Srs Side Airbags
1-7. Safety information If the SRS airbags deploy (inflate) ■ Bruising and slight abrasions may result from contact with a deploying (inflating) ● SRS airbag. A loud noise and white powder may be emitted. ● Parts of the airbag module (steering wheel hub, airbag cover and inflator), as ●...
Page 66 1-7. Safety information Conditions under which the SRS airbags may deploy (inflate) other than a collision ■ The SRS front airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration. Hitting a curb, edge of pavement or ●...
Page 67 1-7. Safety information Types of collisions that may not deploy the SRS airbag (side airbags) ■ The SRS side airbag system may not activate, if the vehicle is subjected to a collision from the side at certain angles or a collision to the side of the vehicle body other than the passenger compartment.
Page 68 1-7. Safety information When to contact your Lexus dealer ■ In the following cases, contact your Lexus dealer as soon as possible. Do not dis- connect the battery cables before contacting your Lexus dealer. Any of the SRS airbags have been ●...
Page 69 1-7. Safety information CAUTION SRS airbag precautions ■ Observe the following precautions regarding the airbags. Failure to do so may cause death or serious injury. The driver and all passengers in the vehicle must wear their seat belts properly. ● The SRS airbags are supplemental devices to be used with seat belts.
Page 70 1-7. Safety information CAUTION SRS airbag precautions ■ If the seat belt extender has been con- ● nected to the driver’ s seat belt buckle but the seat belt extender has also not also been fastened to the latch plate of the driver’...
Page 71 1-7. Safety information CAUTION SRS airbag precautions ■ Do not sit on the edge of the seat or lean ● against the dashboard. Do not allow a child to stand in front of the ● SRS front passenger airbag unit or sit on the passenger’...
Page 72 An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Lexus strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained.
Page 73 ■ Do not perform any of the following modifications to or dispose of the vehicle with- out consulting your Lexus dealer. The SRS airbag may malfunction and may deploy (inflate) accidentally, causing death or serious injury. Installation, removal, disassembly and repair of the SRS airbags.
Page 74: Child Restraint System
1-7. Safety information Child restraint system Lexus strongly recommends the use of child restraint systems. The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint system. Points to remember Studies have shown that installing a child restraint on a rear seat is much safer than installing one to the front passenger seat.
Page 75 1-7. Safety information CONVERTIBLE SEAT BOOSTER SEAT When the child restraint system is not in use ■ Leave the child restraint system properly secured on the seat. Do not store the restraint loosely on a passenger seat or in the trunk. When a child is too large for a child restraint system ■...
Page 76: Interior
In an accident, the child can be crushed against the wind- shield, or between you and the vehicle’ s interior. Lexus strongly urges use of a proper child restraint system which conforms to the ● size of the child, installed on the rear seat. According to accident statistics, the child is safer when properly restrained in the rear seat than in the front seat.
Page 77: Installing Child Restraints
1-7. Safety information Installing child restraints Follow the child restraint system manufacture’s instructions. Firmly secure child restraints using a seat belt or a child restraint lower anchorage belt into both rear seats. Attach the top strap when installing a child restraint. Seat belts equipped with a child restraint locking mechanism.
Page 78 1-7. Safety information Installing child restraints using a seat belt ■ Rear facing child seat-infant/convertible Place an infant seat on the seat rear facing rear the rear of the vehicle. Run the seat belt through the infant seat and insert the plate into the buckle.
Page 79 1-7. Safety information Fully extend the shoulder belt and then allow it to retract slightly in order to activate the ALR lock mode. Lock mode allows the seat belt to retract only. While pushing the child seat down into the rear seat, allow the shoul- der belt to retract until the child seat is securely in place.
Page 80 1-7. Safety information ■ Forward facing-Convertible child seats Place a child seat on the seat fac- ing the front of the vehicle. Run the seat belt through the child seat and insert the plate into the buckle. Make sure that the belt is not twisted.
Page 81 1-7. Safety information ■ Booster seats Place a booster seat on the seat facing the front of the vehicle. Sit the child in the child seat. Fit the seat belt to the booster seat according to the child seat manu- facture’...
Page 82 1-7. Safety information CAUTION When installing the child restraint system ■ If the driver’ s seat position does not allow ● sufficient space for safe installation on the left-hand rear seat, install the child restraint on the right-hand side seat. Only put a forward-facing or booster child ●...
Page 83 1-7. Safety information Child restraint system with a top strap Secure the child restraint using a seat belt or the lower anchorages. (P.63) Insert your hand under the rear cover and remove it. Latch the hook onto the anchor- age bracket and tighten the top strap.
Page 84 1-7. Safety information Installation with child restraint lower anchorages Type A Widen the gap between the seat cushion and seatback slightly. Latch the hooks of the lower straps onto the anchorages. Type B Widen the gap between the seat cushion and seatback slightly. Latch the buckles onto the anchorages.
Page 85 1-7. Safety information If the child restraint has a top strap, the top strap should be latched onto an anchorage. CAUTION To install correctly ■ When using the lower anchorages, be sure that there are no foreign objects around the anchorages and that the seat belt is not caught behind the child seat. Make sure the restraint system is securely attached, or it may cause death or seri- ous injury to the child in the event of a sudden stop or accident.
Page 86 1-7. Safety information...
Page 87: When Driving
When driving 2-1. Driving procedures ....74 2-4. Using other driving systems ........104 Driving the vehicle ....... 74 Cruise control......104 Starting the engine...... 82 Driver assist systems ....107 Automatic transmission .... 85 Turn signal lever......89 2-5. Driving information....111 Parking brake ........
Page 88: Driving Procedures
2-1. Driving procedures Driving the vehicle The following procedures should be observed to ensure safe driving. ■ Starting the engine (P.82) ■ Driving With the brake pedal depressed, shift the selector lever to D. P.85)  Release the parking brake. P.90) ...
Page 89 2-1. Driving procedures ■ Parking the vehicle With the selector lever in D, depress the brake pedal. Set the parking brake. P.90)  Shift the selector lever to P. P.85)  Stop the engine. Remove the key, go out and lock the doors. Starting on a steep incline Firmly set the parking brake and shift the selector lever to D.
Page 90 2-1. Driving procedures Braking in your new Lexus ■ To extend the life of the vehicle, observe the following precautions: For the first 200 miles (300 km): Avoid sudden stops. For the first 1000 miles (1600 km): Do not drive at excessively high speeds.
Page 91 If you can smell exhaust fumes even though there are no other vehicles in the surrounding area, have your vehi- cle checked by your Lexus dealer. Continued inhalation of exhaust fumes can lead to death by gas poisoning.
Page 92: Interior
2-1. Driving procedures CAUTION While driving the vehicle ■ Be careful when driving on slippery surfaces, as the vehicle may skid or spin when ● downshifting, rapidly accelerating, braking or turning. Do not adjust the position of the steering wheel, seat, or mirror while driving. ●...
Page 93: Interior
2-1. Driving procedures CAUTION When the vehicle is parked ■ Do not leave glasses, cigarette lighters, spray cans or soft drink cans in the vehi- ● cle in hot areas. • Gas may leak from a cigarette lighter or spray can and may lead to a fire. •...
Page 94 2-1. Driving procedures CAUTION When braking the vehicle ■ When the brakes are wet, drive more cautiously. ● Braking distance increases when the brakes are wet, and may cause one side of the vehicle to brake differently than the other side. Also the parking brake may not securely hold the vehicle.
Page 95 If you hear a squealing or scraping noise (brake pad wear limit indicators) ■ Have your Lexus dealer check and replace the brake pads as soon as possible. Expensive rotor damage can result, if the pads are not replaced when needed.
Page 96: Starting The Engine
2-1. Driving procedures Starting the engine ■ Ignition switch LOCK: Inserting and removing the key ACC: The audio system and other accessories can be used when the engine is stopped. When driving the vehicle, the engine and all accessories are START: For starting the engine.
Page 97 If the engine does not start ■ Check whether the other keys will start the engine. If they work, your key may be broken. Have the key checked at your Lexus dealer. Leak detection pump ■ Approximately five hours after the engine is turned off, you may hear sound coming from underneath the trunk for several minutes.
Page 98 2-1. Driving procedures CAUTION When starting the engine ■ Always start the engine while sitting in the driver’ s seat. Do not press the accelera- tor while starting the engine under any circumstances. Doing so may cause an accident resulting in death or serious injury. NOTICE To prevent battery discharge ■...
Page 99: Automatic Transmission
2-1. Driving procedures Automatic transmission Select a shift position appropriate for the driving conditions. The shift range position can be switched between “6” and “1” by moving the selector lever. ■ Shifting the transmission selector lever While the engine is running, the brake pedal must be depressed in order to move the selector lever from P.
Page 100 2-1. Driving procedures ■ Selecting a driving mode The ECT pattern can be selected to suit current driving and operating conditions. Power mode For powerful acceleration and driving in mountainous regions. Normal mode Snow mode For accelerating and driving on slippery road surfaces, such as on snow.
Page 101 2-1. Driving procedures Driving in “S” mode Shift the selector lever to “S”. Upshifting Downshifting “S” mode position Shift range position indicator...
Page 102 If the shift range position indicator light does not come on when the “S” mode is ■ engaged There may be a malfunction in the automatic transmission system. Have the vehicle inspected by your Lexus dealer immediately. (In this situation, the vehicle operates as if the selector lever is in D.)
Page 103: Turn Signal Lever
2-1. Driving procedures Turn signal lever Left turn Right turn Move and hold the lever part- way to signal a lane change The left-hand signal will flash until you release the lever. Move and hold the lever part- way to signal a lane change The right-hand signal will flash until you release the lever.
Page 104: Parking Brake
2-1. Driving procedures Parking brake Sets the parking brake Depress the brake pedal with the right foot and fully depress the parking brake pedal with the left foot. Releases the parking brake Pull the lever to release the parking brake. NOTICE Before driving ■...
Page 105: Instrument Cluster And Information Display
2-2. Instrument cluster and information display Gauges and meters When the key is turned to ON: Tachometer Displays the number of engine speed in revolutions per minute. Speedometer Displays the vehicle speed. Engine coolant temperature gauge Displays the engine coolant temperature. Fuel gauge Displays the quantity of fuel remaining in the tank.
Page 106 2-2. Instrument cluster and information display Instrument panel light control The brightness of the instrument panel lights can be adjusted by turning the instrument panel light control knob. Darker Brighter When the headlight switch is turned to ON, the brightness will be reduced slightly unless the instrument panel light control knob is turned fully on.
Page 107: Indicators And Warning Lights
2-2. Instrument cluster and information display Indicators and warning lights The indicators and warning lights in the instrument cluster inform the driver of the operating state of the vehicle. ■ Indicators Informs the driver of the operating status of the vehicle’ s various sys- tems.
Page 108 There may be a malfunction in a system if a light does not come on, or if the lights does not turn off. Have the vehicle inspected by your Lexus dealer. CAUTION If a safety system warning light does not come on ■...
Page 109: Trip Information Display
2-2. Instrument cluster and information display Trip information display The following information is shown on the automatic air conditioning control panel. ■ Trip information Available driving distance (“Mi” or “km”) ● Available fuel consumption (“MPG” or “L/100km”) ● Average vehicle speed (“MPH” or “km/h”) ●...
Page 110: Operating The Headlight And Windshield Wipers
2-3. Operating the headlight and windshield wipers Headlight switch The headlights can be operated manually or automatically. The side marker, tail, parking, license plate and instrument panel lights turn on. The headlights also turn on. The headlights and parking lights turn on and off auto- matically.
Page 111 2-3. Operating the headlight and windshield wipers Daytime running light system The headlights turn on automatically (at a reduced intensity) whenever the engine is started and the parking brake is released to make your vehi- cle more visible to other drivers. Daytime running lights are not designed for use at night.
Page 112: Adaptive Front Lighting System
The system starts to operate when the vehicle’ s speed increases above 6mph (10 km/h), and stops when the vehicle’ s speed drops to 6 mph (10 km/h) or below. When the “AFS OFF” indicator light flashes ■ This indicates a system failure. Have your vehicle checked at your Lexus dealer.
Page 113 2-3. Operating the headlight and windshield wipers NOTICE To prevent battery discharge ■ Do not leave the lights on longer than necessary when the engine is not running.
Page 114: Fog Light Switch
2-3. Operating the headlight and windshield wipers Fog light switch The fog lights improve visibility in difficult driving conditions, such as in rain or fog. They can be turned on only when the headlights are on low beam. To turn the fog lights off To turn the fog lights on...
Page 115: Windshield Wipers And Washer
2-3. Operating the headlight and windshield wipers Windshield wipers and washer Intermittent windshield wiper operation Low-speed windshield wiper operation High-speed windshield wiper operation Intermittent windshield wiper (interval) adjustment Mist operation Washer fluid Windshield wiper and washer operating conditions ■ The key must be turned to ON. Intermittent operation features ■...
Page 116 2-3. Operating the headlight and windshield wipers Windshield wiper features ■ When the washer button is pressed with the wipers OFF, the wipers will make 3 ● sweeps, then pause, then a final sweep to completely clear the windshield*. The length of the pause will depend on the vehicle speed.
Page 117: Headlight Cleaner Switch
2-3. Operating the headlight and windshield wipers Headlight cleaner switch You can spray fluid on the headlights when they are on and the ignition switch is in the “ON” position. Press the switch to clean the headlights. NOTICE When the washer fluid tank is empty ■...
Page 118: Using Other Driving Systems
2-4. Using other driving systems Cruise control Use the cruise control to maintain a set speed without using the accelerator. You can still use the accelerator with the cruise control on. ■ Set the vehicle speed and drive at low speed Turn the ON-OFF switch ON.
Page 119 2-4. Using other driving systems ■ Adjusting the speed setting Increase speed Decrease speed Hold the lever until the desired speed setting is obtained. Fine adjustment to the set speed (approximately 1.6 km/h) can be made by lightly pushing the lever up or down.
Page 120 Turn the ON-OFF switch off once, and then reactivate the system. There may be a malfunction in the cruise control system if the indicator light does not come on, flashes again or goes out after it comes on. Have the vehicle inspected by your Lexus dealer. CAUTION To avoid inadvertent cruise control activation ■...
Page 121: Driver Assist Systems
2-4. Using other driving systems Driver assist systems To help enhance vehicle safety, the following systems operate automatically in certain driving conditions. ■ ABS (Anti-lock Braking System) Help ensures steering performance in the event of sudden braking or driving on slippery road surfaces. ■...
Page 122 A malfunction may have occurred in the VSC system if the VSC warning light and VSC OFF indicator do not turn off after the key is turned to ON, or while the vehi- cle is moving. Have the vehicle inspected by your Lexus dealer.
Page 123 2-4. Using other driving systems CAUTION Any of the following conditions may result in an accident which could cause death or serious injury: The ABS may not operate effectively when: ■ The limits of tire gripping performance have been exceeded. ●...
Page 124 The ABS, TRAC and VSC systems may not operate normally, if different tires are installed to the vehicle. Contact your Lexus dealer for further information when replacing tires or wheels.
Page 125: Driving Information
2-5. Driving information Cargo & luggage Take notice of the following information about stowage precautions, cargo capacity and load. When stowing cargo and luggage in the vehicle, observe the following precautions: • Put cargo and luggage in the trunk when at all possible. Be sure all items are secured in place.
Page 126 2-5. Driving information Determine the combined weight of luggage and cargo being loaded on the vehicle. The weight may not safely exceed the available cargo and luggage load capacity calculated in Step If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle.
Page 127 2-5. Driving information As shown in the above example, if the number of occupants increases, the cargo and luggage load equaling the combined weight of the occu- pants who got on later, by an amount. In other words, if an increase in the number of occupants causes an excess of the total load capacity (com- bined weight of occupants plus cargo and luggage load), you must reduce the cargo and luggage on your vehicle.
Page 128: Vehicle Load Limits
2-5. Driving information Vehicle load limits Vehicle load limits include total load capacity, seating capacity, towing capac- ity and cargo capacity. ■ Total load capacity: 645 lb. (295 kg) Total load capacity means the combined weight of occupants, cargo and luggage. ■...
Page 129: Winter Driving Tips
2-5. Driving information Winter driving tips Carry out the necessary preparations and inspections before driving the vehicle in winter. Always drive the vehicle in a manner appropriate for the prevailing weather and roadway conditions. ■ Pre-winter preparations Use fluids that are appropriate to the prevailing outside tempera- ●...
Page 130 2-5. Driving information ■ When driving the vehicle Accelerate the vehicle slowly and drive at a reduced speed suitable to road conditions. ■ When parking the vehicle The parking brake may freeze up, preventing it from being released. Place the selector lever in P and park the vehicle without applying the parking brake.
Page 131 2-5. Driving information Tire chain installation ■ Observe the following installation, removal and care precautions. • Install and remove tire chains in a safe location. • Install tire chains on the rear tires only. Do not install tire chains on front tires. •...
Page 132: Trailer Towing
Do not tow a trailer with this vehicle. Do not install a tow hitch or use a tow hitch carrier for a wheelchair, scooter, bicycle, etc. Your Lexus is not designed for trailer towing or for the use of tow hitch mounted carries.
Page 133: Dinghy Towing
Dinghy towing Your vehicle is not designed to be dinghy towed (with four wheels on the ground) behind a motorhome. Lexus warranties do not apply to damage caused by dinghy towing. NOTICE To avoid serious damage to your vehicle ■...
Page 134 2-5. Driving information...
Page 135: Interior Features
Interior features 3-1. Using the air conditioning 3-4. Storage ........155 system and defogger ..122 Storage features ......155 Automatic air conditioning control .......... 122 3-5. Other interior features ..161 Rear window defogger..... 129 Sun visors......... 161 Clock..........162 3-2.
Page 136: Using The Air Conditioning System And Defogger
3-1. Using the air conditioning system and defogger Automatic air conditioning control Airflow and outlets automatically adjust according to the temperature setting. Outside air temperature display Passenger side temperature Air flow display setting display Fun speed display Simultaneous or Driver side temperature individual mode setting display Driver’...
Page 137 3-1. Using the air conditioning system and defogger Using the automatic mode Push The air conditioning system will begin to operate. Air intake and fan speed are automatically adjusted according to the temperature setting. Adjust the temperature setting using The temperature for the driver and passenger seats can be set sepa- rately.
Page 138 3-1. Using the air conditioning system and defogger Adjusting the settings ■ Adjusting the temperature setting Press Press “^” to increase the temperature and “v” to decrease the temperature on the driver and passenger side controls. Press once more to set the driver and passenger side temperatures to the same setting (Combined mode).
Page 139 3-1. Using the air conditioning system and defogger ■ Changing the air flow Push The following modes are selected each time the button is pushed. Air flows to the upper body. Air flows to the upper body and feet.
Page 140 3-1. Using the air conditioning system and defogger Air flows to the feet. Air flows to the feet and the windshield defogger operates. Air flows from the lap-jet vents only when the retractable hardtop is opened. Floor air vent (P.127) ■...
Page 141 3-1. Using the air conditioning system and defogger Adjusting the position of and opening and closing the air outlets Center, and side air vents Direct air flow to the left or right. Turn knob right to open the vent and left to close the vent. Floor air vent Turn up to open the vent and down to close the vent.
Page 142 There may be a problem in the air conditioning control system, if the indicator light continues to flash. Turn the air conditioning control system off and have it inspected by your Lexus dealer. Notes regarding outside temperature display ■...
Page 143: Rear Window Defogger
3-1. Using the air conditioning system and defogger Rear window defogger Use the rear window defogger when the rear window becomes clouded with condensation. ON/OFF Push the button to turn the rear window defogger on. The defog- ger will automatically turn off after approximately 15 minutes or if you push the button again.
Page 144: Using The Audio System
3-2. Using the audio system Audio system Audio system with CD changer, cassette player, and AM/FM radio Title Page Opening the audio door P.132 Operating the radio P.133 Operating the cassette player P.137 Operating the CD changer P.140 Optimal use of the audio system P.147 Using the steering switches P.149...
Page 145: Using The Audio System
3-2. Using the audio system Opening the audio door Open/Close CAUTION When opening or closing the audio door ■ Do not jam your hands in the door. NOTICE To avoid damaging the audio door or CD ■ Do not hold the door while it is opening or closing. ●...
Page 146: Using The Radio
3-2. Using the audio system Using the radio Power Volume Displays radio Preset stations text messages Scans for Adjusting the receivable frequency stations Automatic selection AM/FM mode buttons Displays types RDS programs Setting radio station memory presets Select the station to store into memory. Press and hold a button from until a beep is heard to set the station to that button.
Page 147 3-2. Using the audio system Receiving RDS (Radio Data System) broadcasts This feature allows your radio to receive station identification information and program information (classical, jazz, etc.) from radio stations which broadcast this information. ■ Receiving RDS broadcasts Push while receiving FM broadcasts. ■...
Page 148 3-2. Using the audio system Scanning radio stations ■ Scanning the preset radio stations Press and hold the until a beep is heard. Preset stations will be played for a few seconds each. Push once more to select the desired station. ■...
Page 149 3-2. Using the audio system CAUTION Before extending the antenna ■ Confirm that no one is close enough to get injured.
Page 150: Using The Cassette Player
3-2. Using the audio system Using the cassette player Power Volume Changing the playback direction Rewind Fast forward Repeat play Automatic program selection Slot Playback Eject Noise reduction Finding the beginning of a track Push the button to skip to the beginning of the next track, or return to the beginning of the track currently being played.
Page 151 3-2. Using the audio system  Using Dolby noise reduction Push the ) button. Reduces the level of noise for tapes recorded with Dolby NR only. Dolby noise reduction is manufactured under license from Dolby Lab- oratories Licensing Corporation. Dolby and the double-D symbol ) are registered trademarks of Dolby Laboratories.
Page 152 3-2. Using the audio system NOTICE Cassette tapes that cannot be used ■ Do not use a cassette tape, if it has been damaged or tangled or if its label is peeling off. Such tapes may affect playing speed and may also get stuck in the player. Cassette player precautions ■...
Page 153: Using The Cd Changer
3-2. Using the audio system Using the CD changer Operable and display parts Power Volume Selecting a CD Fast forward Repeat play Random playback CD load Track selection CD eject Rewind Playback Search playback...
Page 154 3-2. Using the audio system Loading a CD ■ Inserting a single CD Push the button briefly. Insert a CD after the CD door opens. ■ Loading multiple CDs Push the button until you hear a beep. Insert a CD after the CD door opens. Wait until the CD door opens again before inserting the next CD.
Page 155 3-2. Using the audio system Selecting, fast forwarding, and scanning tracks ■ Selecting a track Press “^” to move up and “v” to move down through the tracks until the track number you want is displayed. If  or  are pushed and held until a beep is heard, the track will be fast forwarded.
Page 156 3-2. Using the audio system Playing tracks in random order ■ From the CD being played Push (RAND). Tracks are played in random order until the button is pushed once more. ■ From all CDs Press and hold the (RAND) button until you hear a beep. Tracks on all loaded CDs are played in random order until the button is pushed once more.
Page 157 WAIT : Operation is stopped due to a high temperature inside the changer. Remove the CD from the player and allow the player to cool down. If the malfunction persists, take your vehicle to your Lexus dealer. CD auto changer ■...
Page 158 3-2. Using the audio system NOTICE To prevent CDs getting stuck in the player ■ Insert CDs one at time. ● Do not feed CDs in continuously. ● CDs that cannot be used ■ Do not use the following types of CD. Doing so may damage the CD player and affect the CD insert/eject function.
Page 159 3-2. Using the audio system NOTICE CDs that have had tape, seals or labels ● attached to them, or that have had the label peeled off. CD player precautions ■ Failing observe the following precautions may result in CDs being unplayable or cause the player to function abnormally.
Page 160: Optimal Use Of The Audio System
3-2. Using the audio system Optimal use of the audio system Adjusts sound quality and turns ASL on and off Changing modes...
Page 161 3-2. Using the audio system Adjusting sound quality, volume, balance and sound level ■ Changing sound quality modes Push . Pushing the button changes the sound mode in the follow- ing order. BAS  MID  TRE  FAD  BAL  ASL ■...
Page 162: Using The Steering Switches
3-2. Using the audio system Using the steering switches Some audio features can be controlled using the switches on the steering wheel. Power on, changing modes Radio: Station selection Volume Cassette tape: Find the start of the Stores next track/fast forward and rewind volume setting CD: Select the track or disc Turning on the power and selecting audio modes...
Page 163 3-2. Using the audio system Adjusting the volume Push increases or decreases the volume. Hold down the button to continue increasing or decreasing the volume. Storing the desired volume level Adjust the volume to the desired level and push until you hear a beep. Push to restore the volume to the desired level if it has been adjusted.
Page 164 3-2. Using the audio system Selecting a CD track or CD ■ Selecting a track. Push to select the CD mode. Push to select the desired track. ■ Selecting a CD. Push to select the CD mode. Press and hold until you hear a beep.
Page 165: Turning On Interior Lights
3-3. Turning on interior lights Interior lights list Interior light and front personal lights (P.153, P.154) Door courtesy lights Ignition switch light Foot lights Scuff plate lights...
Page 166 3-3. Turning on interior lights Illuminated entry system ■ The following lights turn on when the vehicle is unlocked using a key or wireless remote control, or when a door is opened. Ignition switch light ● Foot lights ● Interior light (when the switch is in the DOOR position) ●...
Page 167 3-3. Turning on interior lights Personal lights On/Off...
Page 168: Storage
3-4. Storage Storage features Glove box Rear console box Coin box Cup holder Auxiliary box...
Page 169 3-4. Storage Glove box Opening (pull lever) Lock with the master key Unlock with the master key The glove box can be operated with the master key. Glove box light ■ The glove box light turns on when the headlight switch is turned ON.
Page 170 3-4. Storage Rear console box Press the button to release the UPPER BOX lock Lift armrest to open Pull up on lower tab LOWER BOX Lift to open Unlock the lower box Lock the lower box The lower box can be operated with the master key.
Page 171 3-4. Storage Coin box Open...
Page 172 3-4. Storage Cup holder Open Press down and release the right side of the cup holder lid to open. Push in the cup holder Close the lid...
Page 173: Auxiliary Box
3-4. Storage Auxiliary box Push the tab to open CAUTION Caution while driving ■ Always keep the glove box, coin box, cup holder and auxiliary box closed to reduce the chance of injury in case of an accident or sudden stop. Items unsuitable for the cup holder ■...
Page 174: Other Interior Features
3-5. Other interior features Sun visors Forward position: flip down Side position: Flip down, unhook, and swing to the side Vanity mirror and light The vanity light turns on. Light Vanity mirror NOTICE To prevent battery from being discharged ■ Do not leave the vanity light on for extended periods while the engine is stopped.
Page 175: Clock
3-5. Other interior features Clock H button : Adjusts the hour. M button : Adjusts the minutes. :00 button : Resets the minutes to zero.* * For example: 9:30 to 9:59 displayed  10:00 10:01 to 10:29 displayed  10:00...
Page 176: Ashtray
3-5. Other interior features Ashtray Press the lid to open. Removing the ashtray ■ Pull the ashtray up to remove it. CAUTION After use ■ Always close the ashtray to reduce the chance of injury in case of an accident or sudden stop while driving.
Page 177: Cigarette Lighter
3-5. Other interior features Cigarette lighter Open the ashtray lid. Push the cigarette lighter down. The cigarette lighter will pop up when it is ready for use. Cigarette lighter operating conditions ■ The ignition switch must be turned to ACC or ON position for the cigarette lighter to operate.
Page 178: Power Outlet
3-5. Other interior features Power outlet The power outlet can be used for accessories that run on less than 12 V and 10 A. Open Power outlet operating conditions ■ The ignition switch must be turned to ACC or ON. NOTICE To avoid damaging the accessory outlet ■...
Page 179: Seat Heaters
3-5. Other interior features Seat heaters Turn the dials to the left to turn the respective seat heaters on. Passenger’ s seat Driver’ s seat To turn off, turn the dials to the right until they stop. Operating conditions ■ The ignition switch must be in the ON position.
Page 180: Floor Mats
3-5. Other interior features Floor mats Use only genuine Lexus floor mats properly secured to the floor carpet. Secure the mat with the lock clips. CAUTION When inserting the floor mat ■ Make sure the floor mat is properly placed on the floor carpet. If the floor mat slips and interferes with the movement of the pedals during driving, it may cause an acci- dent.
Page 181: Trunk Features
3-5. Other interior features Trunk features ■ Cargo hooks Cargo hooks are provided for securing loose items. ■ First-aid kit space This space is provided to accom- modate the first-aid kit.
Page 182 3-5. Other interior features ■ Luggage cover Pull it out Hook it on the anchors Secure the strap on the tire or luggage cover CAUTION When not in use ■ To avoid injury, always return the cargo hooks to their positions under the carpet when they are not being used.
Page 183: Garage Door Opener
3-5. Other interior features Garage door opener The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, and security systems, and other devices.  The garage door opener (HomeLink Universal Transceiver) is manufac- ...
Page 184 3-5. Other interior features Simultaneously press and hold the transmitter button along with one  of the HomeLink buttons. When the indicator light on the  HomeLink changes from a slow to a rapid flash after 20 seconds, you can release both buttons. ...
Page 185 3-5. Other interior features ■ Programming a Rolling Code system (for U.S.A. owners) If your device is “Rolling Code” equipped, follow the steps under the  heading “Programming the HomeLink ” before proceeding with the steps listed below. Locate the “training” button on the ceiling mounted garage door opener motor.
Page 186 ■ Programming other devices To program other devices such as home security systems, home door locks or lighting, contact your authorized Lexus dealer for assistance. ■ Reprogramming a button  The individual HomeLink buttons cannot be erased but can be repro- grammed.
Page 187: Operating The Homelink
3-5. Other interior features  Operating the HomeLink   Press the appropriate HomeLink button. The HomeLink indicator  light on the HomeLink transceiver should turn on.  The HomeLink continues to send the signal for up to 20 seconds as long as the button is pressed.
Page 188 3-5. Other interior features CAUTION When programming a garage door or other remote control device ■ The garage door may operate, so ensure people and objects are out of danger to prevent potential harm. Conforming to federal safety standards ■ ...
Page 189 3-5. Other interior features...
Page 190: Maintenance And Care
Maintenance and care 4-1. Maintenance and care ..178 4-3. Do-it-yourself maintenance......190 Cleaning and protecting the vehicle exterior......178 Do-it-yourself service precautions ........ 190 Cleaning and protecting the vehicle interior ......181 Hood..........194 Positioning the jack....195 4-2. Maintenance ......184 Engine compartment....
Page 191: Cleaning And Protecting The Vehicle Exterior
4-1. Maintenance and care Cleaning and protecting the vehicle exterior Follow these guidelines when washing and waxing your Lexus. Working from top to bottom, liberally apply water to the vehicle ● body, wheel wells and underside of the vehicle to remove any built up dirt and dust.
Page 192 4-1. Maintenance and care To prevent paint deterioration and corrosion on the body ■ Wash the car immediately in the following cases: ● • After driving near the sea coast • After driving on salted roads • If you see coal tar or tree sap on the paint surface •...
Page 193 4-1. Maintenance and care CAUTION Exhaust gases cause the exhaust pipe to become quite hot. ■ When washing the vehicle, be careful not to touch the pipe until it has cooled suffi- ciently, as touching a hot exhaust pipe can cause burns. NOTICE To protect vehicle’s painted surfaces ■...
Page 194: Cleaning And Protecting The Vehicle Interior
4-1. Maintenance and care Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle’s interior and keep it in top condition: ■ Protecting the vehicle interior Remove dirt and dust using a vacuum cleaner and wipe dirty surface with a cloth dampened with lukewarm water.
Page 195 Wipe the window in strokes running parallel to the heater wires. Caring for leather seats ■ Lexus recommends regularly cleaning the interior of the vehicle at least twice a year to maintain the quality of the vehicle’ s interior. Shampooing the carpets ■...
Page 196 4-1. Maintenance and care NOTICE Cleaning detergents ■ Do not use organic substances such as benzene, alcohol, gasoline, or alkaline or acid solutions, as they may discolor the vehicle interior or cause streaks or damage to painted surfaces. Preventing damage to leather surfaces ■...
Page 197: Maintenance
For details about warranty coverage, see separate “Owner’ s Guide”, “Owner’ s Manual Supplement” or “Warranty Booklet”. Service and repairs not covered in this Owner’ s Manual should be per- formed by a qualified technician using Lexus service and repair publica- tions.
Page 198 Repair and replacement ■ It is recommended that genuine Lexus parts be used for repairs to ensure optimum performance. If non-Lexus replacement parts are used or if a repair shop other than a Lexus dealer performs repairs, confirm the warranty coverage.
Page 199: General Maintenance
Listed below are the general maintenance items that should be performed at the interval specified in the Owners Manual Supplement. It is recommended that any problem you notice should be brought to the attention of your Lexus dealer or qualified service shop for advice.
Page 200 4-2. Maintenance Vehicle interior Items Check points • Moves smoothly Accelerator pedal (without uneven pedal effort or catching)? Automatic transmission • Can hold the vehicle securely on a incline with “Park” mechanism the selector lever in “P”? • Not pull to one side when applied? •...
Page 201 4-2. Maintenance Vehicle exterior Items Check points • Do they operate smoothly? Door/ trunk • Do the locks work properly? Engine hood • Does the hood latch and lock work properly? Fluid leaks • Are there any leaks when the vehicle is parked? •...
Page 202: Emission Inspection And Maintenance (I/M) Programs
If the malfunction indicator lamp comes on The OBD system determines that a problem exists somewhere in the emission control system. Your vehicle may not pass the I/M test and may need to be repaired. Contact your Lexus dealer to service the vehicle. ■...
Page 203: Do-It-Yourself
• Rag or paper towel (P.204) • Funnel (used only for adding fluid) Cartridge type fuses • Genuine Lexus fuse or equivalent with same amper- (P.238) age rating as original Engine air filter • Genuine Lexus engine air filter or equivalent •...
Page 204 4-3. Do-it-yourself maintenance Do-it-yourself Parts and tools maintenance  • Automatic transmission fluid DEXRON ll or lll Power steering fluid level • Rag or paper towel (P.206) • Funnel (used only for adding fluid) Radiator and condenser  (P.204) Tire inflation pressure •...
Page 205 4-3. Do-it-yourself maintenance CAUTION The engine compartment contains many mechanisms and fluids that many move sud- denly, become hot, or become electrically energized. To avoid death or serious injury: When working on the engine compartment: ■ Keep hands, clothing, and tools away from the moving fan and engine drive belt. ●...
Page 206 4-3. Do-it-yourself maintenance NOTICE If you remove the engine air filter: ■ Driving with the engine air filter removed may cause or excessive engine wear due to dirt in the air may cause. Also, a backfire could cause a fire in the engine compartment.
Page 207: Hood
4-3. Do-it-yourself maintenance Hood Lift the hood to inspect engine components and fluid levels. Pull the hood release lever. The hood will pop up slightly. Lift the hood catch and lift the hood. CAUTION Pre-driving check ■ Check that the hood is fully closed and locked. If the hood is not locked properly it may open while the vehicle is in motion and cause an accident, which may result in death or serious injury.
Page 208: Positioning The Jack
4-3. Do-it-yourself maintenance Positioning the jack When raising your vehicle, position the jack correctly. Improper placement may damage your vehicle or cause injury. FRONT REAR...
Page 209 4-3. Do-it-yourself maintenance CAUTION When raising your vehicle: ■ Make sure to observe the following to reduce the possibility of death or serious injury. Do not put any part of your body or get underneath the vehicle supported only by ●...
Page 210: Engine Compartment
4-3. Do-it-yourself maintenance Engine compartment Battery (P.207) Radiator (P.204) Fuse box (P.230, P.238) Condenser (P.204) Engine oil filler cap Engine coolant reservoir (P.198) (P.202) Engine oil level dipstick Electric cooling fans (P.198) Power steering fluid Brake fluid reservoir reservoir (P.206) (P.204) Washer fluid tank (P.211)
Page 211 4-3. Do-it-yourself maintenance Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. ■ Checking the engine oil Park the vehicle on level ground. After turning off the engine, wait a few minutes for the oil to drain back into the bottom of the engine.
Page 212 4-3. Do-it-yourself maintenance ■ Adding engine oil If the oil level is below or near the low line, add engine oil of the same type as already in the engine. Make sure to check the oil type and prepare the items needed before adding.
Page 213 Oil consumption: Max. 1.1 qt. per 600 miles (1.0 L/1000 Km, 0. 9 lmp.qt/600 ● miles). If you consume more than 1.1 qt. (1.0 L, 0. 9 lmp.qt.) every 600 miles (1000 km), ● contact your Lexus dealer.
Page 214 ● pose of used oil and filters in household trash, in sewers or onto the ground. Call your Lexus dealer, service station or auto parts store for information concerning recycling or disposal. Do not leave used engine oil within the reach of children.
Page 215: Engine Coolant
Visually check the radiator, hoses, engine coolant filler cap, radiator cap and drain cock and water pump. If you can not find a leak, have your Lexus dealer test the cap pressure and check for leaks in the cooling system.
Page 216 4-3. Do-it-yourself maintenance CAUTION When the engine is hot ■ Do not remove the radiator cap. The cooling system may be under pressure and may spray hot coolant if the cap is removed, causing burns or other injuries. Do not touch the radiator or condenser, as they may be not and may cause burns. NOTICE When adding engine coolant ■...
Page 217 Radiator and condenser Check the radiator and condenser and clear any foreign objects. If the parts are extremely dirty or you are not sure of their condition, have your vehicle checked by your Lexus dealer. Brake fluid ■ Fluid level The brake fluid level should be between the “MAX”...
Page 218 It is normal for the brake fluid level to go down slightly as the brake pads wear or when the fluid level in the accumulator is high. If the reservoir needs frequent refilling, it may indicate a serious mechanical problem. Have the system checked by your Lexus dealer.
Page 219 4-3. Do-it-yourself maintenance Power steering fluid ■ Fluid level The fluid level should be within the appropriate range. Full line when hot. Add fluid if at or below line when hot. Full line when cold Add fluid if at or below line when cold.
Page 220 4-3. Do-it-yourself maintenance CAUTION When checking the reservoir ■ Take care, as the reservoir may be hot. NOTICE When adding fluid ■ Avoid overfilling, or the power steering may be damaged. After replacing the reservoir cap ■ Check the steering box case, vane pump and hose connections for leaks or damage. Battery Check the battery as follows: ■...
Page 221 4-3. Do-it-yourself maintenance Before recharging ■ Recharging, the battery produces hydrogen gas which is flammable and explosive. Before recharging: If recharging with the battery installed in the vehicle, be sure to disconnect the ● ground cable. Make sure the power switch on the recharger is off when connecting and dis- ●...
Page 222 4-3. Do-it-yourself maintenance CAUTION Emergency measures regarding electrolyte ■ If electrolyte gets in your eyes ● Flush them with clean water for at least 15 minutes and get immediate medical attention. If possible, continue to apply water with a sponge or cloth while travel- ing to the medical office.
Page 223 4-3. Do-it-yourself maintenance CAUTION How to recharge the battery ■ Only perform a slow charge (5 A or less). The battery may explode if charged at a quicker rate. NOTICE When recharging the battery ■ Never recharge the battery while the engine is running. Also, be sure all accesso- ries are turned off.
Page 224 4-3. Do-it-yourself maintenance Washer fluid ■ Adding fluid Add washer fluid it approaches the NORMAL (maximum) line. NOTICE Use washer fluid only ■ Do not use soapy water or engine anti-freeze instead of washer fluid. Doing so may result in streaking the vehicle’ s painted surface. Diluting washer fluid ■...
Page 225: Tires
“TWI” or “  ” marks, etc., molded on the sidewall of each tire. ■ Tire rotation The wheel assemblies must be rotated as shown. Front Lexus recommends tire rotation per the maintenance schedule to equalize tire wear and extend tire life.
Page 226 ■ Registering the ID code ID codes should be registered by Lexus dealer. 2 sets of ID codes can be registered. The code of the tires originally installed on the vehicle is registered on the switch at “MAIN”. Have a new tires set with new tire pressure sensors registered at “2nd”...
Page 227 Use a new wheel and sensor. You have to register an ID code for a new sensor. ● When purchasing new tires ■ Consult your Lexus dealer. Tire life ■ Any tire over 6 years old must be checked by a qualified technician even if it has never or seldom been used or damage is not obvious.
Page 228 4-3. Do-it-yourself maintenance Tire selection ■ When replacing a tire, use a tire of the same size and construction, and the same or greater maximum load as the originally installed tires. Check that the maximum load of the replaced tire is greater than 1/2 of the Gross Axle Weight Ratings (GAWR) of either the front axle or the rear axle, whichever is greater.
Page 229 4-3. Do-it-yourself maintenance Certification for the tire pressure warning system (for vehicles sold in U.S.A) ■ This device complies with Part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 230 Do not mix run-flat and standard tires. ● Consult your Lexus dealer before purchasing new tires. If you change from run- ● flat tires to standard tires, a spare tire should also be purchased.
Page 231 When replacing the tires and wheels ■ Have your Lexus dealer replace the tires, wheels, sensors and register ID codes. If you need sensors, you can purchase them from your Lexus dealer. If tire pressures become low while driving (vehicles with standard tires) ■...
Page 232: Tire Inflation Pressure
4-3. Do-it-yourself maintenance Tire inflation pressure ■ Tire inflation pressure The recommended cold tire inflation pressure and tire size is displayed on the tire and loading information label. Type A&B Type C...
Page 233 4-3. Do-it-yourself maintenance Recommended cold tire inflation pressure Tire size Inflation pressure psi (kPa, kgf/cm or bar) Front 33 (230, 2.3) 245/40R18 93Y Rear 33 (230, 2.3) Front 33 (230, 2.3) P245/40R18 93V Rear 33 (230, 2.3) Front 33 (230, 2.3) 245/40ZR18 Rear 33 (230, 2.3)
Page 234 4-3. Do-it-yourself maintenance ■ Inspection and adjustment procedure Tire valve Tire pressure gauge Remove the tire valve cap. Press the tip of the tire pressure gauge to the tire valve. Read the pressure using the graduations on the gauge. If the tire inflation pressure is not within recommended levels, inflate the tire.
Page 235 Reducing driving comfort and tire life ● Making your vehicle less safe to drive ● If a tire needs frequent refilling, have it checked by your Lexus dealer. Instructions for checking tire inflation pressure ■ When checking tire inflation pressure, observing the following: Check only when the tires are cold.
Page 236 4-3. Do-it-yourself maintenance CAUTION When inspecting and adjusting tire pressure ■ Be sure to reinstall the tire valve caps. Without the valve caps, dirt or moisture could get into the valve and cause air leak- age, which could result in an accident. If the caps have been lost, have new ones put on as soon as possible.
Page 237: Wheels
• Bent wheels that have been straightened. ■ Aluminum wheel precautions Use only Lexus wheel nuts and a wrench designed for your alumi- ● num wheels if you have rotated, repaired or changed your tires. Check that the wheel nuts are still tight after driving 1000 miles ●...
Page 238 4-3. Do-it-yourself maintenance CAUTION When replacing wheels ■ Do not use wheels other than the manufacturer's recommended wheel or wheel ● size, as this may result in loss of handling control. Never using an inner tube in a leaking wheel which is designed for a tubeless tire. ●...
Page 239: Air Conditioning Filter
4-3. Do-it-yourself maintenance Air conditioning filter The air conditioning filter must be changed regularly to maintain air condi- tioning efficiency. ■ How to replace the air conditioning filter Turn the ignition switch to LOCK. Open the glove box. Soft cloth Use pliers to remove the 2 pins installed on the upper part of the glove box and lower the glove box.
Page 240 4-3. Do-it-yourself maintenance Filter Filter case Remove the air conditioning filter from the filter case and replace it with a new one. The  UP marks shown on the filter and the filter case should be point- ing up. Changing interval ■...
Page 241: Wireless Remote Control Battery
4-3. Do-it-yourself maintenance Wireless remote control battery Replace the battery with a new one if it discharges. ■ You will need the following items: • Small Phillips-head screwdriver • Lithium battery (CR1616) Screw Remove the screws. Push the cover in the Cover direction of the arrow and remove it.
Page 242 ● Use specified lithium battery ■ Batteries can be purchased at your Lexus dealer, jeweler, or camera store. Checking remote control operation after replacing the battery ■ Push any of the buttons on the remote control and check that the LED lights up.
Page 243: Blade Fuses
4-3. Do-it-yourself maintenance Blade fuses If a light does not turn on or if any of the electrical components do not operate, a fuse may have blown. If this happens check and replace the fuses as necessary. If after replacing the fuse the light still does not illuminate, the bulb may need replacing.
Page 244 4-3. Do-it-yourself maintenance Fuse box inside the driver’ s side kick panel Pull the knob and remove the lid. Fuse box inside the passenger’ s side kick panel Pull the knob and remove the lid. Fuse box inside the trunk Pull the tab and remove the lid.
Page 245 P.242)  Blown fuse Replace it with one of an appropri- ate amperage rating. The amper- age rating can be found on the fuse box lid. If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
Page 246 4-3. Do-it-yourself maintenance Fuse layout and amperage rating ■ Engine compartment fuse box Spare fuses Pull-out tool...
Page 247 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Multiport fuel injection system/sequential IG2 MAIN multiport fuel injection system Power windows, Power door lock system, Power rear view mirror control system, Out- P-DOOR side rear view mirror defogger, Door cour- tesy lights Power windows, Power door lock system, Power rear view mirror control system, Out- D-DOOR side rear view mirror defogger, Door cour-...
Page 248 4-3. Do-it-yourself maintenance ■ Fuse box in the driver’s side kick panel Fuse Ampere Circuit TI & TE Tilt and telescopic steering Air conditioning system, Audio system, Glove PANEL box light, Trip-information display, Cigarette lighter, Electronic throttle control system FR FOG Fog lights, Headlight switch D P/SEAT Power seat system...
Page 249: Personal Lights
4-3. Do-it-yourself maintenance ■ Fuse box in the front passenger’s side kick panel Fuse Ampere Circuit Power door lock, Steering lock, Engine immo- MPX-B1 bilizer, Power seat system, Retractable hardtop Tilt and telescopic steering, Headlight switch, MPX-B3 Windshield wiper and washer switch, Turn signal switch Interior light, Personal lights, Vanity lights, Foot DOME...
Page 250 Never use a fuse of higher amperage rating, or use any other object in place of a ● fuse. Always use genuine Lexus fuses, or equivalent. Do not use copper wire or other ● objects, even as a temporary measure.
Page 251: Cartridge Fuses
Fuse box inside the engine com- partment Fuse box inside the engine com- partment ■ Checking whether fuses are good or blown Good Blown If replacement is necessary, replace with a genuine Lexus fuse or equiva- lent with same amperage rating as original.
Page 252 Always use a genuine Lexus fuse or equivalent. Never install an ordinary wire - even as a temporary fix. This may cause extensive damage and possibly a fire. NOTICE Before replacing fuses ■ Have the cause of electrical overload determined and repaired by your Lexus dealer.
Page 253: Headlight Aim
4-3. Do-it-yourself maintenance Headlight aim ■ Adjusting bolts Adjusting bolt A Adjusting bolt B ■ Before checking the headlight aim Make sure the vehicle has a full tank of gas and the body around the headlight is not damaged. Park the vehicle on a level spot. Sit in the driver’...
Page 254 1 using a Phillips-head screw- driver. If you cannot properly aim the headlights, take the vehicle to your Lexus dealer to adjust the headlight aim. After adjusting the headlight in the vertical direction, check if the light has been...
Page 255: Light Bulbs
4-3. Do-it-yourself maintenance Light bulbs You can replace following bulbs. Contact your Lexus dealer for more infor- mation about replacing other light bulbs. ■ Prepare a replacement light bulb. Check the wattage of the light bulb being replaced. (P.308) Rear turn signal light...
Page 256 4-3. Do-it-yourself maintenance Replacing light bulbs ■ Rear turn signal lights Use a wrench. Turn counterclockwise. Remove the bulb.
Page 257 4-3. Do-it-yourself maintenance ■ Back-up light Turn counterclockwise. Remove the bulb.
Page 258 ■ The tail, stop and high mounted stop lights consist of a number of LEDs. If any LED burns out, we recommend you take your vehicle to your Lexus dealer to have the light inspected as soon as possible. Discharge headlights ■...
Page 259 4-3. Do-it-yourself maintenance CAUTION Discharge headlights ■ Always have your Lexus dealer change the ● discharged head lights. (Including light bulbs.) Do not touch the high voltage socket while the headlights are turned on. ● The sockets are usually charged with 20,000 volts. Touching the socket may cause severe injury due to electric shock.
Page 260: When Trouble Arises
When trouble arises 5-1. Essential information.... 248 5-2. Steps to take in an emergency ......257 If your vehicle needs to be towed .......... 248 If the warning light turns on..........257 If you think something is wrong.......... 253 If you have a flat tire (Vehicles with run-flat Fuel pump shut off system..
Page 261: Essential Information
We recommend having your vehicle towed with a wheel lift type truck or flat bed truck by your Lexus dealer or a commercial tow truck service. Use a safety chain system for all towing, and abide by the state/provincial and local laws.
Page 262 5-1. Essential information Towing eyelets Emergency towing procedures ■ Release the parking brake. Put the transmission in “N”. The ignition switch must be in “ACC” (engine off) or “ON” (engine running). CAUTION Caution while towing ■ Use extreme caution when towing the vehicle. Avoid sudden starts or erratic ●...
Page 263 5-1. Essential information Towing with a wheel lift-type truck Use a towing dolly under the rear FROM FRONT wheels. NOTICE To prevent causing serious damage to the transmission ■ Never tow this vehicle from the front with the rear wheels on the ground.
Page 264 5-1. Essential information Place the key in the “ACC” posi- FROM REAR tion so that the steering wheel is unlocked. NOTICE To prevent damaging the vehicle ■ Do not tow with the key removed or in the LOCK position. The steering lock ●...
Page 265 5-1. Essential information Transporting your Lexus on a flat bed truck If your Lexus is transported by a flat bed, it should be tied down at locations A and B as shown. If you use chains or cables to tie down your vehicle, the angles shaded black must be at 45.
Page 266: If You Think Something Is Wrong
5-1. Essential information If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs adjustment or repair. Contact your Lexus dealer as soon as possible. ■ Visible symptoms Look for any of the following symptoms.
Page 267: Fuel Pump Shut Off System
5-1. Essential information Fuel pump shut off system The fuel pump shut off system stops supplying fuel to the engine to minimize the risk of fuel leakage when the engine stalls or an airbag inflates. ■ To restart the engine after the system activates Turn the ignition switch to ACC or LOCK once.
Page 268: Event Data Recorder
5-1. Essential information Event data recorder Your vehicle has computers that monitor and control certain aspects of your vehicle. These computers assist in driving and maintaining optimal vehicle performance. Besides storing data useful for troubleshooting, there is a system to record data in a crash or a near car crash event.
Page 269 Disclosure of the data Lexus will not disclose the data recorded in an EDR to a third party except when: • An agreement from the vehicle’ s owner (or the leasing company for a leased vehicle) is obtained •...
Page 270: Steps To Take In An Emergency
The following warning indicates a possible problem in the brake system. Continuing to drive the vehicle may be dangerous. Immediately stop the vehicle in a safe place and contact your Lexus dealer. Warning lights Warning light/Details Brake system warning light (Warning buzzer)* •...
Page 271 If both the ABS and brake system warning lights remain on ■ Stop your vehicle in a safe place immediately and contact your Lexus dealer. The vehicle will become extremely unstable during braking, and the ABS system may fail, which could cause an accident resulting in death or serious injury.
Page 272 If the following warning lights come on, stop the vehicle immediately. The following warnings indicate the possibility of damage to the vehicle that may lead to an accident. Immediately stop the vehicle in a safe place and contact your Lexus dealer. Warning lights Warning light/Details Charging system warning light Indicates a malfunction in the vehicle’...
Page 273 If the following warning lights come on, have the vehicle inspected immediately. Failing to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Lexus dealer immediately. Warning lights Warning light/Details Malfunction indicator lamp Indicates a malfunction in: (U.S.A)
Page 274 Check the fuel tank cap, if the fuel tank cap is loose, tighten it securely. ● The light will go off after driving regularly for some time. If the light does not go off even after several trips, contact your Lexus dealer as soon as possible.
Page 275 If you cannot verify the tire inflation pressure soon, go to the nearest Lexus dealer or authorized tire dealer at the moderate speed. If any tire must be replaced, see “If you have a flat tire” (P.268) If the warning light blinks and chimes sound every few minutes, the tire inflation ●...
Page 276 If the low tire pressure warning light does not go off more than 15 minutes after ■ air is put in the deflated tire If there is no flat tire, the system might be malfunctioning. Consult your Lexus dealer. If you drive at high speed with the tires not inflated at the designated pressure for ■...
Page 277 5-2. Steps to take in an emergency System malfunction ■ The warning light comes on if the system does not work properly. The system will be disabled in the conditions below: Electric devices or facilities using similar radio wave frequencies are nearby. ●...
Page 278 As soon as possible, take your vehicle to the nearest Lexus dealer, tire dealer or gas station if the light is on, or the nearest Lexus dealer or authorized tire dealer if the light is blinking, observing the following precautions: Decelerate to the most appropriate speed that conditions permit.
Page 279 5-2. Steps to take in an emergency If the following warning lights come on, have the malfunction repaired immediately. After taking the specified steps to correct the suspected problem, check that the warning light turns off. Correction Warning lights Warning light/Details procedures Low engine oil level warning Check the level of...
Page 280 5-2. Steps to take in an emergency Correction Warning lights Warning light/Details procedures Driver’s seat belt reminder warning light Wear the seat belt. (Warning buzzer) Warns the driver to wear his/her seat belt. Front passenger’s seat belt reminder warning light (Warning buzzer) Wear the seat belt.
Page 281: If You Have A Flat Tire (Vehicles With Run-Flat Tires)
5-2. Steps to take in an emergency If you have a flat tire (Vehicles with run-flat tires) Take your vehicle to the nearest Lexus dealer or authorized tire dealer as soon as possible. ■ Run-flat tires You can continue driving a vehicle with run-flat tires even if any tire goes flat.
Page 282 NOTICE When replacing the tires ■ Have the tires replaced by the nearest Lexus dealer or authorized tire dealer. The ● tire pressure sensors will be affected by the installation or removal of tires. Replace the grommets for the tire pressure sensors as well.
Page 283: If You Have A Flat Tire (Vehicles With Standard Tires)
5-2. Steps to take in an emergency If you have a flat tire (Vehicles with standard tires) Remove the flat tire and replace it with the spare provided. ■ Before jacking the vehicle • Stop the vehicle on a hard, flat surface. •...
Page 284 5-2. Steps to take in an emergency ■ Compact spare tire The compact tire saves space in your luggage compartment, and its lighter weight helps to enhance fuel economy and permits easier installation in case of a flat tire. The compact spare tire is designed for temporary emergency use only.
Page 285 5-2. Steps to take in an emergency Replacing a flat tire Chock the tires. Wheel chock Flat tire positions Left- Behind the rear hand right-hand side side tire Front tire Wheel chocks Right- Behind the rear hand left-hand side tire side Left- In front of the...
Page 286 5-2. Steps to take in an emergency Turn the tire jack joint “A” by hand until the jack is in contact with the jack point. Jack point Tire jack Tire jack position Raise the vehicle until the tire is slightly raised off the ground. Tire jack handle Remove all the nuts and the tire.
Page 287 5-2. Steps to take in an emergency Installing spare tire Remove any dirt or foreign matter from the wheel contact surface. If foreign matter is on the wheel contact surface, the nuts may loosen while the vehicle is in motion, and the tire may come off the vehicle.
Page 288 5-2. Steps to take in an emergency Firmly tighten each nut two or three times in the order shown in the illustration. Tightening torque: 76 ft lbf (103 N m, 10.5 kgf • • • Wheel nut wrench Stow the flat tire, tire jack and all tools.
Page 289 5-2. Steps to take in an emergency CAUTION Using the tire jack ■ Improper use of the tire jack may lead to death or injuries due to the vehicle sud- denly falling off the jack. Observe the following precautions to prevent accidents. Do not use the tire jack for any purpose other than replacing tires or installing and ●...
Page 290 5-2. Steps to take in an emergency CAUTION Speed limit when using the compact spare tire ■ Do not drive at more than 50 mph (80 km/h) when the compact spare tire is installed on the vehicle. The compact spare tire is not designed for driving at high speeds. Failing to observe this precaution may lead to an accident.
Page 291 NOTICE When the tires must be repaired or replaced ■ Take the vehicle to the nearest Lexus dealer or authorized tire dealer. The tire ● pressure sensors will be affected by tire installation or removal. Replace the grommets for the tire pressure sensors as well.
Page 292: If The Engine Will Not Start
If the engine will not start If the engine will not start, even though correct starting procedures are being followed (P.82), consider each of the following points. Contact your Lexus dealer if the problem cannot be repaired, or if repair pro- cedures are unknown. ■...
Page 293: If The Transmission Selector Lever Cannot Be Shifted From P
(a system to prevent accidental operation of the selector lever). Have the vehicle inspected by your Lexus dealer immediately. The following steps may be used as an emergency measure to ensure the selector lever can be shifted.
Page 294: If You Lose Your Keys
5-2. Steps to take in an emergency If you lose your keys New keys can be ordered from your Lexus dealer. If all the master keys are lost, the on-board computer must also be replaced. If a key with a built-in remote control is lost ■...
Page 295: If The Vehicle Has A Discharged Battery
The following procedures may be used to start the engine in the event the vehicle’s battery is discharged. You can call your Lexus dealer, Roadside Assistance or Lexus Customer Ser- vice Assistance. If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt battery, you can jump start your Lexus following the steps below.
Page 296 Once the vehicle’ s engine has started, remove the exact reverse jumper cables in the exact reverse order in which they were con- nected. Once the engine starts, have the vehicle checked at your Lexus dealer as soon as possible. Avoiding a discharged battery ■...
Page 297 5-2. Steps to take in an emergency CAUTION Battery precautions ■ The battery contains poisonous and corrosive electrolyte, while related parts con- tain lead and lead compounds. Observe the following precautions when handling the battery. When working with the battery, always wear safety glasses and take care not to ●...
Page 298: If Your Vehicle Overheats
Wait until the temperature of the engine (shown in the instrument clus- ter) begins to fall and then stop the engine. If the fan is not operating: Stop the engine and call your local Lexus dealer. After the engine has cooled down sufficiently, check the level of...
Page 299 5-2. Steps to take in an emergency Overheating ■ If you observe the following, your vehicle may be overheating. The engine coolant temperature gauge enters the red zone or a loss of power is ● experienced. Steam is coming out from under the hood. ●...
Page 300: If The Vehicle Becomes Stuck
5-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt, or snow to the extent that it cannot move. • Stop the engine. Set the parking brake and put the transmission selector lever in “P”.
Page 301: If The Retractable Hardtop Does Not Close
Although the conditions are met, if the retractable hardtop does not close, close it manually following the procedure below. Be sure to have the system checked by your Lexus dealer as soon as possible. Unlocking the trunk lid Push the trunk lid opener switch.
Page 302 5-2. Steps to take in an emergency Opening the trunk lid fully Raising the luggage links 1. Pull out the green loops of wire from openings of the cover on both sides of the trunk. 2. While pulling out the loop of wire with one hand, put your other hand over the front side of the luggage link (where green...
Page 303 5-2. Steps to take in an emergency Raising the package tray Main board Slide board Side board 1. Put your hands under the slide board and raise the package tray gradually at 30° to 45°. 2. Disconnect the joints of the cables at both ends under the package tray manually.
Page 304 5-2. Steps to take in an emergency Closing the roof panel partially 1. Take out the Allen wrench located in the trunk. 2. Remove the 2 bolts on each side using the longer side of the Allen wrench. Roof stopper Hook 3.
Page 305 5-2. Steps to take in an emergency 5. After the roof is lifted up to a certain point, 2 people lift it on the rear side of the vehicle in unison. 6. Stop lifting the roof in this position. Folding down the package tray With the slide board as low as the main board, fold down the main board rearward.
Page 306 5-2. Steps to take in an emergency Hook 2. Insert the wrench tip into the drive gear shaft and turn the wrench about one turn counterclockwise as viewed from the bottom. Make sure the hook protrudes from the roof panel. 3.
Page 307 5-2. Steps to take in an emergency 6. Insert the wrench tip into the drive gear shaft and turn the wrench about one turn clock- wise as viewed from the bottom. 7. From the inside, push in the vicinity of the line separating the roof panel and rear window to make sure the top is locked securely.
Page 308 Lexus dealer as soon as possible. In other procedures, you may be injured by performing them with bare hands. In that case, wear gloves or...
Page 309 5-2. Steps to take in an emergency CAUTION When manually closing the retractable hardtop ■ Stop the vehicle in a safe, level place. ● Make sure the parking brake is applied, and the selector lever is in the “P” posi- ●...
Page 310 5-2. Steps to take in an emergency NOTICE When manually closing the retractable hardtop ■ Lower the radio antenna during the procedure. When raising the luggage links ■ Do not apply force to parts other than those marked with green paint. When raising the package tray ■...
Page 311 5-2. Steps to take in an emergency Closing the quarter windows The quarter windows can be closed electrically using the following operation. Turn the ignition switch on. Turn the trunk lid opener main switch from the operative position to the inoperative position (in the cancelled position). (P.10) Push the “OPEN/CLOSE”...
Page 312: Vehicle Specifications
Vehicle specifications 6-1. Specifications......300 Maintenance data ....300 Fuel information ......309 Tire information ......312 6-2. Owner’s customize ....322 Customizable features.... 322 Initializing your Lexus ....324...
Page 313: Specifications
Vehicle identification The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle. This number is stamped on the top...
Page 314 6-1. Specifications This number is also on the Certifi- cation Label. Engine Model 3UZ-FE Type 8-cylinder V type, 4-cycle, gasoline 3.58  3.25 in. (91.0 82.5 mm) Bore and stroke Displacement 261. 9 cu.in. (4293 cm Valve clearance 0.006 - 0.010 in. (0.15 - 0.25 mm) (engine cold) 0.010 - 0.014 in.
Page 315 5.5 qt. (5.2 L, 4.6 lmp.qt.) without filter 4. 9 qt. (4.6 L, 4.0 lmp.qt.) Oil grade ILSAC multigrade engine oil Use Lexus approved “Toyota Genuine Motor Oil” or equivalent to satisfy the above grade and following vis- cosity. Recommended oil viscosity...
Page 316 6-1. Specifications Cooling system Capacity 10.5 qt. (9. 9 L, 8.7 lmp.qt.) Use either of the following: • “Toyota Super Long Life Coolant” • Similar high quality ethylene glycol based non-sil- Coolant type icate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid tech- nology Do not use plain water alone.
Page 317: Electrical System
6-1. Specifications Electrical system Battery - Open voltage at 12.6–12.8 V Fully charged 68F (20C): 12.2–12.4 V Half charged 11.8–12.0 V Discharged [Voltage checked 20 minutes after the key is removed with all the lights turned off] - Charging rates 5A max.
Page 318 6-1. Specifications Automatic Transmission Fluid capacity 1.8 qt. (1.7 L, 1.5 lmp.qt.) Drain and refill Toyota Genuine ATF WS Fluid type (ATF JWS3324 or NWS9638) Brakes Pedal clearance * 3. 9 in. (100 mm) Min. Pedal free play 0.008 - 0.08 in. (0.2 - 2 mm) Brake pad wear limit 0.04 in.
Page 319 6-1. Specifications Tires and wheels (Type A) Tire size 245/40R18 93Y Driving in normal conditions Front 33 psi (230 kPa, 2.3 kgf/cm or bar) Rear 33 psi (230 kPa, 2.3 kgf/cm or bar) Tire inflation pressure Driving at high speeds above 112 mph (180 km/h) (Recommended cold (in countries where such speeds are permitted by law) tire inflation pressure)
Page 320 6-1. Specifications Tires and wheels (Type C) Tire size 245/40ZR18 Driving in normal conditions Front 33 psi (230 kPa, 2.3 kgf/cm or bar) Rear 33 psi (230 kPa, 2.3 kgf/cm or bar) Tire inflation pressure Driving at high speeds above 112 mph (180 km/h) (Recommended cold (in countries where such speeds are permitted by law) tire inflation pressure)
Page 321 6-1. Specifications Light bulbs Light Bulbs Bulb No. Type Headlight (Low beam) Front turn signal light 3457NA Headlight (High beam) 9005 Parking light Fog lights Exterior Front side marker light Trunk light Rear side marker light  Rear turn signal light Back-up light 7440 ...
Page 322: Fuel Information
ASTM D4814 in the USA and CGSB 3.5-M93 in Canada. Fuel tank opening for unleaded gasoline ■ To help prevent incorrect fueling, your Lexus has a fuel tank opening that will ● only accept the special nozzle on unleaded fuel pumps.
Page 323 Lexus allows the use of oxygenate blended gasoline where the oxygenate con- ● tent is up to 10% ethanol or 15% MTBE. If you use gasohol in your Lexus, be sure that it has an octane rating no lower ● than 87.
Page 324 Some gasoline contain an octane enhancing additive called MMT (Methylcyclo- pentadienyl Manganese Tricarbonyl). Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con- taining MMT is used, your emission control system may be adversely affected. The Malfunction Indicator Lamp on the instrument cluster may come on. If this hap- pens, contact your Lexus dealer for service.
Page 325: Tire Information
6-1. Specifications Tire information Typical tire symbols Tire size (P.315) DOT and Tire Identification Number (TIN) (P.314) Location of tread wear indicators (P.212)
Page 326 6-1. Specifications Run-flat tire (RFT) or standard tire (P.268) This vehicle can be equipped with either run-flat tires (RFT) or standard tires. A “RFT” or “DSST” mark is molded on the sidewall of the run-flat tire. Turning indicator (P.212) Some vehicles are equipped with directional tires. Tire ply composition and materials Plies are layers of rubber-coated parallel cords.
Page 327 6-1. Specifications Typical DOT and tire identification number (TIN) “DOT” symbol* Tire Identification Number (TIN) Tire manufacturer’ s identification mark Tire size code Manufacturer’ s optional tire type code (3 or 4 letters) Manufacturing week Manufacturing year * The “DOT” symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.
Page 328 6-1. Specifications Tire size ■ Typical tire size information Type A and B Type C Spare...
Page 329 6-1. Specifications The illustration indicates typical tire size. Tire use (P = Passenger car, T = Temporary use) Section width (in millimeters) Aspect ratio (tire height to section width) Speed category (alphabet with one letter) Tire construction code (R = Radial, D = Diagonal) Wheel diameter (in inches) Load index (2 digits or 3 digits) Speed symbol (alphabet with one letter)
Page 330 Department of Transportation. It provides the purchasers and/or prospective purchasers of Lexus vehi- cles with information on uniform tire quality grading. Your Lexus dealer will help answer any questions you may have as you read this information. ■ DOT quality grades All passenger vehicle tires must conform to Federal Safety Require- ments in addition to these grades.
Page 331 6-1. Specifications ■ Tread wear The tread wear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified gov- ernment test course. For example, a tire graded 150 would wear one and a half (1 - 1/2) times as well on the government course as a tire graded 100.
Page 332 6-1. Specifications ■ Temperature A, B, C The temperature grades are A (the highest), B, and C, representing the tire’ s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.
Page 333 6-1. Specifications Glossary of tire terminology Tire related term Definition The combined weight (in excess of those standard items which may be replaced) of automatic transmis- sion, power steering, power brakes, power windows, Accessory weight power seats, radio and heater, to the extent that these items are available as factory-installed equipment (whether installed or not).
Page 334 6-1. Specifications Tire related term Definition (a) The sidewall that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or deeper than Intended outboard the same molding on the other sidewall of the tire, or sidewall (b) The outward facing sidewall of asymmetrical tire that has a particular side that must always face out-...
Page 335: Owner's Customize
6-2. Owner’s customize Customizable features Your vehicle includes a variety of electronic features that can be personalized to your preferences. Programming these preferences requires specialized equipment and may be performed by an authorized Lexus dealership. Default After Item Function setting...
Page 336 Open (P.32) grated operation Alarm Wireless remote control theft (P.44) deterrent buzzer Ambient light sensor sensitivity Ask your Lexus dealer Automatic light control system Time period before lights turn Ask your 30 seconds (P.96) Lexus dealer Automatic shift from LO speed...
Page 337: Initializing Your Lexus
6-2. Owner’s customize Initializing your Lexus The following features should be initialized after certain maintenance is per- formed to ensure the system operates correctly. Item Maintenance performed Reference Reconnected, replaced or recharged Front seats P.13 the battery. Reconnected, replaced or recharged Power windows P.32...
Page 338: For Us Owners Reporting Safety Defects For Us Owners
For U S owners Reporting safety defects for US owners......326...
Page 339 It may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or the Lexus Division of Toyota Motor Sales, U.S.A., Inc. ■ To contact NHTSA You may either call the Auto Safety Hotline toll-free at 1-800-424- 9393 (or 366-0123 in Washington, D.C.
Page 340 Index Alphabetical index ....328 What to do if......336...
Page 341: Alphabetical Index
Alphabetical index Alphabetical index A/C ............122 Optimal use .......... 147 Radio ............133 ABS ............107 Steering switch ........149 Warning light ........260 Auto anti-glare mirror ......29 Adaptive front Automatic air conditioning lighting system ........98 system .............122 AFS ..............98 Automatic headlight leveling Warning light........260 system Air conditioning system...
Page 342 Alphabetical index Care Seat belt precautions ......24 Exterior ............178 Seat heater precautions ....166 Interior ............181 Trunk ............12 Cargo capacity .........111 Cigarette lighter ........164 Cargo hooks ...........168 Cleaning Cassette player ........137 Exterior ........... 178 CD changer ..........140 Interior ............181 Chains ............
Page 343 Alphabetical index Foot lights ..........152 Pattern select switch ......86 Front passenger’s seat belt Engine reminder light ........267 Compartment ........197 Front seats Hood ............194 Adjustment ..........13 How to start the engine ....82 Fuel If your vehicle will not Capacity ..........301 start ............
Page 344 ..........253 Low engine oil pressure warning Indicator lights ..........93 light............259 Initializing your Lexus......324 Low tire pressure warning light ..261 Inside rear view mirror ......29 Low washer fluid warning light..266 Interior light ..........153 Luggage cover ........169...
Page 345 Alphabetical index Mirrors Replacing Auto anti-glare mirror ....... 29 Air conditioning filter......226 Side mirror heaters ......129 Blade type fuses ....... 230 Side mirrors ..........30 Cartridge type fuses ....... 238 Vanity mirrors ........161 Light bulbs ..........242 Wireless remote control battery ..........228 Odometer ...........
Page 346: Door Lock Switch
Alphabetical index Seat adjustment ........13 Fog light switch ........100 Seat adjustment precautions ... 14 Ignition switch ........82 Seat heaters ..........166 Light switches ........96 Selector lever Power door lock switch .......7 Automatic transmission ....85 Power window switch ....... 32 If you cannot move transmission Window lock switch ......
Page 347: Window Lock Switch
Alphabetical index Trunk Low tire pressure ....... 261 Opener ............10 Low washer fluid ......266 Trunk light Malfunction indicator lamp ..260 Wattage ..........308 Open door .......... 266 Turn signal lights Pretensioners ...........21 Replacing light bulbs ...... 243 Rear light failure ........261 Switch ............89 Seat belt reminder Wattage ..........
Page 348 Alphabetical index...
Page 349 What to do if... What to do if... P.268/ A tire puncture If you have a flat tire If the engine will not start P.279 The engine does not start Engine immobilizer system P.43 If the vehicle has a discharged battery P.282 If the transmission selector lever cannot The transmission selector lever...
Page 350 What to do if... The warning light or If the warning light turns on P.257 indicator light comes on ■Warning lights Engine oil replacement VSC system reminder light warning light (U.S.A.) P.261 P.266 Brake system warning SRS warning light (U.S.A.) light P.257 P.260...
Page 351: Hood Lock Release Lever
GAS STATION INFORMATION Trunk opener Hood lock release lever Fuel filler door P.10 P.194 P.39 Auxiliary catch lever Fuel filler door opener Tire inflation pressure P.194 P.39 P.219 Fuel tank capacity 19.8 gal. (75 L, 16.5 lmp.gal.) P.301 Fuel type Unleaded gasoline only P.301 psi (kPa, kgf/cm...
Page 352: Canadian Owners
Your Lexus dealer Your Lexus dealer will provide quality maintenance and any other assistance you may require. If there is not a Lexus dealer near you, please call the following number: ■U.S. OWNERS ●In the U.S. mainland or Canada: Lexus Roadside Assistance...

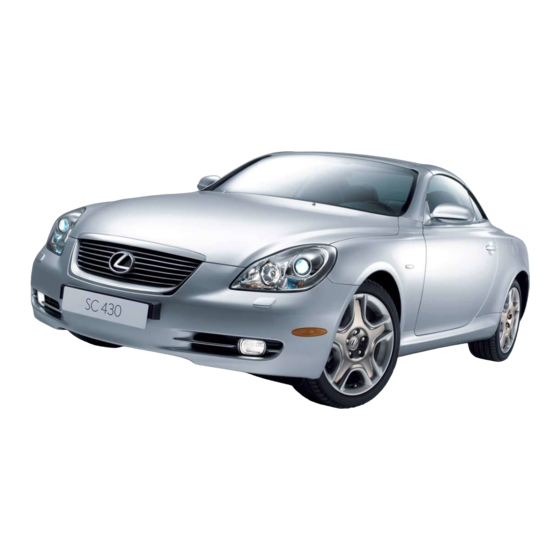

Lexus SC 430 2006 Owner's Manual

1 Before Driving

2 When Driving

3 Interior Features

4 Maintenance and Care

5 When Trouble Arises

6 Vehicle Specifications

Quick Links

Chapters

Related Manuals for Lexus SC 430 2006

Summary of Contents for Lexus SC 430 2006

Table of Contents
