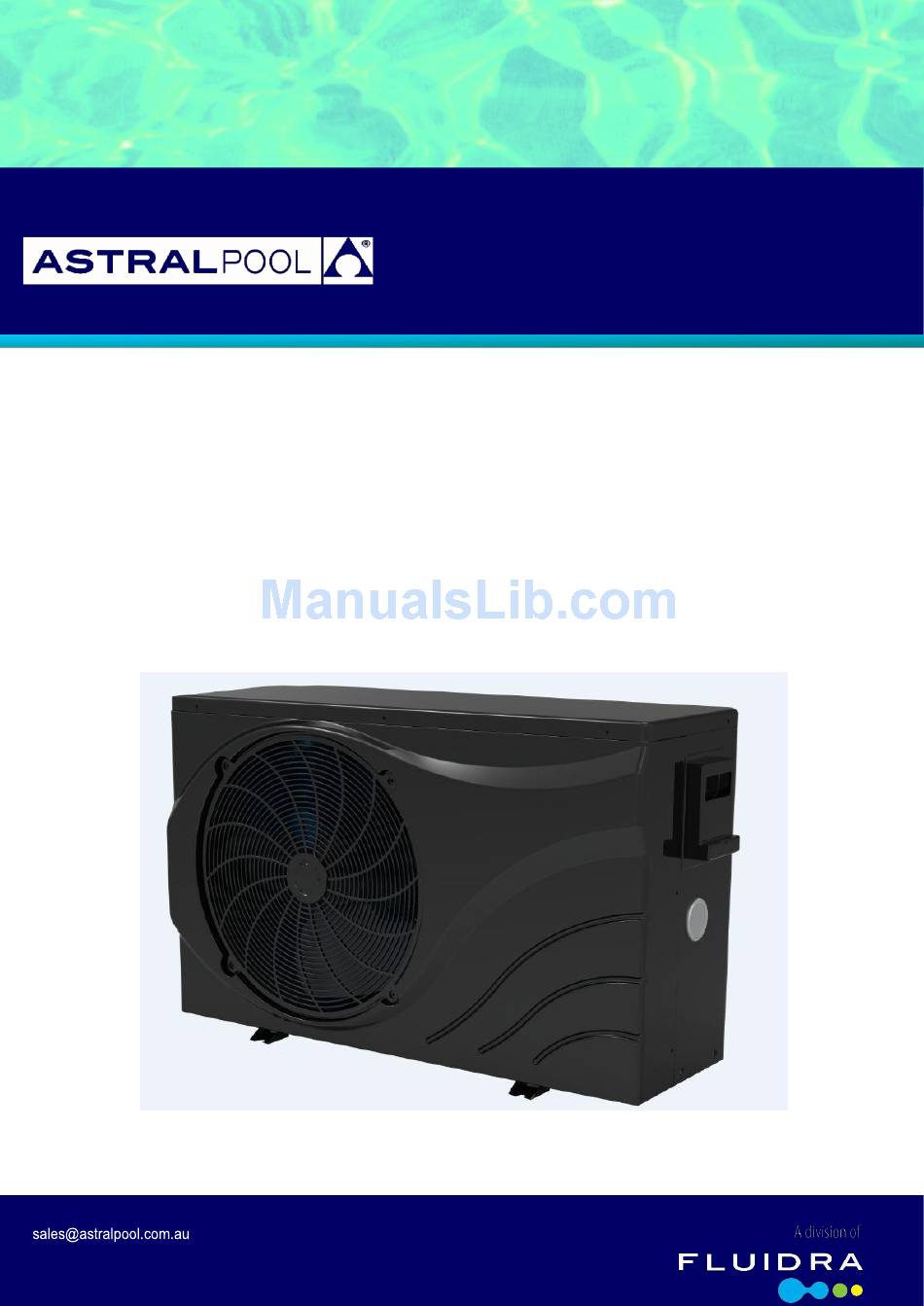

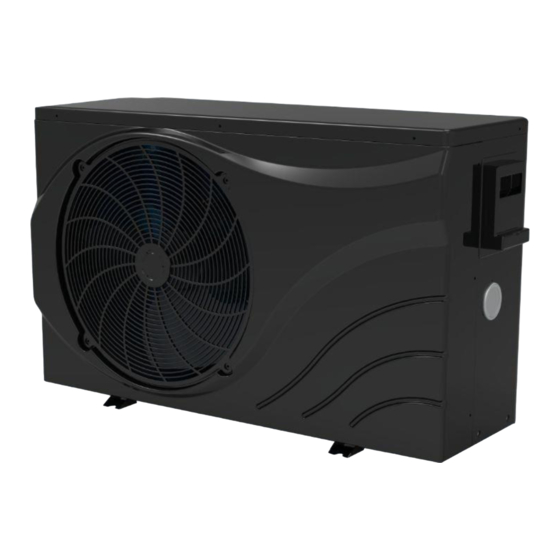

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS INSTALLATION AND OPERATING INSTRUCTIONS Astral Pool Residential Heat Pump www.astralpool.com.au...
-
Page 2: Table Of Contents
Contents 1. Preface------------------------------------------------------------------------------------------ 1 2. Specifications 2.1 Performance Data of Swimming Pool Heat Pump Unit 2.2 Dimensions for Swimming Pool Heat Pump Unit 3. Installation and Connection 3.1 Installation of System 3.2 Swimming Pool Heat Pumps Location 3.3 How Close to Your Pool? 3.4 Swimming Pool Heat Pumps Plumbing 3.5 Swimming Pool Heat Pumps Electrical Wiring 3.6 Initial Start-up of the Unit... - Page 3 INTRODUCTION Congratulations on the purchase of an Astral Pool Heat Pump, Pool and Spa Heater. Proper installation and service of your new heating system and correct chemical maintenance of the water will ensure many years of service. It is equipped with features that take advantage of new technology developed exclusively by Astral Pool.
- Page 4 3.INSTALLATION AND CONNECTION NOTICE TO INSTALLERS Heat Pump must be located outdoors with sufficient ventilation as explained on page 6. This appliance must be installed by an authorized person. This appliance must be installed in accordance with the installation instructions, the National Wiring Rules and any other relevant statutory authorities.
-
Page 5: Specifications
SPECIFICATION Performance data of Swimming Pool Heat Pump Unit REFRIGERANT :R410A Unit Model 78540 78541 Heating Capacity 13.8 BTU/h 26900 47000 Heating Power Input Running Current 10.4 Heating Capacity BTU/h 21420 29920 Heating Power Input 1.41 1.97 Running Current Heating Capacity... -
Page 6: Dimensions For Swimming Pool Heat Pump Unit
2.SPECIFICATION 2.2 The dimensions for Swimming Pool Heat Pump Unit Model:78540/78541 Water outlet Water inlet unit mm TYPE 78540/78541 SIZE... -
Page 7: Installation And Connection
3.INSTALLATION AND CONNECTION 3.1 Installation illustration Valve Chlorinator cell Water outlet supply Water Pool Water inlet Sand filter Water pump (or other type filter) Installation items: The factory only provides the main unit and the water unit; the other items in the illustration are necessary spare parts for the water system, that are provided by users or the installer. -
Page 8: Swimming Pool Heat Pumps Plumbing
3.INSTALLATION AND CONNECTION 3.4 Swimming Pool Heat Pumps Plumbing The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no special plumbing arrangements except by-pass(please set the flow rate according to the nameplate). The water pressure drop is less than 10kPa at max. Flow rate. Since there is no residual heat or flame Temperatures, The unit does not need copper heat sink piping. -
Page 9: Water Connections
All automatic sanitising devices must be installed after the heater and in such a way that the sanitiser cannot enter the heater without first mixing with the water in the pool or spa. Sanitisers that are connected prior to the heater will void heater warranty. The Astral Pool Heat Pump Pool Heater is only suitable for outdoor installation. -
Page 10: Swimming Pool Heat Pumps Electrical Wiring
Should any doubt exist, seek advice from an Acoustical Consultant which can be found in the Yellow Pages. The ASTRAL POOL Heat Pump has a sound power level of 66 dB(A) at 1 metre distance. The following factors should be taken into account when working out where to locate the Heat Pump. - Page 11 3.INSTALLATION AND CONNECTION B a r i r er: A fence or barrier can reduce the level of the Heat Pump’s noise heard in neighbouring premises. To do this, the barrier or fence needs to be continuous with few or no gaps and go down to ground level. It must also prevent the Heat Pump from being seen from noise sensitive locations on neighbouring premises.
- Page 12 This calculation is intended as a guide only and no warranty is made or implied by Astral Pool as to its accuracy. Please consult an Acoustical Consultant or phone your Astral Pool branch office if in any doubt.
- Page 13 Further Guidelines for installation of Heat Pumps ASTRAL POOL Heat Pumps must be installed outdoors – never install inside a plant room, garage etc. Allow a minimum of 500mm clearance from the sides and rear of the heat pump and a minimum of 1000mm service access from the front of the Heat Pump.
-
Page 14: Usage And Operation
4. USAGE AND OPERATION 4.1. Function of the controller LED display AUTO Auto indicator light MODE HEAT Heating indicator light COOL Cooling indicator light Turn on indicator light TIMER ON TIMER OFF CLOCK Timer on Timer off indicator indicator Key function Key name ON/OFF Press this key to turn on/off the unit... -
Page 15: Usage Of The Controller
4. USAGE AND OPERATION 4.2. Usage of wire controller 4.2.1 Turn ON/OFF the unit When the unit is off, press the key 0.5s to turned on the unit; When the unit is on, press the key 0.5s to show down the unit; Heating System Temp. - Page 16 4. USAGE AND OPERATION Press...
- Page 17 4. USAGE AND OPERATION 4.2.4 Setting temperature In the main interface press and the current mode target-temperature flashes, then press to increase the temp.value, or press to decrease it. Press MODE can save setting parameter and back to the main interface Press can not save setting parameter but back to the main interface Attention If there is no operation for 5s system would remember parameter setting and back to...
-
Page 18: Clock Setting
4.2.5 Clock setting In the main interface press CLOCK twice Hours start to flashing and press to increase value or press to decrease value and press CLOCK to setting At the same time, minute start to flashing press to increase value or press to decrease value and press CLOCK to save setting. -
Page 19: Timer Setting
4. USAGE AND OPERATION 4.2.6 Timer setting (1) You can set the timer of unit on In the on or off state, Press "TIME ON" to enter timer-on interface Press "TIME ON" and time-hour-bit flashing Press " or " " to change the hours value Press "TIME ON"... - Page 20 4. USAGE AND OPERATION TIMER ON TIMER OFF CLOCK...
-
Page 21: Parameter Setting
4. USAGE AND OPERATION (2) The setting of cancelling the timer If there is no need to set timer on or timer off, the timer setting can be cancelled. At unit on or off state, press TIME On to enter timer-on setting interface, then press to cancel the timer-on, at this timer, the timer-on light turn off. - Page 22 4. USAGE AND OPERATION 4.2.8 Malfunction display There will be malfunction code showing on the controller screen when relative malfunction occurs. You can refer to the malfunction table to find out the failure cause and solution. For example Water inlet temp. Sensor failure AUTO 4.3.
-
Page 23: Maintenance And Inspection
5. MAINTENANCE AND INSPECTION 5.1 Maintenance Check the water supply device and the release often. You should avoid the condition of no water or air entering into system, as this will influence unit's performance and reliability. You should clear the pool/spa filter regularly to avoid damage to the unit as a result of the dirty of clogged filter. -
Page 24: Malfunction Table
5. MAINTENANCE AND INSPECTION 5.2 .Malfunction Table The common failure cause and solution. Display Malfunction Canse Solution Check or change thewater The water inlet temp. Sensor is Water inlet temp. Sensor failure open or shortcircuit inlet temp. Sensor Check or change thewater The water outlet temp. -
Page 25: Appendix
6. APPENDIX 6.1 Connection of PCB illustration CN19 AI06 OUT3 AI05 OUT4 PC1001 AI04 OUT5 AI03 AC-N AI02 AI01 CN16 CN1 CN2 Connections explanation Symbol Meaning OUT1 Compressor of system1 220-230VAC OUT2 Water pump 220-230VAC OUT3 4way valve 220-230VAC OUT4 High speed of fan motor 220-230VAC OUT5... -
Page 26: Caution & Warning
6. APPENDIX 6.2 Caution & Warning 1. The unit can only be repaired by qualified installer centre personnel or an authorised dealer. for Europe market 2. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 27: Cable Specification
6. APPENDIX 6.3 Cable specification Single phase unit Nameplate Creepage protector Signal line maximum Phase line Earth line current No more 1.5mm 1.5mm 30mA less than 0.1 sec than 10A 2.5mm 2.5mm 30mA less than 0.1 sec 10~16A 30mA less than 0.1 sec 16 ~25A 30mA less than 0.1 sec 25 ~32A... -
Page 28: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS AstralPool Australia Pty Ltd (ABN 97 007 284 504) ("AstralPool") provides the following warranty in relation to its Astralpool Heat Pump Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. - Page 29 If such inspection and testing finds no defect in the product, the customer must pay AstralPool's usual costs of service work and testing. If such inspection and testing finds a defect that is not covered by this warranty, the customer must pay AstralPool's usual costs of service work plus any parts and labour required to repair the Product, unless recoverable from AstralPool on the failure of any statutory guarantee under the ACL.
