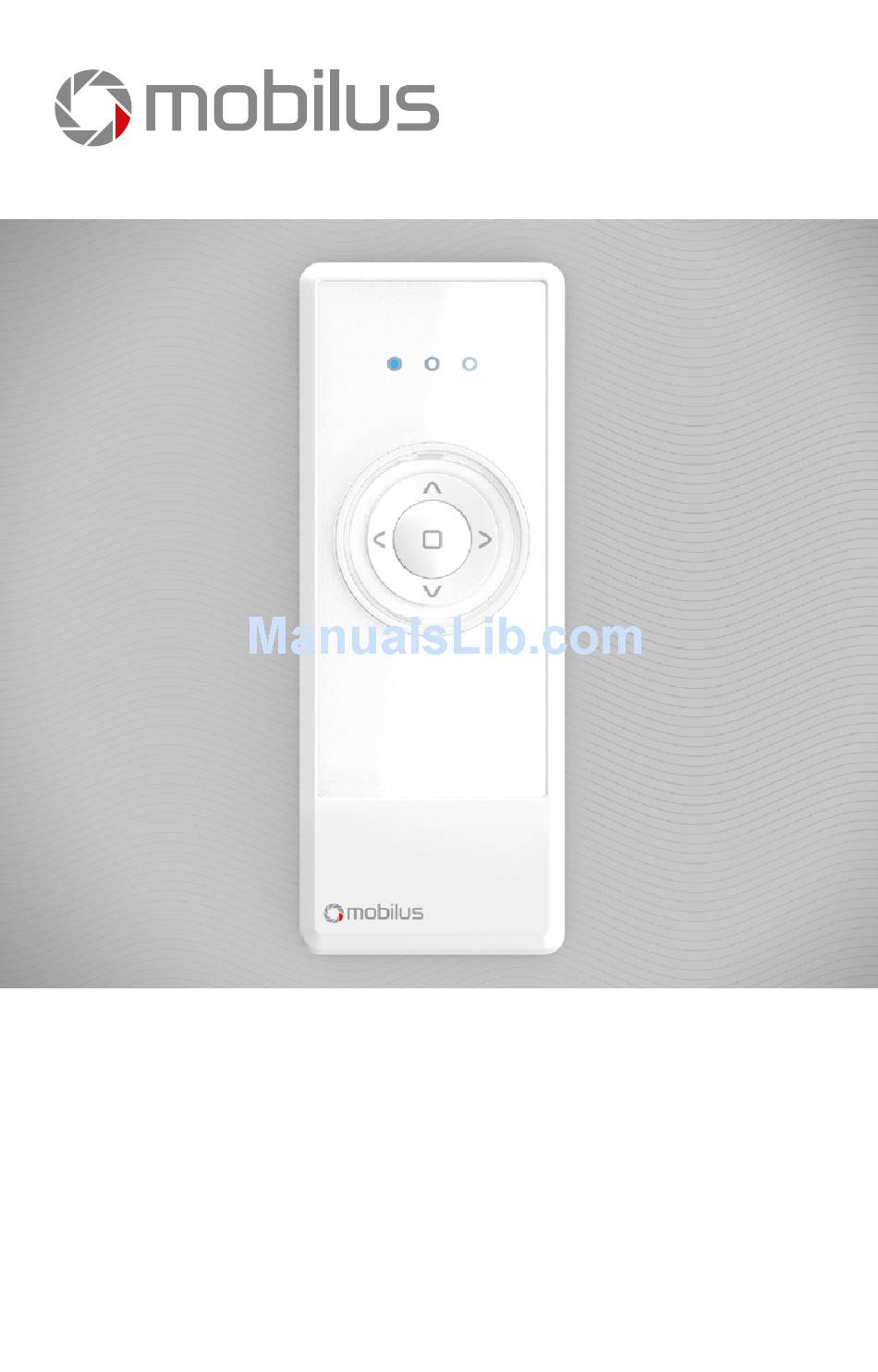

- Page 1 User manual of COSMO | HM3+ MOBILUS MOTOR Spółka z o.o. ul. Miętowa 37, 61-680 Poznań, PL tel. +48 61 825 81 11, fax +48 61 825 80 52 VAT NO. PL9721078008 www.mobilus.pl Wersja 1.1ENG, 171020...

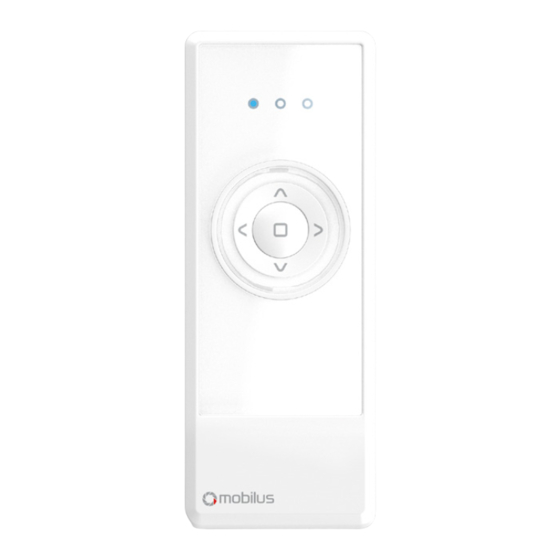

- Page 2 COSMO | HM, COSMO | HM3+ is a 4-channel remote control, designed for remote control receivers brand MOBILUS (radio remote controls for roller shutters, awnings, blinds / control modules for motors without radio communication module / ON / OFF modules).
- Page 3 3. CONTENTS OF THE PACKAGE The packaging contains the following items: • Remote COSMO | HM3+ . • 2 AAA batteries in the remote control protected against discharging with a seal. • User manual. 4. TECHNICAL PARAMETERS • Radio protocol: COSMO / COSMO | 2WAY ( the remote does not support bidirectional com- munication - it does not receive feedback messages, it sends commands to receivers).
- Page 4 1. Press the to select the appropriate channel - Fig. 8.1 2. nter MOBILUS motor, serie R in the PROGRAMMING MODE OF MASTER REMOTE: - press for 5 seconds PROGRAMMING BUTTON in the motor - Fig. 7.2a - or double turn off and turn on the power supply od the motor - Fig.
- Page 5 9. CHANGE OF MOTOR’S OPERATION DIRECTION WARNING ! You can change the direction of the work of motor for MOBILUS drives with electronic limit switches only before setting the upper and lower limit switches. You can change the direction...
- Page 6 CONTINUED 9. CHANGE OF MOTOR’S OPERATION DIRECTION After loading the remote control to the motor check that the buttons UP and DOWN correspond to lifting and lowering the blinds. If not, press simultaneously buttons STOP and DOWN and hold them for about 4 seconds on the remote control any loaded to the motor. The confirmation of correctly performed operation are two micro-movements of the driver.
- Page 7 NOTES...
- Page 8 Defects found during the warranty period will be removed free for no longer than 14 working days from the date of acceptance of device for repair. The manufacturer MOBILUS MOTOR Sp. z o.o. carries on warranty repairs repairs. If you have any questions, please contact your dealer (please provide the following information: event description, description of the error, the conditions under which the accident occurred).
