  • Page 1 User manual of COSMO | G3 controller. www.mobilus.pl...

  • Page 2: General Information

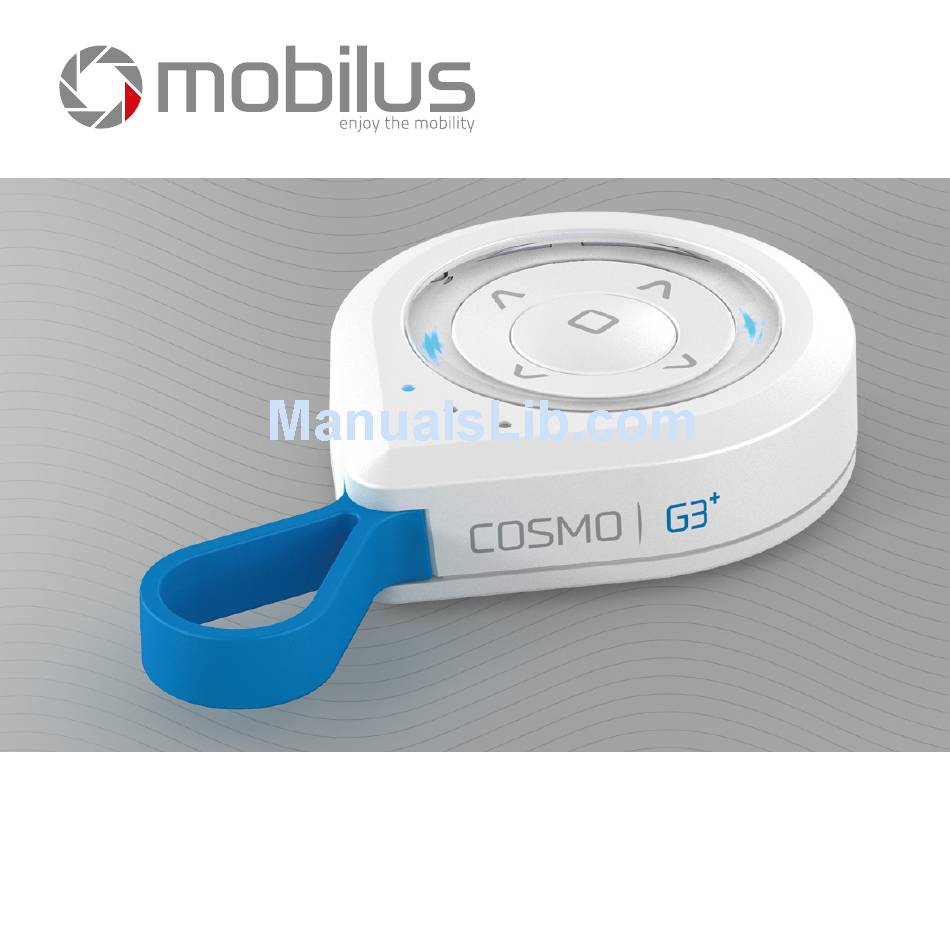

    COSMO | G3 is a 4-channel remote control, designed for remote control receivers brand MOBILUS (radio remote controls for roller shutters, awnings, blinds / control modules for motors without radio communication module / ON / OFF modules). • Support of 4 channels.

  • Page 3: Power Supply

    4. POWER SUPPLY The device is powered by single battery CR2450. In order to change the battery, open housing of the remote. 1. Between the lower and the upper part of the housing slide flat, rigid tool in the position shown in Fig.

  • Page 4: Description Of The Remote Control

    5. DESCRIPTION OF THE REMOTE CONTROL 1. Pendant. 2. LED’s indicating the selected channel. 3. LED’s indicating radio transmission (blue, red). 4. Control button UP ( TURN ON for modules ON/OFF ). 5. Navigation channels button LEFT. 6. STOP button ( TURN ON/TURN OFF for modules ON/OFF; UP/STOP/DOWN in case of the modules operating in steps mode ).
  • Page 5 3 channel 4 channel Fig. 6a Enter MOBILUS motor, serie R in the PROGRAMMING MODE OF MASTER REMOTE: - press for 5 seconds PROGRAMMING BUTTON in the motor - Fig. 6b; - or double turn off and turn on the power supply od the motor - Fig.
  • Page 6 WARNING! The first remote control readed into the receiver is a remote control MASTER. It allows you to operate motor and enter it in the PROGRAM MODE OF OTHER REMOTES. 3. On the remote control simultaneously press the STOP and UP 4 LEDs start - Fig.

  • Page 7: Bi-Directional Communication

    - programming one channel only for one receiver, - the correct channel configuration - setting for bidirectional communication channel, - ensure seamless communication of the remote control with the receiver. Receivers supporting the bidirectional communication: MOBILUS: M35 _ER_, M45 _ER_.
  • Page 8 9. BI-DIRECTIONAL COMMUNICATION - ACTIVATION / DISACTIVATION 1. Select the channel for which you want to enable / disable bidirectional communication. 2. Press the buttons STOP and LEFT and hold them for 5 seconds until 4 LEDs light up signaling radio transmission. Blue color -bidirectional communication enabled - Fig.
  • Page 9 - Fig. 11c. Fig. 11 WARNING ! You can change the direction of the work of motor for MOBILUS drives with electronic limit switches only before setting the upper and lower limit switches. You can change the direction of work for the MOBILUS motors with mechanical limit switches at any time.

  • Page 10: Environmental Protection

    12. ENVIRONMENTAL PROTECTION This appliance is marked according to the European Directive on Waste Electrical and Electronic Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of correctly, you will help to prevent potential negative consequ- ences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
  • Page 11 13. NOTES...
  • Page 12 User manual of MOBIQ RG controller MOBILUS MOTOR Spółka z o.o. Version 1.0ENG, 161103 ul. Miętowa 37, 61-680 Poznań, PL tel. +48 61 825 81 11, fax +48 61 825 80 52 www.mobilus.pl VAT NO. PL9721078008...
