Torqeedo Power 26-104 Operating Manual

Hide thumbs Also See for Power 26-104:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
Power 26-104
Bedienungsanleitung
(Deutsch)
Operating Manual
(English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power 26-104 and is the answer not in the manual?

Questions and answers

Related Manuals for Torqeedo Power 26-104

Summary of Contents for Torqeedo Power 26-104

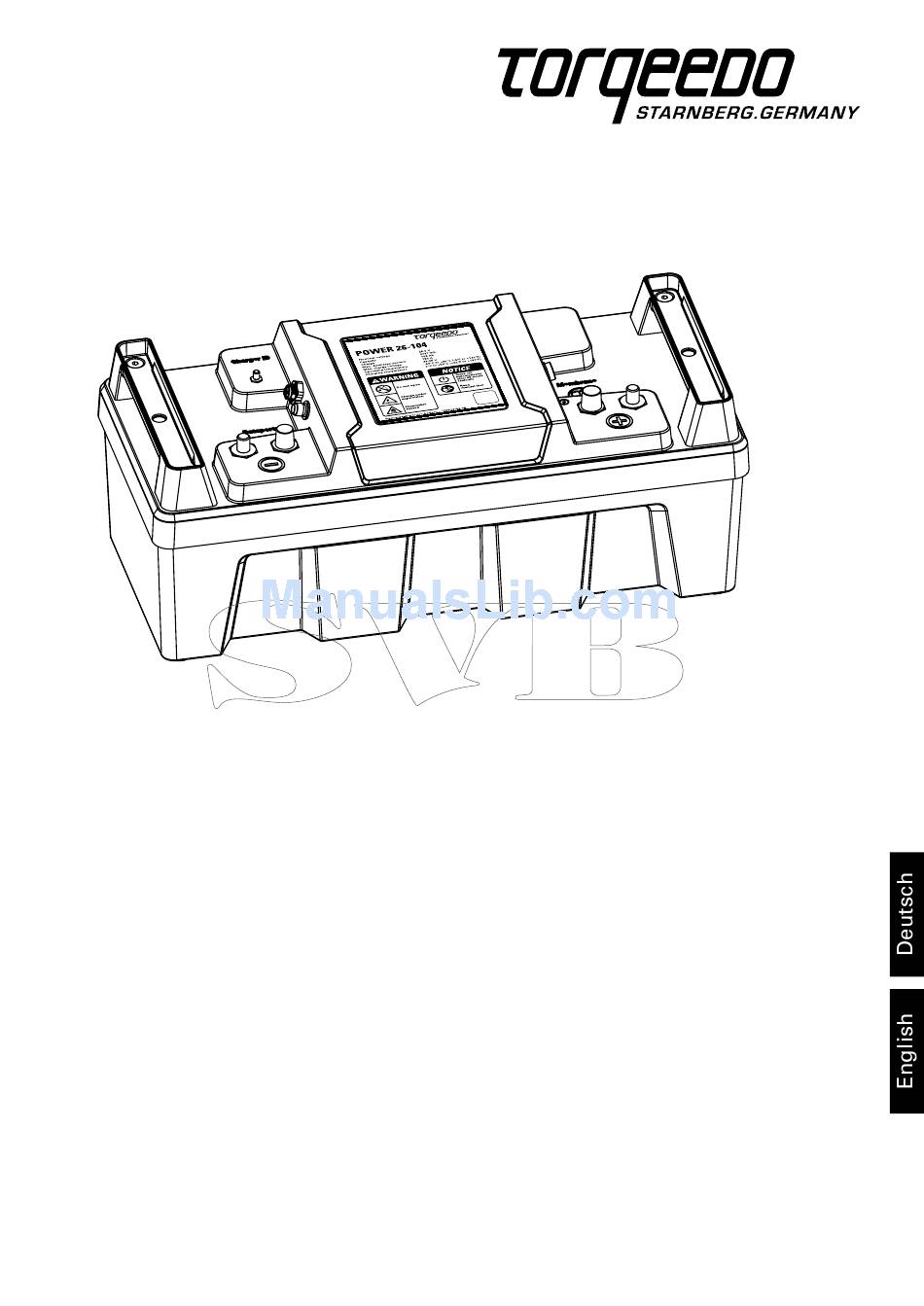

  • Page 1 Power 26-104 Bedienungsanleitung (Deutsch) Operating Manual (English)
  • Page 2 Thank you very much for your cooperation, the Torqeedo Service Europe & international: service_international@torqeedo.com T +49 - 8153 - 92 15 - 126 F +49 - 8153 - 92 15 - 329 Vielen Dank für Ihre Kooperation, Ihr Torqeedo Service A list of Certified Service Centres can be found under www.torqeedo.com, Service Center Torqeedo Service Gilching: service@torqeedo.com T +49 - 8153 - 92 15 - 126 F +49 - 8153 - 92 15 - 329 North America : service_usa@torqeedo.com T +1-815-444-8806 F +1-815-444-8807 Deutschland / Europa: Sie finden den nächsten Service-Standort auf www.torqeedo.com unter Service Center...
  • Page 4 Dear customer, we are delighted that you have opted for our battery concept. Power 26-104 battery and integrated battery management system fully comply with state-of-the-art technology standards. It is protected against overcurrent, short-circuits, surge voltage on cellular level, excess load and total discharge. Single cell balancing makes sure that cells will always exhibit all the same charging level and thus the same ageing process.

  • Page 5: Table Of Contents

    9. Decommissioning / disposal ................... 61 4.1 How to switch on/off the Power 26-104 ............... 49 4.2 Connecting Power 26-104 to Torqeedo Cruise outboard motors ...... 50 10. Warranty conditions ....................... 62 4.3 Startup with third party equipment – individual batteries ........ 50 10.1 Extent of warranty ....................

  • Page 6: Important Safety And Operating Advice

    In extreme cases even fire or injury may be the result. - Incorrect interconnection of lithium batteries induces much higher short circuit cur- rents than it is the case for lead batteries. Although Power 26-104 is protected against high compensating currents, we urge you to have interconnection of multiple Power...

  • Page 7: Information Required By Law

    Please find type plate exhibiting complete product description at the spot shown in the figure. In the following, please find a selection of the most important instructions for operation of Power 26-104 battery. Beside these, please also observe complete operating manual to prevent any damage to the battery. • Only use equipment that does not draw more than 180 amps from one battery (at nominal voltage corresponding to 4,660 watts).
  • Page 8 Typical storage time at 1 year 50% charge Max. Connections 2S8P or 1S16P For larger battery banks refer to Torqeedo Max. quick charge 100 A Charging time < 1.2 hours Protection class IP 67 Waterproof, can be submerged up to 1...

  • Page 9: Scope Of Supply

    This is not a malfunction. As soon as values are again within given range, battery may be turned on again. It will then be fully operable again. Full scope of supply of Power 26-104 battery comprises: • Battery • M12 nuts with washers • Data cable...

  • Page 10: How To Switch On/Off The Power 26-104

    They are directly interconnected, having the same function. Turning on: Ventilation For operation with the Cruise outboard motor: To switch on the Power 26-104, shortly Ventilation automatically prevents any excess pressure within hermetically sealed press ON/OFF switch on remote throttle or tiller display. housing. It is equipped with a hydrophobic membrane.

  • Page 11: Connecting Power 26-104 To Torqeedo Cruise Outboard Motors

    4.2 Connecting Power 26-104 to Torqeedo Cruise outboard motors For connection of Power 26-104, please observe instructions in operating manual of Cruise outboards. Be sure to use only the most current version of the operating manual. Current user ma- nuals are available from www.torqeedo.com.

  • Page 12: Startup With Third Party Equipment - Multiple Batteries And Battery Banks

    Connect Power 26-104 in parallel, as usual, by connecting positive and negative poles to each other. The following figure shows parallel connection of two batteries (1S2P Connect Power 26-104 in series, as usual, by connecting one positive and one negative connection). In the same way, several batteries may be interconnected in parallel.

  • Page 13: Mounting Of On/Off Switch For Bank Operation

    To increase capacity of battery supply, several pairs of serially connected Power 26-104 batteries may be connected in parallel. The following drawing shows two serially con- nected batteries connected in parallel with a further pair of serially connected batteries (2S2P connection). In the same way, up to 8 pairs of serially connected batteries may be interconnected in parallel.

  • Page 14: Charging Via Charging Channel

    (addresses on back of the present manual). 5.3 Charging operation for batteries connected in parallel Torqeedo recommends use of one charger per battery. However, one charger may be 5.2 Connecting charger to Power 26-104 used for two batteries connected in parallel. Charging time will be twice as long.

  • Page 15: Charging Operation Of Larger Battery Banks

    • When stored for a longer period of time, battery should have a residual charge of 20-40 %. Check voltage regularly which should be In this case, too, Torqeedo recommends the use of one charger per battery. However, one more than 21 V in order to avoid total discharge. charger may be used for two batteries connected in parallel. Charging time will be Although the battery is protected against total discharge, it will lose twice as long.
  • Page 16 • In case the recharging of a totally discharged battery doesn‘t Part no. Product Description work any more, please take battery and charger to Torqeedo service for inspection (addresses on back of the present manual). 2206-00 Charger for Power 26-104 Charge current 10 A, charges Torqeedo Power 26-104 from 0-100% in max.
  • Page 17 This indemni- with Torqeedo Services. You can contact us by phone, email or mail. You can find the fication obligation does not cover the incidental costs of a warranty claim or any other contact details on the back of this manual.
  • Page 18 F +1 – 847 – 444 88 07 All other countries Contact details of Service Centers are available under www.torqeedo.com in the “Service“ section. Das Original dieser Bedienungsanleitung wurde aus dem deutschen erstellt. The original version of the instruction manual was translated from the german version.
