Summary of Contents for Midea MC-RTW1505M

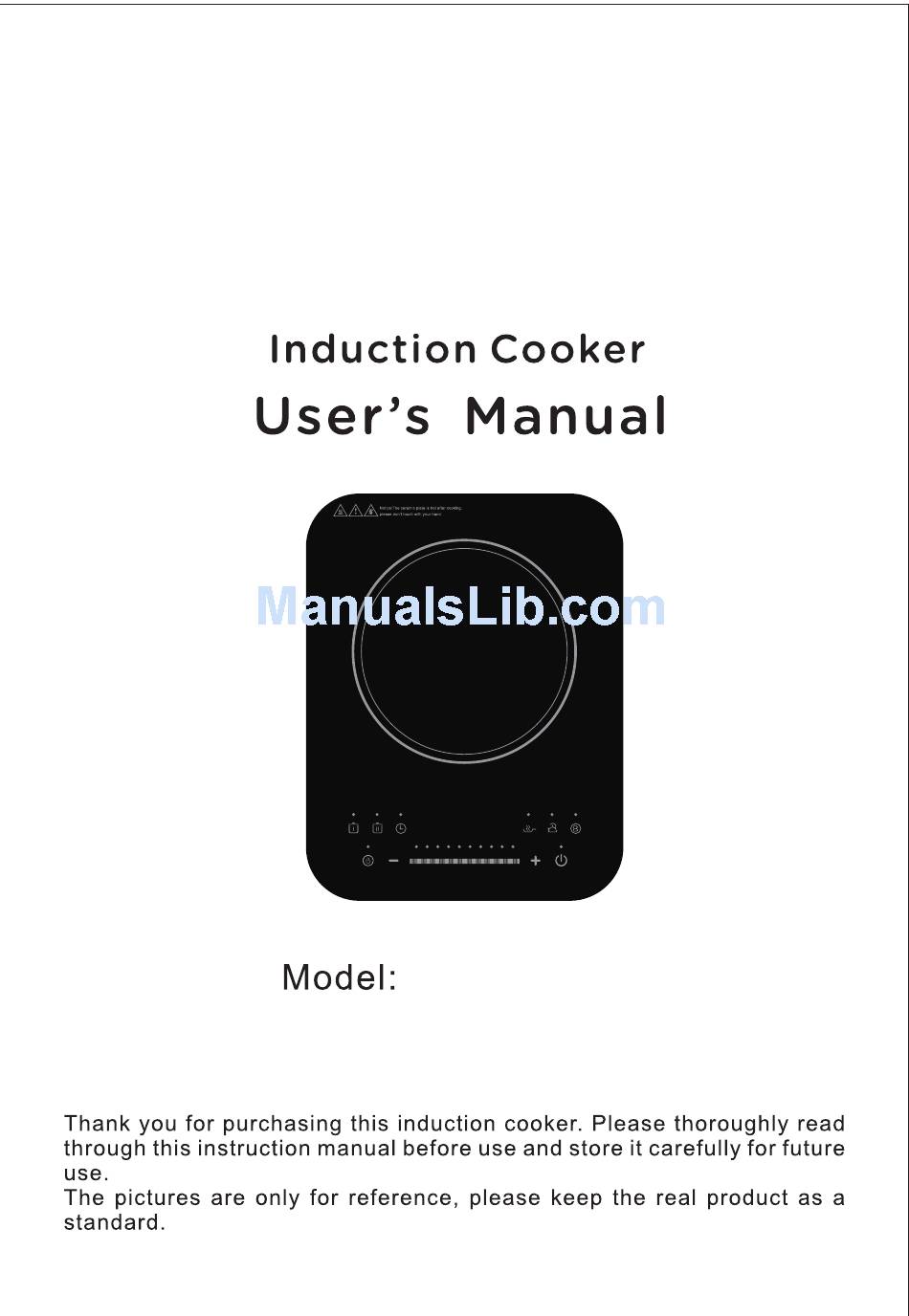

- Page 1 MC-RTW1505D MC-RTW1505M MIND179ST-B...
-
Page 2: Table Of Contents
TABLE OF CONTENTS………………………………………………………………………………………………. INFORMATION FOR THE USER..................1 Safety recommendations......................1 Technical data ........................5 Protecting the environment....................5 2) APPLIANCE PRESENTATION ....................6 Induction cooker description ....................6 Before the first use.......................7 Suitable and unsuitable pots and containers ................7 Safety pack...........................7 3) USING YOUR APPLIANCE .....................8 Use of the control panel .......................8 Starting your appliance ......................8 Power function........................8... - Page 3 1) INFORMATION FOR THE USER a) Safety recommendations When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions. 2. Do not touch hot surfaces. 3. To protect against electrical shock do not immerse cord, plugs, or in water or other liquid.
- Page 4 feature. 15. Do not open lid when in use. 16. Do Not Cook on Broken Cook-T op – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock. 17. Clean Cook-T op with Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn, some cleaners can produce noxious hfumes if applied to a ot surface.
- Page 5 burns, and some cleaning materials may produce toxic gases. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way . If the plug does not fit fully into the outlet, reverse the plug If it still does not fit, contact a qualified electrician.
-
Page 6: B) Technical Data
Technical data Applied Rated Model Netweight Dimensions voltage/Frequency power MC-RTW1505D 120V~ 50/60Hz 1500W 3.2Kg H64.5xL296xP380mm MC-RTW1505M 120V~ 50/60Hz 1500W 3.2Kg H64.5xL296xP380mm MIND179ST-B 120V~ 50/60Hz 1500W 3.2Kg H64.5xL296xP380mm... -
Page 7: Appliance Presentation

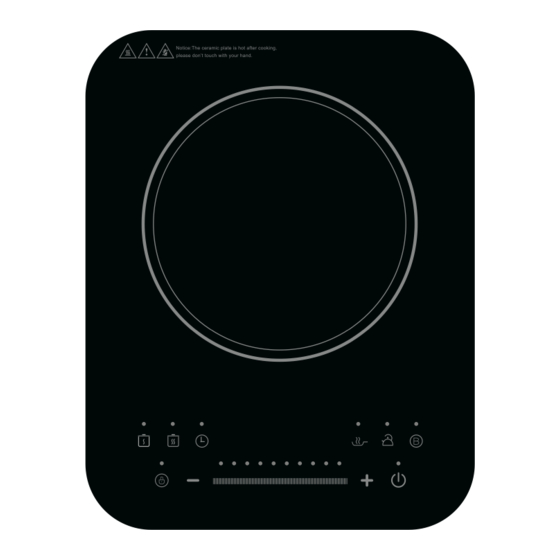

2) APPLIANCE PRESENTATION a) Induction cooker description Control panel : 1. Keep warm mode 6. Boost mode 2. Simmer mode 7. On/Standby 3. Timer 8. Power regulating control + 4. Fry mode 9. Power regulating control - 5. Boil mode 10. -
Page 8: B) Before The First Use
b) Before the first use When unpacking your unit, make sure that you carefully remove all of the packaging materials. Before using the appliance for the first time, be sure that it is placed horizontally at least 10 cm away from all sides of the wall, curtains, etc. Use an individual socket with more than 12.5A capacity. -
Page 9: Using Your Appliance
Control Lock (10). This pad allows locking all the control panel to simplify the cleaning but also to preserve and safe children from all risks. 3) USING YOUR APPLIANCE a) Use of the control panel The sensitive pads work with a sense of touch. It is not necessary to put pressure on. Use the base of your finger and not the tip as indicated on the images below Slide your finger on the slider to increase or decrease the power. -
Page 10: D) Using The Different Functions
d) Using the different functions Timer To use the timer, press the timer button (3) . The digital screen will indicate « 0 : 00 ». Press on the +/- pads to adjust the cooking time. Each pressure increases or decreases the time of 1 minute. -
Page 11: E) Switch Off The Appliance
switch off the appliance. To unlock the control panel, press again on “lock” button during 3 seconds. e) Switch off the appliance After use, the electric hob is hot, the buzzer rings and the indicator « H » flashes on the screen. -
Page 12: B) Troubleshooting
b) Troubleshooting Here are the recommended inspections of common failures: - Make sure that the plug is inserted After the plug in the socket, the indicator tightly. - Make sure that the switch, (1) and the screen do not light up. socket, fuse and power line are in good condition.
Need help?
Do you have a question about the MC-RTW1505M and is the answer not in the manual?
Questions and answers
Thing won't even function, just beeps light can it heat up ...
The Midea MC-RTW1505M may be beeping and not functioning properly due to an error code. Possible reasons include:
- E1, E2, E4, E5, EB: Requires service facility repair.
- E3, E6: Heating stops suddenly due to overheating. The unit can resume operation once the temperature returns to normal.
- E7, E8: Voltage issue. Adjusting the voltage may restore operation.
Check the display for error codes and take the appropriate action.
