I M P O R T A N T :
Please read this entire manual before installing or operating your Astral-TC
umbrella.
A S T R A L - T C W I N D R E S I S T A N C E G U I D E L I N E S :
When installed properly, the Astral-TC is engineered to handle strong wind conditions in the
open canopy position. Please adhere to these common sense wind guidelines:
1. As winds get stronger, or as gusts increase, the canopy should be lowered to the
folded and strapped position.
2. If unattended for an extended period of time, the Astral-TC should be left in the folded
and strapped position.
3. In anticipation of, and during extremely severe weather conditions, it is advisable to
remove and store the entire Astral-TC structure to protect it from storm-related debris.

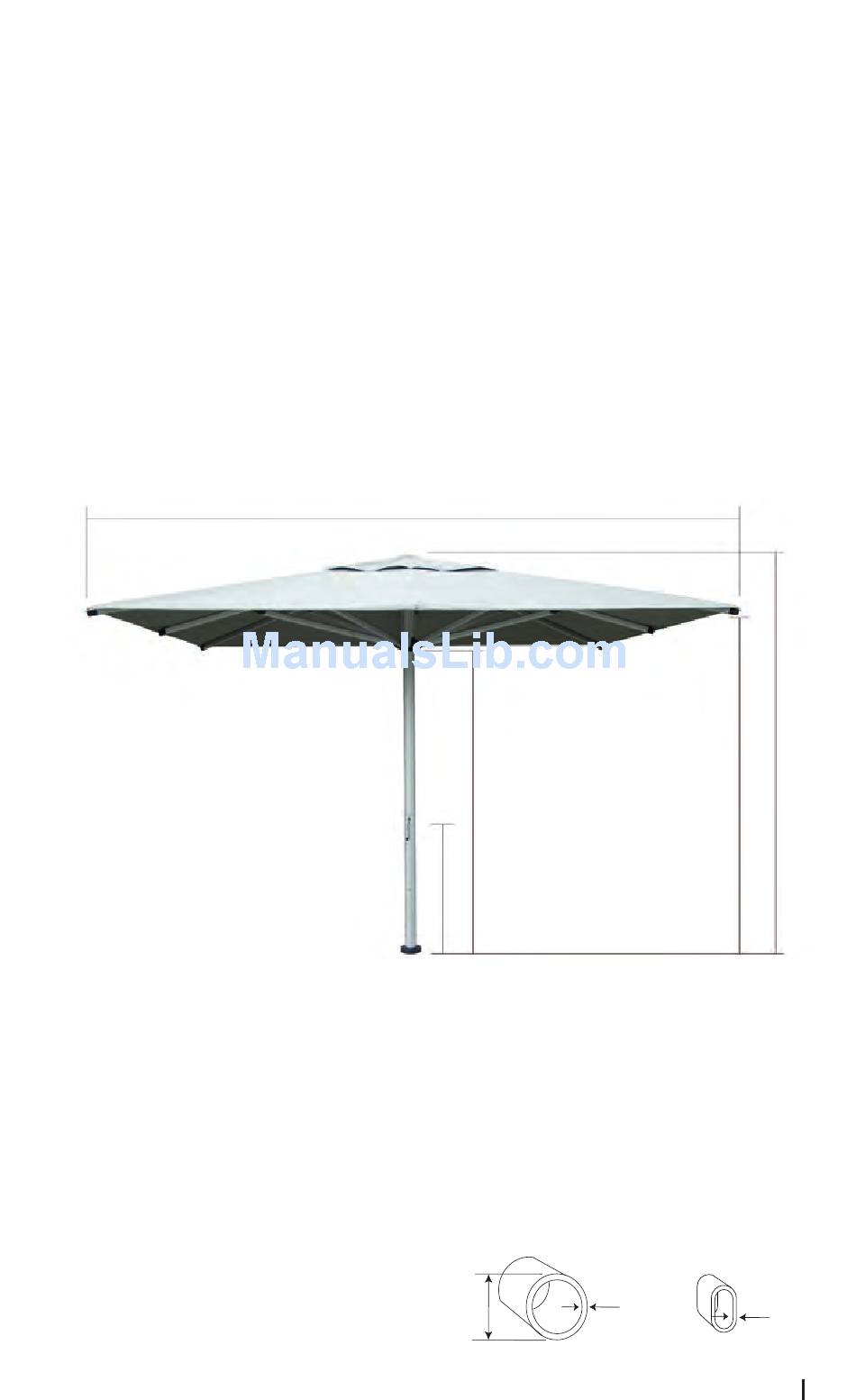

S P E C I F I C A T I O N S
ASTRAL-TC
Shape
A
Hub Height
B
Arms Height
C
Canopy Width
D
Overall Height (Opened)
Overall Height (Closed)
E
Crank Handle Height
Weight: Approximately 128-150 lbs.
Mast Shape & Diameter: 3.125" round
Wall Thickness of Mast: .10"
Arm Wall Thickness: .125"
Moderate to Strong Winds (when mounted)
3.5m / 11'5"
Square
7'1"
7'5"
11'5"
9'2"
11'5"
2'8"
C
A
E
4.0m / 13'1"
5.0m / 16'4"
Square
Square
7'
7'4"
13'1"
9'4"
12'
2'8"
3.125"
Mast
5.0m / 16'4"
Octagon
6'8"
7'1"
7'5"
7'5"
16'4"
15'2"
9'6"
9'2"
13'3"
12'3"
2'4"
2'8"
.10"
Arm
D
B
.125"
