- Page 1 TDB1000 ADVANCED SECURITY SYSTEMS ELECTRONIC TESTER OPERATING MANUAL TDB1000! PAGE 1 VERSION 1.1! 01/11/2017...
-
Page 2: Table Of Contents
INSTALLING PC SOFTWARE SOFTWARE UPDATES PAGE 9 PAGE 12 ICON INFORMATION PAGE 13 WIKI KEY A.S.S.E.T APP PAGE 16 SPECIFICATION PAGE 17 PAGE 18 PRECAUTIONS CONTACT INFORMATION PAGE 19 DECLARATION OF CONFORMITY PAGE 20 TDB1000! PAGE 2 VERSION 1.1! 01/11/2017... -
Page 3: Introduction
The TDB1000 is the simplest and most cost effective key programming system on the market, it has a team of experts backing-up the product, with real people and real updates. -
Page 4: General Operation

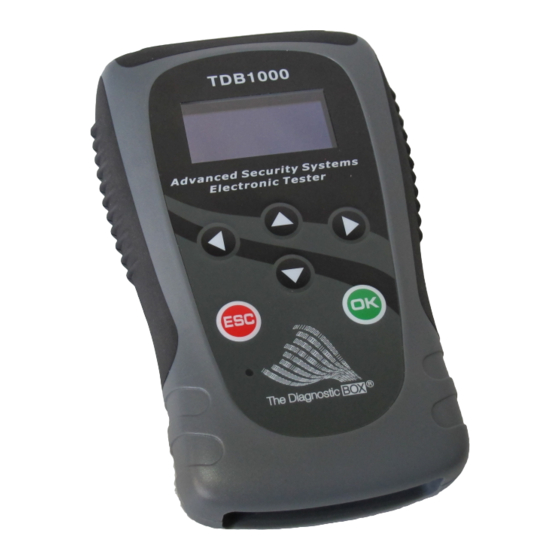

GENERAL OPERATION The TDB1000 Advanced Security Systems Electronic Tester TDB1000 SERIAL NUMBER TDB1000 VEHICLE CABLE TDB1000 PC UPDATE CABLE TDB1000! PAGE 4 VERSION 1.1! 01/11/2017... - Page 5 GENERAL OPERATION INTERFACE/VEHICLE CONNECTION TOP PANEL ACCESS COVER PC USB INTERFACE SYSTEM SD CARD TDB1000! PAGE 5 VERSION 1.1! 01/11/2017...
-
Page 6: Installing Pc Software
INSTALLING PC SOFTWARE CLICK ON PRODUCTS CLICK ON AUTOMOTIVE CLICK ON TDB1000 FURTHER INFORMATION TDB1000! PAGE 6 VERSION 1.1! 01/11/2017... - Page 7 INSTALLING PC SOFTWARE CLICK ON PC SUITE SAVE FILE TO DOWNLOAD LOCATION AND THEN RUN THE FILE FOLLOW THE STEPS TO INSTALL THE TDB1000 PC SUITE TDB1000! PAGE 7 VERSION 1.1! 01/11/2017...
- Page 8 INSTALLING PC SOFTWARE CLICK NEXT TDB1000 PC SUITE WILL NOW INSTALL ONCE INSTALLED CLICK ON CLOSE TDB1000! PAGE 8 VERSION 1.1! 01/11/2017...
-
Page 9: Software Updates
SOFTWARE UPDATES RUN THE TDB1000 PC SUITE. YOU MAY BE PROMPTED TO UPDATE CLICK NEXT CONNECT THE TDB1000 TDB1000! PAGE 9 VERSION 1.1! 01/11/2017... - Page 10 SOFTWARE UPDATES THE TDB1000 SUITE WILL CONNECT TO THE TDB1000 TDB1000 NOW NEEDS REGISTERING PLEASE FILL IN FULL DETAILS TO ENSURE YOU RECEIVE FULL SUPPORT. ENTER YOUR DETAILS TDB1000! PAGE 10 VERSION 1.1! 01/11/2017...
- Page 11 SOFTWARE UPDATES A LIST OF UPDATES WILL BE DISPLAYED. CLICK DOWNLOAD TO START THE UPDATE. THE TDB1000 WILL NOW UPDATE CLICK FINISH ONCE IT HAS BEEN UPDATED AND DISCONNECT TDB1000! PAGE 11 VERSION 1.1! 01/11/2017...
-
Page 12: Icon Information
ERASE KEYS SELECTION READ DIAGNOSTIC CLOCK SETTINGS TROUBLE CODES OWNER ERASE DIAGNOSTIC INFORMATION TROUBLE CODES SETTINGS MAIN VEHICLE SOUND SETTINGS MENU SELECTION TDB1000 LANGUAGE HARDWARE SELF SELECTION TEST FUNCTION BETA TEST APPLICATION SOFTWARE FOR PACKAGES INTERNAL USE FUNCTIONS ONLY EXIT/BACK... -
Page 13: Wiki Key
The app can be downloaded for free from the Apple or the Google Play stores. PLEASE NOTE THE WIKI KEY APP ARE NOT AVAILABLE YET, JUST THE WEB SITE. Select the territory for the vehicle you are working on. Select the manufacturer. TDB1000! PAGE 13 VERSION 1.1! 01/11/2017... - Page 14 The app can be downloaded for free from the Apple or the Google Play stores. PLEASE NOTE THE WIKI KEY APP ARE NOT AVAILABLE YET, JUST THE WEB SITE. Select the vehicle model you are working on. The information about the vehicle will be displayed. TDB1000! PAGE 14 VERSION 1.1! 01/11/2017...
- Page 15 WIKI KEY Select the vehicle model you are working on. TDB1000! PAGE 15 VERSION 1.1! 01/11/2017...
- Page 16 You will require a TDB1000 serial number, TDB1000 Subscription iD, password and email address for registration. The TDB1000 serial number can be found on the back of the unit. The subscription iD can be found Insert your email address...
-
Page 17: App
ASSET APP THE ASSET APP IS NOT RELEASED YET. TDB1000! PAGE 17 VERSION 1.1! 01/11/2017... -
Page 18: Specification
SIZE 120 mm (W) x 195 mm (H) x 35 mm (D) CURRENT CONSUMPTION 100 mA Backlit Blue 128x64 dots OPERATING TEMPERATURE RANGE 32 to 122 Degrees F or 0 to 50 Degrees Celsius TDB1000! PAGE 18 VERSION 1.1! 01/11/2017... -
Page 19: Precautions
Via the USB cable supplied, plugged into a PC. Under no circumstances should the TDB1000 be plugged in to a PC monitor, TV or PC or any other item with a DVI connection as this may result in damage or injury. -
Page 20: Contact Information
CONTACT INFORMATION The Diagnostic Box Diagnostic Box House Unit 8, Fairfield Meadow Orchard Way Chillington Kingsbridge Devon TQ7 2LB Tel : +44 1548 580348 Fax : +44 1548 580348 Email : info@thediagnosticbox.com Web : www.thediagnosticbox.com Skype : diagnosticbox TDB1000! PAGE 20 VERSION 1.1! -
Page 21: Declaration Of Conformity
EN 55024:1998, A1: 2001 + A2: 2003 204/108/EEC Following the Provisions of EMC Directive: TDB1000 June 2017 Product conforms to class A emission standards Signed : Mr G Chambers Signed on behalf of The Diagnostic Box TDB1000! PAGE 21 VERSION 1.1! 01/11/2017...
