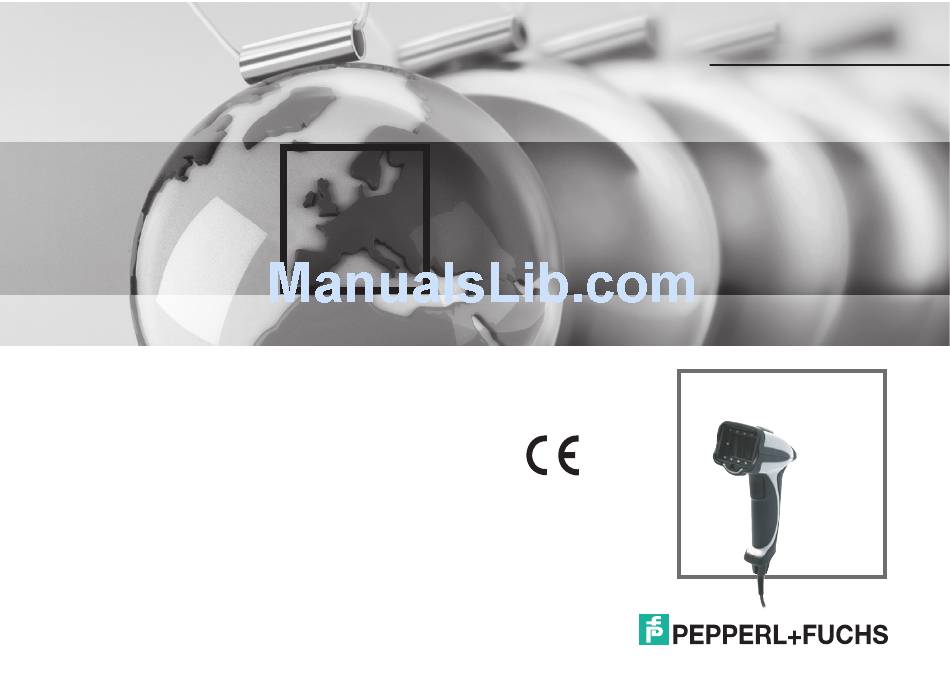

- Page 1 FACTORY AUTOMATION QUICK START GUIDE ODT-HH-MAH120-HD Handheld - High Density...
- Page 2 ODT-HH-MAH120-HD With regard to the supply of products, the current issue of the following document is appli- cable: The General Terms of Delivery for Products and Services of the Electrical Industry, published by the Central Association of the Electrical Industry (Zentralverband Elektrotech- nik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation of proprietorship"...
-
Page 3: Table Of Contents
ODT-HH-MAH120-HD Introduction ................... 4 Purpose of this Quick Start Guide ............4 Intended use....................4 Installation and Commissioning..........5 Connection ....................5 2.1.1 Connection via USB..................6 2.1.2 Connection via RS 232 ................7 2.1.3 Connection via PS/2 ................... 9 Operating modes ..................10 2.2.1 USB operating modes................10 2.2.2 RS232 operating modes ................ -
Page 4: Introduction
ODT-HH-MAH120-HD Introduction Introduction Purpose of this Quick Start Guide This Quick Start Guide is designed to help you learn the basic functions for operating the device. The guide also contains brief instructions for using the device again at a later stage. However, this Quick Start Guide does not replace the manual on the CD supplied. -
Page 5: Installation And Commissioning
ODT-HH-MAH120-HD Installation and Commissioning Installation and Commissioning Connection You have the opportunity to connect the handheld to the following PC interfaces: • • RS232 • PS/2 The handheld is ready for immediate use once you have connected it to the computer. Attaching the connecting cable to the handheld Slide the protective cap over the 8-pin DIN plug. -
Page 6: Connection Via Usb
ODT-HH-MAH120-HD Installation and Commissioning Press the 8-pin DIN plug and protective cap onto the socket. Use a srewdriver and the screws provided to fasten the protective cap onto the bottom of the handle. 2.1.1 Connection via USB Connecting USB connecting cable to computer Insert the USB plug of the connecting cable in a free USB port on your computer. -
Page 7: Connection Via Rs 232
ODT-HH-MAH120-HD Installation and Commissioning Scan the code USB Keyboard Mode: Scan the code Save Settings: Further USB configuration options, see chapter 2.2.1. 2.1.2 Connection via RS 232 Connecting RS 232 connecting cable to computer Turn the computer off. Connect the RS 232 plug of the connecting cable to the RS 232 port of the computer. Connect the low-voltage plug of the power-supply unit to the low-voltage jack of the RS 232 connecting cable. - Page 8 ODT-HH-MAH120-HD Installation and Commissioning Turn the computer on. The handheld turns itself on automatically once you have turned the computer on. Scan the code RS232 1 Way Mode: Scan the code Save Settings: The handheld uses the following RS 232 factory settings: •...
-
Page 9: Connection Via Ps/2
ODT-HH-MAH120-HD Installation and Commissioning 2.1.3 Connection via PS/2 Connecting PS/2 connecting cable to computer Turn the computer off. Disconnect the connection to the computer if an external keyboard is connected to the computer. If you are using a USB keyboard, connect the keyboard with an appropriate adapter to the PS/2 connecting jack of the connecting cable. -
Page 10: Operating Modes
ODT-HH-MAH120-HD Installation and Commissioning Operating modes Caution! Data loss An incorrectly preset interface may lead to data loss. Make sure that the Handheld is connected to the interface (USB, RS 232, Bluetooth) preset in the Handheld. If necessary, use another interface cable or modify the settings in the Handheld. 2.2.1 USB operating modes Changing USB operating modes... - Page 11 ODT-HH-MAH120-HD Installation and Commissioning USB Downloader Scan this code to transmit unformatted, unpacked data via the USB interface to the handheld. USB Virtual COM 1 Way Mode Scan this code to port USB keyboard data to a serial application. You will also need a Virtual Com driver, which can be found at www.pepperl- fuchs.com.
-
Page 12: Rs232 Operating Modes
ODT-HH-MAH120-HD Installation and Commissioning 2.2.2 RS232 operating modes Changing RS232 communication parameters Scan the respective code to change the individual RS 232 connection settings (view table "RS232 communication settings" on page 12). RS232 communication settings Setting data bit 7 data bits 8 data bits (default) Setting stop bit 2 stop bits (default) - Page 13 ODT-HH-MAH120-HD Installation and Commissioning Setting baud rate 1200 2400 4800 9600 19200 38400 57600 (Default) 115200 Setting parity Even None Scan this code to reset the handheld to the RS232 default settings:...
-
Page 14: Positioning And Reading Techniques
ODT-HH-MAH120-HD Installation and Commissioning Positioning and reading techniques This handheld uses digital camera technology to record an image of the code to be read. After an image has been recorded, the handheld uses highly developed evaluation procedures to evaluate the data contained in the recording. -
Page 15: Optimizing Reading Performance
ODT-HH-MAH120-HD Installation and Commissioning Note! Because of the large detection area of the handheld, we advise to cover the codes you don't want to scan. Thus you prevent to set a wrong setting inadvertently. Sighting and reading 1D and 2D codes With the trigger button pressed, aim the red square at the code to be read. -
Page 16: Reading High-Density Data Matrix Codes
ODT-HH-MAH120-HD Installation and Commissioning Wide-Field DOT (Default) SXGA Mode VGA Mode Save Settings Reading high-density data matrix codes This handheld is suitable for reading very small data matrix codes with an extremely high information density (high-density data matrix codes). Note! Note the color of the illumination LEDs. - Page 17 ODT-HH-MAH120-HD Installation and Commissioning Optimizing the handheld for high-density data matrix codes Note! Data loss All other settings are deleted when the code is scanned. Change all the necessary settings again if necessary. To optimize the handheld to read high-density data matrix codes, scan the relevant data matrix code: For handhelds with red LEDs, please use For handhelds with white LEDs, please use the following data matrix code:...
-
Page 18: Factory Defaults
ODT-HH-MAH120-HD Installation and Commissioning Factory defaults Resetting the handheld to factory defaults To reset the handheld to the factory defaults of the operating mode, scan the appropriate code. Operating Operating Operating mode Code mode Code mode Code RS232 PS/2... - Page 19 ODT-HH-MAH120-HD Installation and Commissioning...
