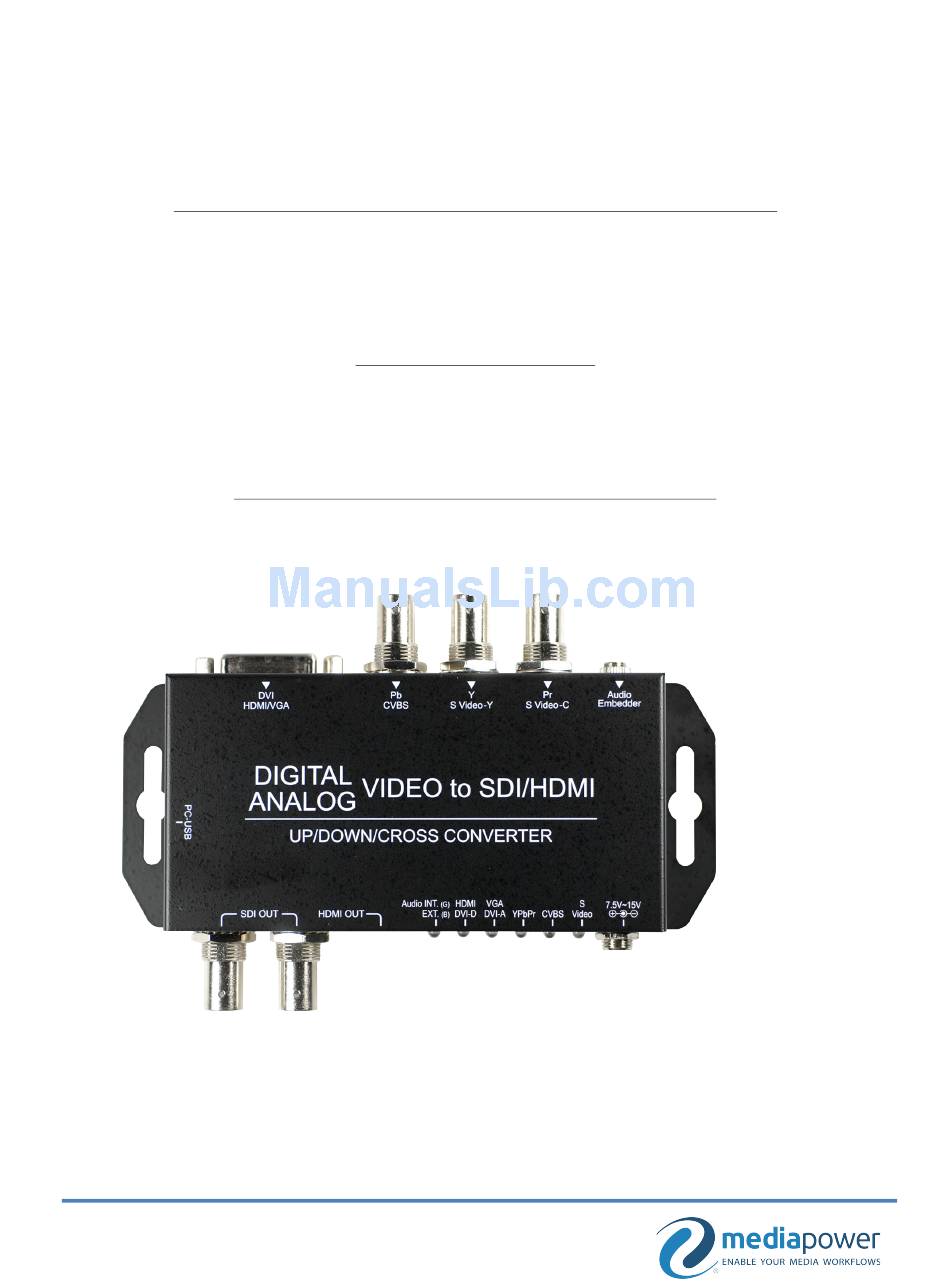

Page 1: User Manual
MUTI2SDI- User Manual Rev1.0 ENABLE YOUR MEDIA WORKFLOWS www.media-power.it... -
Page 2: Table Of Contents
Content Feature ................... 3 Front Panel ................4 Rear Panel ................4 Side Panel ................5 DipSwitch/LED Control ..............6 Installation ................12 Package Contents ..............13 Specifications ................13 Firmware Upload ............... 15 Appendix Table A ..............15 ENABLE YOUR MEDIA WORKFLOWS www.media-power.it... -
Page 3: Feature
Feature SDI Supports HD formats: 720p50 & 60 1080i50 & 60 1080p24, 25, 30, 50 & 60 SDI Support 525i & 625i SD D1 format Auto 3G/HD/SD-SDI detection Can be split one 3G-SDI displays simultaneously. Frame rate conversion (1.000/1.001) External Dipswitch and USB Configuration Firmware is upgradable in the field using the integrated USB port The converter is Plug-and-Play Support DVI-D, DVI-A, Component, CVBS and S-Video Input0 Support Embedded audio and stereo audio( L/R Audio ) ENABLE YOUR MEDIA WORKFLOWS www.media-power.it... -
Page 4: Front Panel
Front Panel Component Function SDI Output Port From your SDI Display Device plug into this ports HDMI output Port From your HDMI Display Device plug into this port Input Port/ Audio The LEDs are indicate Input Ports and Audio source LED Source Control the Box ( Input Port/Audio/Output Dipswitch Format) Power Jack The Power adapter plug into here Rear Panel Component Function Phone Jack From you Audio Device plug into this port ENABLE YOUR MEDIA WORKFLOWS www.media-power.it... -
Page 5: Side Panel
Component/CVBS/S-Video From your YPbPr/CVBS/S-Video Device plug Input Port into this port From your DVI-D/DIV-A Device plug into this DVI-D/DVI-A Input Port port Side Panel Component Function USB Port Upgrade firmware/Control Box From PC ENABLE YOUR MEDIA WORKFLOWS www.media-power.it... -
Page 6: Dipswitch/Led Control
DipSwitch/LED Control Component Function Five of kinds input source be support Input Source ( DVI-D/DV-A/YPbPr/CVBS/S-Video) Two of kinds Audio input source Audio Source (Embedded audio/L/R Audio) Output format Control Box to switch Output Format. u Input Source: VPC-MX1 Box can choose one of three standard inputSource by DipSwitch. Input Source Dipswitch Indicates DVI-D(HDMI) ENABLE YOUR MEDIA WORKFLOWS www.media-power.it... - Page 7 DVI-A(VGA) YPbPr CVBS S-Video(YC) USB Control u Audio Source: VPC-MX1 Box can be select audio source from L/R Audio. Resolution Dipswitch Indicates Internal (Default) L/R Audio u Output Format: VPC-MX1box can be select 16 of kinds output format. Resolution Dipswitch Indicates Resolution 1920x1080p60 1920x1080i60 ENABLE YOUR MEDIA WORKFLOWS www.media-power.it...
- Page 8 1920x1080p59 1920x1080i59 1920x1080p50 1920x1080i50 1920x1080p30 1280x720p60 1920x1080p29 1280x720p59 1920x1080p25 1280x720p50 1920x1080p24 720x480i59 1920x1080p23 720x576i50 u LED Indicate: 2 3 4 5 Component Function The LED is indicate Audio Source Internal/L/R Audio indicate DVI-D(HDMI) The LED is indicate DVI-D Signal indicate DVI-A(VGA) The LED is indicate DVI-A Signal indicate The LEDs is indicate YPbPr Signal YPbPr...
- Page 9 1. DVI-D + L/R Audio: DVI-D + L/R Audio DVI-D DVI-A YPbPr Cvbs S-Video Locked ● ○ ○ ○ ○ Un-locked ● ○ ○ ○ ○ MicroVision ●(Blinking) ○ ○ ○ ○ 2. DVI-A+ L/R Audio: ENABLE YOUR MEDIA WORKFLOWS www.media-power.it...
- Page 10 DVI-A + L/R Audio DVI-D DVI-A YPbPr Cvbs S-Video Locked ○ ● ○ ○ ○ Un-locked ○ ● ○ ○ ○ 3. YPbPr + L/R Audio: YPbPr + L/R Audio DVI-D DVI-A YPbPr Cvbs S-Video Locked ○ ○ ● ○ ○ Un-locked ○ ○...
- Page 11 4. Composite (CVBS) + L/R Audio: Composite(CVBS) + L/R Audio DVI-D DVI-A YPbPr Cvbs S-Video Locked ○ ○ ○ ● ○ Un-locked ○ ○ ○ ● ○ MicroVision ○ ○ ○ ●(Blinking) ○ 5. S-VIDEO + L/R Audio Composite(CVBS) + L/R Audio DVI-D DVI-A YPbPr Cvbs S-Video...
-
Page 12: Installation
Locked ○ ○ ○ ○ ● Un-locked ○ ○ ○ ○ ● MicroVision ○ ○ ○ ○ ●(Blinking) 6. Audio Select: DVI-D + L/R Audio Internal Audio ● L/R Audio ● Installation MULTI2SDI-PRO installation consists of the following: 1. Disconnect +12DC adaptor to converter. 2. Connect Video Source to the Input Connector. 3. -
Page 13: Package Contents
Package Contents The MULTI2SDI-PRO package contains the following items: User Manual x 1 +12 DC Adapter x 1 MULTI2SDI-PRO Converter x 1 Specifications DESCRIPTION MULTI2SDI-PRO SDI Format SD-SDI, HD-SDI & 3G-SDI SDI Transition Rate 2.970Gb/s, 10485Gb/s and 270Mb/s HDMI(DVI-D) : 8-Channel L/R Audio : a. only 2 channel and splitter to 8 channel (HDMI/SDI Audio Support out) b. Input impedance = 10K. c. max input level(Vrms) = 10dBV (9V p-p), or 3.16 Vrms. ENABLE YOUR MEDIA WORKFLOWS www.media-power.it... - Page 14 Re-Sample Clock Auto Resample audio clock to 48Khz RG6/RG59(75Ω) Coaxial Cable Type 3G: 100m of RG6/ 86m of RG59 HD: 170m of RG6/ 120m of RG59 SD: 400m of RG6/ 280m of RG59 Cable Equalization *1 RG6: CANARE L-5CFB Cable / RG59: Belden 9275 Cable *2 Cable Length Performance: Depending on SDI Signal and Cable Quality Input Source HDMI/VGA/YPbPr/CVBS/S-Video Output Source 2 X SDI + 1 x HDMI (the same time) Input Format Support...
-
Page 15: Firmware Upload
Firmware Upload Firmware is upgradable in the field using the integrated USB port How to Firmware upgrade: Step 1. ENABLE YOUR MEDIA WORKFLOWS www.media-power.it... - Page 16 Open Upload Firmware Program tools.exe and connect box to PC by USB Cable. Step 2. Plug and un-plug “DC adapter” to power on/off the converter box (the connection check status will be changed to “Connect”) Step 3. Plug and un-plug “DC adapter” again (the connection check status will be changed to “Connected”) and Please click the Open File button to select the firmware bin file.
-
Page 17: Appendix Table A
Step 4. Please click “Start’ Button to proceed with new firmware programming. The PASS message will appear when the procedures finished. Step 5. Close Upload Firmware Program tools Appendix Table A Support Input Format: ENABLE YOUR MEDIA WORKFLOWS www.media-power.it... - Page 18 720x480i60 720x576i50 720x480 p60 720x576 p50 1280x720p60 1280x720p50 1920x1080i60 1920x1080i50 1920x1080p24 1920x1080p25 1920x1080p30 1920x1080p60 1920x1080p50 640x350p85 640x400p85 720x400p85 640x480p60 640x480p72 640x480p75 640x480p85 800x600p56 800x600p60 800x600p72 800x600p75 800x600p85 848x480p60 1024x768p50 1024x768p59 1024x768p60 1024x768p70 1024x768p75 1024x768p85 1152x864p70 1152x864p75 1280x768pRB 1280x768p60 1280x768p75 1280x768p85 1280x800p60 1280x800p75 1280x800p85...
