Blu STUDIO 5.0S II Service Manual page 5

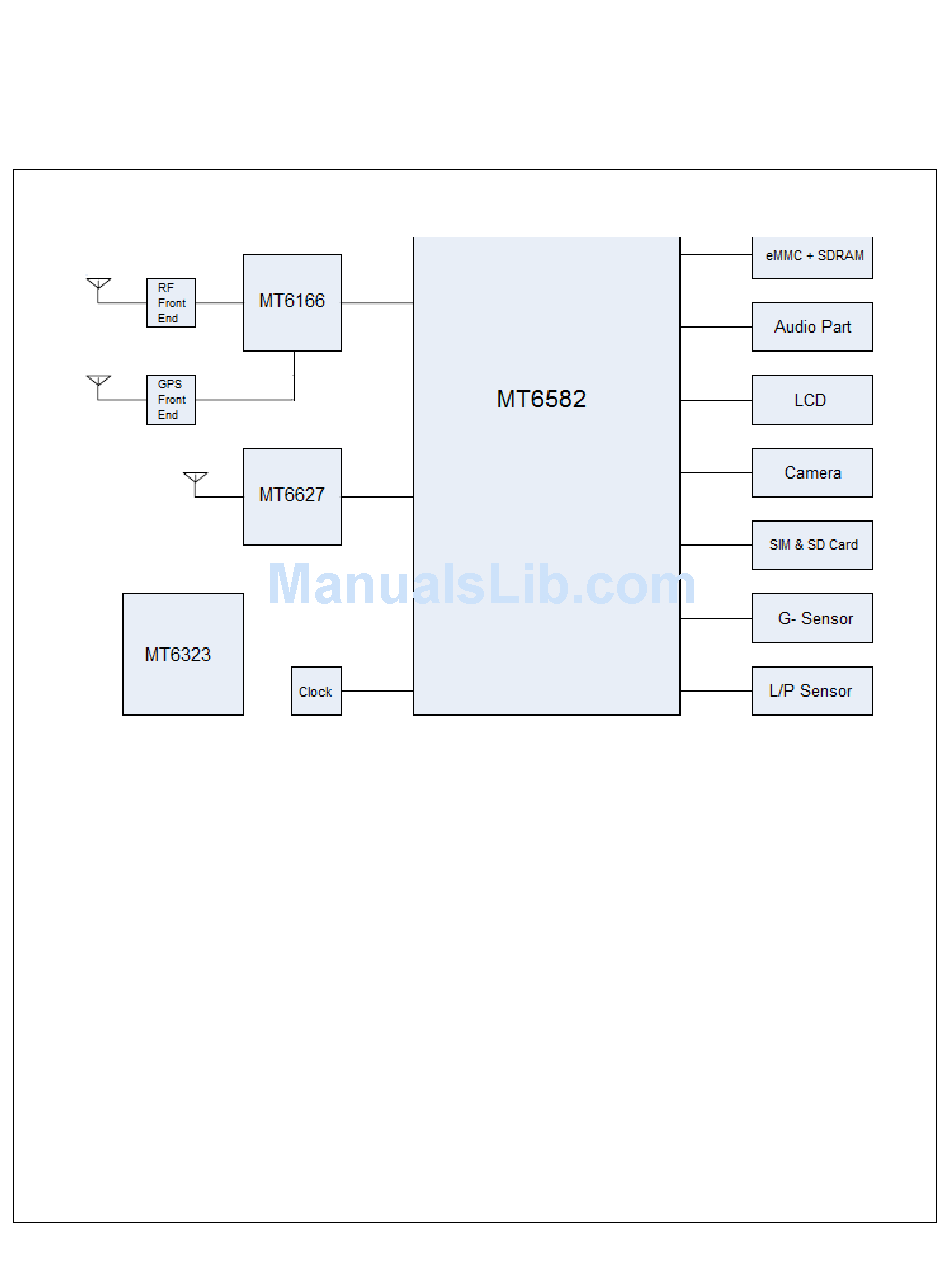

1.4 STUDIO 5.0S II Hardware Diagram
The HW Diagram as follow：
1.5 STUDIO 5.0S II Main Components
1.5.1 Mainboard
1 U101 - MT6582 CPU
2 U301 - MT6323
3 U401 - H9TP32A8JDACPR-KGM or H9TP32A8JDBCPR-KGM Memory
4 U501 - SKY77590 RF PA
5 U502 - MT6166 Transceiver
6 U503 - RF7241 WCDMA BAND1 PA or RF7242 WCDMA BAND2 PA
7 U504 - RF7248 WCDMA BAND8 PA or RF7245 WCDMA BAND5 PA
8 U601 - MT6627 WIFI BT GPS and FM 4 in 1 chip
9 U801 - BMA222E G_SENSOR
