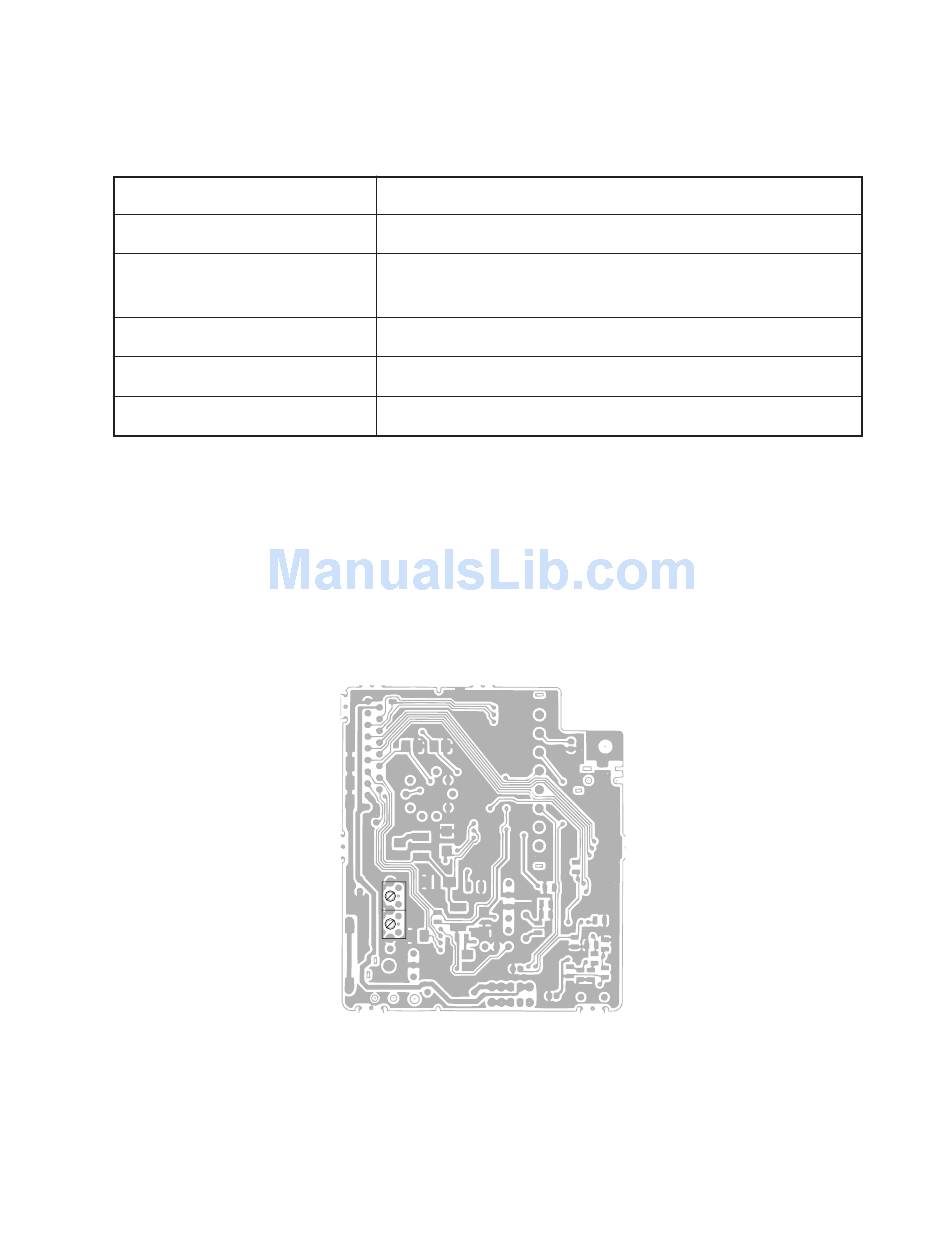

LINEAR PCB

Items To Be Adjusted
Item
VCC2 voltage setting
Video detection coil adjustment
AFT coil adjustment
Contrast adjustment
AGC adjustment
Adjustment And Test Point Locations

ADJUSTMENT

Measuring Instrument
Voltmeter
TV signal generator, pattern generator, oscilloscope,
low-pass filter
Sweep generator, oscilloscope, voltmeter
TV signal generator, pattern generator, oscilloscope
TV signal generator, pattern generator, IF levelmeter
T201
T200
Top View
