Summary of Contents for Casio EV-510C

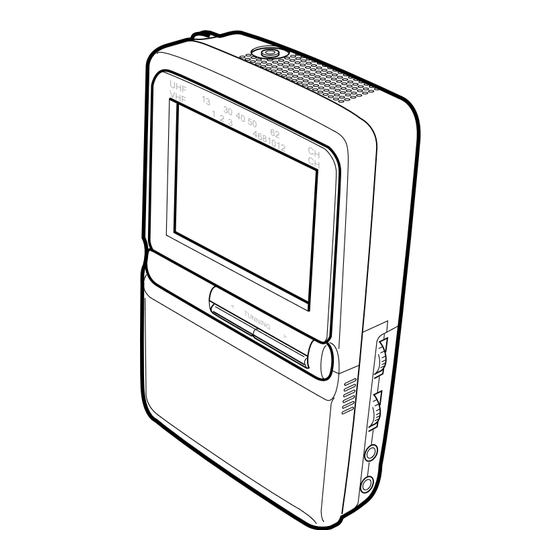

- Page 1 (without price) EV-510C (PAL B / G,H) EV-510D (PAL I) EV-510I (PAL B / G) EV-510N (PAL B / G,H) FEB. 1997 EV-510 INDEX...
-
Page 2: Table Of Contents
CONTENTS SPECIFICATIONS ..................1 BLOCK DIAGRAM ..................2 PRINTED CIRCUIT BOARDS ............... 3 EXPLODED VIEW ..................5 PARTS LIST ....................6 SCHEMATIC DIAGRAMS ................9 WAVEFORMS ....................12... -
Page 3: Specifications
Car adaptor : CA-K65 RF connector : CF-13 Antenna matching device : AS-35S Model Color System TV System Channel EV-510C/N B/G, H CCIR VHF: 2 ~ 12 ch UHF: 21 ~ 69 ch EV-510D –/I — UHF: 21 ~ 68 ch... -
Page 4: Block Diagram
Supply VEE1 (–8.5 ~ –7.5 V) VEE2 (–19.8 ~ –17.2 V) 1 — Color tuner: TU200 TEPE5-01 (EV-510C/I/N) TEPB5-05 (EV-510D) Selects a desired radio wave and changes it to the video IF signal. 2 — Video IF amp.: Q200 2SC4238 Amplifies the video IF signal output from tuner TU200 by 10 times (20 dB). -
Page 5: Printed Circuit Boards
PRINTED CIRCUIT BOARDS TOP VIEWS Linear JK200 F200 C202 C225 C208 R212R209R222 R224 TU200 R230 C257 T201 T200 C145 VR100 R105 C210 TM100 T100 R758 C116 L102 SW100 C100 Q750 C114 L101 C746R780 R715 C710 Q710 R707 IC700 R706 R705 615C-L C606 R703... - Page 6 CP900 CP903 SW701 SW700 CP902 — 4 —...
-
Page 7: Exploded View
EXPLODED VIEW 13-1 — 5 —... -
Page 8: Parts List
2251 0189 Chip transistor 2SB1218A-R(TX) Common Q760 2251 0189 Chip transistor 2SB1218A-R(TX) Common Switches SW100 3412 0938 Slide switch ESD-11V231 EV-510C/I/N SW100 3412 1134 Slide switch ESD-11V221 EV-510D Converter T100 3065 0518 DC-DC converter LC12U-35 Common Tuners TU200 1013 5315... - Page 9 BL PCB Item Code No. Parts Name Specification Applicable Transistors Q950 2253 0287 Chip transistor 2SD965-R Common Q951 2253 0287 Chip transistor 2SD965-R Common Switches SW700 3412 1029 Switch SKHHAL Common SW701 3412 1029 Switch SKHHAL Common Transformer T950 3012 1239 Inverter trans NT-06 Common...
- Page 10 COMPONENT Item Code No. Parts Name Specification Applicable 6611 8750 Display plate CIM-K619 K440980-2 EV-510C 6611 8790 Display plate DDM-K619 K440980-3 EV-510D 6611 8820 Display plate NBM-K619 K440980-6 EV-510I/N 6609 9080 Adhesive tape A-K615 K440178-1 Common 6611 5090 Upper cover AAM-K617...
-
Page 11: Schematic Diagrams
SCHEMATIC DIAGRAMS Earphone Jack LINEAR (EV-510C/I/N) Antenna External Speaker Antenna Jack Tuner Power Supply Circuit Tuning Voltage Generator Circuit Audio Amplifier Circuit IF Pad IF Detection Circuit To Back Light Power Switch Display Controller Circuit Audio/Video Jack To LCD DC In Chroma Circuit —... - Page 12 Earphone Jack LINEAR (EV-510D) Antenna External Speaker Antenna Jack Tuner Power Supply Circuit Tuning Voltage Generator Circuit Audio Amplifier Circuit IF Pad IF Detection Circuit To Back Light Power Switch Display Controller Circuit Audio/Video Jack To LCD DC In Chroma Circuit —...
- Page 13 — 11 —...
-
Page 14: Waveforms
WAVEFORMS 64 µs 64 µs 64 µs 64 µs 125 µs F IC700 pin 7 1 Q200 collector 2 IC300 pin 20 3 IC200 pins 19, 20 G IC300 pin 30 64 µs 64 µs 64 µs 4 IC200 pin 18 5 IC300 pins 32, 34, 36 6 IC300 pin 21 125 µs... - Page 15 8-11-10, Nishi-Shinjuku Shinjuku-ku, Tokyo 160, Japan Telephone: 03-3347-4926 MA0400471A...
