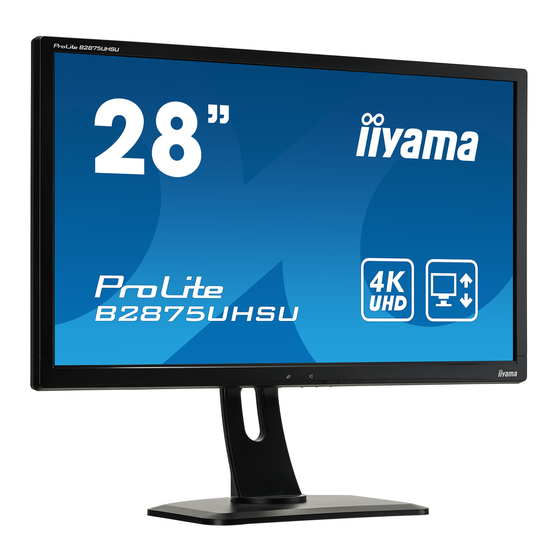

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... -
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2875UH We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff... -
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7 CONNECTING YOUR MONITOR ...........8 COMPUTER SETTING ..............9... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Switch ( Menu Button (MENU) Scroll Up / Volume Button ( + / Power Indicator Blue: Normal operation NOTE Orange: Power Management Scroll Down / ECO Mode Button ( - / Input / Auto / Exit Button (AUTO) Speakers USB(2.0) Downstream Connector ( USB(3.0 Battery Charger) Downstream Connector (... -
Page 12: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 13: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 26: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. -
Page 14: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 26. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 18 for SCREEN ADJUSTMENTS. -
Page 15: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Luminance Luminance Contrast Brightness i-Style Color Standard Adv. Contrast Overdrive AUTO :Exit :Move MENU :Select Adjustment Item Problem / Option Button to Press Too dull Contrast Too intense Too dark Brightness * Too bright For general windows environment and monitor Standard default setting. -
Page 16: Image Setup
Image Setup Image Setup Image Setup Clock FreeSync Phase H.Position V.Position Aspect Ratio Wide AUTO :Exit :Move MENU :Select :Exit :Move AUTO MENU :Select Adjustment Item Problem / Option Button to Press Too narrow Clock* Too wide Phase* To correct fl ickering text or lines Too left H. - Page 17 Color Temp. * Color Temp. Color Temp. Warm Green Blue :Exit :Move AUTO MENU :Select Adjustment Item Problem / Option Button to Press Warm Greenish white Normal Yellowish white Cool Bluish white Color Temp. Too weak Green User Too strong Blue sRGB sRGB...
-
Page 18: Osd Setup
OSD Setup OSD Setup Timeout Language English AUTO :Exit :Move MENU :Select Adjustment Item Problem / Option Button to Press You can set the OSD display duration time Timeout between 5 and 100 seconds. English English Italiano Italian Français French Česky Czech Nederlands Dutch... -
Page 19: Pip Setting
PIP Setting PIP Setting PIP Setting Size Small Position Right-Up Swap AUTO :Exit :Move MENU :Select Adjustment Item Problem / Option Button to Press When there are two or more input signals, you can display PIP / PBP. Off PIP Setting is turned off . PIP Setting Display the Sub screen in the main screen. - Page 20 Extra Extra Input Select DDC/CI Reset Information Input: HDMI/MHL Resolution: 1920<H> * 1080<V> H. Frequency: 67KHz V. Frequency: 60Hz AUTO :Exit :Move MENU :Select Adjustment Item Problem / Option Button to Press Select the Analog (VGA) input. Select the Digital (DVI) input. Main Source HDMI/MHL Select the Digital (HDMI/MHL) input.
- Page 21 Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. Audio Adjust: Press the + Button when the Menu is not displayed. Press the MENU button to switch the Volume / Audio Source. Adjustment Item Problem / Option Button to Press...
-
Page 22: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com). - Page 23 Pressing and holding of the Button for about 2-3 seconds. (Auto Confi gure) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi...
- Page 24 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE In case the strong fl icker or blurs remain on a part of the screen, repeat steps because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 25: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 26: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 27: Recycling Information
A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 23... -
Page 28: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Size Category 28" Panel technology Size Diagonal: 28" (71cm) Pixel pitch 0.16mm H × 0.16mm V Brightness 300cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time... -
Page 29: Dimensions
Operating: Temperature 5 to 35°C / 41 to 95°F Environmental Humidity 10 to 80% (No condensation) -20 to 60°C / -4 to 140°F Considerations Storage: Temperature 5 to 85% (No condensation) Humidity Approvals CE, TÜV-Bauart, CU, VCCI-B, PSE DIMENSIONS 659.5mm/26.0” 49.5mm/1.9”... -
Page 30: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz SVGA 800 × 600 37.879kHz 60.317Hz 40.000MHz 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 56.476kHz 70.069Hz 75.000MHz...
