2.3. Device Description
The front of the BCOM-USB device has a USB connector for connection to a Windows machine
and LED indicators for serial communication activity indications. Each channel has:
TX – Transmit Data
RX – Receive Data
RTS – Request To Send
BCOM-USB Device User Manual

Figure 2: Serial cables and connectors

CTS – Clear To Send
CD – Data Carrier Detect
ERR – Error Indication

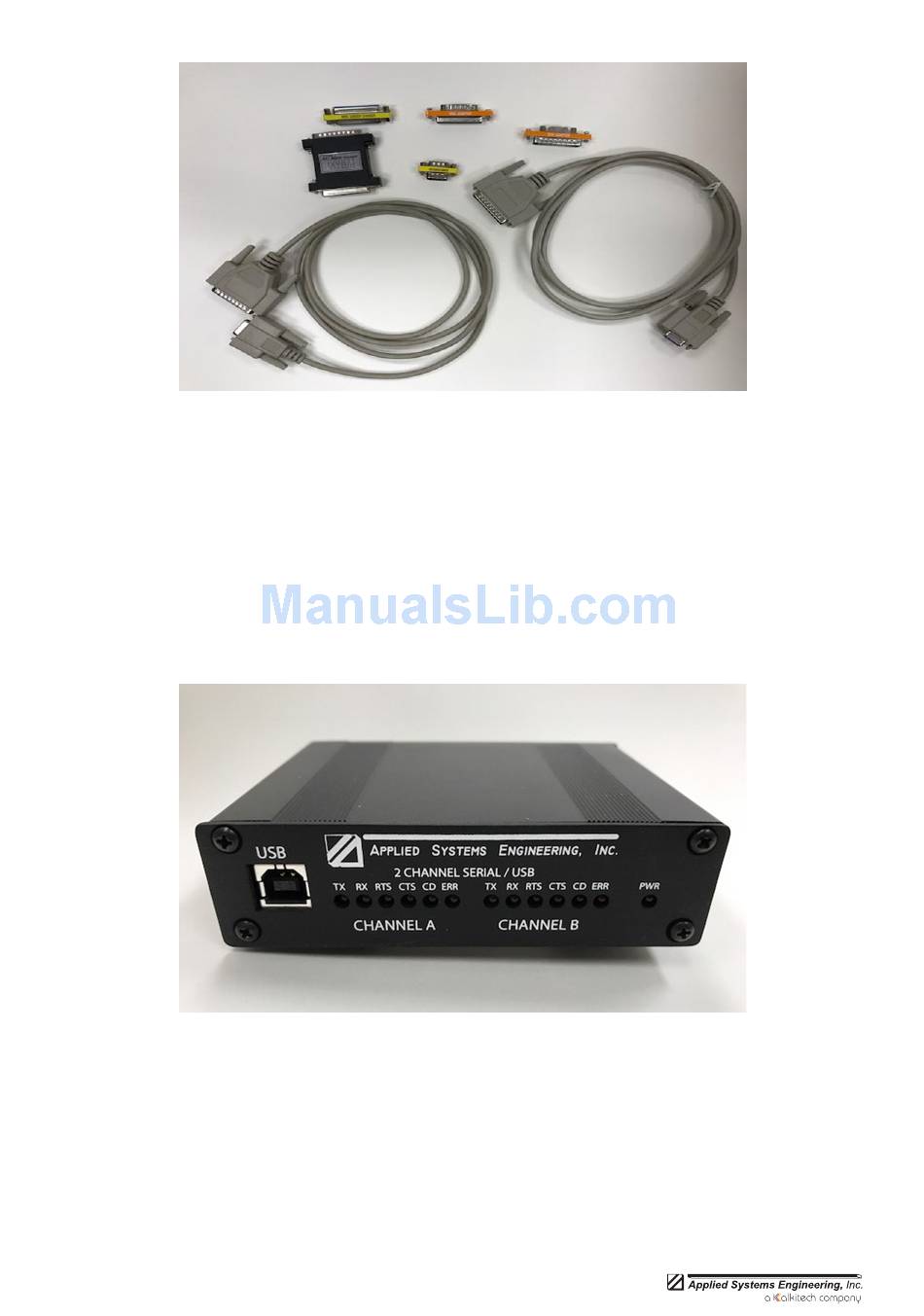

Figure 3: Front view
