Configure The Bgr700 - Access Interfacing Solutions BGR700 Product Manual

2. Rotate the BGR700 down to latch on the quick release bracket plate.
The stud engages with the slider to lock the BGR700 in place.
To detach the BGR700 from the quick release bracket:
•
Push the slider in and remove the BGR700.

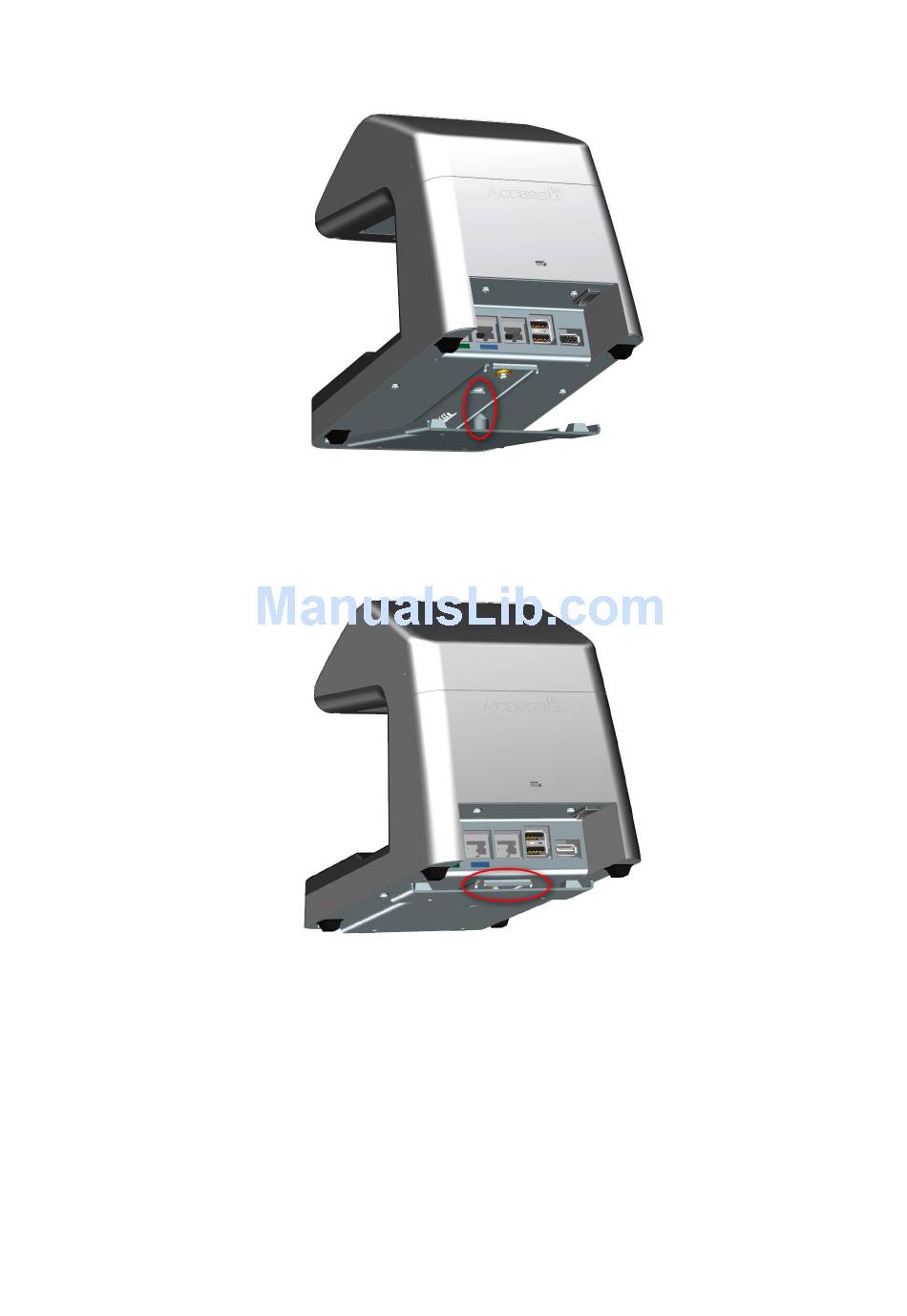

Figure 9: Detaching the BGR700 from the quick release bracket

3.4 Configure the BGR700

There are two methods to configure the BGR700, including setting the host protocol:
1. Using the BGR Configuration Tool, which you can download from the Access-IS website
(http://www.access-is.com/gettingstarted/).
2. Using a configuration barcode provided by Access-IS.
Page 10 of 14
Figure 8: Securing the BGR700 to the quick release bracket
Copyright © Access-IS 2017
