Subject: BGR700 Product
Manual
Revision: 1.0
Issue Date: 17.10.2017
Product names mentioned
herein are for identification
purposes only and may be
trademarks and/or
registered trademarks of
their respective companies.
© Copyright 2017
ALL RIGHTS RESERVED
Access-IS
18 Suttons Business Park, Reading
Berkshire, RG6 1AZ, United Kingdom
Tel: +44 (0) 118 966 3333
Web: www.access-is.com
Email: support@access-is.com
BGR700
Boarding Gate Reader
Product Manual
Advertisement
Table of Contents
Related Manuals for Access Interfacing Solutions BGR700
Summary of Contents for Access Interfacing Solutions BGR700
- Page 1 Subject: BGR700 Product Manual BGR700 Revision: 1.0 Issue Date: 17.10.2017 Boarding Gate Reader Product names mentioned Product Manual herein are for identification purposes only and may be trademarks and/or registered trademarks of their respective companies. © Copyright 2017 ALL RIGHTS RESERVED...
- Page 2 Warnings This manual contains important information regarding the installation and operation of the BGR700 compact boarding pass reader. For safe and reliable operation of the imager, installers must ensure that they are familiar with, and fully understand, all instructions contained herein.
-
Page 3: Table Of Contents
Contents Overview ..........................4 Specifications ........................5 Part numbers ......................6 Installation ......................... 7 Unpack the BGR700 ....................7 Connect the BGR700 ....................7 Mount with the quick release bracket ................ 9 Configure the BGR700 ................... 10 Operation ......................... 11 Maintenance ........................ -
Page 4: Overview

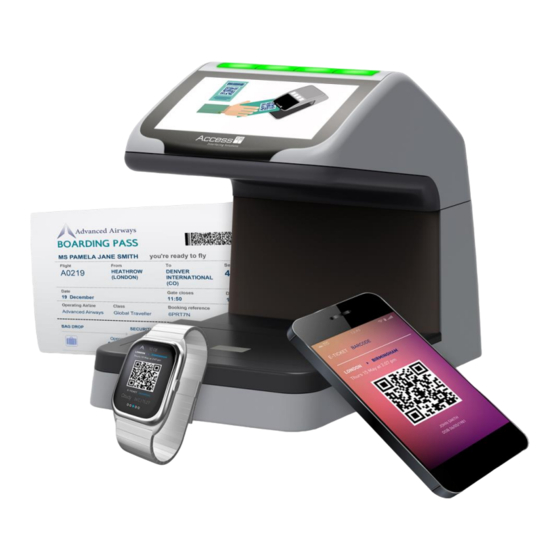

The BGR700 reads boarding passes presented face up at any angle to ensure fast and intuitive passenger processing. Speed of transaction is enhanced by near-zero latency, so that barcodes are read instantly on presentation. -
Page 5: Specifications
2. Specifications Specification Details Dimensions (W x H x D) 135 x 184 x 214 mm Weight 1215 g Environmental Operating temperature: 0ºC to 50ºC Storage temperature: 0ºC to 60ºC Humidity: 0–95% RH, non-condensing Body Robust ABS enclosure with no moving parts Passenger/agent display Display: Colour LCD (480 x 272) Visible/audible: Configurable green (good read) and red (bad read) -
Page 6: Part Numbers
2.1 Part numbers Product Part number Barcode only, Serial BGR700-B-S Barcode only, USB BGR700-B-U Serial and power cable 5KBD4093 USB and power cable 5KBD4092 Printer cable 5KBD4094 Universal AC power supply PSU12V2AB-VI Quick release bracket QRB700 Page 6 of 14... -
Page 7: Installation
1. Switch off the computer. 2. Push the RJ50 connector into the host socket on the back of the BGR700 until you hear a click. 3. If using a serial cable, connect the serial connector to a COM port on the computer and finger-tighten the two thumbscrews to secure the connector to the port. - Page 8 5. Optional: Connect a printer via the RJ50 port. Figure 4: Printer connection cable (blue) 6. Once connected to the host computer, turn on the BGR700 using the switch at the rear of the unit. Figure 5: Location of the On/Off switch Page 8 of 14 Copyright ©...
-
Page 9: Mount With The Quick Release Bracket
3.3 Mount with the quick release bracket The BGR700 is simple to install. The optional BGR700 quick release bracket provides a simple means to secure the device to a desktop or podium. The addition of the bracket prevents the hardware being accidentally knocked to the ground and damaged, potentially at a critical time in boarding. -
Page 10: Configure The Bgr700
2. Rotate the BGR700 down to latch on the quick release bracket plate. The stud engages with the slider to lock the BGR700 in place. Figure 8: Securing the BGR700 to the quick release bracket To detach the BGR700 from the quick release bracket: •... -
Page 11: Operation
Contact Customer Support (support@access-is.com) for further assistance. Alternatively, use the Contact Customer Support page on the Access-IS website. Note: Do not attempt to disassemble the BGR700 if it does not operate correctly. Any attempt to do so may be dangerous and will invalidate the warranty. -
Page 12: Maintenance
5. Maintenance Limited maintenance of the BGR700 is required as the unit is free from moving parts and the glass window is protected. 5.1 Cleaning General, monthly cleaning of the imager window (underside of unit) with a lint-free cloth is recommended to remove any dust and build up of debris. -
Page 13: Drawings
A. Drawings Figure 10: BGR70 dimensions Page 13 of 14 Copyright © Access-IS 2017... -
Page 14: Document History
B. Document history Revision Date Description 17.10.2017 First issue. Page 14 of 14 Copyright © Access-IS 2017...
