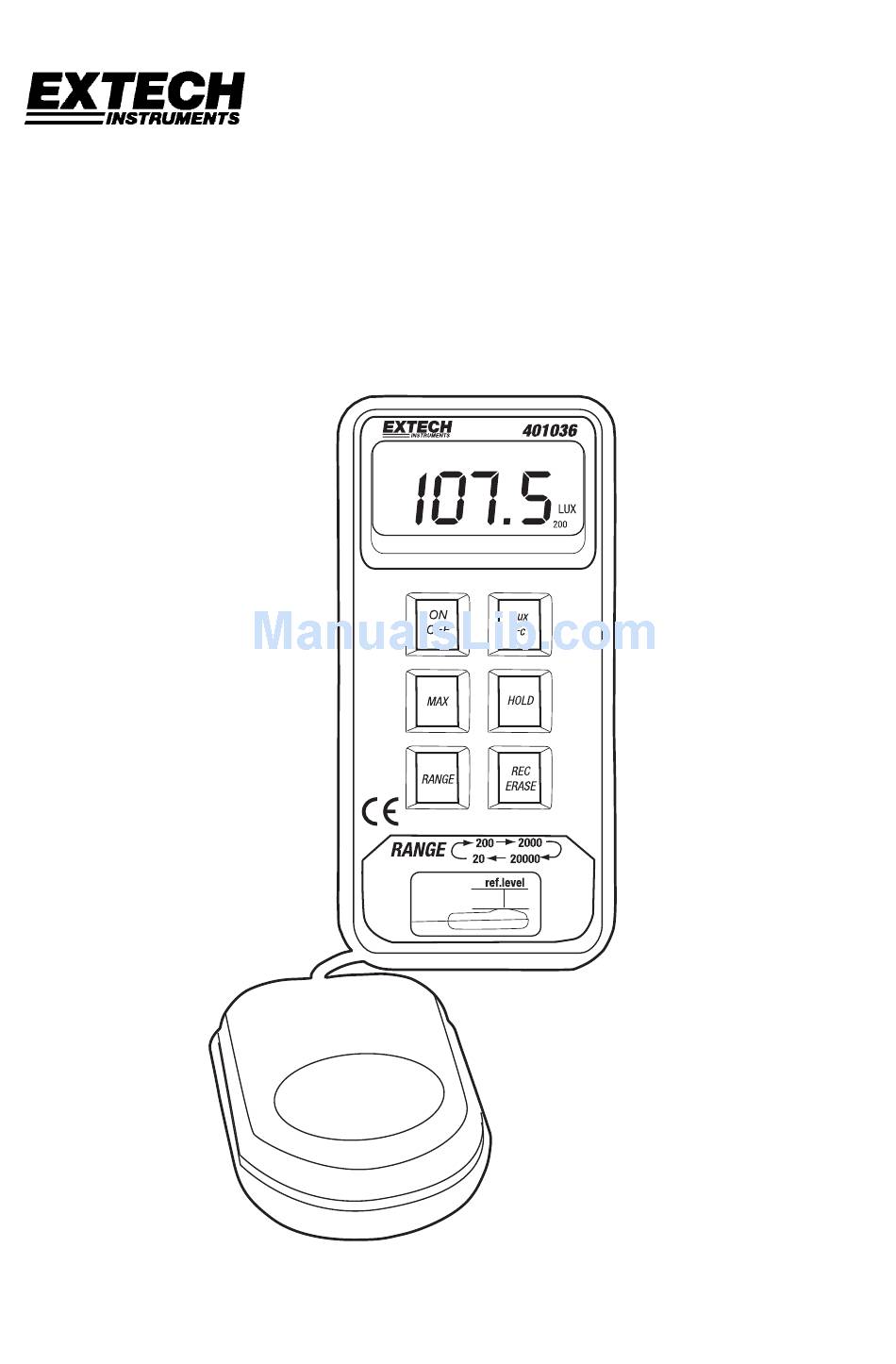

- Page 1 User's Guide Datalogging Light Meter with PC Interface Model 401036...
-
Page 2: Specifications
Introduction Congratulations on your purchase of the Extech 401036 Datalogging Light Meter. This device measures light intensity to 20,000 Foot-candles (Fc) or Lux. 16,000 measurement readings can be logged by the meter and later transferred to PC using the RS-232 interface. - Page 3 0.0 Fc/LUX display Note that the battery compartment, tilt stand, and hanging mount are located on the rear of the meter Spectral Sensitivity Curve = Light Meter λ = V ( Relative Sensitivity (%) Wavelength (nm) Model 401036 Version 3.1 9/07...
- Page 4 2. Turn the meter on by pressing the ON/OFF key and then immediately release the ON/OFF key. 3. Continue to hold the REC/ERASE key until ‘del’ flashes 3 times on the LCD. The meter automatically returns to normal operation after the data are erased. Model 401036 Version 3.1 9/07...
- Page 5 Connect the supplied interface cable to the phono jack on the right side of the light meter and to the PC 9-pin COM port. Windows Software Refer to separate instructions supplied on the Software Program disk for the operation of the Windows Software. Model 401036 Version 3.1 9/07...
-
Page 6: Battery Replacement
For the latest version of this User’s Guide, Software updates, and other up-to-the-minute product information, visit our website: www.extech.com Extech Instruments Corporation, 285 Bear Hill Rd., Waltham, MA 02451 Copyright © 2005 Extech Instruments Corporation All rights reserved including the right of reproduction in whole or in part in any form.
