OPERATING INSTRUCTIONS
INFRA-RED HEATING ASSEMBLIES
Models HE900, HE1200, HE1500, HE1800 Version 1
Variable Heat Control
Stylised Design
Long-Life Metallic Elements
These instructions cover the models of ROBAND
variances between models, the installation, operation, care and maintenance procedure is the
same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD
Includes
International models: ...-Gxx and ...-Fxx
Fabricator models: HUE...
Special Features:
®
Heat Lamps only. Although there are slight
27/06/2016
Advertisement
Table of Contents
Related Manuals for ROBAND HE900
Summary of Contents for ROBAND HE900
-
Page 1: Operating Instructions

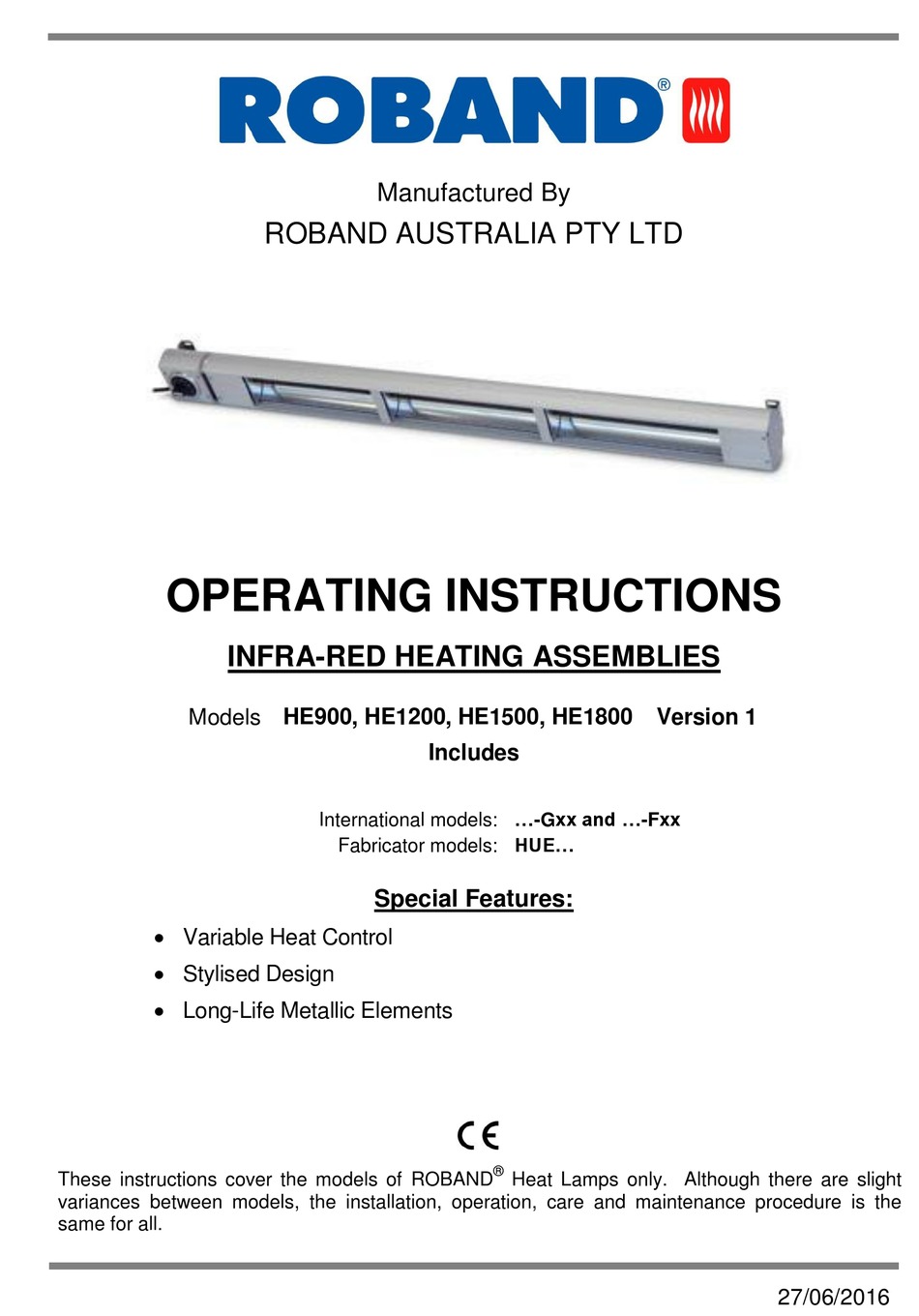

Manufactured By ROBAND AUSTRALIA PTY LTD OPERATING INSTRUCTIONS INFRA-RED HEATING ASSEMBLIES Models HE900, HE1200, HE1500, HE1800 Version 1 Includes International models: …-Gxx and …-Fxx Fabricator models: HUE… Special Features: Variable Heat Control Stylised Design Long-Life Metallic Elements ®... - Page 2 ® ® ®...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 ......................2 HUE SERIES FABRICATOR MODELS ..............3 INSTALLATION ....................... 4 MOUNTING PROCEDURE – STANDARD MOUNTS ..........4 ELECTRICAL CONNECTION .................. 6 OPERATION......................7 GENERAL SAFETY ....................8 CLEANING, CARE & MAINTENANCE ..............9 ELEMENT REPLACEMENT .................. -
Page 4: Introduction
Heating Assembly, and ensure that any risk to unwary customers or staff is minimised with additional signage if necessary. Due to the obvious heat hazard Roband recommends that these units be kept out of reach of children. -
Page 5: Packaging
PACKAGING Roband ensures that every unit is functional and undamaged at the time of packaging, and all care is taken. The Package of this Heating Assembly should include: One Heating Assembly (appropriate model) This Manual Packaging Materials Any damage to the machine as a result of freight must be reported to the Freight Company and to the agent responsible for the dispatch of said unit within 24 hours of receipt. -
Page 6: Hue Series Fabricator Models
As these Heating Assemblies are intended for use by OEM manufacturers and their application and installation are beyond Roband control, they are covered by a limited warranty against faulty workmanship and materials for a period of 12 months from date of purchase. -
Page 7: Installation
INSTALLATION Remove all the packaging materials and tape, as well as any protective plastic from the machine. Clean off any glue residue left over from the protective plastic or tape using methylated spirit. These Heating Assemblies are designed for mounting above food serving and preparation areas to provide HEAT without illumination. - Page 8 Page: 5...
-
Page 9: Electrical Connection
ELECTRICAL CONNECTION Make certain that any excess cord length is kept away from the Heating Assembly body and out of the heated area. AUSTRALIAN MODELS (HE…) All Models come with a 1.8m power cord and will plug into a single phase, 10 Amp power point. -
Page 10: Operation
OPERATION After the heat lamps have been installed, the unit is operable and temperature controlled through the use of the energy regulator which is mounted on the outside of the switch box (HE series only). The Energy regulator is used to control the temperature output of the heating assembly from approximately 10% of the total power on low setting to 100% of the power on maximum setting. -
Page 11: General Safety
SAFETY GENERAL SAFETY This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units. -
Page 12: Cleaning, Care & Maintenance
CLEANING, CARE & MAINTENANCE Attention to regular care and maintenance will ensure long and trouble free operation of your Heating Assembly. Although scheduled servicing is not required we do recommend you adopt a program of regular maintenance to ensure that the Heating Assembly is clean and functional and to avoid inadvertently damaging the unit. -
Page 13: Element Replacement
ELEMENT REPLACEMENT In the rare case of the element failing, it should be replaced by a qualified person such as an electrician. TO ACCESS THE ELEMENT: 1. Turn the unit off and unplug the machine. 2. Remove the four screws from the base section underneath the element using a T20 Torx screwdriver. -
Page 14: Specifications
SPECIFICATIONS Nominal Dimensions Power Power Model Length - mm Width - mm Height - mm Source Rating 230 Volts HE900 900 Watts 230 Volts HE1200 1200 Watts 1200 230 Volts HE1500 1500 Watts 1500 230 Volts HE1800 1800 Watts 1800... -
Page 15: He Series Circuit Diagram
HE SERIES CIRCUIT DIAGRAM NOTE: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should person’s not suitably qualified attempt repairs to any electrical equipment. Page: 12... -
Page 16: Hue Series Circuit Diagram
HUE SERIES CIRCUIT DIAGRAM NOTE: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should person’s not suitably qualified attempt repairs to any electrical equipment. Page: 13... -
Page 17: Notes
NOTES: Page: 14... -
Page 18: Ec Declaration Of Conformity
I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above-mentioned standard(s). Roband Australia has appointed Valera Ltd as our EU Authorised Representative of : 5-7 The Glade Business Centre, Eastern Ave, West Thurrock, Essex, RM203FH , UK. -
Page 19: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 20 OTHER LEADING PRODUCTS AVAILABLE: Sycloid Toaster DRINK MIXERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS NOAW Slicers GRILLMAX TOASTERS Manufactured/Imported in Australia by: Authorised Distributor/Agent...
