Adjusting Headlights

Adjustment
Please observe the chapter "LIGHTS, REPLAC-
ING BULBS" on page 302.
The adjustment is made with the vehicle ready to
drive and the fuel tank completely filled.
The driver's seat must be loaded by a person or a
165 lbs. (75 kg) weight and the tire pressures must
meet the prescribed values. After being loaded,
the car must be rolled a few meters so that the
suspension can settle.
318
Practical Tips, Emergency Service

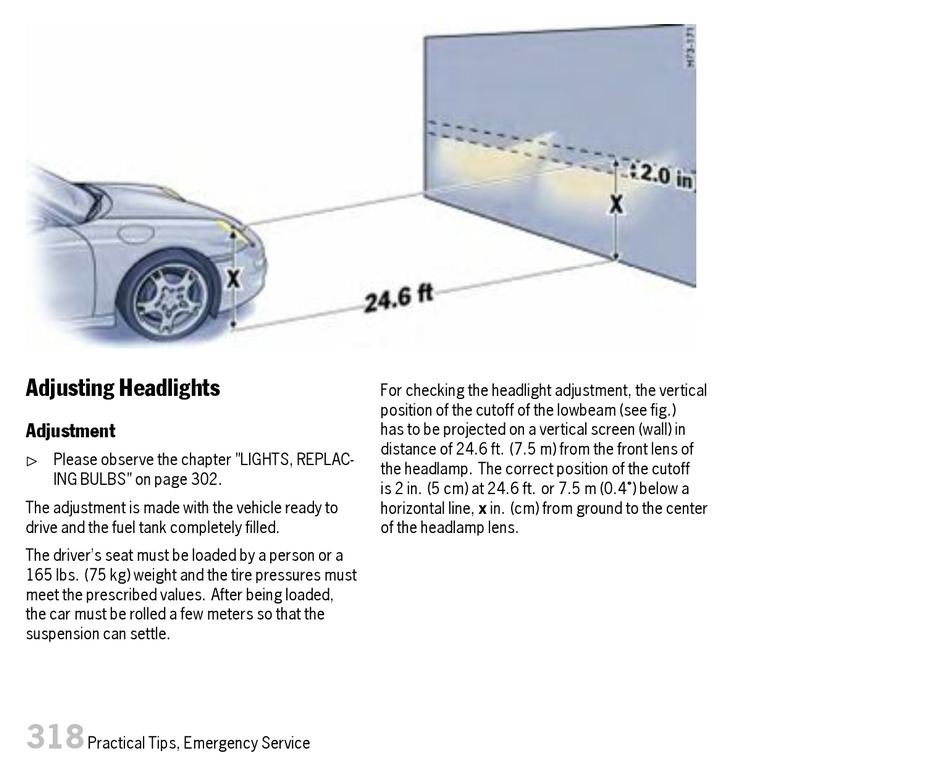

For checking the headlight adjustment, the vertical
position of the cutoff of the lowbeam (see fig.)
has to be projected on a vertical screen (wall) in
distance of 24.6 ft. (7.5 m) from the front lens of
the headlamp. The correct position of the cutoff
is 2 in. (5 cm) at 24.6 ft. or 7.5 m (0.4) below a
horizontal line, x in. (cm) from ground to the center
of the headlamp lens.
