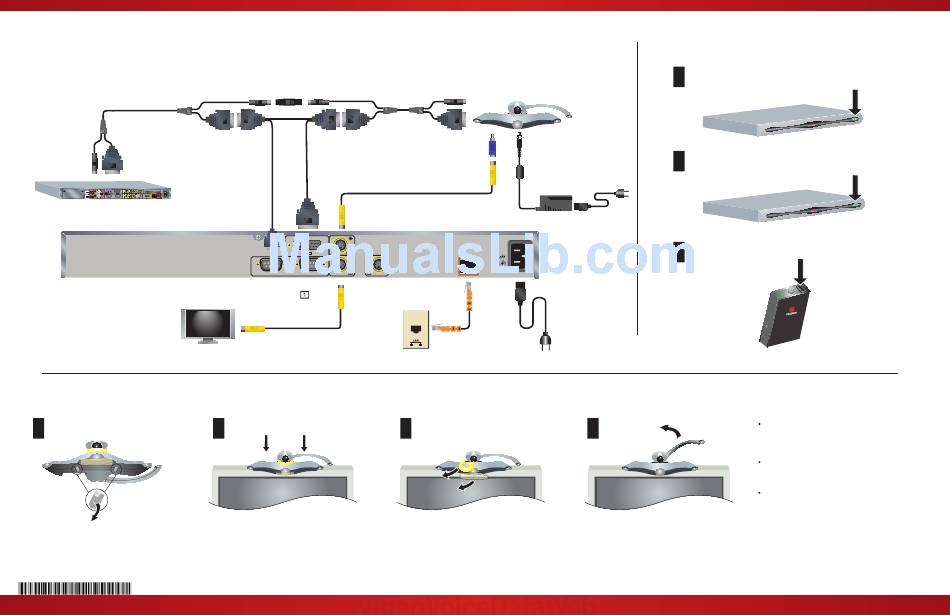

Setting up the Controller with a VSX Video Conferencing System

10' or 100' camera cable
IR 90-250VAC 50/60Hz 4A
3 1 1 2 VG A PC CARD
VCR/DVD
2
IOIOIO
1 2 VG A LAN
VSX video conferencing system
PowerCam Presenter Controller
Display

Setting up the Camera

1
1725-23626-001/A
S-video gender
changer adapter 10' or 100' camera cable
Camera
adapter
cable
25' S-video cable
1
1
1 IOIOIO 2 2
Video output from
connector shows
Presenter icons and
messages
8' S-video cable
2
Male RCA to
female S-video
adapter
Camera power cables
90-250VAC 50/60Hz 4A
LAN
LAN cable A/C power cable
Use only for
upgrading
software
3
©2006, Polycom, Inc. All rights reserved. Polycom® and the Polycom logo are registered trademarks, and Polycom PowerCam Presenter™ and VSX™ are trademarks of Polycom, Inc.

Powering on the Polycom PowerCam Presenter

1
After all the cables are connected, power on the Polycom
PowerCam Presenter controller:
2
If you have a VSX video conferencing system, power it on next:
3 Wait 90 seconds, and then power on the locator pack:
Place the camera where it will be no more than
4
50 feet (15.2 meters) away from the person
wearing the locator.
Place the camera about 6 feet (1.8 meters) to
7 feet (2.1 meters) above the floor.
Leave at least 1 foot (.3 meters) between the
back of the camera and the wall. If you add
acoustic foam on the wall, you can place the
camera slightly closer than 1 foot (.3 meters)
from the wall.
