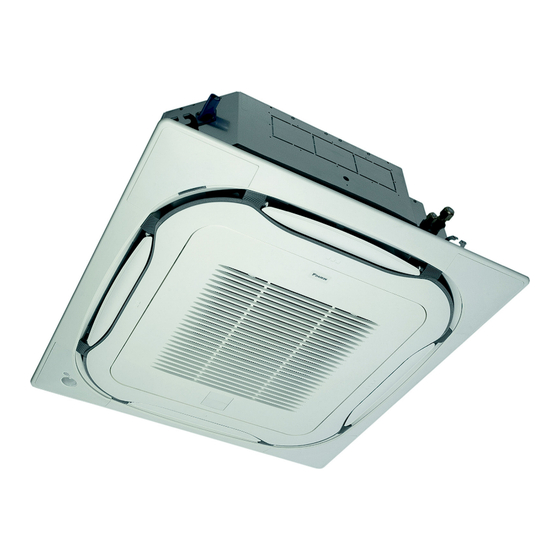

Daikin FCAHG71FVEB Technical Data Manual

Hide thumbs Also See for FCAHG71FVEB:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Operation & Installation Manual
> FCAHG71FVEB
> FCAHG100FVEB
> FCAHG125FVEB
> FCAHG140FVEB
Air Conditioning
Technical Data
FCAHG-F

Advertisement

Table of Contents
loading

Related Manuals for Daikin FCAHG71FVEB

Summary of Contents for Daikin FCAHG71FVEB

  • Page 1 Air Conditioning Technical Data FCAHG-F > FCAHG71FVEB > FCAHG100FVEB > FCAHG125FVEB > FCAHG140FVEB...

  • Page 3: Table Of Contents

    • Indoor Unit • FCAHG-F TABLE OF CONTENTS FCAHG-F Features ............. 2 Specifications .

  • Page 4: Features

    • Indoor Unit • FCAHG-F Features U n i H G - d o o F C A First R-32 BLUEVOLUTION light commercial range available in Europe • Choosing for an R-32 product, reduces the environmental impact with • Daily automatic filter cleaning results in higher efficiency & comfort 68% compared to R-410A, leads directly to lower energy and lower maintenance costs.

  • Page 5: Specifications

    • Indoor Unit • FCAHG-F Specifications 2-1 Technical Specifications FCAHG71F FCAHG100F FCAHG125F FCAHG140F Casing Material Galvanised steel plate Dimensions Unit Height/Width/ 288/840/840 Depth Packed unit Height/Width/ 300/880/880 Depth Weight Unit 25.0 26.0 Packed unit 29.0 30.0 Packing Material Cardboard Weight 2.06 Decoration panel Model...

  • Page 6: Electrical Specifications

    • Indoor Unit • FCAHG-F Specifications 2-1 Technical Specifications FCAHG71F FCAHG100F FCAHG125F FCAHG140F Piping connections Sound absorbing insulation Foamed polyurethane Liquid Type/OD Flare connection/9,52 Type/OD Flare connection/15.9 Drain VP25 (I.D. 25/O.D. 32) Heat insulation Foamed polystyrene / Foamed polyethylene Standard Accessories : Installation and operation manual; Standard Accessories : Installation manual;...

  • Page 7: Safety Device Settings

    • Indoor Unit • FCAHG-F Safety device settings 3 - 1 Safety Device Settings & ,' & &Y' &s &Y' &s &Y' &s &Y' &s &Y' &s &Y' &s &Y' &s &Y,' &s &Y,' &s &Y,' &s & ,' &s & ,' &s & ,' &s & ,' &s...

  • Page 8: Options

    • Indoor Unit • FCAHG-F Options 4 - 1 Options FCAHG-F 3D077128E • Split - Sky Air • FCAHG-F...

  • Page 9: Dimensional Drawings

    • Indoor Unit • FCAHG-F Dimensional drawings 5 - 1 Dimensional Drawings with Accessories FCAHG-F 3D077131E • Split - Sky Air • FCAHG-F...
  • Page 10 • Indoor Unit • FCAHG-F Dimensional drawings 5 - 1 Dimensional Drawings with Accessories • Split - Sky Air • FCAHG-F...
  • Page 11 • Indoor Unit • FCAHG-F Dimensional drawings 5 - 1 Dimensional Drawings with Accessories • Split - Sky Air • FCAHG-F...

  • Page 12: Centre Of Gravity

    • Indoor Unit • FCAHG-F Centre of gravity 6 - 1 Centre of Gravity • Split - Sky Air • FCAHG-F...

  • Page 13: Piping Diagrams

    • Indoor Unit • FCAHG-F Piping diagrams 7 - 1 Piping Diagrams • Split - Sky Air • FCAHG-F...

  • Page 14: Wiring Diagrams

    • Indoor Unit • FCAHG-F Wiring diagrams 8 - 1 Wiring Diagrams - Single Phase • Split - Sky Air • FCAHG-F...

  • Page 15: External Connection Diagrams

    • Indoor Unit • FCAHG-F External connection diagrams 9 - 1 External Connection Diagrams • Split - Sky Air • FCAHG-F...

  • Page 16: Sound Data

    • Indoor Unit • FCAHG-F Sound data 10 - 1 Sound Level Data FCAHG-F &Y ' &s &Y , ' &s & , ' &s &y&Y s 31dBA 35dBA 37dBA 41dBA 43dBA 33dBA 39dBA 45dBA 4D082223-A • Split - Sky Air • FCAHG-F...

  • Page 17: Sound Power Spectrum

    • Indoor Unit • FCAHG-F Sound data 10 - 2 Sound Power Spectrum NR90 NR85 NR80 NR75 NR70 NR65 NR60 NR55 NR50 NR45 NR40 NR35 NR30 NR25 NR15 NR20 NR10 1000 2000 4000 8000 Octave band centre frequency [Hz] • Split - Sky Air • FCAHG-F...
  • Page 18 • Indoor Unit • FCAHG-F Sound data 10 - 2 Sound Power Spectrum NR90 NR85 NR80 NR75 NR70 NR65 NR60 NR55 NR50 NR45 NR40 NR35 NR30 NR25 NR15 NR20 NR10 1000 2000 4000 8000 Octave band centre frequency [Hz] • Split - Sky Air • FCAHG-F...
  • Page 19 • Indoor Unit • FCAHG-F Sound data 10 - 2 Sound Power Spectrum NR90 NR85 NR80 NR75 NR70 NR65 NR60 NR55 NR50 NR45 NR40 NR35 NR30 NR25 NR15 NR20 NR10 1000 2000 4000 8000 Octave band centre frequency [Hz] • Split - Sky Air • FCAHG-F...

  • Page 20: Sound Pressure Spectrum - Cooling

    • Indoor Unit • FCAHG-F Sound data 10 - 3 Sound Pressure Spectrum - Cooling & NR75 NR70 > NR65 NR60 NR55 NR50 NR45 NR40 NR35 NR30 NR25 NR20 NR15 NR10 1000 2000 4000 8000 Octave band centre frequency [Hz] •...
  • Page 21 • Indoor Unit • FCAHG-F Sound data 10 - 3 Sound Pressure Spectrum - Cooling & NR75 NR70 > NR65 NR60 NR55 NR50 NR45 NR40 NR35 NR30 NR25 NR20 NR15 NR10 1000 2000 4000 8000 Octave band centre frequency [Hz] •...
  • Page 22 • Indoor Unit • FCAHG-F Sound data 10 - 3 Sound Pressure Spectrum - Cooling & NR75 NR70 > NR65 NR60 NR55 NR50 NR45 NR40 NR35 NR30 NR25 NR20 NR15 NR10 1000 2000 4000 8000 Octave band centre frequency [Hz] •...
  • Page 23 • Indoor Unit • FCAHG-F Sound data 10 - 3 Sound Pressure Spectrum - Cooling & NR75 NR70 > NR65 NR60 NR55 NR50 NR45 NR40 NR35 NR30 NR25 NR20 NR15 NR10 1000 2000 4000 8000 Octave band centre frequency [Hz] •...

  • Page 24: Sound Pressure Spectrum - Heating

    • Indoor Unit • FCAHG-F Sound data 10 - 4 Sound Pressure Spectrum - Heating & NR75 NR70 > NR65 NR60 NR55 NR50 NR45 NR40 NR35 NR30 NR25 NR20 NR15 NR10 1000 2000 4000 8000 Octave band centre frequency [Hz] •...
  • Page 25 • Indoor Unit • FCAHG-F Sound data 10 - 4 Sound Pressure Spectrum - Heating & NR75 NR70 > NR65 NR60 NR55 NR50 NR45 NR40 NR35 NR30 NR25 NR20 NR15 NR10 1000 2000 4000 8000 Octave band centre frequency [Hz] •...
  • Page 26 • Indoor Unit • FCAHG-F Sound data 10 - 4 Sound Pressure Spectrum - Heating & NR75 NR70 > NR65 NR60 NR55 NR50 NR45 NR40 NR35 NR30 NR25 NR20 NR15 NR10 1000 2000 4000 8000 Octave band centre frequency [Hz] •...
  • Page 27 • Indoor Unit • FCAHG-F Sound data 10 - 4 Sound Pressure Spectrum - Heating & NR75 NR70 > NR65 NR60 NR55 NR50 NR45 NR40 NR35 NR30 NR25 NR20 NR15 NR10 1000 2000 4000 8000 Octave band centre frequency [Hz] •...

  • Page 28: Air Flow Patterns

    • Indoor Unit • FCAHG-F Air flow patterns 11 - 1 Air Flow Pattern - Cooling • Split - Sky Air • FCAHG-F...
  • Page 29 • Indoor Unit • FCAHG-F Air flow patterns 11 - 1 Air Flow Pattern - Cooling • Split - Sky Air • FCAHG-F...
  • Page 30 • Indoor Unit • FCAHG-F Air flow patterns 11 - 1 Air Flow Pattern - Cooling • Split - Sky Air • FCAHG-F...
  • Page 31 • Indoor Unit • FCAHG-F Air flow patterns 11 - 1 Air Flow Pattern - Cooling • Split - Sky Air • FCAHG-F...

  • Page 32: Air Flow Pattern - Heating

    • Indoor Unit • FCAHG-F Air flow patterns 11 - 2 Air Flow Pattern - Heating • Split - Sky Air • FCAHG-F...
  • Page 33 • Indoor Unit • FCAHG-F Air flow patterns 11 - 2 Air Flow Pattern - Heating • Split - Sky Air • FCAHG-F...
  • Page 34 • Indoor Unit • FCAHG-F Air flow patterns 11 - 2 Air Flow Pattern - Heating • Split - Sky Air • FCAHG-F...
  • Page 35 • Indoor Unit • FCAHG-F Air flow patterns 11 - 2 Air Flow Pattern - Heating • Split - Sky Air • FCAHG-F...
  • Page 37 Daikin Europe N.V. Naamloze Vennootschap - Zandvoordestraat 300, B-8400 Oostende - Belgium - www.daikin.eu - BE 0412 120 336 - RPR Oostende Daikin Europe N.V. participates in the Eurovent Certifica- tion programme for Liquid Chilling Packages (LCP), Air handling units (AHU), Fan coil units (FCU) and variable refrigerant flow systems (VRF) Check ongoing validity of certificate online: www.eurovent-certification.com or us-...
