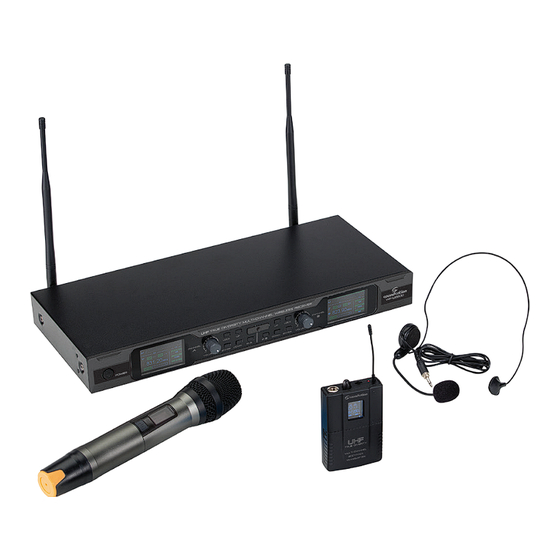

- Page 1 WF-U2600 True Diversity Dual Multi-Channel Wireless Microphone System USER MANUAL Please read this manual carefully and proper take care of this manual.
- Page 2 Dear customer, First of all thanks far purchasing a SOUNDSATION product. Our mission is to satisfy all ® possible needs of musical instrument, professional audio and lighting users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible im- provements to introduce in the next future.
-
Page 3: Table Of Contents
ENGLISH TABLE OF CONTENTS 1. UNPACKING .......................6 2. ACCESSORIES ......................6 3. OVERVIEW ........................7 4. MAIN FEATURES ......................7 5. RECEIVER CONTROL AND FUNCTIONS ..............8 5.1. Receiver A & B Displays.............................10 6. RECEIVER INSTALLATION ..................10 7. SYSTEM SETUP ......................11 7.1. Channel Setup Mode ............................11 7.2. - Page 4 ENGLISH WF-U2600 User manual IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating con- ditions, which may be sufficient to constitute the risk of electric shock or death.
- Page 5 ENGLISH WF-U2600 User manual Ventilation Do not block areas of ventilation opening. Failure to do could result in fire. Always install according to the manufacturer’s instructions. Object and Liquid Entry Objects do not fall into and liquids are not spilled into the inside of the apparatus for safety.
-
Page 6: Unpacking
3. ACCESSORIES SOUNDSATION can supply a wide range of quality accessories that you can use with your WIREFREE Series wireless microphone system, like Cables, Mixers, Speakers, Ampli- fiers, Stands, etc. -
Page 7: Overview
The WF-U2600 is built with leading technology that allows the integration of many of the major functions - such as amplification section, digital signal processing, PLL (Phase-Locked Loop) frequency synthesis, and more - into a few CHIPs. -
Page 8: Receiver Control And Functions
ENGLISH WF-U2600 User manual f 80m Ideal Distance (without obstacles) f Professional Hand held Microphone with Dynamic Cardioid Capsule f Body-pack with Connector Locking System (WF-U2600HP model only) f Professional and Lightweight Headset with High-Sensibility Condenser Cardioid Capsule (WF-U2600HP model only) f 19”... - Page 9 ENGLISH WF-U2600 User manual A-Enter Button: It access to all editing functions of A-System (See section "8. SYS- TEM SETUP" at page 11 for further details). A-DOWN Button: During System-A editing, it decreases current parameter’s value. A-IR Button: Press it to synchronize the operating channel between receiver and A-transmitter.
-
Page 10: Receiver A & B Displays
De- pending on the position of the two transmitters, possible obstacles and their distance from the receiver, the WF-U2600 chooses best radio signal, always ensuring impeccable sound quality. This bar indicates radio signal level. The longer, the higher. -
Page 11: System Setup
ENGLISH WF-U2600 User manual f Pull out the two antennas (17) and (18), make them to be perpendicular with the receiver. f Connect the supplied power adapter to the DC power supply socket (24). f Connect balanced audio outputs A (22) and B (23) or the unbalanced/mix output (19, 20, 21) to your mixer or sound system, using the appropriate cables (see section "11. - Page 12 Channel setup mode. Frequency Auto Scan Setting SOUNDSATION WF-U2600 is equipped with a useful automatic frequency scan func- tion. This allows you to always choose those channels with less problems and make setting operations extremely quick.
-
Page 13: Handheld Microphone Smart Mute Setting
ENGLISH WF-U2600 User manual 8.2. Handheld Microphone Smart Mute Setting 660.00 Long press LOCK to unlock the receiver, then press UP/DOWN to choose the Auto Mute Setting function. Press ENTER to confirm, press UP/DOWN to select ON to turn on smart mute function, or select OFF to turn off it. -
Page 14: Handheld Microphone Lcd Display
ENGLISH WF-U2600 User manual Sound Receiving Head: It protects microphone capsule. Never remove it to pre- vent damage to the internal parts of the microphone. LCD Display: This back-lit display shows all important information related to set- tings, as well as battery charge level. -
Page 15: Hand-Held Microphone Operation
ENGLISH WF-U2600 User manual Long press ON/OFF button to turn off the microphone. 9.2. Hand-held Microphone Operation f Unscrew the battery cover and insert two 1.5V AA-Type batteries. Note the polarity of the battery. f Long press ON/OFF button for 3 seconds. If the display doesn't light, check if batter- ies are in correct polarity or run out of power. -
Page 16: Pocket Transmitter And Headset
ENGLISH WF-U2600 User manual ATTENTION: Operating distance between microphone grill and mouth must be less than 15cm f Avoid direct the microphone toward a speaker to avoid Larsen effect, which could damage your audio system. 10. POCKET TRANSMITTER AND HEADSET Microphone: WF-U2600HP system features a headset microphone with profes- sional condenser dynamic capsule. - Page 17 ENGLISH WF-U2600 User manual phone is working and the audio is active. NOTE: Standby central position allows the unit to transmit without audio. This option is important to prevent interference in the receiver due to the absence of a radio transmitting signal. It is, therefore, suggested to ALWAYS use this standby position when you temporarily don’t sing or play but the...
-
Page 18: Audio Connections
ENGLISH WF-U2600 User manual 11. AUDIO CONNECTIONS You need XLR balanced cables for connections to your audio equipment. See pictures below that show the internal wiring of these cables. Be sure to use only high quality cables (visit our website www.soundsationmusic.com... -
Page 19: Specifications
ENGLISH WF-U2600 User manual 12. SPECIFICATIONS SYSTEM Carrier Frequency: UHF630-660MHz Frequency Stabilization: < ±30ppm Dynamic Range: >100dB Total Harmonic Distortion: <0.5% Frequency Response: 40Hz-15KHz ±3dB Audio Output Level: Balanced 400mV; Unbalanced 400mV Packing Dimensions (WxHxD): 473 x 75 x 408 mm Packing Gross Weight: 3.4 kg... -
Page 20: Frequency Table
ENGLISH WF-U2600 User manual 13. FREQUENCY TABLE Frequency (MHz) 630,00 630,90 630,30 632,10 633,60 636,00 639,00 643,20 631,50 633,30 635,70 638,40 645,60 651,30 651,00 651,90 639,30 640,20 639,60 641,40 642,90 645,30 648,30 652,50 630,60 632,70 633,90 637,50 641,70 658,20 657,90... -
Page 21: Declaration Of Conformity
ENGLISH WF-U2600 User manual 14. DECLARATION OF CONFORMITY TO: whom it may concer EU DECLARATION OF CONFORMITY We, FRENEXPORT SPA, Via Enzo Ferrari, 10 – 62017 Porto Recanati (MC) Italy Declare under our sole responsibility that following products: Models: SOUNDSATION WF-U2600HH and WF-U2600HP Description: Dual UHF 240-Channel True Diversity Wireless Systems conform to the essential requirements of: • Directive on the general safety of product 2001/95/EU • European Low Voltage Directive 2014/35/EU • European EMC Directive 2014/30/EU • European Radio Equipment Directive (RED) 2014/53/EU comply with the following standards (depend on type of product): • EN 60065:2002 + A1:2006 + A11:2008 + A2:2010 + A12:2011 • EN 62479:2010 • ETSI EN 301 489-1 V1.9.2 (2011-09) • ETSI EN 301 489-9 V1.4.1 (2007-11) • ETSI EN 300 422-1 V1.5.1 (2015-06) • ETSI EN 300 422-2 V1.4.1 (2015-06) conform to RoHS directive 2011/65/EC and related amendments. Porto Recanati, 18/09/2017... -
Page 22: Warranty And Service
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of SOUNDSATION. - Page 23 Questo prodotto viene importato nella UE da FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy...
- Page 24 www.soundsa tionmusic.com Ver 2.0 - Oct. 2017...
