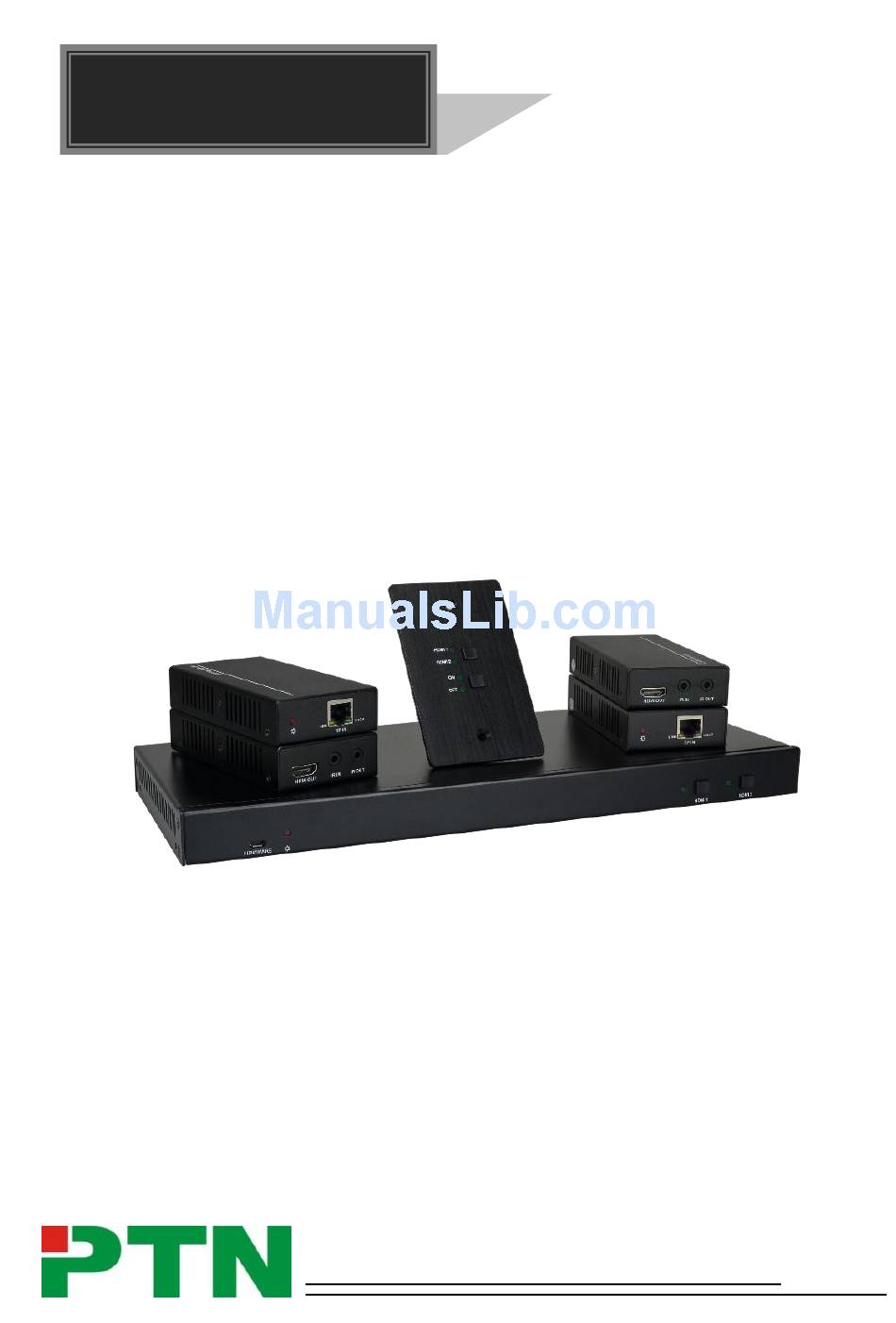

- Page 1 User Manual SUH25E KIT 4K 2x5 HDBaseT Splitter Kit All Rights Reserved Version: SUH25E KIT_2017V1.1 www.PTN-electronics.com...
- Page 2 Any other trademarks mentioned in this manual are acknowledged as the properties of the trademark owner. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited. FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 3 Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. PTN Electronics Limited www.PTN-Electronics.com...
-
Page 4: Table Of Contents
4K 2x5 HDBaseT Splitter Kit Contents 1. Introduction ......................... 1 1.1 Introduction to SUH25E KIT ................1 1.2 Features ......................1 1.3 Package List ...................... 2 2. Panel Description ......................3 2.1 4K 2x5 HDBaseT Splitter ................... 3 2.2 HDBaseT Receiver .................... 4 2.3 Wallplate Control Keypad .................. -
Page 5: Introduction
1. Introduction 1.1 Introduction to SUH25E KIT SUH25E KIT is a 4K 2x5 HDBaseT Splitter Kit designed to provide HDMI video switching, video distribution and extension, system control and audio de-embedding in a convenient kit. It includes 1 HDBaseT Splitter (SUH25E), 4 HDBaseT Receivers (TPHD-BYE-R) and 1 Wallplate Control Keypad (WP2-US). -
Page 6: Package List
1 x WP2-US Wallplate Control Keypad Wallplate Control Keypad 2 x Mounting Screws 1 x Connection Cable 1 x User Manual Note: Please contact your distributor immediately if you found any damage or defect in the components. PTN Electronics Limited www.PTN-electronics.com... -
Page 7: Panel Description
HDBaseT Receivers to bulid one-to-all mode. The IR signals can be transmitted to IR outputs to control all displays. RJ 45 connector, connects with WP2-US Wallplate Control ⑧ TO WP Keypad. ⑨ POWER PoC technology. Connects with 24V DC power adaptor. PTN Electronics Limited www.PTN-electronics.com... -
Page 8: Hdbaset Receiver
IR IN system. Conencts with the IR Emitter to send the IR signal from the ⑤ 4K 2x5 HDBaseT Splitter to control the display which is IR OUT connected to the HDMI output on HDBaseT Receiver. PTN Electronics Limited www.PTN-electronics.com... -
Page 9: Wallplate Control Keypad
LED will turns green. Press it to turn on/off display, and the corresponding activity ② Display Control LED will turns green. ③ CATx RJ45 connector, connect with the 4K 2x5 HDBaseT Splitter. PTN Electronics Limited www.PTN-electronics.com... -
Page 10: System Connection
Step3. Connect HDMI displays (HDTVs) to HDMI output ports of HDBaseT Receivers with HDMI cables. Step4. Connect HDMI display (HDTV) to HDMI output port of 4K 2x5 HDBaseT Splitter with HDMI cable. Step5. Connect audio broadcast device (Amplifier) to the COAX or balanced analog PTN Electronics Limited www.PTN-electronics.com... -
Page 11: Twisted Pair Cable Connection
Note: Every pin in pure color groups with its half white pin. PTN Electronics Limited www.PTN-electronics.com... -
Page 12: System Operation
DC 24V 4K 40m 4K 40m 4K 40m 4K 40m HDBaseT Receiver HDBaseT Receiver HDBaseT Receiver HDBaseT Receiver IR Emitter IR Emitter IR Emitter IR Emitter HDTV 3 HDTV 4 Blu-Ray DVD HDTV 1 HDTV 2 PTN Electronics Limited www.PTN-electronics.com... -
Page 13: Edid Management
For example: when output 1-HDBT connects with a 4K display, 4K 2x5 HDBaseT Splitter will select 4K as output resolution and distribute 4K video signal to all displays. If a display does not support the 4K video content, there are will no video output on the display. PTN Electronics Limited www.PTN-electronics.com... -
Page 14: Specification
Input & Output Input (1) HDBaseT; (1) Female RJ45(with LED indicators); Input Connector Output (1) HDMI Output Connector (1) Type A Female HDMI Control (1) IR IN; (1) IR OUT Control Connector (2) 3.5mm mini jacks PTN Electronics Limited www.PTN-electronics.com... -
Page 15: Wallplate Control Keypad
(1) HDMI input Selector (9mmx7.8mm); Control Button (1) Displays control button (9mmx7.8mm) General Temperature 0 ~ +50℃ Humidity 10% ~ 90% Power Supply Powered by 4K 2x5 HDBaseT Splitter Dimension (W*H*D) 70mm x 114mm x 38mm Net Weight (g) 116g PTN Electronics Limited www.PTN-electronics.com... -
Page 16: Panel Drawing
1-HDBT 2-HDBT 3-HDBT 4-HDBT 5-HDMI COAX AUDIO IR ALL IN IR OUT DC 24V 360 mm FIRMWARE HDMI 1 HDMI 2 6.2 HDBaseT Receiver LINK HDCP TP IN 62 mm HDMI OUT IR IN IR OUT PTN Electronics Limited www.PTN-electronics.com... -
Page 17: Wallplate Control Keypad
4K 2x5 HDBaseT Splitter Kit 6.3 Wallplate Control Keypad HDMI 1 HDMI 2 38 mm PTN Electronics Limited www.PTN-electronics.com... -
Page 18: Troubleshooting & Maintenance
No HDMI signal output in or it may be broken. and in working condition. SUH25E KIT while local HDMI input is in normal working state Static becomes stronger Check the grounding and when connecting the video... -
Page 19: Customer Service
Remarks: For further assistance or solutions, please contact your local distributor. PTN Electronics Limited www.PTN-electronics.com... - Page 20 ⑤ www.PTN-electronics.com PTN Electronics Limited Tel: +86-755-2846 1819 Fax: +86-755-8471 7796 Email: info@PTN-electronics.com Website: www.PTN-electronics.com...
