Summary of Contents for Genaray UTP-30B

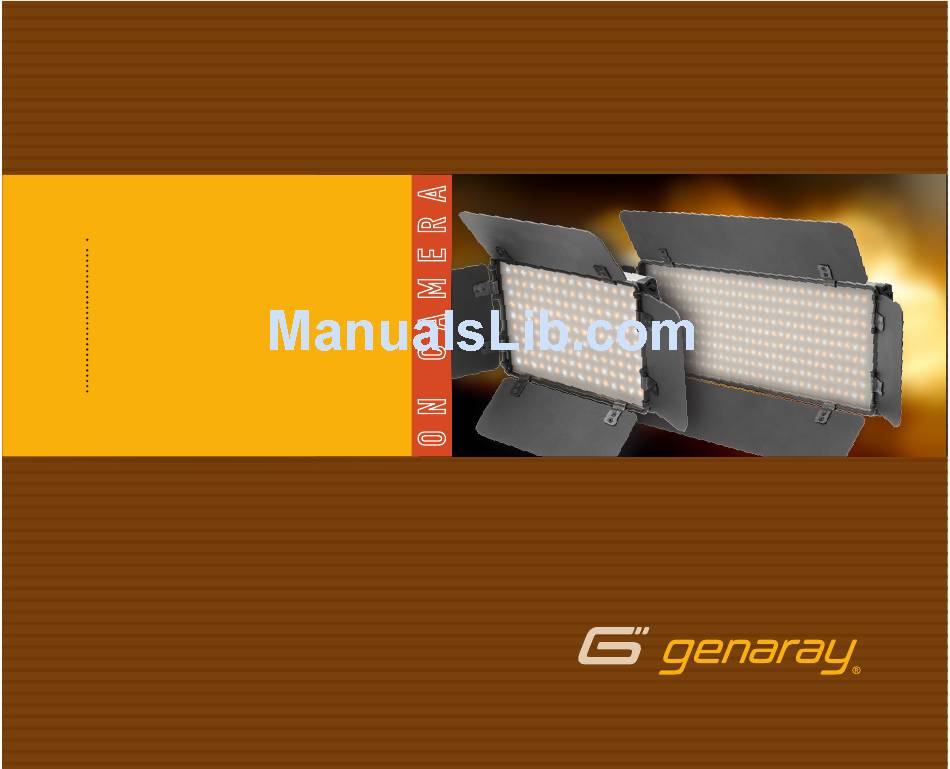

- Page 1 Elite SERIES UTP-30B/UTP-60B 144/288-LAMP ULTRA THIN BICOLOR SMD LED USER MANUAL...
- Page 2 The lights are designed with an integrated 99-channel 2.4 GHz receiver, and they can be controlled individually or globally with the Genaray MB-WRT remote. Advanced features include an adjustable dimmer from 10% to 100% and built-in barndoors with a matte black finish. An integrated diffuser creates a soft and diffused light while it minimizes the multiple shadows often associated with LED lighting.
- Page 3 PRODUCT CONTENTS UTP-30B UTP-60B · Light fixture · Light fixture · Barndoors · Barndoors · Shoe adapter · Battery (×2) · Dual charger · AC power cord · Shoe adapter · Handle mount · Light stand adapter · Wireless remote ·...
- Page 4 LED display Brightness indicator Plus/minus buttons Color temperature indicator array PRODUCT OVERVIEW Power Mode button button 1/4-20 mounting socket Battery compartment Barndoors DC Input 1/4-20 mounting socket Ultra Thin Bicolor SMD LED USER MANUAL...
- Page 5 Guide 1/4-20 Light Stand Adapter screw (UPT-60B) Locking knob Locking wheel 5/8˝ Handle Mount bidirectional (UPT-60B) receiver Shoe Adapter Locking knob Shoe mount Ultra Thin Bicolor SMD LED USER MANUAL...
- Page 6 · Do not attempt to disassemble or · All images are for illustrative repair the equipment—doing so will purposes only. void the warranty, and Genaray will not be responsible for any damage. Ultra Thin Bicolor SMD LED USER MANUAL...
- Page 7 MOUNTING THE LIGHT ONTO A CAMERA 1. Align and screw in. 2. Mount to your camera. 3. Adjust the angle. Mounting the UTP-60B vertically with the extra weight of batteries can potentially damage your camera’s Note shoe. For vertical mounting, we recommend mounting the UTP-60B on a light stand with the included light stand adapter...
- Page 8 MOUNTING THE LIGHT TO A LIGHT STAND UTP-30B 1. If your light stand isn’t equipped with a 1/4-20 mounting stud, insert a 5/8˝ spigot or a ball head (not included) with a 1/4-20 mounting post. 2. Screw the light onto the light stand until it’s secure.
- Page 9 USING THE HANDLE MOUNT (UPT-60B) For handheld operation of your UTP-60B follow these steps: 1. Align the 1/4-20 post and guide pin with the appropriate sockets on the sides or bottom of the light. 2. Screw in the handle mount by turning the locking wheel until secure.
- Page 10 AC outlet. If the batteries don’t easily slide into place, check to make sure they are The UTP-30B will run on AC power with the properly aligned. AC adapter that’s included with the UTP-60B. If a separate AC adapter is needed to run the...
- Page 11 Checking the battery power: Charging the batteries: You can check how much battery power The batteries included with the UTP-60B is remaining by following these steps: light come with their own dual charger. To charge the batteries: 1. With the light‘s power on, press the power button.
-
Page 12: Adjusting The Color Temperature
Press using the remote with a multilight setup, and hold to change the value rapidly. refer to the use manual included with the Genaray MB-WRT wireless remote. Ultra Thin Bicolor SMD LED USER MANUAL... -
Page 13: Setting The Channel
Press either button to raise or lower the value by one-unit increments. The UTP-30B and UTP-60B feature a 2.4 GHz receiver that enables them to 3. Press the Mode button again to be operated by the Genaray MB-WRT exit channel selection mode. -
Page 14: Fcc Declaration Of Conformity
STORING FCC DECLARATION THE LIGHTS OF CONFORMITY When you’re finished using the light, power it This device complies with Part 15 of off by pressing and holding the power button the FCC rules. Operation is subject until the LED array and LED display turn off. to the following two conditions: Remove the power cord or the batteries from 1. - Page 15 SPECIFICATIONS UTP-30B UTP-60B Output power 15 W 3200 K, 15 W 5600 K 30 W 3200 K, 30 W 5600 K Lux (@ 3 ft.) 3200 K: >270 3200 K: >585 5600 K: >280 5600 K: >635 TLCI/CRI 3200 K: >90 3200 K: >90...
- Page 16 ONE-YEAR LIMITED WARRANTY This GENARAY product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of any product...
