EG-R3A Quickly install guide
1： ： ： ： EG-R3A CONNECTING

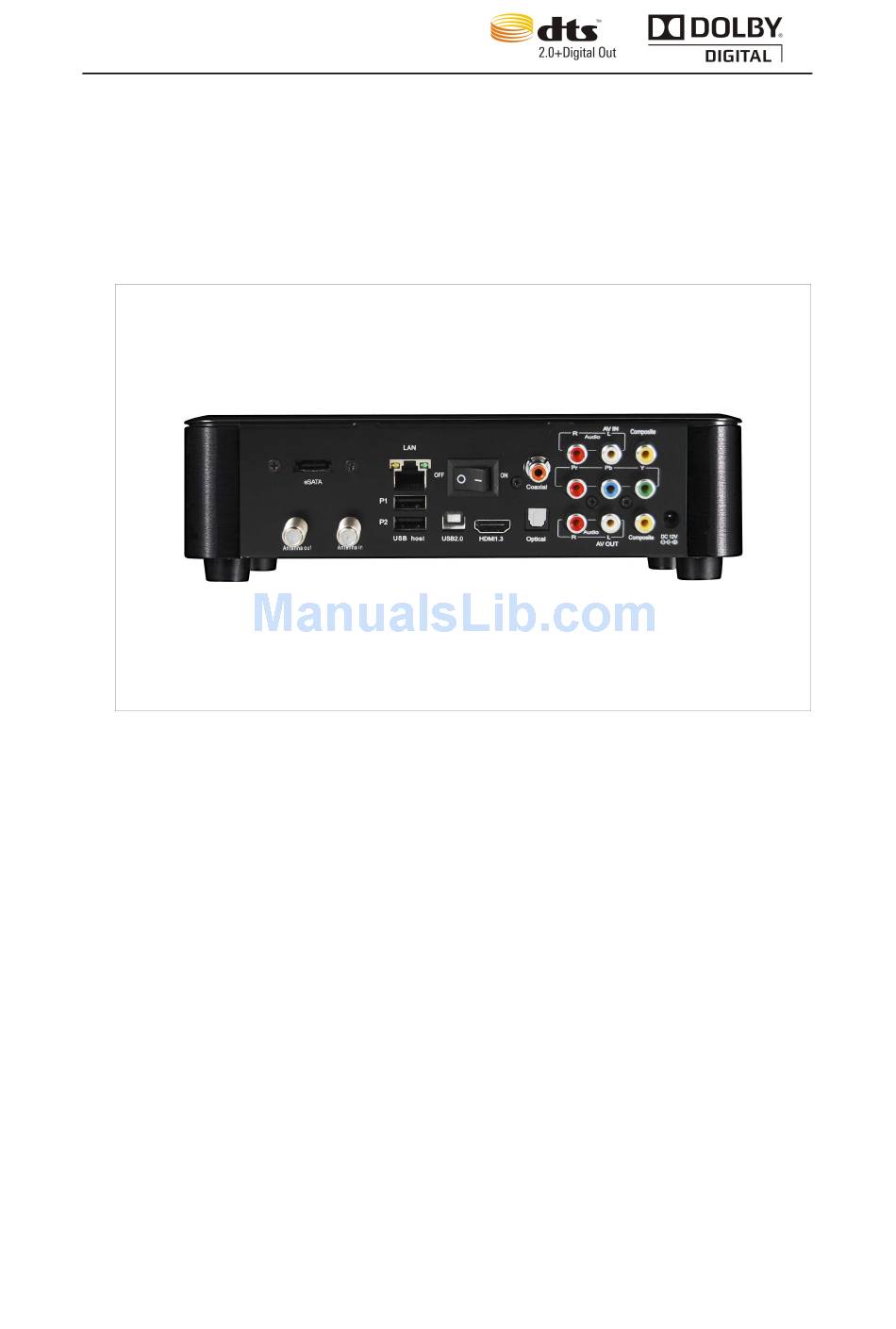

1.1: Connector Indication
※ DC 12V
※ OFF/ON
※ HDMI 1.3
※ OPTICAL
※ Coaxial
※ PR/PB/Y
※ AV OUT（R/L、COMPOSITE）
※ AV IN（R/L、COMPOSITE）
※ LAN 为 10/100M
※ USB HOST
※ Antenna out
※ Antenna in
※ ESATA host: connect with other ESATA device.
※
USB2.0 DEVICE: connect with computer directly for data transferring.(even external device can be
realize data transfer too)
1.2. Connectors
