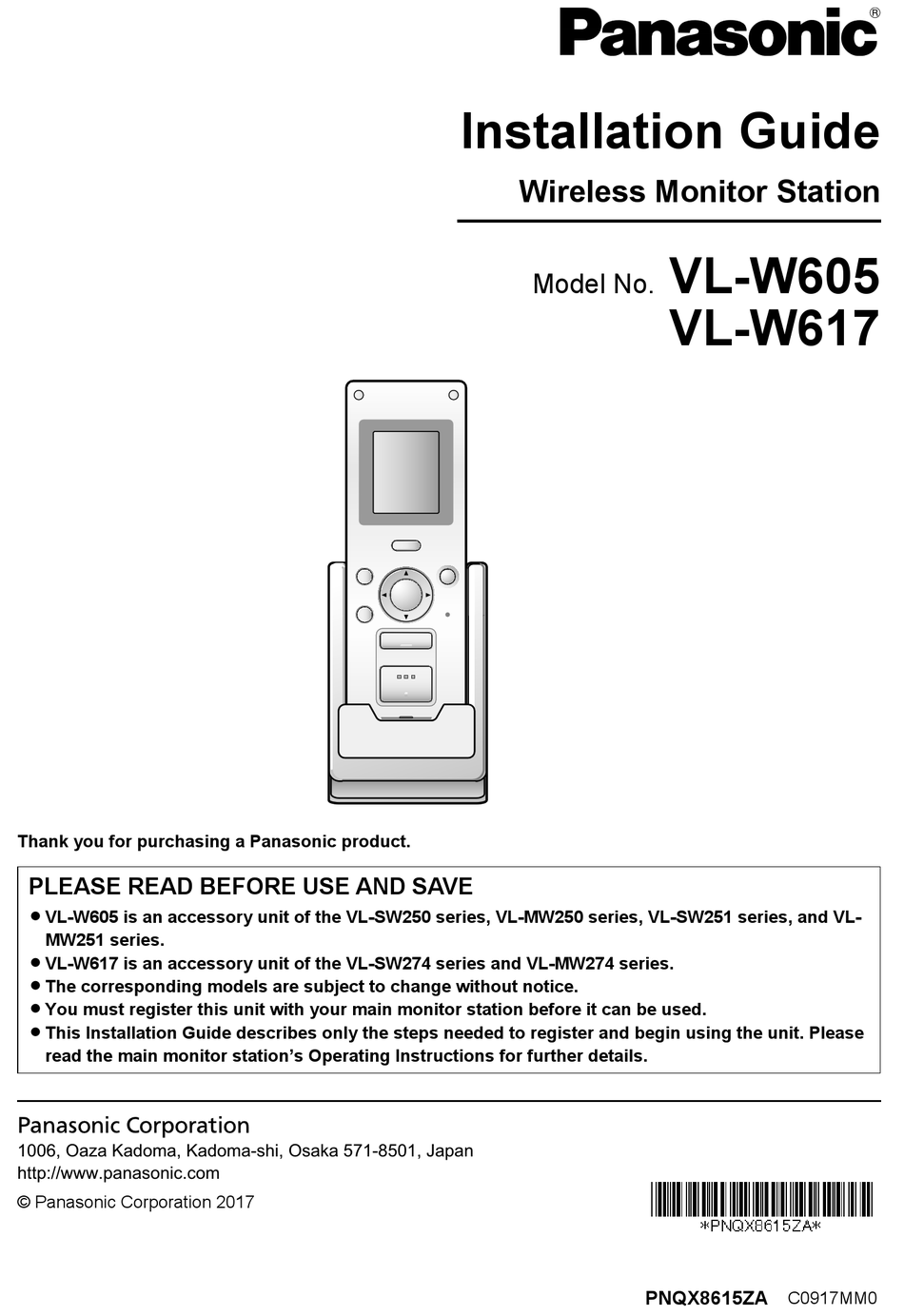

Panasonic VL-W605 Installation Manual

Wireless monitor station.
Hide thumbs

Advertisement

Thank you for purchasing a Panasonic product.
PLEASE READ BEFORE USE AND SAVE
L VL-W605 is an accessory unit of the VL-SW250 series, VL-MW250 series, VL-SW251 series, and VL-
MW251 series.
L VL-W617 is an accessory unit of the VL-SW274 series and VL-MW274 series.
L The corresponding models are subject to change without notice.
L You must register this unit with your main monitor station before it can be used.
L This Installation Guide describes only the steps needed to register and begin using the unit. Please
read the main monitor station's Operating Instructions for further details.
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8501, Japan
http://www.panasonic.com
© Panasonic Corporation 2017

Installation Guide

Wireless Monitor Station
Model No.
VL-W605
VL-W617
PNQX8615ZA
C0917MM0

Advertisement

Table of Contents

   Related Manuals for Panasonic VL-W605

   Summary of Contents for Panasonic VL-W605

  • Page 1: Installation Guide

    Thank you for purchasing a Panasonic product. PLEASE READ BEFORE USE AND SAVE L VL-W605 is an accessory unit of the VL-SW250 series, VL-MW250 series, VL-SW251 series, and VL- MW251 series. L VL-W617 is an accessory unit of the VL-SW274 series and VL-MW274 series.
  • Page 2: Table Of Contents

    Table of contents Product names used in this Installation Guide ................2 Accessory information (Included items) ...................2 Important Information For your safety.............................3 Important safety instructions ......................4 Other information ..........................4 Preparation Charging the sub monitor station .....................5 Registering the sub monitor station to the main monitor station (REGISTRATION) ....6 Canceling registration of the sub monitor station (CANCELLATION) ..........7 General Information Specifications .............................8...
  • Page 3: Important Information

    Important Information For your safety To prevent severe injury and loss of life/property, read this section carefully before using the unit to ensure proper and safe operation of your unit. WARNING Power connection LUse only the power source marked on the unit. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
  • Page 4: Important Safety Instructions

    For the purpose of recycling to facilitate effective utilization of resources, please return this product to a nearby authorized collection centre, registered dismantler or recycler, or Panasonic service centre when disposing of this product. Please see the Panasonic website for further information on collection centres, etc., or call the toll-free number below. Website: http://www.panasonic.com/in/corporate/sustainability/panasonic-india-i-recycle-program.html...
  • Page 5: Preparation

    Preparation Charging the sub monitor station Insert the battery. (For the VL-W617, first remove the battery cover.) A Align the terminals and insert. Terminals B Close the battery cover. L T he battery level is displayed Do not remove the pad at the back of the battery cover.
  • Page 6: Registering The Sub Monitor Station To The Main Monitor Station (registration)

    Preparation Registering the sub monitor station to the main monitor station (REGISTRATION) The operations described here are based on the VL-SW251 series main monitor. See the Operating Instructions of the Video Intercom System for more information. When registering the product to a main monitor of a different series, follow the instructions in the documentation included with your main monitor.
  • Page 7: Canceling Registration Of The Sub Monitor Station (cancellation)

    Preparation Canceling registration of the sub monitor station (CANCELLATION) You can cancel the registration of a sub monitor station if you do not use it. Using the main monitor station {PAGE} {VOLUME} {MENU} {OFF} Press {MENU} (OK), then select the device Press {MENU}, then select “REGISTRATION/ number to be canceled by pressing CANCELLATION”...
  • Page 8: General Information

    General Information Specifications Sub monitor station Power supply: Ni-MH battery (3.6 V DC / 650 mAh) Dimensions: Approx. height 157 mm x width 52 mm x depth 35 mm (Excluding protruding sections) Mass (Weight): Approx. 175 g (including the battery) Operating environment: 0 °C to 40 °C, Up to 90 % RH (Relative Humidity) non condensing Display:...
