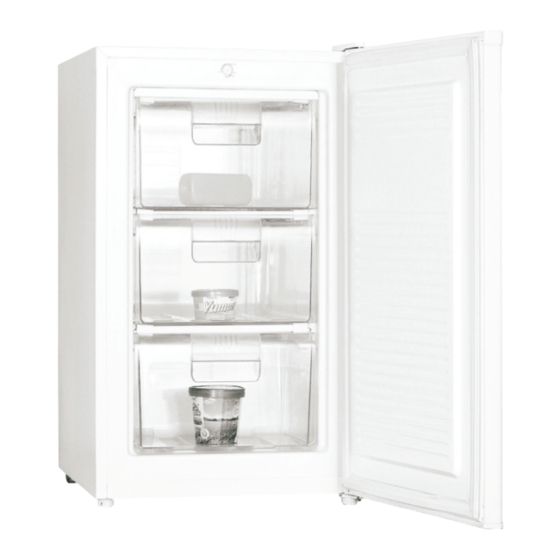

80L Upright Freezer
G80UFW15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G80UFW15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GVA G80UFW15

Summary of Contents for GVA G80UFW15

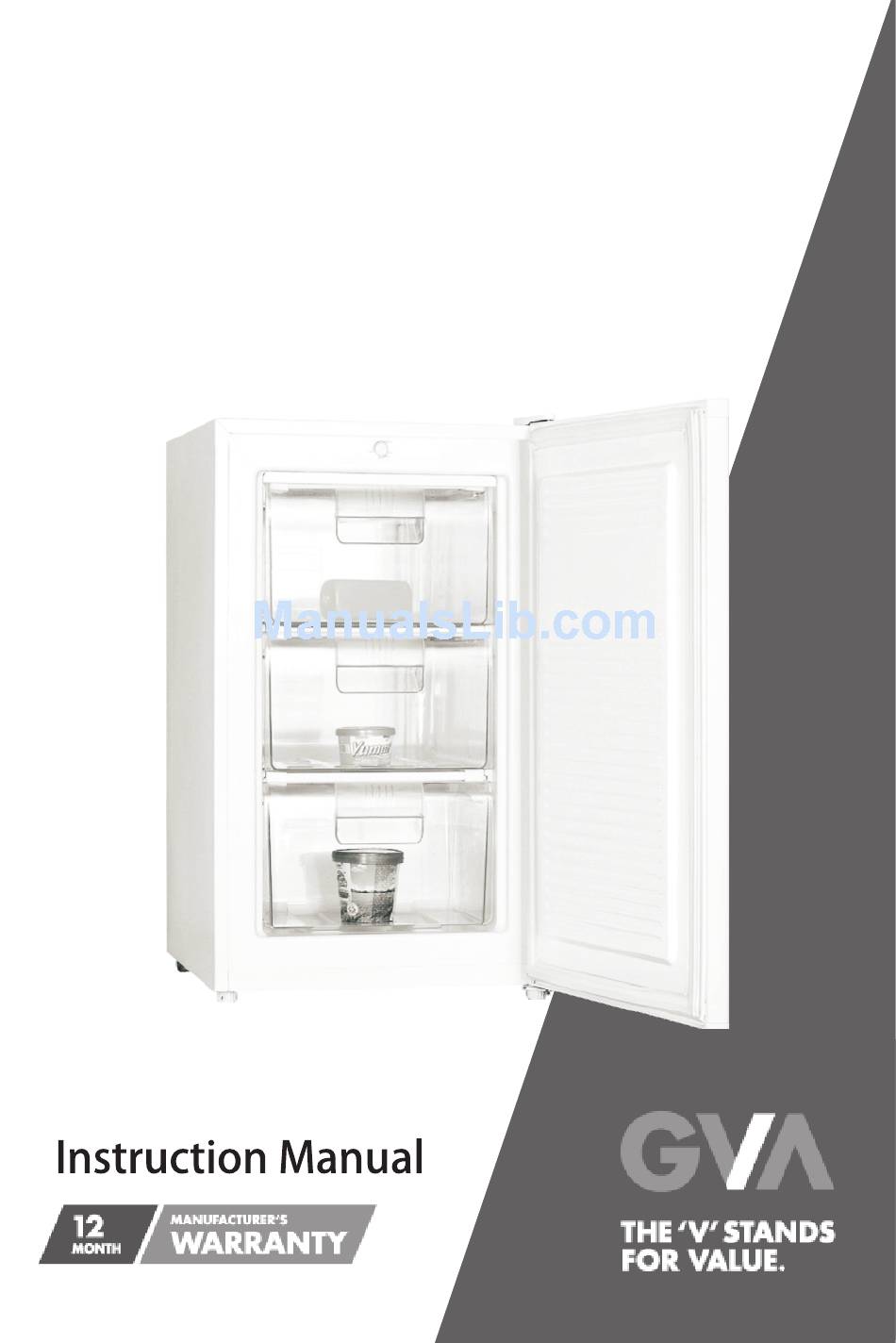

  • Page 1 80L Upright Freezer G80UFW15...

  • Page 3: Table Of Contents

    Contents G uide to th e A p p l i a n c e Cari ng fo r the Envir Safety Info rm atio n an d Getti ng Sta rte d Op e ratio n Instruc tio ns Tro ublesh oot ing Care and Mainte na n ce Tec hnic al Spec i fic atio ns...

  • Page 4: Guide To The Appliance

    Guide to the Appliance NOTE: Due to the produ c ti on’s i mprovemen t, the uni t you purchase d may var y sli ghtly from below sketch. 1 . Th e rmost a t c o nt rol 2 .

  • Page 5: Caring For The Environment

    Caring for the Environment Responsible disposal of the packaging • The packaging of your appliance has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. • Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of.

  • Page 6: Safety Info Rm Atio N An D

    Safety Information and Warnings Read this manual thoroughly before first use, even if you are familiar with this type of product. We have provided many important safety statements in this manual concerning the use of this appliance. Always read and observe all safety statements. They reduce the risk of fire, electric shock and injury when correctly adhered to.

  • Page 7: Electrical Safety

    Installation • Heavy: This appliance is heavy, take care when moving it. To avoid back or other injury, consider a two person lift or mechanical aid when installing it. • Location: The room for installing appliance must be at least 1M³per 8g of refrigerant. The amount and type of refrigerant in the appliance can be found on the rating plate on the back of the appliance.
  • Page 8 Safety Information and Warnings Usage conditions and restrictions • This appliance is intended to be used in household and similar applications such as: 1）Staff kitchen areas in shops, offices and other working environments; 2）Farm houses and by clients in hotels, motels and other residential type environments; 3）Bed and breakfast type environments;...

  • Page 9: Getting Started

    Getting Started Before first use • Unpack the appliance but keep all packaging materials until you have made sure your new freezer is undamaged and in good working order. • Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packag ing materials are out of their reach.
  • Page 10 Getting Started • Locate the freezer： •Away from direct sunlight, which may affect the acrylic coating. •Away from sources of heat (stove, heater, radiator, dishwasher, etc.),which may increase power consumption. •In an area without extreme cold ambient temperatures, which may affect cooling performance.
  • Page 11 Getting Started Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner • Ensure the unit is unplugged and empty. • Adjust the two levelling feet to their highest position. • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
  • Page 12 Getting Started 4. Remove the top left screw cover. 5. Move the core cover from left side to right side. And then lift the door and place it on a padded surface to prevent it from scratching. 6. Remove the screws and bottom hinge. Then remove the l ev el l in g feet from both side.
  • Page 13 Getting Started 8. Refit the bracket fitting the bottom hinge pin. Replace both levelling feet. Transfer the door to the proper position. Screw 9. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

  • Page 14: Operation Instructions

    Operation Instructions Thermostat control The thermostat control situated in the control panel regulates the temperature of the freezer compartment . -Position”Min”-Cold -Position”Normal”-Colder.This setting is most suitable for everyday use. -Position “Max”-Coldest,the compressor works continuously in this mode . The temperature will be affected by: -Room temperature.

  • Page 15: Troubleshooting

    Troubleshooting If you experience a problem with your freezer, check in the following table for solutions to help you solve the problem. If after these checks you still have a problem with your freezer, call the after sales support line for advice. Problem Possible cause •...

  • Page 16: Troubleshooting

    Troubleshooting •The exterior walls can be warmer than room The external freezer surface is warm. temperature. This is normal while the compressor works to transfer heat from inside the freezer. •The freezer door has been left open. Excessive frost and ice has built up.

  • Page 17: Care And Maintenance

    Care and Maintenance Defrosting the Freezer When? For the most efficient operation and minimum energy consumption, defrost the freezer when the frost accumulated on the evaporator is about 5mm thick. How? Turn the thermostat dial to the "MIN" position and unplug the freezer. Remove perishable food items from the freezer and keep them in another freezer or cooler bag to protect the food.

  • Page 18: Energy Saving Tips

    Energy saving tips •Place the freezer in the coolest area of the room, away from heat-producing appliances and out of direct sunlight. •Let hot foods cool down a little before placing them into the freezer. Overloading the freezer forces the compressor to run longer. •Wrap foods properly and wipe containers dry before placing them in the freezer.

  • Page 19: Tec Hnic Al Spec I Fic Atio Ns

    M odel: G80UFW15 Group: 6U (Freezer) Product dimension WxDxH : 500mm x 560mm x 840mm Total gross volume: 80L Total storage volume: 73L Freezer storage volume: 73L Climate class: T Rated voltage: 220-240V~ Rated Frequency: 50Hz Rated Current: 0.70A Star Rating: 2.5...
  • Page 20 M.E.W. (Australia) Pty Ltd 15 Vaughan Street Essendon Fields VIC 3041 ACN 152 719 036 1300 725 885 customercare@gvaproducts.com.au gvaproducts.com.au CKGVA-C01-J...
