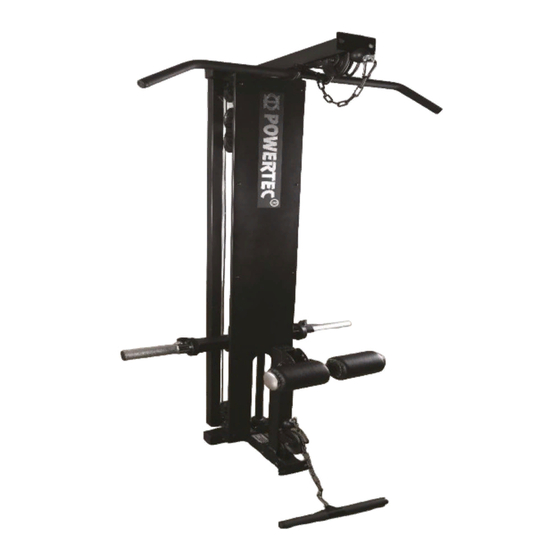

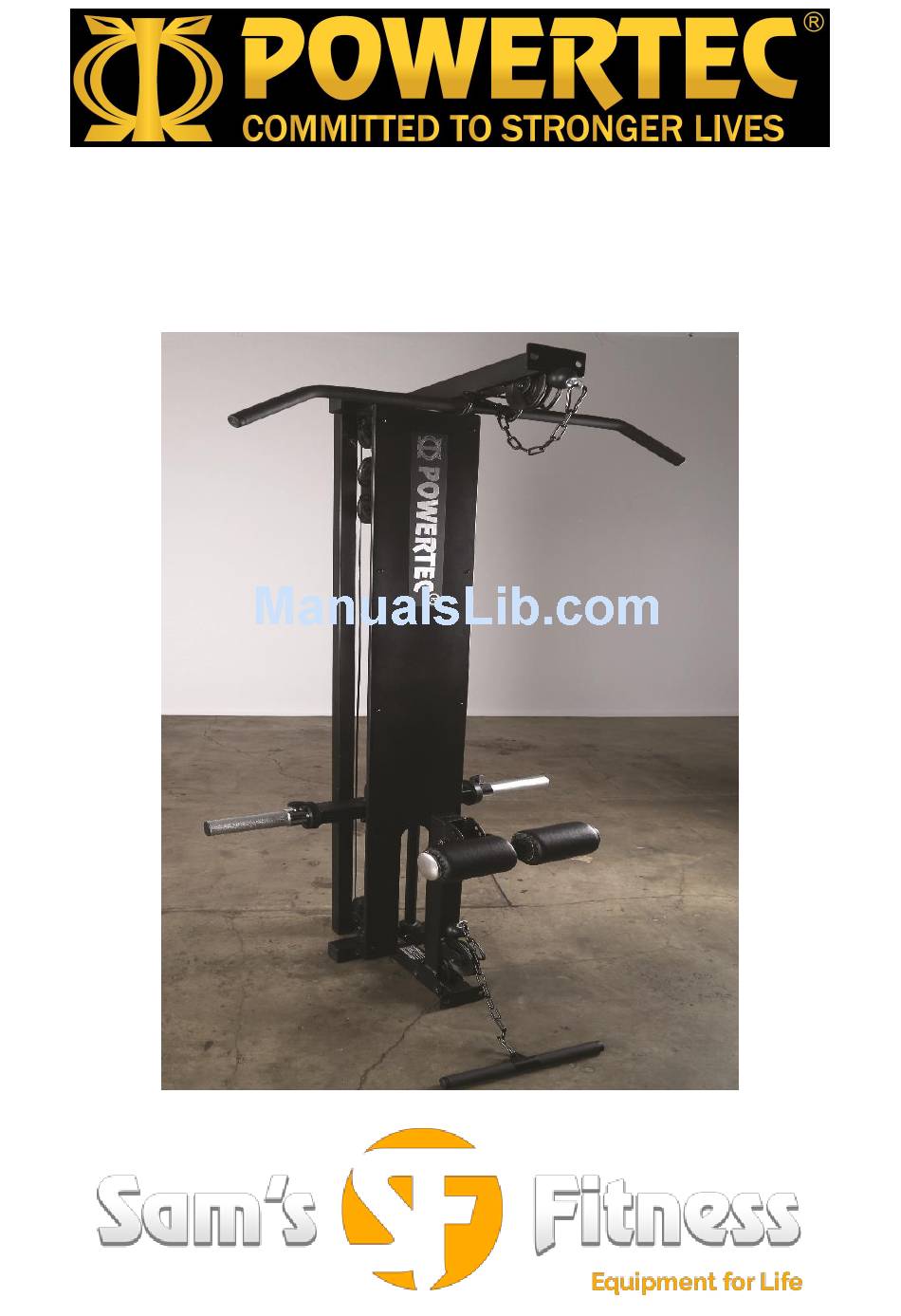

- Page 1 POWERTEC WB-LTO16 ASSEMBLY GUIDE...
- Page 2 Before starting to assemble make sure you have all the parts. During the assembly, DO NOT TIGHTEN THE BOLTS AND NUTS. Do it after the assembly starting from top. Step 1: Unpack all the items so you can see each part, this will help you with the construction of the WRKBENCH LAT TOWER OPTION and make sure you have all the parts.
- Page 3 Attach part No 1 to the Power Rack using parts No 36, 38,41 and a plate (No 9) on the inside of the Power Rack. No 41,38,9 WB-PR16 No 36,38 No 1 It shoud look something like this.
- Page 4 Step 2. Install weight horns (No 14), onto weight support tube (No 4), using parts No 29. No 29 No 14 No 4 Step 3. Place tubes (No 3) into the part No 1. No 3...
- Page 5 Step 4. Place parts No 6, No 21 and No 4 on the tube. No 21 No 4 No 6 Step 5. Attach part No 2 to the part No 1 using bolts No 34 and washers No 38. No 2 No 34,38...
- Page 6 No 2 Step 6. Attach part no 7 using bolts No 34 and washers No 38 to part No 1. Attach part No 22 to part No 7 using nuts and bolts (No 33, 39) No 7 No 22 No 34, 38...
- Page 7 Step 7. Attach part No 8 to the part No 7. No 27 No 8 No 38,35 41 No 7 Attach the pads to the part No 8 and put the caps on the end of the tube. Then place No 8 in to part No 7 and put the bolt, washer and nut (35, 38, 41).
- Page 8 Step 9. Attach part No 10 to the cables. No 36, 38, 41, 9 No 5 No 10...
- Page 9 Step 10. After running all the cables through attach cover support frame (No 15) to the main frame of the Lat Tower (No 1 and No 5) using nut and bolts (No 30 and 37) No 30 and 37 No 15 Step 11.
