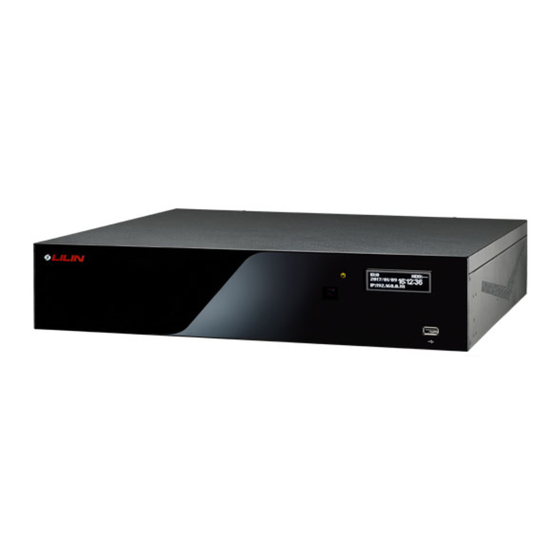

Lilin NVR5832 User Manual

4k uhd network video recorder series
Hide thumbs Also See for NVR5832:
Table of Contents

Advertisement

Quick Links

See also: Quick Manual
4K UHD Network Video
4K UHD Network Video
4K UHD Network Video
Recorder Series
Recorder Series
Recorder Series
User Manual
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Lilin NVR5832

Summary of Contents for Lilin NVR5832

  • Page 1 4K UHD Network Video 4K UHD Network Video 4K UHD Network Video Recorder Series Recorder Series Recorder Series User Manual User Manual...
  • Page 2 4K UHD Network Video Recorder User Manual Page 1 Introduction The NVR 4K UHD Series are network video recorders that offer a standalone solution for managing IP cameras and systems. The built-in high-quality decoder can deliver 4K/5MP/3MP/1080p/720p/D1/VGA/CIF IP camera streams. Each channel can be individually configured to record in SD or HD resolution to suit your needs.

  • Page 3: Trademarks And Registered Trademarks

    4K UHD Network Video Recorder User Manual Page 2 Trademarks and registered trademarks Microsoft, Windows, Internet Explorer are registered trademarks of Microsoft Corporation in the U.S and/or other countries. Adobe and Adobe PDF are registered trademarks of Adobe Systems Incorporated in the U.S and/or other countries.

  • Page 4: Product Overview

    4K UHD Network Video Recorder User Manual Page 3 Product Overview Professional 2U 19” 8Bay Non-RAID NVR Front View Number Name Function HDD LED Green, blinking, HDD activity indicator LAN LED Green, LAN activity indicator ALARM LED Red, blinking, indicator of triggered alarms POWER LED Amber, power on/off indicator OLED...
  • Page 5 4K UHD Network Video Recorder User Manual Page 4 Professional 2U 19” NVR Rear View Number Function LINE IN AUDIO OUT VGA output connector USB 3.0 port e-SATA port 1 e-SATA port 2 Power socket Gigabit RJ-45 connector 1 Gigabit RJ-45 connector 2 HDMI output USB port DI/DO, RS-485, KB...

  • Page 6: Hard Drives Install Instruction

    4K UHD Network Video Recorder User Manual Page 5 Hard Drives Install Instruction Professional 2U 19” 8Bay Non-RAID NVR Installation Remove the upper casing and loosen the screws on the both sides of the hard drive bracket to remove it. Install hard drives and tighten the hard drive screws as instructed in the image below. Screws loosened Screws tightened Properly connect the SATA cables and power cables to the connectors, finally, complete the...

  • Page 7: Remote Control

    4K UHD Network Video Recorder User Manual Page 6 Remote control Keys and functions of the remote control are described as follows Function Power switch Start/stop manual recording MENU Setup menu Escape/exit/stop Switch between split and full PIP (SHIFT) screen ZOOM Digital video zoom FREEZE...

  • Page 8: Beginning Using The Nvr

    4K UHD Network Video Recorder User Manual Page 7 Beginning using the NVR You will see the following screen through HDMI or VGA connection once you power on the NVR: The information shown on the top of the screen is described as follows: 0.00 / 1000 (100) Mbps: The left side of the slash is the combined transmission rate of all channels, and the right side network speed.
  • Page 9 4K UHD Network Video Recorder User Manual Page 8 Move mouse cursor slightly to display the NVR controls (as shown in the image below): The below controls can be seen at the bottom of the screen: Indicates whether the current split-screen controls are for HDMI or VGA. Note: Available only when VGA Spot mode is on.
  • Page 10 4K UHD Network Video Recorder User Manual Page 9 At the upper-left corner of the screen is the NVR controls, which are, from left to right: NVR SETTINGS , FREEZE, ALARM EVENT, PLAYBACK/BACKUP, SCHEDULE, and MANUAL Recording. NVR SETTINGS If you access the NVR SETTINGS for the first time, you will see Setup Wizard on the screen as below, which provides you with quick configurations for the NVR, including language, password, date, time, storage, network, P2P, and camera.

  • Page 11: Alarm Event

    4K UHD Network Video Recorder User Manual Page 10 FREEZE Click to freeze the real-time video, and the icon will be highlighted in blue. ALARM EVENT Click to enter the ALARM EVENT page. MOTION/SENSOR EVENT If the motion detection function is enabled for your camera, any motion alarms triggered will be recorded in motion event history, and the sensor alarms triggered in the sensor event history (as shown in the images below).

  • Page 12: Manual Event

    4K UHD Network Video Recorder User Manual Page 11 Press the drop-down menu at the top to sort the alarm events by date or channel (as shown in the image below). Press USB to back up snapshot in USB storage, press E-MAIL to send a snapshot via e-mail, or press PLAY to view recorded video.
  • Page 13 4K UHD Network Video Recorder User Manual Page 12 PLAYBACK/BACKUP Click to enter the PLAYBACK/BACKUP page as shown below. PLAYBACK You can expand and collapse time line by year, month, day, hour, and minute. On the upper timeline drag and select the time you want to start playing recorded video or alarm video to enter the Playback as following screen: Details of the controls at the bottom of the PLAYBACK screen are described as follows: From left to right are...
  • Page 14 4K UHD Network Video Recorder User Manual Page 13 Click to return to the PLAYBACK/BACKUP screen. Click to return to live video. Click to export the recorded video to a USB device. Click to turn on/off sound. Choose the number of split-screens according to your needs. Indicates whether the current split-screen controls are for HDMI or VGA.
  • Page 15 4K UHD Network Video Recorder User Manual Page 14 Choose BACKUP to show the DEVICE/EXECUTE dialog: You may determine to back up the video in DVD, USB storage device, or the temporary space of the NVR. SCHEDULE/MANUAL Indicates whether the current recording setting is scheduled recording or manual recording. Click to switch.

  • Page 16: Nvr Settings

    4K UHD Network Video Recorder User Manual Page 15 NVR SETTINGS SYSTEM Click to enter NVR SETTINGS and click SYSTEM in the left pane, where you are allowed to adjust system configurations of the NVR. The details of the tabs are described as follows: GENERAL Device ID:...
  • Page 17 4K UHD Network Video Recorder User Manual Page 16 Shows the last time the system is rebooted. Power Supply Status: Shows the status of the power supply currently in use. Note: This information is available depending on models. Line Out Volume: Adjust the audio volume.
  • Page 18 4K UHD Network Video Recorder User Manual Page 17 Enter the NTP server you want to use. Time Sync Interval: Choose the interval for the time to be synced. NTP Status: The status of connection to selected NTP server will appear here. USER The NVR supports up to 15 sets of individual user settings (including default user administrator, operator, and guest), to which you can assign different access privileges.
  • Page 19 4K UHD Network Video Recorder User Manual Page 18 User Permission: Set the access privileges of the user to administrator, operator, or guest. Load Default: Restore to the default settings. STORAGE HDD MGT In HDD MGT., you are allowed to format, defrag, check malfunctioned blocks, or run an overall system check on any of the devices.
  • Page 20 4K UHD Network Video Recorder User Manual Page 19 S.M.A.R.T. The S.M.A.R.T. status of your hard drive is displayed in S.M.A.R.T., where you can run analysis (either short or extended) on the HDD. Choose between Short or Extended analysis and click Analysis to start the process.

  • Page 21: Maintenance

    4K UHD Network Video Recorder User Manual Page 20 OPERATING You can examine the operating status of different users under this page. Press Download to export the event report, Reload to update. MAINTENANCE Firmware Update: Choose a firmware file and click Update to proceed firmware update. Export Settings: Click Export to copy system settings to a USB flash drive.
  • Page 22 4K UHD Network Video Recorder User Manual Page 21 Watchdog Test: Click to test the system watchdog function. This will reboot the NVR. Kernel Version: The kernel version of the system. Setup Wizard: Click to execute the quick setup wizard. Support: Click to open server execution log options dialog, record system execution details.

  • Page 23: Network Setup

    4K UHD Network Video Recorder User Manual Page 22 NETWORK SETUP Click to enter NVR SETTINGS, and click NETWORK in the left pane. GENERAL Enter the required information in the fields: IP Mode: Select the connection type of the NVR from Static, DHCP, and PPPoE. IP Address: Enter the IP address you want to use, and press IP Test if necessary.
  • Page 24 4K UHD Network Video Recorder User Manual Page 23 Secondary DNS: Enter the secondary DNS server in case the primary DNS is not available. Video Port: Specify a desired video port. HTTP Port: Specify a desired HTTP port. FTP Port: Specify the desired FTP port.
  • Page 25 4K UHD Network Video Recorder User Manual Page 24 ADVANCE TCP/IP NVR supports three sets of virtual IP addresses. When TCP/IP is switched On, the NVR can access the camera or another NVR using the specific IP. MOBILE The NVR is compatible with several mobile data adapters (D-Link DWM-221, HUAWEI E3372h, ALCATEL L800, etc.).
  • Page 26 4K UHD Network Video Recorder User Manual Page 25 SIM PIN Code: Enter the PIN of the SIM card you use to connect to the mobile network. IP Mode: The connection status of your mobile network. IP Address: The IP address of your connection. Signal Strength: The signal strength of your connection.
  • Page 27 4K UHD Network Video Recorder User Manual Page 26 P2P Account: Enter your account ID. P2P License: Enter your license code. BONDING Choose Redundancy or Sharing mode for dual Ethernet NVR. Note: Availability depends on models. Wi-Fi The NVR is compatible with several Wifi dongle( EDIMAX EW-7811Un, ASUS USB-N13, TP- LIINK TL-WN822M, Bointec CUB811K or others with 8192cu/mt7601cu chip set etc.
  • Page 28 4K UHD Network Video Recorder User Manual Page 27 IP Mode: Choose STATIC or DHCP to suit your WiFi network. IP Address: DHCP chosen, display assigned IP address, STATIC enter required IP address. Subnet Mask: DHCP chosen, display assigned subnet mask, STATIC enter required subnet mask. Default Gateway: DHCP chosen, display assigned gateway, STATIC enter required gateway address.
  • Page 29 4K UHD Network Video Recorder User Manual Page 28 Authorization: Check if your e-mail account requires login authorization. SSL/TLS: Check if your e-mail sever requires encryption. E-Mail Account: Enter the account name of your e-mail. E-Mail Password: Enter the password of your e-mail. Sender: Enter the name you would like to display in the e-mail.
  • Page 30 4K UHD Network Video Recorder User Manual Page 29 Channel Events: Click to open the dialog below. Note: How many channels depend on models Motion: Check to send e-mail when movements are detected. Alarm: Check to send e-mail when external alarms are set off. Video Loss: Check to send e-mail when connection with IP Camera is lost.
  • Page 31 4K UHD Network Video Recorder User Manual Page 30 HDD Err: Check to send E-Mail when an HDD error is detected. E-Mail Test: Click to send the testing email to verify out the settings. When an alarm is triggered, the NVR can automatically send snapshots to the FTP server you designated.
  • Page 32 4K UHD Network Video Recorder User Manual Page 31 Check the cameras that you want to send notifications to the FTP when an alarm is triggered, and specify the folder name where the images are saved. For details about Trigger Conditions and Channel Events, please refer to the descriptions above.
  • Page 33 4K UHD Network Video Recorder User Manual Page 32 Check Interval: Choose the time interval you want the system to check theDDNS connection. Note: The DDNS feature requires Internet connection OTHER The NVR also supports other protocols such as UPnP and SDDP, and related configurations can be modified in the OTHER tab.
  • Page 34 4K UHD Network Video Recorder User Manual Page 33 Reset on Ethernet Error: Reset the PHY when an Ethernet error is detected, and leave a record entry in the event table Max Connections: Set the maximum number of simultaneous connections when streaming using Internet Explorer.
  • Page 35 4K UHD Network Video Recorder User Manual Page 34 Enable: Switch on/off SNMP service. SNMP v1/v2 Read Only Community: Enter a "read-only" information for remote device to retrieve. SNMP v1/v2 Read/Write Community: Used in responses for information from device and to modify settings on device. SNMP v3 User: Username with authentication.

  • Page 36: Camera Setup

    4K UHD Network Video Recorder User Manual Page 35 CAMERA SETUP Click to enter NVR SETTINGS, and press CAMERA in the left pane to enter the CAMERA SETUP page. The setting options are described below. GENERAL Camera Name: Enter the camera name to be displayed on the streaming screen. Camera Source: Allocate a NVR channel for the camera.
  • Page 37 4K UHD Network Video Recorder User Manual Page 36 RTSP Port: Enter the port for RTSP connection. User: Enter the username required for camera authorization. Password: Enter the password required for camera authorization. Stream Type: Choose whether to stream only the primary video or dual (primary & secondary) videos. Primary Stream: Select the FPS and GOP for the primary stream.
  • Page 38 4K UHD Network Video Recorder User Manual Page 37 WS Discovery: Click WS Discovery to scan for connected devices on the network. Click Cancel to stop scanning. Auto Adjust: Automatically assign IP for connected cameras. Snap: Show snapshot thumbnails for all the cameras. Set IP: Assign an IP address to the camera.
  • Page 39 4K UHD Network Video Recorder User Manual Page 38 VIDEO In this page, you can adjust several camera parameters including Contrast, Brightness, Saturation, and Sharpness. Click Default to restore the NVR to its factory settings. Click Refresh to update the preview image.

  • Page 40: Record Setup

    4K UHD Network Video Recorder User Manual Page 39 RECORD SETUP Click to enter NVR SETTINGS, press RECORD in the left pane to enter the RECORD SETUP page. To adjust recording or schedule settings, the setting options are described below. GENERAL Record Mode: Switch on/off scheduled recording.
  • Page 41 4K UHD Network Video Recorder User Manual Page 40 SCHEDULE To modify the recording schedule, switch the recording type from Always (continuous recording), Alarm (record only when an alarm is triggered), or No Record (disable recording), and highlight the desired date and time accordingly. Click Apply All to apply your selection of recording type to all dates and time.

  • Page 42: Alarm Setup

    4K UHD Network Video Recorder User Manual Page 41 Protected Recording: Set how many days of video the NVR will preserve. ALARM SETUP Click to enter NVR SETTINGS, press ALARM in the left pane to enter the ALARM SETUP page. The setting options are described below: GENERAL Alarm Input Type: Set the alarm sensor to Normally Open (NO), Normally Closed (NC), or IP Camera.
  • Page 43 4K UHD Network Video Recorder User Manual Page 42 Click and drag across the grid to highlight motion detection areas. Click Apply All Channels to apply the areas to all camera channels. OUTPUT ALARM LED Enable: Turn On to activate the alarm LED. Alarm Time: Blinking duration of the alarm LED when an alarm is triggered.
  • Page 44 4K UHD Network Video Recorder User Manual Page 43 Enable: Turn On to activate the buzzer. Alarm Time: Beeping duration of the buzzer when an alarm is triggered. Note: SYSTEM SETUP > GENERAL > Buzzer must be enabled. Trigger Conditions: See Channel Events and System Events above for more details.
  • Page 45 4K UHD Network Video Recorder User Manual Page 44 Enable: Turn On to activate FTP sending. Trigger Conditions: See Channel Events and System Events above for more details. Alarm Send Interval: Set the frequency of sending image files to an FTP server when an alarm is triggered. NOTIFICATION Enable: Turn On to activate application notification sending.
  • Page 46 4K UHD Network Video Recorder User Manual Page 45 DO#1–N (manual DO control) Manual DO control: Turn On to enable directly DO control, in live video window will show the corresponding DO number icon, click to control. For other options, please refer to the descriptions above.

  • Page 47: Display Setup

    4K UHD Network Video Recorder User Manual Page 46 DISPLAY SETUP provides several adjustable NVR parameters such as resolution, default DISPLAY number of split views, and more other options. The details of these settings are described as follows: GENERAL Backlight Saving: Adjust the level of screen brightness reduction once the time specified in Monitor Standby Time is reached.
  • Page 48 4K UHD Network Video Recorder User Manual Page 47 control of split views between HDMI/VGA. Note: Availability depends on models. ADVANCE In this page, you can adjust brightness, contrast, and saturation of the NVR output. Also, it is possible to change of intensity of the 2DNR and 3DNR noise reduction feature. Click Load Default to restore to the factory settings.

  • Page 49: Ptz Setup

    4K UHD Network Video Recorder User Manual Page 48 PTZ SETUP Click to enter NVR SETTINGS, press PTZ in the left pane to enter the PTZ SETUP page. The setting options are described below: GENERAL Transfer Mode: Choose a PTZ communication protocol from HTTP, ONVIF, or Fish Eye. Otherwise use RS- 485.
  • Page 50 4K UHD Network Video Recorder User Manual Page 49 NVR CASCADE This tab allows you to cascade multiple NVRs or adjust relevant settings. For detailed instructions on how to use the NVR cascade function, visit our official website. Enter Support > SDK, and download the document named DVR/NVR IR/keyboard serial commands over HTTP.

  • Page 51: Metadata Setup

    4K UHD Network Video Recorder User Manual Page 50 Search: Find all other NVR(s) connected to your network. Export: Export the settings to the USB flash drive connected to the NVR. Import: Load the settings from the USB flash drive connected to the NVR. METADATA SETUP Click to enter NVR SETTINGS, and press METADATA...
  • Page 52 4K UHD Network Video Recorder User Manual Page 51 Enter the server IP for your serial device. Server Data Port: Enter the port of your serial device. Server Command Port: Enter the command port of the device. Emulated Mode: Choose an emulation type from the drop-down menu (see image below). Encoding Mode: Choose between ASCII and UTF-8.
  • Page 53 4K UHD Network Video Recorder User Manual Page 52 OSD Font Size: Enter a value as the font size. OSD Rows Displayed: Determine the number of rows for the OSD. EVENT This tab displays a history of received metadata. You are allowed to search for events based on time, channel, or content.

  • Page 54: Other Setup

    4K UHD Network Video Recorder User Manual Page 53 OTHER SETUP Click to enter NVR SETTINGS, and press OTHER in the left pane to enter the OTHER SETUP page. The setting options are described below: SMARTPHONE This tab provides settings for sending alarm notifications to your smartphone that is paired with the NVR.
  • Page 55 4K UHD Network Video Recorder User Manual Page 54 The NVR supports IVS-enabled cameras. Connect an IVS-enabled IP camera to the NVR and turn on the IVS function. Go to ALARM SETUP > GENERAL > Alarm Input Type > IP Camera, and the NVR will receive and record IVS information in the history table.
  • Page 56 4K UHD Network Video Recorder User Manual Page 55 STREAM Once the network configurations are completed and cameras connected, you can remotely view live streams of cameras via an Internet browser, and access other functions such as playing recorded video and backing up video files. Note: IE 10 or above, or Chrome are recommended Enter the NVR IP address or domain name in the address bar: Enter the NVR username and password required for login authorization...
  • Page 57 4K UHD Network Video Recorder User Manual Page 56 LIVE The LIVE tab displays the streams of all connected cameras. With the control buttons and joystick you can control the movement of the selected camera. PLAY In PLAYBACK, you can view recorded videos according to date/time, alarm/manual history table, and time line.
  • Page 58 4K UHD Network Video Recorder User Manual Page 57 BACKUP In BACKUP, you could back up recorded videos by choosing the date/time, channel, and file format. Click Backup to start the backup process.
  • Page 59 4K UHD Network Video Recorder User Manual Page 58 Appendix Install IPCamPlus Search and download IPCamPlus in the iOS App Store or Android Play Store. Or you can scan the QR code below: For Android Users Open IPCamPlus, and go to tab Grouping. Tap a group, and tap the camera filed to add an NVR.
  • Page 60 4K UHD Network Video Recorder User Manual Page 59 For iOS User Open IPCamPlus, and then tab Grouping. Tap a group, and tap the camera filed to add an NVR. Next, enter the required NVR information, and then tap Done to save. Tap Live to monitor the NVR.
  • Page 61 4K UHD Network Video Recorder User Manual Page 60...
  • Page 62 4K UHD Network Video Recorder User Manual Page 61 Specification Professional 2U 19” 4K UHD 32CH 8Bay Non-RAID NVR 4K UHD 32CH Stand Alone Network Video Recorder Specification Models 4K UHD 32CH 8Bay Non-RAID NVR Supports Network camera / ONVIF Profile S / DVR / NVR / Video encoder / NAVIGATOR Input 32 CH IP Video Input...
  • Page 63 4K UHD Network Video Recorder User Manual Page 62 Camera Two Way Audio Ports RJ-45 Gigabit Ethernet × 2, ethernet failure redundancy or sharing supported ARP / TCP/IP / UDP / HTTP / HTTPS / SMTP / SNMP / FTP / DDNS / PPPoE / Protocols NTP / RTP / RTSP / DHCP/ SNMP / Onvif Profile S Direct internet browser access / Multiple users access...
