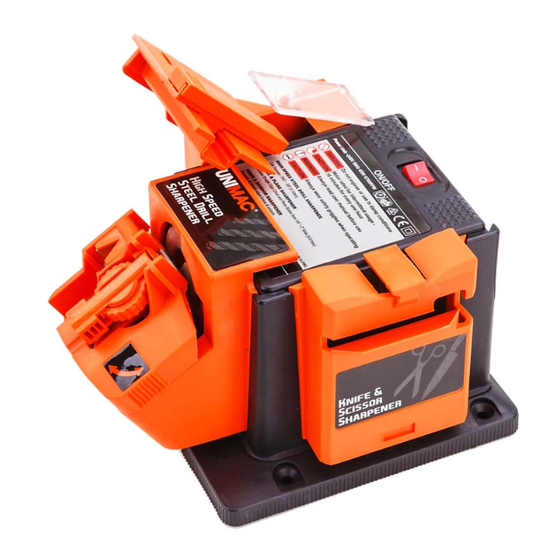

Multi-Function Sharpener – MFS2
User Manual
[Revision 1.0 April 2017]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2017 Unimac

Advertisement

Table of Contents
loading

Related Manuals for Unimac MFS2

Summary of Contents for Unimac MFS2

  • Page 1 Multi-Function Sharpener – MFS2 User Manual [Revision 1.0 April 2017] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

  • Page 2: Safety

    Multi-Function Sharpener – MFS2 Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or...
  • Page 3 Multi-Function Sharpener – MFS2 Electrical Safety Product Use and Care • When using electric appliances, basic This product is for domestic use only. precautions should always be followed, • It is recommended that the tool is including the following: fastened to a solid, level surface.

  • Page 4: Table Of Contents

    Multi-Function Sharpener – MFS2 Table of Contents Safety ..............................2 Parts Identification ..........................5 Inserting and Removing Sharpening Modules ................6 Sharpening Drills ..........................7 Sharpening Scissors and Knives ..................... 8 Sharpening Chisels ........................... 9 Maintenance ............................. 10 Troubleshooting ..........................10 Specifications ...........................

  • Page 5: Parts Identification

    Multi-Function Sharpener – MFS2 Parts Identification Name Name Name Main Body Scissor Slot Chisel Sharpening Module Grinding Wheel Drill Sharpening Module Chisel Bed ON / OFF Switch Drill Bit Holder Guard Retaining Clip Drill Guide Narrow Chisel Guide Sharpening Module Guide "V"...

  • Page 6: Inserting And Removing Sharpening Modules

    Multi-Function Sharpener – MFS2 Inserting and Removing Sharpening Modules The tool MUST be switched OFF and disconnected from the electrical supply when attaching or removing sharpening modules. • It is recommended to fasten the tool to a flat and stable surface, such as a bench. Use the 4 mounting holes for this and 5mm countersunk type fasteners.

  • Page 7: Sharpening Drills

    Multi-Function Sharpener – MFS2 Sharpening Drills The tool is suitable for sharpening high speed steel (HSS) and hardened steel drill bits to a nominal 118° included angle that is ideal for "normal" drilling into wood, plastic, aluminium, steel etc. It is NOT designed for sharpening carbide-tipped masonry bit, wood bores, counter-boring and counter-sinking tools etc.

  • Page 8: Sharpening Scissors And Knives

    Multi-Function Sharpener – MFS2 Sharpening Scissors and Knives The tool is suitable for sharpening steel scissors with straight, non-scalloped blades. 1. Insert the scissor sharpening module into the tool. 2. Switch the tool ON. 3. Open the scissor blades (A), with the bevelled cutting edge towards the grinding wheel. Holding the scissor firmly, lower the blade into the scissor blade slot (B) so the pivot end of the blade is nearest the grinding wheel.

  • Page 9: Sharpening Chisels

    Multi-Function Sharpener – MFS2 Sharpening Chisels For chisels that are damaged or severely blunted, it may take several uses of the sharpener to rectify. 1. Insert the chisel sharpening module into the tool. 2. Place the chisel (A) on the chisel bed (B) so it is hard up against the guide at the end of the bed and held firmly by the magnets (C).

  • Page 10: Maintenance

    Multi-Function Sharpener – MFS2 Maintenance Procedures not specifically explained in this manual must be performed by qualified technicians only . • Before performing any inspection, maintenance, or cleaning procedure, place the motor switch in the "OFF" position and disconnect the machine from the electrical supply.

  • Page 11: Specifications

    Multi-Function Sharpener – MFS2 Drill point is not centred or cutting edges uneven lengths. Possible Fault Action Uneven sharpening Sharpen both sides of the drill bit evenly – sharpen for the same amount of time and using the same pressure.
  • Page 12 ©2017 Unimac. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
