Summary of Contents for Hertz ML Power 5

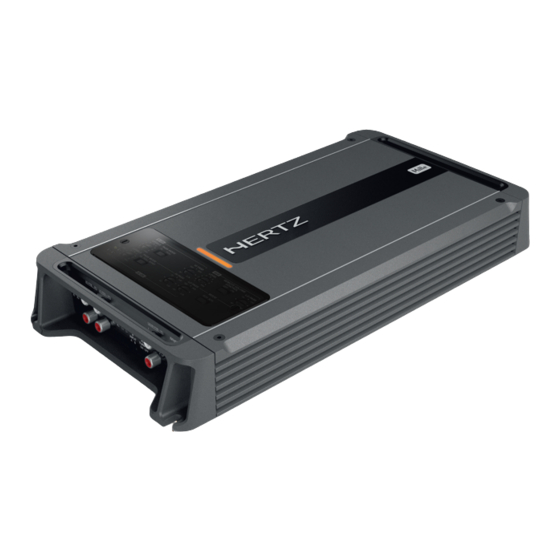

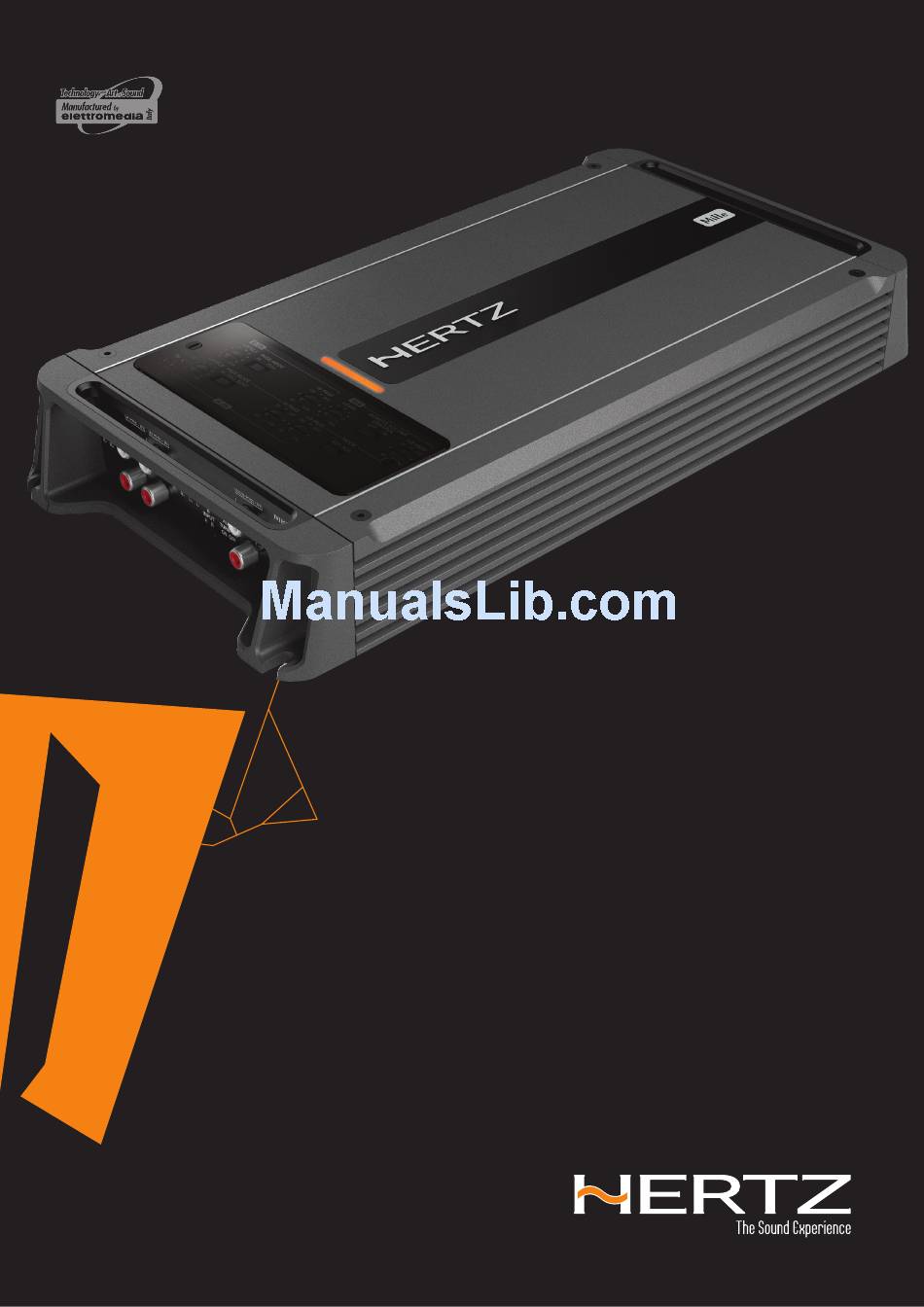

- Page 1 ML Power ADVANCED MANUAL ML Power 5 rev 1.0 The User Manual is also available from our web site www.hertzaudiovideo.com www.hertzaudiovideo.com...
-
Page 2: Table Of Contents
ML Power 5 Advanced Web Manual Index 1. INTRODUCTION 2. PACKAGE CONTENTS 3. SAFE SOUND 4. GENERAL PRECAUTIONS 5. INSTALLATION AND SIZE 6. BATTERY / REMOTE CONNECTION AND HOW TO REPLACE THE FUSE 7. AUTO TURN-ON WITH HI-LEVEL INPUTS 8. TOP PANEL CONTROLS: SWITCHES AND ADJUSTMENT 9. -
Page 3: Advanced Web Manual En
It will definitely ensure you maximum satisfaction by taking up very small room in your vehicle. Before the installation, in addition to reading the Quick Start Guide (QSG), the consultation of this user’s manual available on the Hertz website will let you achieve the highest performance from your amplifier. PACKAGE CONTENTS In the package, besides your amplifier, you will find: •... -
Page 4: Safe Sound
Advanced Web Manual SAFE SOUND HERTZ AMPLIFIERS CAN BE PART OF A HIGH POWER AUDIO SYSTEM THAT CAN GENERATE VERY HIGH UNDISTORTED SOUND PRESSURE LEVELS. PLEASE REMEMBER THAT LONG EXPOSURE TO AN EXCESSIVELY HIGH SOUND PRESSURE LEVEL MAY DAMAGE YOUR HEARING; THEREFORE, PLEASE USE COMMON SENSE AND PRACTICE SAFE SOUND. -
Page 5: General Precautions
ML Power 5 Advanced Web Manual GENERAL PRECAUTIONS • This symbol indicates that you have to pay attention to these instructions. Disregarding them might cause accidental harms or damage your amplifier. • Before installing the amplifier, make sure you carefully read and understand all instructions. -
Page 6: Installation And Size
ML Power 5 Advanced Web Manual INSTALLATION AND SIZES 46,7 mm ML Power 5 13.74 13.07 6.69 5.83 1.84 in. -
Page 7: Battery / Remote Connection And How To Replace The Fuse
ML Power 5 Advanced Web Manual BATTERY / REMOTE CONNECTION AND HOW TO REPLACE THE FUSE 2 x 40 A BLADE FUSES 2 x 40 A BLADE FUSES +BATTERY +BATTERY REMOTE OUT REMOTE OUT Apply a Fuse close to positive... -
Page 8: Top Panel Controls: Switches And Adjustment
ML Power 5 Advanced Web Manual TOP PANEL CONTROLS: SWITCHES AND ADJUSTMENT CONTROLS B CH LEVELS: B channels input sensitivity adjustment connectors. Select HI for Hi-pass to drive a WOOFER. Select control. Set to 1 position. Use a CD as source, increase BAND for bandpass to drive a WOOFER or a MIDRANGE. -
Page 9: Front And Rear Panels
ML Power 5 Advanced Web Manual FRONT AND REAR PANELS 17 18 19 A PRE-IN: Left and Right pre-amplified inputs to drive PROTECTION FUSE: 2 x 40A. A channels. Connect to pre-amplified source output. POWER (+ BATT): Terminal block for the amplifier 11 ÷... -
Page 10: Configuration Diagrams
ML Power 5 Advanced Web Manual CONFIGURATION DIAGRAMS HOW TO USE REMOTE VOLUME CONTROL OPTIONAL SUBWOOFER REMOTE VOLUME CONTROL HRC BM SUBWOOFER N. A. Selected function Adjustment controls System Start-up... -
Page 11: Front E Rear E Sub Con Il Remote Volume Control
ML Power 5 Advanced Web Manual FRONT + REAR + SUB WITH REMOTE VOLUME CONTROL OPTIONAL SUBWOOFER REMOTE VOLUME CONTROL FRONT SOURCE HRC BM REAR FRONT REAR SUBWOOFER FRONT N. A. Selected function Adjustment controls System Start-up... -
Page 12: Woofer E Mid/Hi E Sub
ML Power 5 Advanced Web Manual WOOFER AND MID/HI AND SUB FRONT SOURCE MID/HI WOOFER SUBWOOFER MID/HI SUBWOOFER WOOFER N. A. Selected function Adjustment controls System Start-up... -
Page 13: Pre-In Front E Pre-In Sub
ML Power 5 Advanced Web Manual PRE-IN FRONT AND PRE-IN SUB FRONT REAR SOURCE FRONT TWEETER WOOFER SUBWOOFER TWEETER SUBWOOFER WOOFER N. A. Selected function Adjustment controls System Start-up... -
Page 14: Pre-In Front, Pre-In Rear E Pre-In Sub
ML Power 5 Advanced Web Manual PRE-IN FRONT, PRE-IN REAR AND PRE-IN SUB REAR FRONT SOURCE REAR WOOFER SUBWOOFER REAR SUBWOOFER FRONT N. A. Selected function Adjustment controls System Start-up... -
Page 15: Ingressi Hi-In Front Con Uscite Front, Rear E Sub
ML Power 5 Advanced Web Manual HI-IN FRONT INPUTS WITH FRONT, REAR AND SUB OUTPUTS SPEAKER WIRE SOURCE REAR FRONT SUBWOOFER REAR SUBWOOFER FRONT N. A. Selected function Adjustment controls System Start-up... -
Page 16: Hi-In Front E Rear
ML Power 5 Advanced Web Manual HI-IN FRONT AND REAR SPEAKER WIRE REAR SPEAKER WIRE FRONT SOURCE REAR FRONT SUBWOOFER REAR SUBWOOFER FRONT N. A. Selected function Adjustment controls System Start-up... -
Page 17: Pre-In Front E Hi-In Rear
ML Power 5 Advanced Web Manual PRE-IN FRONT AND HI-IN REAR SPEAKER WIRE REAR SPEAKER WIRE FRONT SOURCE SOURCE REAR FRONT SUBWOOFER REAR SUBWOOFER FRONT N. A. Selected function Adjustment controls System Start-up... -
Page 18: Ch Mode: Front E Sub
ML Power 5 Advanced Web Manual 3CH MODE: FRONT AND SUB SPEAKER WIRE FRONT SOURCE SOURCE SUBWOOFER FRONT SUBWOOFER FRONT N. A. Selected function Adjustment controls System Start-up... -
Page 19: Cables
Connection products are the most flexible and complete; they are designed and built in order to get the best out of every installation, especially when used with Hertz amplifiers. Speaker cable recommendations The table refers to continuous power into 4 Ω... -
Page 20: Block Diagram
ML Power 5 Advanced Web Manual BLOCK DIAGRAM... -
Page 21: Technical Specifications
ML Power 5 Advanced Web Manual TECHNICAL SPECIFICATIONS Power Supply Power supply voltage / fuse: 11÷15 VDC Idling current: Idling current when OFF: 0.04 mA Consumption @ 2Ω, 14.4 VDC 50 A (Max Musical Power): Remote In: 4 ÷ 15 VDC - 1 mA...
