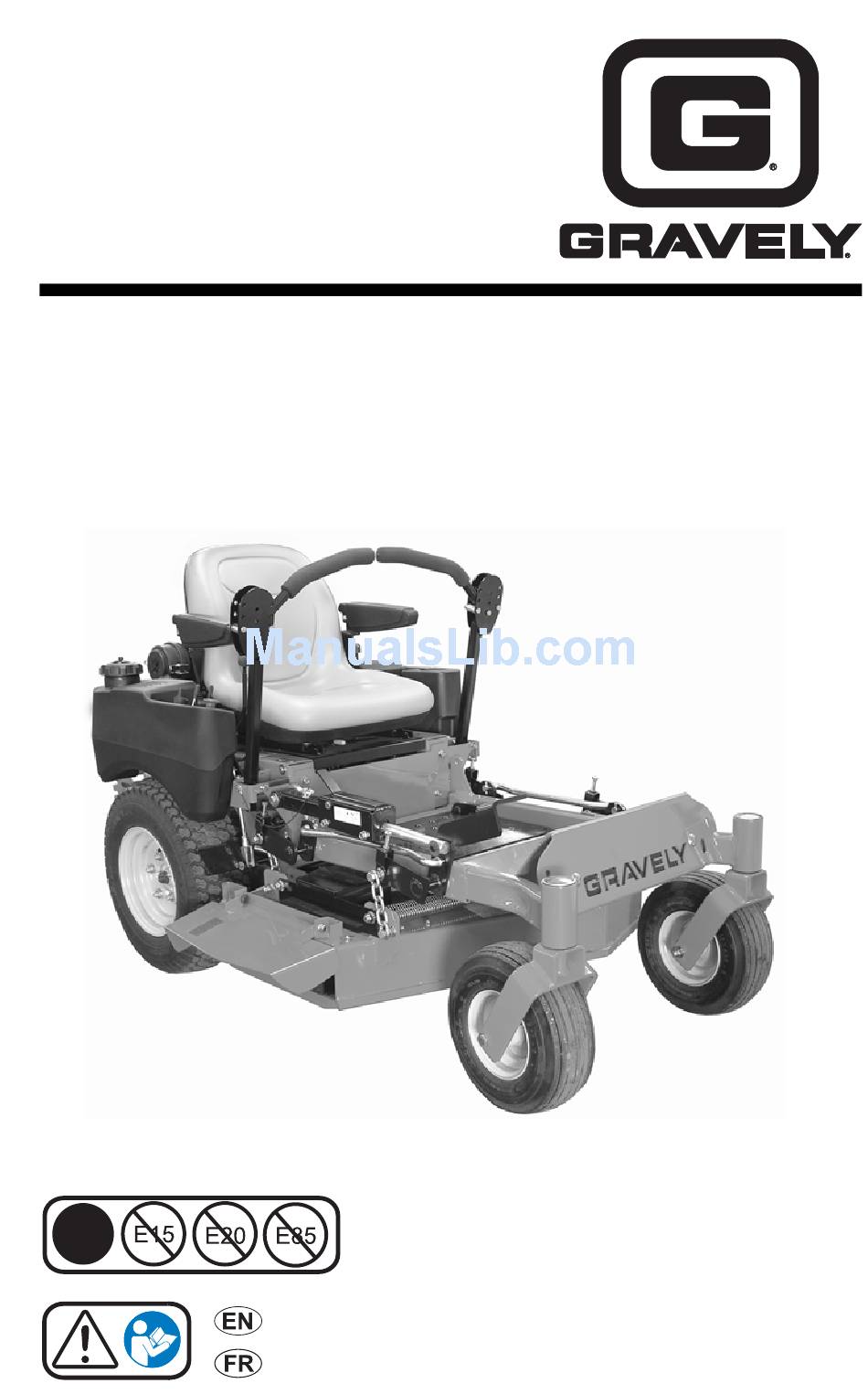

- Page 1 ™ Compact-Pro Operator’s Manual Manuel de I’utilisateur Models 991088 – Compact Pro 34 (SN 060,000 +) 991105 – Compact Pro 34 CARB (SN 060,000 +) ENGLISH • 05092100B 12/16 FRANÇAIS Printed in USA...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WELCOME ..... . 1 Adjust Seat ..... . 22 Adjust Steering Levers. -
Page 3: Welcome
WELCOME Congratulations on your purchase and welcome to the Gravely family! Every machine in the Gravely lineup is designed for long-lasting and unsurpassed performance. We are confident your machine will be part of your family for many years to come. -
Page 4: Safety
WARNING: AVOID INJURY. SAFETY This cutting machine is capable of amputating hands and feet Read these safety rules and follow them and throwing objects. Failure to closely. Failure to follow these rules could observe the safety instructions in lead to loss of control of unit, severe personal the manuals and on decals injury or death to you or bystanders, or result could result in serious injury or... -
Page 5: Safety Decals
4. Notice SAFETY DECALS NOTICE: Indicates information or procedures The safety decals on your machine are visual that are considered important but not hazard reminders of the important safety information related. If not avoided property damage could in this manual. All messages on your unit result. - Page 6 Safety Decal Descriptions Do not operate mower 1. DANGER! unless all guards are in operating position or bagger is attached. DANGER! 1.3 Tipping Hazard Avoid tipping hazard. Read and understand the operator’s manual before operating unit. 1.1 Amputation Hazard DO NOT operate on slopes over 15°.
- Page 7 1.5 Bystander Hazard 2. DANGER! Discharge Hazard – NEVER operate unit DO NOT operate the unit in without discharge chute the presence of in operating position. bystanders. Thrown objects can cause injury or damage. Do not operate mower unless all guards are in Do not carry passengers.
-
Page 8: Safety Rules
4. DANGER! 8. DANGER! Discharge Hazard – NEVER operate unit DANGER! Keep hands without discharge chute and feet away from all in operating position. rotating or moving parts. Thrown objects can cause injury or damage. Do not operate mower SAFETY RULES unless all guards are in operating position or The following safety instructions are based... - Page 9 Data indicates operators age 60 years and Clean grass and debris from unit, especially above are involved in a large percentage of from around muffler and engine, to help riding mower-related injuries. prevent fires. These operators should evaluate their ability Check parking brake operation frequently.
- Page 10 Avoid slippery surfaces. Always be sure of Clear the area of objects such as rocks, your footing. wire, toys, etc., which could be thrown by the blades. Never carry passengers. Check for weak spots on docks, ramps or Never direct discharged material toward floors.
- Page 11 DO NOT park on slopes unless necessary. Never overfill fuel tank. Replace gas cap When parking on slope always chock or and tighten securely. block wheels. Always set parking brake. If fuel is spilled on clothing, change clothing Choose a low ground speed so you will not immediately.
- Page 12 ALWAYS keep batteries out of reach of Do not transport machine while engine is children. running. Battery posts, terminals and related ALWAYS turn off power to attachment and accessories contain lead and lead shut off fuel when transporting unit. compounds, chemicals known to the State of California to cause cancer and reproductive Storage harm.
-
Page 13: Assembly
13. Level Deck – Check unit to ensure deck ASSEMBLY level set at factory has been maintained. See Adjust Mower Deck on page 26. 14. Check Function of All Controls – Ensure WARNING: AVOID INJURY. unit runs and performs properly. Read and understand entire Safety section before WARNING: FAILURE OF... -
Page 14: Controls & Features
CONTROLS & FEATURES Figure 4 1. Fuel Tanks and Caps 9. Power Take Off (PTO) Knob 2. Wing Knob 10. Battery 3. Steering Levers 11. Fuel Valve 4. Hydraulic Oil Reservoir 12. Deck Lift Pedal 5. Ignition Key 13. Mower Deck 6. -
Page 15: Ignition Key
FUEL VALVE WARNING: AVOID INJURY. Read and understand entire See Figure 8. Safety section before Controls fuel flow to the engine. proceeding. IGNITION KEY See Figure 5. Controls power to the engine. The key cannot Figure 8 be removed when in run position. POWER-TAKE-OFF (PTO) KNOB See Figure 9. -
Page 16: Parking Brake Lever
4. Check function of the Safety Interlock System by performing the tests below. See Figure 11. Contact your Gravely dealer for repair if Controls the parking brake. The engine will any of the tests fail. not start with brake in the off position. -
Page 17: Operate Unit
OPERATE UNIT For Best Mowing Results • Cut grass when it is dry. 1. Release parking brake. • Keep mower blades sharp. WARNING: AVOID INJURY. • Keep mower deck properly leveled. Move the steering levers slowly • Adjust anti-scalp rollers to prevent scalping. and keep the throttle at slow •... -
Page 18: Transport Unit
Lubricate Caster Fork section before proceeding. • Bearings * Refer to engine manual for instructions. Your Gravely dealer can provide service and adjustments to keep your unit operating at + Use tubing included in literature pack to peak efficiency. drain engine oil. -
Page 19: Service Parts
SERVICE PARTS See your Gravely dealer to purchase service parts for your unit. Description Qty. Part No. Battery 01554800 Air Filter 21548200 Engine Oil Filter – 21535800 Kawasaki Hydraulic Oil Filter 00669300 Spark Plug – Kawasaki 21536100 Fuel Filter – Kawasaki... -
Page 20: Check Fasteners
1. Caster Pivot LUBRICATION LOCATION INTERVAL 1. Carbon Canister Filter Repack Caster Pivot 400 Hrs Figure 14 All Pivot Points, 50 Hrs Pin Connections CHECK FASTENERS Figure 15 Check for loose hardware. MAINTENANCE PREPARATION LUBRICATE UNIT Before starting any of the following See Figure 15. -
Page 21: Check Battery
See Figure 16. Install Blades 1. Remove blades from unit. Discard blades 1. Install mower blade(s) on unit. 2. Tighten the bolts to a torque of • More than 1.3 cm (1/2") of metal is 156 – 217 N•m (115 – 160 lb-ft). removed. -
Page 22: Check Hydraulic Fluid
IMPORTANT: Always follow information this form of injury. provided on battery by battery manufacturer. Contact battery manufacturer for detailed information about charging. IMPORTANT: Gravely does not recommend jump starting your unit. Jump-starting can damage engine and system components. Operating FULL Mark... -
Page 23: Check Mower Belts
9. Add 15W-50 synthetic motor oil (Gravely p/n 00057100) or equivalent. Do not overfill. Change Hydraulic Fluid and Filter NOTICE: Change hydraulic fluid and filter after the first 75 hours of operation and then every 400 hours. Use 15W-50 synthetic motor oil (Gravely p/n 00057100) or equivalent. -
Page 24: Adjustments
Remove Ground Drive Belt ADJUSTMENTS See Figure 22. 1. Remove the PTO belt from the mower clutch sheave. See Remove PTO Belt on WARNING: AVOID INJURY. page 21. Read and understand the Safety 2. Slowly release the tension on the hydro section before proceeding. -
Page 25: Steering Control Neutral Adjustment
4. Turn the eccentric spacer until the right STEERING CONTROL NEUTRAL and left handles are the same height. ADJUSTMENT Tighten nut. See Figure 25. Adjust Steering Levers WARNING: This adjustment See Figure 24. requires operating the engine. 1. Shut OFF engine. Engage parking brake. Use extreme care to avoid Remove the ignition key. -
Page 26: Adjust Unit To Track Straight
1. Limiter Bolt 2. Jam Nut 3. Steering Lever 4. Stop Bracket Figure 26 1. Return to Neutral Mechanism 2. Hydraulic Pump ADJUST PARKING BRAKE 3. Stop Bracket LEVER 4. Set Screw See Figure 27. Figure 25 Adjust Parking Brake ADJUST UNIT TO TRACK 1. -
Page 27: Remove And Install Mower Deck
IMPORTANT: The mower lift arms are not locked unless the cutting height adjustment 9.5 – 15.9 mm pin passes all the way through both the deck (3/8 – 1/2") lift cover and shaft. NOTICE: Support the mower deck on blocks or jack stands before disconnecting link chains from mower lift arms to prevent the deck from falling. -
Page 28: Adjust Mower Deck
4. Install PTO mower belt. See Remove 5. If measurements are out of range, raise PTO Belt on page 21. the low side of the deck using the height adjusters on the deck lift brackets (See 5. Level mower deck. See Adjust Mower Figure 30). -
Page 29: Clutch Adjustment
3. Tighten gap adjustment nut until there is slight contact on feeler gauge. a. Add Gravely fuel stabilizer (see 4. Repeat steps 1 – 3 at each inspection Service Parts on page 17) or slot. -
Page 30: Long-Term Storage
2. Charge and install the battery. ACCESSORIES See your Gravely dealer for a complete list of compatible accessories and attachments for your unit. Description Part No. -
Page 31: Troubleshooting
Connect spark plug wire(s) or replace spark plug(s) are faulty. spark plug(s). Refer to engine manual. Electrical system is faulty. Contact your Gravely dealer. Engine is faulty. Contact your Gravely dealer. Choke control knob is in on Move knob to off position. - Page 32 TROUBLESHOOTING Problem Probable Cause Correction Mower blades not level or mower Level and adjust pitch of mower deck. deck pitch is incorrect. See Adjust Mower Deck on page 26. Mower blades are dull or faulty. Sharpen or replace mower blades. See Sharpen Blades on page 18.
-
Page 33: Specifications
Fuel Tank Capacity – L (gal.) 26.5 (7) Transmission Type Hydrostatic Drive Use 15W-50 synthetic motor oil Transmission Oil (Gravely p/n 00057100) or equivalent Hydraulic Oil Filter Size and Weight Length – cm. (in.) 181.6 (71.5) Width (With Chute Up) – cm. (in.) 89.4 (35.4) Height –... -
Page 34: Warranty
Equipment Limited Warranty Warranty Ariens Company (Ariens) warrants to the original purchaser that Ariens, Gravely and Countax brand products purchased on or after 9/1/2016 and designated or labeled commercial products by Ariens Company will be free from defects in material and workmanship for the time period noted in the chart below. - Page 35 Exclusions – Items Not Covered by This Warranty • Parts that are not genuine Ariens, Gravely or Countax service parts are not covered by this warranty and may void the warranty. • Damages resulting from the installation or use of any part, accessory, or attachment which is not approved by the Ariens Company for use with product(s) identified herein are not covered by this warranty.
- Page 36 • Products are designed to the specifications in the area that the product was originally distributed. Different areas may have significantly different legal and design requirements. This warranty is limited to the requirements in the area in which the unit was originally distributed.
- Page 38 655 West Ryan Street Brillion, WI 54110 gravelymower.com gravely.custhelp.com...
