Summary of Contents for Baldwin Boxall Vigil 3

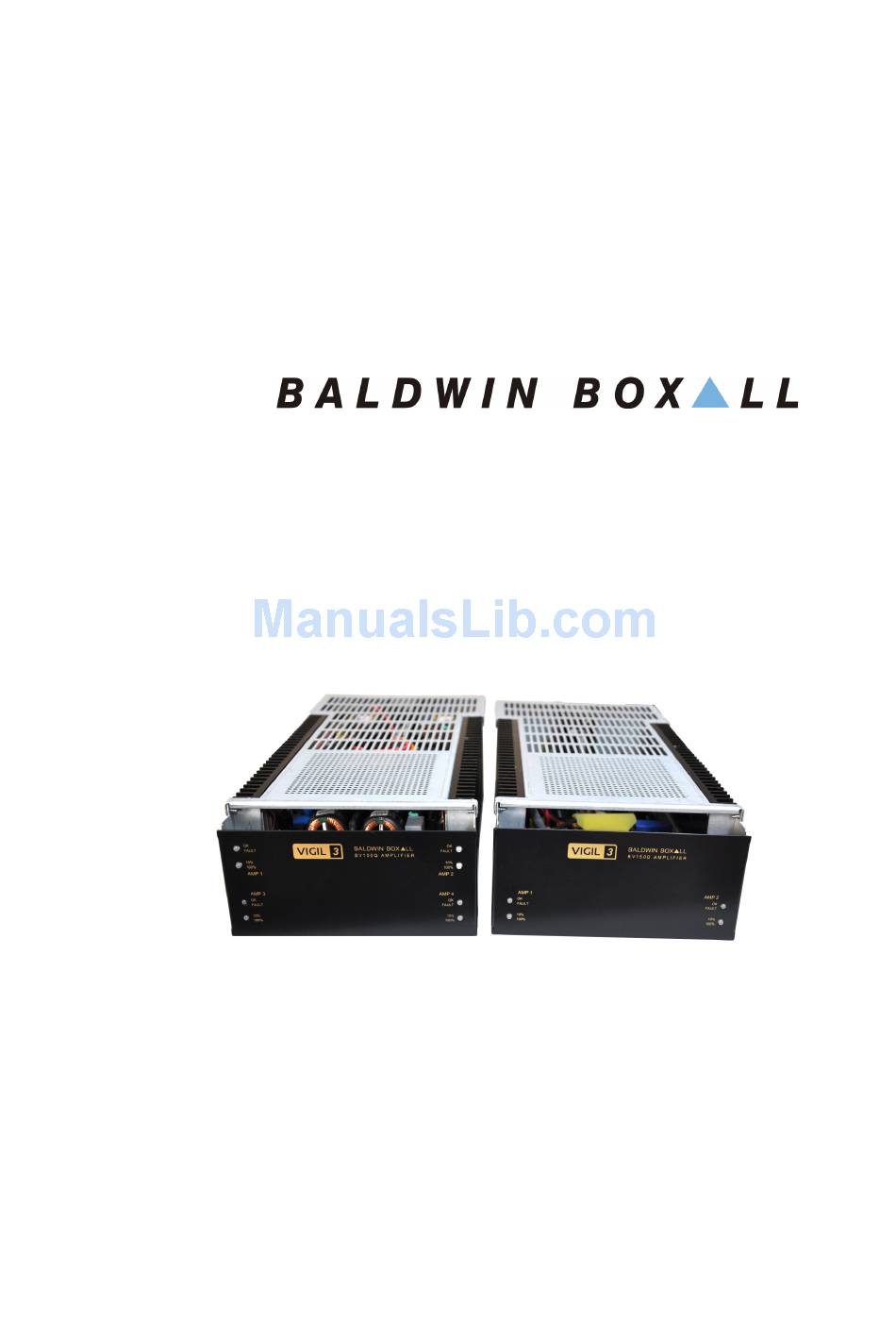

- Page 1 Vigil 3 Amplifiers Installation Instructions Manual name: Vigil 3 Amplifier Installation Manual Issue: 1 ECR: N/A Date of issue: Dec 2016...
- Page 2 Failure to use the equipment in the manner described in the product literature will invalidate the conformity. A “Declaration of Conformity” statement to the above standards and a list of auxiliary equipment used for compliance verification is available on request. Vigil 3 Amplifier Installation Manual issue 1...
-
Page 3: Table Of Contents
Example 2: Paralleled Outputs for Higher Power ______________7 Basic Fault Finding “OK / Fault” LED flashing or not illuminated _________________9 Disassembly Procedures _______________________________ 10 Maintenance Maintenance Requirements of BS5839-8 ___________________ 13 Vigil 3 Amplifiers Routine Maintenance ____________________ 13 Vigil 3 Amplifier Installation Manual issue 1... - Page 4 Vigil 3 Amplifiers Installation Instructions Vigil 3 Amplifier Installation Manual issue 1...
-
Page 5: Amendment Record
Baldwin Boxall Communications Limited. The possession of this manual and the use of the information is, therefore, restricted only to those persons duly authorised by Baldwin Boxall Communications Limited. Do not reproduce, transcribe, store in a retrieval system or translate into any language, any part of this manual without the prior permission of Baldwin Boxall Communications Limited. -
Page 6: Safety Information

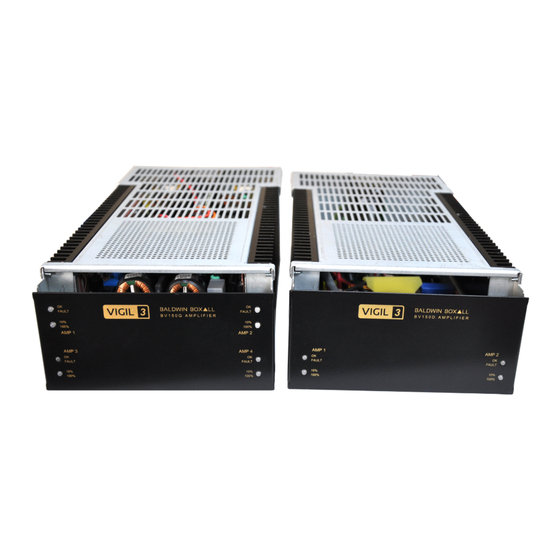

: Do not speak into the microphone until the "Speak Now" LED is illuminated. OMMENTS Comments regarding the content of this manual are welcome and should be addressed to mail@baldwinboxall.co.uk. Vigil 3 Amplifier Installation Manual issue 1... - Page 7 1.1 V IGIL MPLIFIER ESCRIPTION The Vigil 3 Amplifier range consists of modules containing 2 or 4 amplifier blocks. The following Vigil 3 amplifier modules are available; • BV75D - 2 x 75W Amplifier Blocks • BV150D -2 x 150W Amplifier Blocks •...
-
Page 8: Vigil 3 Amplifier Description
• Flashing Green - PSU Fault, no 24V or mains present • Yellow - Overload or Over Temperature Fault The 10%/100% LED indicates the following; • Off - No signal output • Green - 10V signal output • Yellow - 100V signal output Vigil 3 Amplifier Installation Manual issue 1... -
Page 9: Vigil 3 Amplifier Specifications
Vigil 3 Amplifier Installation Instructions 1.2 V IGIL MPLIFIER PECIFICATIONS Table 1.1 — Vigil 3 Amplifier Specifications AMPLIFIERS BV300D BV150D BV150Q BV75D BV75Q 2 x 300W 2 x 150W 4 x 150W 2 x 75W 4 x 75W 1KHz rated O/P power, 300W @ 150W @ 66.6 Ohms... - Page 10 Vigil 3 Amplifier Installation Instructions Vigil 3 Amplifier Installation Manual issue 1...
-
Page 11: Installation Examples
Circuit using a single input signal, or the 300W amplifiers can be paralleled with other 300W Vigil 3 Amplifiers to enable higher power outputs (up to a maximum of 4 Vigil 3 300W amplifiers giving a total of 1200W). : Where possible when A-B circuits are used it is recommended that A and B circuits are connected to amplifiers in serperate modules. -
Page 12: Example 1: A-B Dual Circuit
Vigil 3 Amplifiers Installation Instructions In order to use the Vigil 3 amplifiers with a BVMBC battery charger module the AUX output connection of up to 5 amplifier modules must be connected to the BVMBC. For more information please see the BVMBC installation manual. -
Page 13: Example 2: Paralleled Outputs For Higher Power
: A maximum of 4 300W amplifier modules can be paralleled togetther (i.e. 2 x BV300D). Only parallel 300W modules. : It is not recommended to use paralleled amplifiers in Voice Alarm Systems, consider lower power A-B circuits instead. Vigil 3 Amplifier Installation Manual issue 1... - Page 14 Vigil 3 Amplifiers Installation Instructions Vigil 3 Amplifier Installation Manual issue 1...
-
Page 15: Basic Fault Finding
Vigil 3 Amplifiers Installation Instructions 3 Basic Fault Finding The Vigil 3 Amplifiers front panels provide indicators to show the current status of the unit. The following sections provide basic Fault Finding information should these indicators show a fault condition. -
Page 16: Disassembly Procedures
ROCEDURES There are no Disassembly Procedures for this unit. ARN I NG The Vigil 3 Amplifiers output stages contain Hot Parts, High Voltages, and operate at High Frequencies. Do not attempt to disassemble these units or operate them without the covers in place. - Page 17 Vigil 3 Amplifiers Installation Instructions AU TI O N There are no user replaceable fuses inside the Vigil 3 amplifiers. Failed units should be returned to Baldwin Boxall for repair or replacement. Vigil 3 Amplifier Installation Manual issue 1...
- Page 18 Vigil 3 Amplifiers Installation Instructions Vigil 3 Amplifier Installation Manual issue 1...
-
Page 19: Maintenance
Vigil 3 Amplifiers Installation Instructions 4 Maintenance 4.1 M AINTENANCE EQUIREMENTS OF BS5839-8 When a Vigil 3 Amplifiers is installed in a Voice Alarm System then the system must be maintained according to the requirements of BS5839-8. 4.2 V IGIL MPLIFIERS OUTINE...
