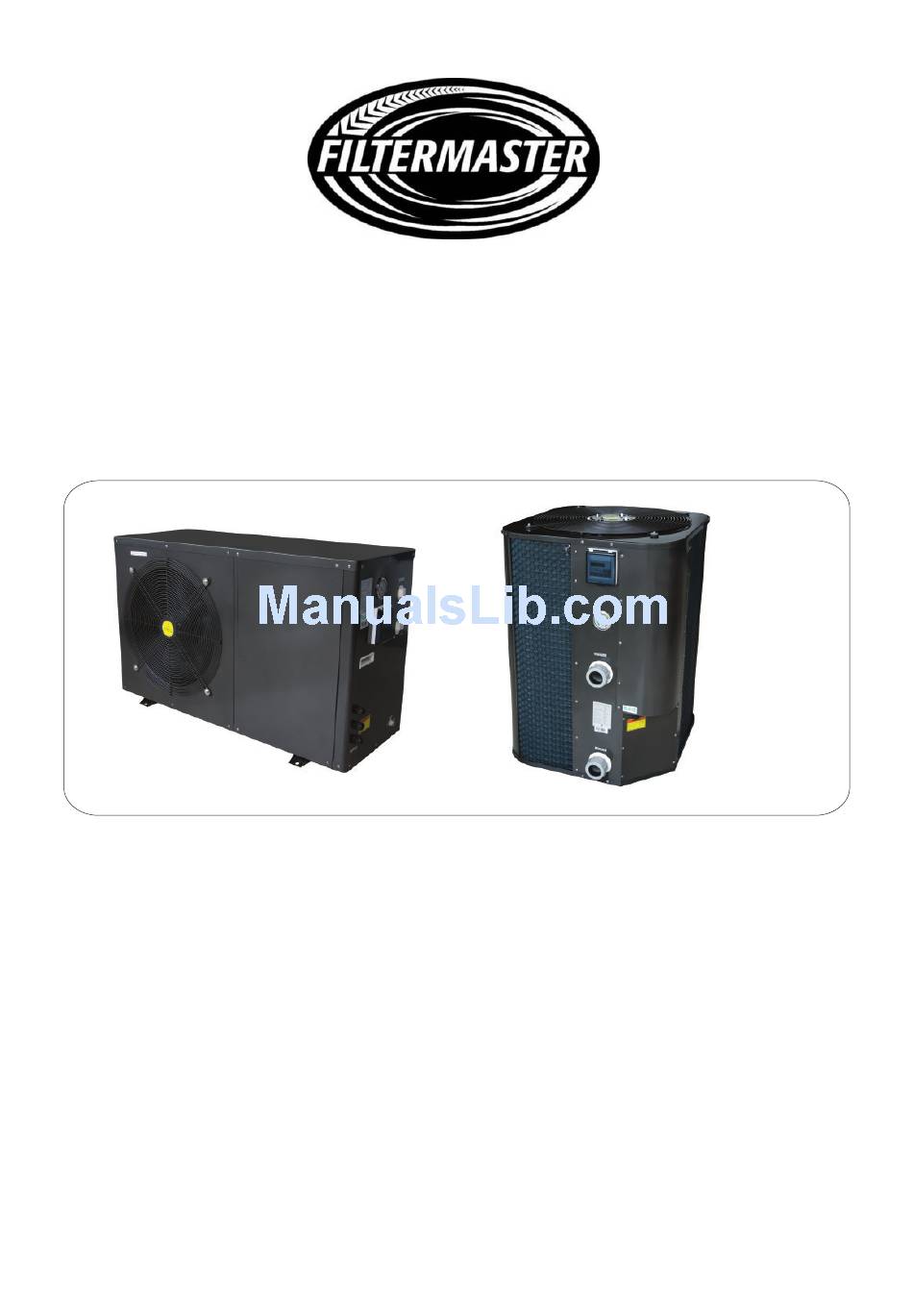

SWIMMING POOL HEAT PUMP UNIT
Installation & Instruction Manual
A p p l i c a b l e M o d e l :
H P 3 . 8 B
H P 9 . 5 B
H P 1 7 B
H P 9 . 5 A
H P 1 7 A
H P 5 . 6 B
H P 1 2 . 5 B
H P 2 1 B
H P 1 2 . 5 A
H P 2 1 A
H P 7 . 8 B
H P 1 4 B
H P 2 6 B
H P 1 4 A
H P 2 6 A
EMHP17040507

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP3.8B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Filtermaster HP3.8B

  • Page 1 SWIMMING POOL HEAT PUMP UNIT Installation & Instruction Manual A p p l i c a b l e M o d e l : H P 5 . 6 B H P 7 . 8 B H P 3 . 8 B H P 1 2 .
  • Page 2: Table Of Contents

    Swimming pool Heat Pump SWIMMING POOL HEAT PUMP UNIT Installation & Instruction Manual Contents 1. PREFACE 2. SPECIFICATION 2.1 Parameter of swimming pool heat pump unit 2.2 Dimension of swimming pool heat pump unit 3. INSTALLATION 3.1 Heat pump location 3.2 How to close to the pool 3.3 Distance from the pool 3.4 Installation of the check-valve...
  • Page 3: Preface

    Swimming pool Heat Pump 1. Preface * In order to provide our customers with quality, reliab ility and versatility, this product has been made to strict producing standards. This manual includes all necessary information about installation, debugging, discharging and maintenance. Please read this manual carefully before you open or maintain the unit.
  • Page 4: Specification

    Swimming pool Heat Pump 2. Specifications 2.1 Parameter of Swimming Pool Heat Pump Unit Model HP3.8B HP5.6B HP7.8B HP9.5B HP12.5B HP14B1 12.5 Heating Capacity K BTU 26.5 32.5 42.5 Heating Input Power Heating Running Current 11.7 13.3 Cooling Capacity K BTU 16.5...
  • Page 5: Dimension Of Swimming Pool Heat Pump Unit

    Swimming pool Heat Pump 2.2 Dimension of swimming pool heat pump unit HP3.8B HP5.6B HP7.8B HP9.5B HP3.8B HP9.5B HP5.6B Model Size (mm) HP7.8B 1010 HP9.5A HP12.5A HP14A HP17A HP21A HP26A HP9.5A HP17A Model HP12.5A HP21A Size HP14A HP26A (mm)
  • Page 6: Installation

    Swimming pool Heat Pump 3.Installation The factory only provides the heat pump unit; the other items including an eventual bypass, in the illustration are necessary parts for the water system, provided by users or the installers. Attention: Please follow these steps when installing the heat pump: 1.
  • Page 7: Distance From The Pool

    Swimming pool Heat Pump 3.3 Distance from the pool Normally, the pool heat pump is installed within a 7.5 meter radius of the pool. The greater the distance from the pool, the greater the heat loss from the piping. Since the piping is buried for the most part, heat loss is minimal for distances of up to 30 meters (15 meters to and from the pump= 30 meters total),unless the soil is wet or the water level is high.
  • Page 8: Pool System Set Up

    Swimming pool Heat Pump 3.5 Pool system set up Heat Pump Water processor Side connection valve Outlet Power cable inlet Inlet Condensed water draining pipe Water pump Filter Pool water inlet Draining nozzle Discharge water to pool 3.6 Connecting the by-pass BY-PASS VALVE1–...
  • Page 9: Electrical Wiring

    Swimming pool Heat Pump 3.7 Electrical wiring Note:-Verify the local power supply and the operating voltage of the heat pump. It is recommended to use a separate circuit breaker(slow type-D curve)for the heat pump together with the proper wiring characteristics (see table below).
  • Page 10: Guidelines

    Swimming pool Heat Pump 4. Guidelines 4.1 Water chemistry Special attention should be paid to the chemical balance of the pool water. The pool water values should always stay within the following limits: Free chlorine(mg/1) TAC(mg/1) Salt(g/1) Important: failure to comply with these limits will invalidate the warranty. Note: exceeding one or several limits can damage the heat pump beyond repair.
  • Page 11: Owner Inspection

    Swimming pool Heat Pump 4.4 Owner inspection The heat pumps are designed and constructed to provide long performance life when installed and operated properly under normal conditions. Periodic inspection are important to keep your heat pump running safe and efficiently all the years. The following basic guidelines are suggested for your inspection: 1.
  • Page 12: Lcd Controller Display

    Swimming pool Heat Pump 5. LCD Controller Display 5.1 Setting step Under running status, press to adjust the temperature. 2. Press "M"to choose the mode Press "M"again cooling Press "M"again heating 3. Standby status: .Press Press "M" 5 seconds,get a sound “B” ,LCD display will show “0" “27” “SET”...
  • Page 13: The Function Of Controller Display

    Swimming pool Heat Pump 5.2 The functions of controller display Stand by status The LCD display ambient temp.And current mode Initialization ROOM VALVE ROOM TEMP AUTO Press to turn Press button to Press 5S to set Press button 5S to set on and turn off change modes press Timer ON/OFF...
  • Page 14 Swimming pool Heat Pump VALVE Parameter 06 system Quantity Parameter 07 Parameter 08 Save setting Mode: after power failure 1(cooling&heating) 1(yes)0(No) 2auxiliary elec heating (cooling+heating) 3(heating only) VALVE VALVE Auto mode 0 long time working for " " default setting: water pump temp 30℃...
  • Page 15 Swimming pool Heat Pump How to know the current status Water temp. Coil temp. Return gas temp. Of inlet/outlet Ambient temp. Under running status ,press “M” 5 seconds to check the current status of the unit!You can check water-in/water out temp,condenser temp and ambient temp,please note no motion on the display for 10s,the LCD will display water-in/water out temp/(under running)or ambient temp.(unit stops)
  • Page 16: Operation Data Setting Table

    Swimming pool Heat Pump 5.3 Operation data setting table: 8-28℃ 27℃ Temp. of exit defrost under heating model Max. time of defrost under heating mode Electronic expansion valve mode 0(Manul)/1(AUTO) 1(record) Automatic restarting after power off 1(heat pump) Water pump keep running or stop after 0(keep running) compressor stop for 30s /1(stop)
  • Page 17: Maintenance And Inspection

    Swimming pool Heat Pump 6. Maintenance and Inspection 6.1 Maintenance To check the water supply device and the releaser often. You should avoid the condition of no water or air enter into system, or that will influence unit's performance and reliability. You should clear the water filter regularly to avoid unit's damage by filter's jam.
  • Page 18: Wiring Diagram

    Swimming pool Heat Pump 7. Wiring diagram Model: HP3.8B HP5.6B HP7.8B HP9.5B...
  • Page 19 Swimming pool Heat Pump Model:HP14A HP17A HP21A...
