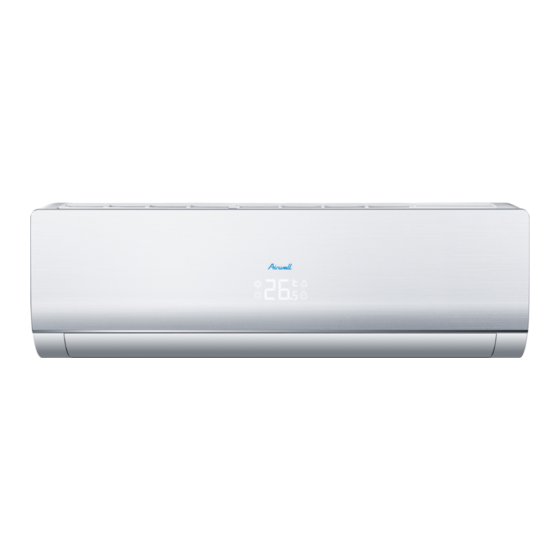

N High wall

Service Manual

SYJS-07-2017 REV.A
Edition: 2017-07
SYJS-07-2017 REV.A
Edition: 2017-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWSI-HBV007-N11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airwell AWSI-HBV007-N11

Summary of Contents for Airwell AWSI-HBV007-N11

  • Page 1: Service Manual

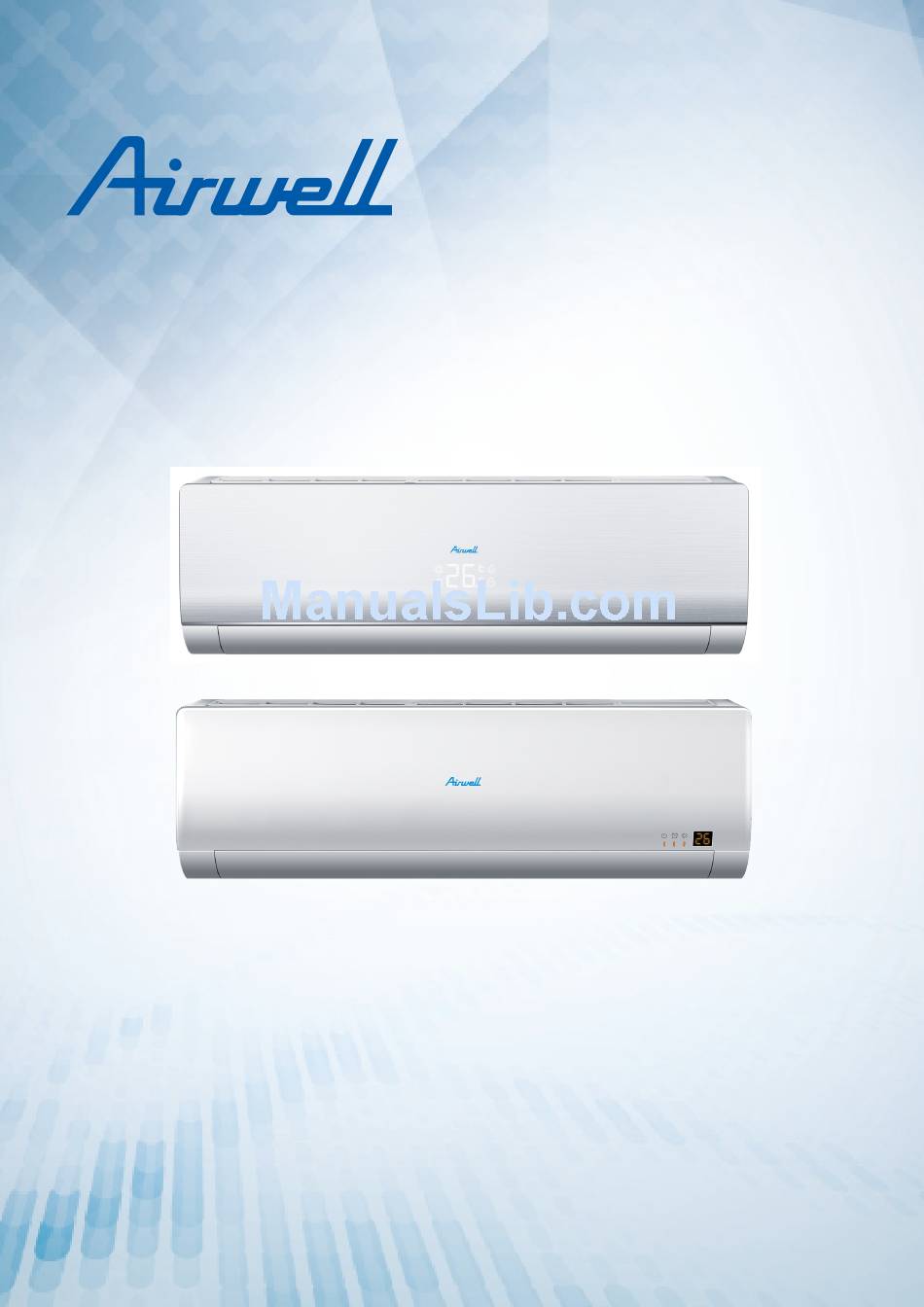

    N High wall Service Manual SYJS-07-2017 REV.A Edition: 2017-07 SYJS-07-2017 REV.A Edition: 2017-07...

  • Page 2: Table Of Contents

    CONTENTS 1. Feature ...........................1 2. Specification ...........................2 3. Dimension ..........................8 4. Piping diagram ........................9 5. Wiring diagram ........................10 6. Electric characteristics ......................11 7. Air velocity and temperature distribution ................12 8. Sound pressure level ......................14 9. Installation ...........................15 9.1 Parts and functions ......................15 9.2 Safety..........................16 9.3 Emergency running &...

  • Page 3: Feature

    1. Feature N HIGH WALL • Wider capacity range from 1.5kW to 9.0kW, meeting variable capacity needs. • Built-in EEV and easy support clip, enabling easy installation • DC fan motor for low sound level and higher efficiency • Long distance and 3D air supplying, •...

  • Page 4: Specification

    2. Specification MODEL AWSI-HBV007-N11 AWSI-HBV009-N11 AWSI-HBV012-N11 Power supply V-Ph-Hz 1/220~240/50/60 1/220~240/50/60 1/220~240/50/60 Capacity kBtu/h 12.3 Capacity Cooling Power Input Current 0.15 0.15 0.15 Capacity kBtu/h 10.9 13.6 Capacity Power Input Heating Current 0.15 0.15 0.15 Heating capacity at low temp.
  • Page 5 MODEL AWSI-HBV007-N11 AWSI-HBV009-N11 AWSI-HBV012-N11 Power supply V-Ph-Hz 1/220~240/50/60 1/220~240/50/60 1/220~240/50/60 Cabinet Coating Type Plastic Plastic Plastic Cabinet Salt Spray Cabinet Hour Test Duration Control Box IP Class IP20 IP20 IP20 Sheet Metal Thickness Drain Pan Material Construction Drain Pan Insulation...
  • Page 6 MODEL AWSI-HBV016-N11 AWSI-HBV018-N11 Power supply V-Ph-Hz 1/220~240/50/60 1/220~240/50/60 Capacity kBtu/h 15.3 19.1 Capacity Cooling Power Input Current Capacity kBtu/h 17.1 21.5 Capacity Heating Power Input Current Heating capacity at low temp. Operating current Power consumption 0.057 0.057 Brand Broad-ocean Broad-ocean Model ZWK465A00411 ZWK465A00411...
  • Page 7 MODEL AWSI-HBV016-N11 AWSI-HBV018-N11 Power supply V-Ph-Hz 1/220~240/50/60 1/220~240/50/60 Cabinet Coating Type Plastic Plastic Cabinet Salt Spray Test Cabinet Hour Duration Control Box IP Class IP20 IP20 Sheet Metal Thickness Drain Pan Material Construction Drain Pan Insulation Drain Pump Option Branch Outlet Option Material Plastic Plastic...
  • Page 8 MODEL AWSI-HBV024-N11 AWSI-HBV030-N11 Power supply V-Ph-Hz 1/220~240/50/60 1/220~240/50/60 Capacity kBtu/h 24.2 30.7 Capacity Cooling Power Input Current 0.59 Capacity kBtu/h 27.3 34.1 Capacity Heating Power Input Current 0.59 Heating capacity at low temp. Operating current 0.59 Power consumption 0.057 0.099 Brand Broad-ocean Broad-ocean...
  • Page 9 MODEL AWSI-HBV024-N11 AWSI-HBV030-N11 Power supply V-Ph-Hz 1/220~240/50/60 1/220~240/50/60 Cabinet Coating Type Plastic Plastic Cabinet Salt Spray Test Cabinet Hour Duration Control Box IP Class IP20 IP20 Sheet Metal Thickness Drain Pan Material Construction Drain Pan Insulation Drain Pump Option Branch Outlet Option Material Plastic Plastic...

  • Page 10: Dimension

    3. Dimension Model AWSI-HBV007/009/012-N11 AWSI-HBV016/018/024-N11 1115 AWSI-HBV030-N11 1316...

  • Page 11: Piping Diagram

    4. Piping diagram Gas pipe Liquid pipe Filter Filter     Indoor heat exchanger...

  • Page 12: Wiring Diagram

    5. Wiring diagram PCB code: 0151800244B UP/DOWN SWING C N 11 C N 46-1 C N 11-1 C N 46 L-RXD CN14 CN34 DCFAN C N 36 L E D 2 L E D 1 L E D 3 L E D 4 C N 13 C N 8 WH C N 16...

  • Page 13: Electric Characteristics

    6. Electric characteristics Units Power supply Indoor fan motor Power input (W) Volt. Output Model Phase Voltage Cooling Heating range AWSI-HBV007-N11 50/60 198~242 0.18 0.56 0.14 AWSI-HBV009-N11 50/60 198~242 0.18 0.56 0.14 AWSI-HBV012-N11 50/60 198~242 0.18 0.56 0.14 AWSI-HBV016-N11 50/60 198~242 0.24...

  • Page 14: Air Velocity And Temperature Distribution

    7. Air velocity and temperature distribution a. Cooling / Air velocity distribution Blowy angle: 25 2.4m 1.5m/s 1.0m/s 0.5m/s 5.5m b. Cooling / Temperature distribution Blowy angle: 25 2.4m 22°C 25°C 27°C 5.5m...
  • Page 15 c. Heating / Air velocity distribution Blowy angle: 65 2.4m 1.5m/s 1.0m/s 0.5m/s 5.5m d. Cooling / Temperature distribution Blowy angle: 65 2.4m 27°C 25°C 22°C 5.5m...

  • Page 16: Sound Pressure Level

    8. Sound pressure level 1) Testing illustrate: 0.8m 2) Testing condition: a: Unit running in the normal condition b: Test in the semi-anechoic chamber c: Noise level varies from the actual factors such as room structure, etc. 3) Sound curves: AWSI-HBV030-N11 AWSI-HBV016/018/024-N11 AWSI-HBV007/009/012-N11...

  • Page 17: Installation

    9. Installation 9.1 Parts and functions Indoor Unit Air Purifying Filter (inside) Inlet Inlet grille Emergency Switch Outlet Anion generator Horizontal flap (inside) (Adjust up and down air flow. Don't adjust it manually) Vertical blade Display board (adjust left and right air flow) (inside) Actual inlet grille and display board may vary from the one shown in the manual according to the product purchased.

  • Page 18: Safety

    Safety • If the air conditioner is transferred to a new user, this manual shall be transferred to the user, together with the conditioner. • Before installation, be sure to read Safety Considerations in this manual for proper installation. • The safety considerations stated below is divided into“ Warning”...
  • Page 19 • Don't install the air conditioner at the places where the flammable gases may leak. In case the gas leakage occurs around the machine, such accidents as fire disasters may be caused. • The drainpipe should be properly mounted according to this manual as to ensure the smooth drainage. In addition, heat preservation should be taken to avoid condensation.
  • Page 20 Items with this warning sign concerning the product's safety and the personal security must be performed strictly. Items with this forbidding sign refer to absolutely forbidden behaviors. If not, they may cause machine damage or endanger operator's personal safety. Don't touch the outlet while the flap is moving. Don't Clean the filter regularly.
  • Page 21 It is not allowed to put any heating apparatus 3-minute protection under the indoor units, for the heat may cause To protect the unit, compressor can be actuated distortion of the units. with at least 3-minute delay after stopping. Pay attention to the aeration condition to Close the window to avoid outdoor air getting in.

  • Page 22: Emergency Running & Test Operation

    Emergency running & Test operation Emergency Running & Test operation: • Emergency running will help air conditioner operate automatically if your remote control is missing or out of work. • Test operation is recommended when room temperature is below 16°C but not in normal condition. Emergency Running It is recommended to use only when the remote control is missing or damaged.

  • Page 23: Maintenance

    Maintenance *Only when the air cleaner is switched off and disconnected to the power supply can it be cleaned, or electric shock and injury may appear. Cleaning the air outlet port and the shell: Attention • Don't use gasoline, benzene, diluents, polishing powder or liquid insecticide to clean them. •...
  • Page 24 Clean the machine (Cleaning ways are approximately same). Turn off the air conditioner before cleaning. Do not touch the machine if the hands are wet. Neither hot water nor solvent should be used in cleaning. Replacement of Air Purifying Filter 1.

  • Page 25: Fault Checkup

    Fault checkup Please check the following when consigning repair service: Symptoms Reasons Water flow sound can be heard when starting operation, during operation or immediately after stopping operation. When it starts to • Water flow sound work for 2-3 minutes, the sound may become louder, which is the flowing sound of refrigerant or the draining sound of condensed water.

  • Page 26: Installation Procedures

    Installation procedures This manual cannot completely illustrate all the properties of the products you bought. Please contact the local Haier distribution center if you have any question or request. Please use the standard tool according to the installation requirements. The standard attached accessories of the units of this series refer to the packing; prepare other accessories according to the requirements of the local installation point of our company.
  • Page 27 3. Installation Drawing of Indoor Units: More than 15cm More than 10cm More than 10cm (1) Positioning Wall Pad & Locating Wall Holes Fix the pad according to the installation location and the pipe layout of indoor unit (please refer to the installation drawing).
  • Page 28 (4) Lead the connection tubing(liquid pipe and gas pipe) through the hole into the wall, or connect piping and wiring of indoor unit(check the number of wiring terminals of indoor and outdoor units and connect terminals with the same number and color), and then put the connection tubing and the connecting line through from the inside wall for the connection with outdoor unit.
  • Page 29 2. Remove 2 gaskets under the cross-flow fan. (used for AWSI- HBV016/018/024-N11) 3. Clean the burr on the surface of fracture to avoid the power wire from being scratched after removing the virtual opening of the outgoing line slot on the case by hands in indoor power-on process. When the mounting plate is fixed side bar and lintel Fix to side bar and lintel a mounting bar, which is separately sold, and then fasten the plate to the fixed mounting bar.
  • Page 30 Cutting and Enlarging Connecting Cutting or enlarging pipes should be proceeded by 1. Connecting circular terminals: installation personnel according to the operating The connecting method of circular terminal is criterion if the tube is too long or flare opening is shown in the Fig.

  • Page 31: Electrical Wiring

    Electrical wiring Warning • Electrical construction should be made with specific mains circuit by the qualified personnel according to the installation instruction. Electric shock and fire may be caused if the capacity of power supply is not sufficient. • During arranging the wiring layout, specified cables should be used as the mains line, which accords with the local regulations on wiring.
  • Page 32 • Indoor units and outdoor units should be connected to the power source separately. Indoor units must share one single electrical source, but its capacity and specifications should be calculated. Indoor & outdoor units should be equipped with the power leakage breaker and the overflow breaker. Signal Wiring Drawing The combination of multiple indoor units can be controlled by remote controller.
  • Page 33 Recommended: One wired controller controls more than one indoor unit (limited in high walls) Not recommended: One wired controller controls more than one indoor unit (ordinary indoors) High wall wired controller wiring instruction: 1. One wired controller controls one high wall unit (one to one), connect the wires of wired controller to CN22 terminal on PCB directly.

  • Page 34: Pcb Photo

    10. PCB Photo 0151800244B...

  • Page 35: Dip Switch Setting

    SW01_2 indoor unit 2#(wire controlled slave unit) SW01_3 3#(wire controlled slave unit) (group SW01_4 ..address) 15#(wire controlled slave unit) Capability of indoor unit 0.6HP 0.8HP(AWSI-HBV007-N11) 1.0HP(AWSI-HBV009-N11) 1.2HP(AWSI-HBV012-N11) 1.5HP 1.7HP(AWSI-HBV016-N11) SW01_5 2.0HP(AWSI-HBV018-N11) SW01_6 Capability of 2.5HP(AWSI-HBV024-N11) SW01_7 indoor unit 3.0HP SW01_8 3.2HP(AWSI-HBV030-N11)
  • Page 36 (B)Definition and description of SW03 Automatic address setting or wired controller address setting (default) Address SW03_1 setting mode Code-set address Address of Address of centralized indoor unit controller Code-set (Default) (Default) indoor unit SW03_2 address and centralized SW03_8 controller address (Note 2) 127# Note:...
  • Page 37 Special function 1. Emergency switch: Press the emergency switch in stop condition, indoor unit operate with AUTO, AUTO SPEED, 24 Setting modes, pressure the emergency switch in start condition, indoor unit will stop operation. 2. Temp. compensation: The heating mode, the temp. compensation range is -14 ~ 0 . Set the temp.

  • Page 38: Indoor Unit Control

    12. Indoor unit control 12.1 Cooling operation Set temp. in cooling: Ts=set temp. wired controller; After startup, indoor unit will send the request to outdoor according to the temp. difference between the set temp. and the room temp. 12.2 Heating operation Set temp.

  • Page 39: Filter Cleaning

    12.8 Anti-freeze protection In cooling mode, execute the anti-freeze protection due to the measured indoor coil temp. to avoid the indoor heat exchanger causing frost or ice. 12.9 Swing motor control Indoor will control swing motor ON/OFF due to the swing signal from wired controller. 12.10 Auxiliary electric heater control In heating mode, if the below conditions can be met, the electric heater will work: (1) Indoor fan motor and compressor are running;...
  • Page 40 12.14 Temperature compensation All the indoor units which PCB is 0151800113, 0151800161, 0151800161B, 0151800141, 0151800141A, 0010451751AE or 0010451751AF use the default value which in the EEPROM (in heating mode, the temperature compensation value is 3°C, it means when the indoor temperature sensor detect the temperature more than target temperature 3°C the fan of the indoor unit will stop;...

  • Page 41: Failure Code

    13. Failure code Indoor unit failure code Indoor panel Indoor PCB Failure code on display failure LED5 flashes Fault Descriptions wired controller code times Indoor ambient temp. sensor TA failure Indoor gas pipe temp. sensor TC1 failure Indoor liquid pipe temp. sensor TC2 failure Indoor EEPROM failure Communication between indoor and outdoor failure Communication between indoor and wired controller failure...

  • Page 42: Troubleshooting

    14. Troubleshooting Indoor failure diagnose [08] Indoor drainage system failure/float switch circuit on indoor PCB failure Reconnect If CN13 is fixed well If float switch works If CN4 is Modify the wiring with AC220V and the circuit voltage Check indoor PCB and replace it if necessary If water pump works Check water pump...
  • Page 43 [05] EEPROM failure If the chip is fixed well Reconnect Replace it If the chip is damaged Check if PCB is faulty, if yes, replace it [09] Indoor address repeated If wiring between P and Modify the wiring Q is normal If communication wire is Modify the communication connected with multi...
  • Page 44 [06] Communication circuit between indoor and outdoor If wiring between P and Modify the communication wire Q is wrong or broken down If the port of CN15 on Modify the port indoor PCB is normal If the port of CN19 on outdoor connecting board is normal Electrify the outdoor If outdoor power source is normal...
  • Page 45 [07] Communication abnormal between indoor and wired controller If wiring of terminal A, B, C of Modify the wiring wired controller is proper If the broken wire or port is Modify the connection fixed improperly If in group operation Set one indoor If there is indoor unit unit as No.
  • Page 46 [12] No 50Hz zero passage signal Check if the Replace transformer is well transformer   Check if the wiring of the Reconnect   wired controller connect well Replace PCB...
  • Page 47 [14] DC motor failure Check if the wiring of motor Reconnect is fixed well Replace motor If the motor is fault Replace the PCB...
  • Page 48 [18] The 4-way valve of 3-pipe valve box reversing failure Adjust it correctly by after-sales If the 4-way valve of 3-pipe personnel on site. valve box is internal leakage Check if the TC1 and TC2 of indoor Adjust it correctly by after-sales unit are normal, if the resistance is personnel on site.

  • Page 49: Capacity

    15. Capacity Cooling Indoor Temp. Outdoor Capacity 21.5°CDB 23°C DB 25°C DB 27°C DB 28°C DB 30°C DB 32°C DB Temp. (W*100 ) 15°C WB 16°C WB 18°C WB 19°C WB 20°C WB 22°C WB 24°C WB °C DB 22.5 27.5 32.5 37.5...
  • Page 50 Indoor Temp. Outdoor Capacity 21.5°CDB 23°C DB 25°C DB 27°C DB 28°C DB 30°C DB 32°C DB Temp. (W*100 ) 15°C WB 16°C WB 18°C WB 19°C WB 20°C WB 22°C WB 24°C WB °C DB 22.5 27.5 32.5 37.5 22.5 27.5 32.5...
  • Page 51 Indoor Temp. Outdoor Capacity 21.5°CDB 23°C DB 25°C DB 27°C DB 28°C DB 30°C DB 32°C DB Temp. (W*100 ) 15°C WB 16°C WB 18°C WB 19°C WB 20°C WB 22°C WB 24°C WB °C DB 22.5 27.5 32.5 37.5 22.5 27.5 32.5...
  • Page 52 Heating Indoor Temp. (°C DB) Outdoor Temp. Capacity( W*100) °C WB 12.5 15.5 12.5 15.5 12.5 15.5 12.5 15.5...
  • Page 53 Indoor Temp. (°C DB) Outdoor Temp. Capacity( W*100) °C WB 12.5 15.5 12.5 15.5 12.5 15.5 10.1 12.5 10.8 15.5 10.9 10.0 10.1 10.0 10.5 10.0 11.2 10.0 12.5 12.0 10.0 15.5 12.1 10.0...
