2.2. Go2Nova 8408 Hand Controller
RA+
The Go2Nova
TM
the SmartEQ Pro+ mount. It has a 4 line, 21 character large LCD screen, function keys, direction keys
and number keys on the front; and a HBX port (6-pin) and a serial port (4-pin) at the bottom.

2.2.1. Key Description


MENU Key: Press "MENU" to enter the Main Menu.

BACK Key: Move back to the previous screen, or end/cancel current operation, such as slewing.

ENTER Key: Confirm an input, go to the next menu, select a choice, or slew the telescope to a
selected object.

Arrow (▲▼◄►) Keys: The arrow keys are used to control the movement of DEC and R.A. axes.
Press and hold ▲(DEC+),▼(DEC-) buttons to move a telescope along the DEC direction,
◄(R.A.+), ►(R.A.-) to move a telescope along the RA direction. They are also used to browse the
menu or move the cursor while in the menu. Holding an arrow key for a fast scrolling.

Number Keys: Input numerical values. Also used to adjust slewing speeds (1: 1X; 2: 2X; 3: 8X; 4:
16X; 5: 64X; 6: 128X; 7: 256X; 8: 512X; 9: MAX)

? Key: Identify and display nearby bright stars or objects where the telescope points to.

0 Key: Stop the mount during GOTO. Also toggling between start and stop tracking.

HBX (Handbox) port: connect the HC to the SmartEQ mount using 6 pin RJ11 plug.

Serial port: connect the HC to a Computer via a RS232 to 4 pin 4 wire (4P4C) RJ-9 cable (iOptron
item #8412). The pin out of the serial port is shown in Figure 2.

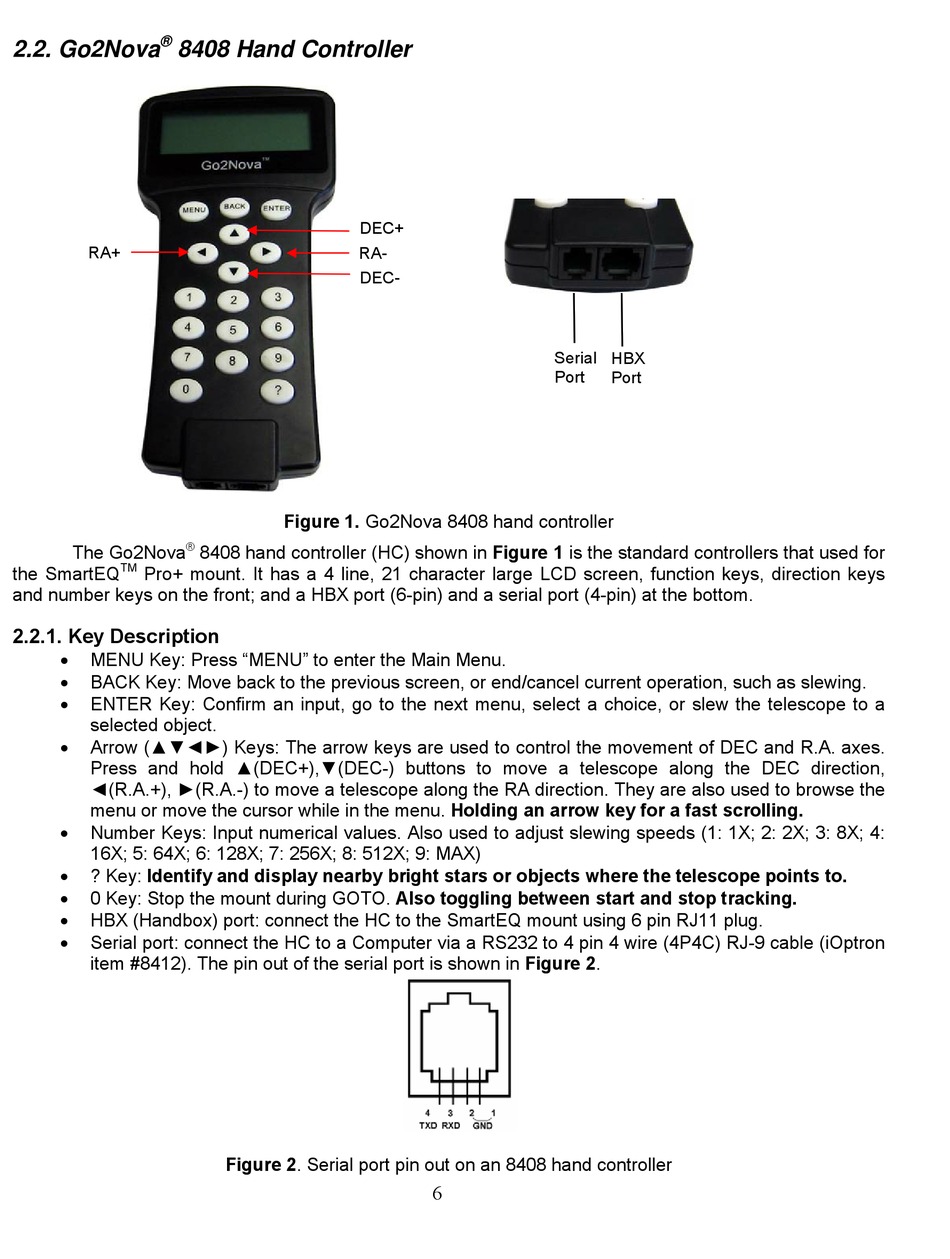

Figure 1. Go2Nova 8408 hand controller
®
