HellermannTyton TTM430 Operator's Manual

Barcode/label printer
Hide thumbs Also See for TTM430:
Table of Contents

Advertisement

Quick Links

Operator's Manual
TTM430
Barcode/Label printer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTM430 and is the answer not in the manual?

Questions and answers

Related Manuals for HellermannTyton TTM430

Summary of Contents for HellermannTyton TTM430

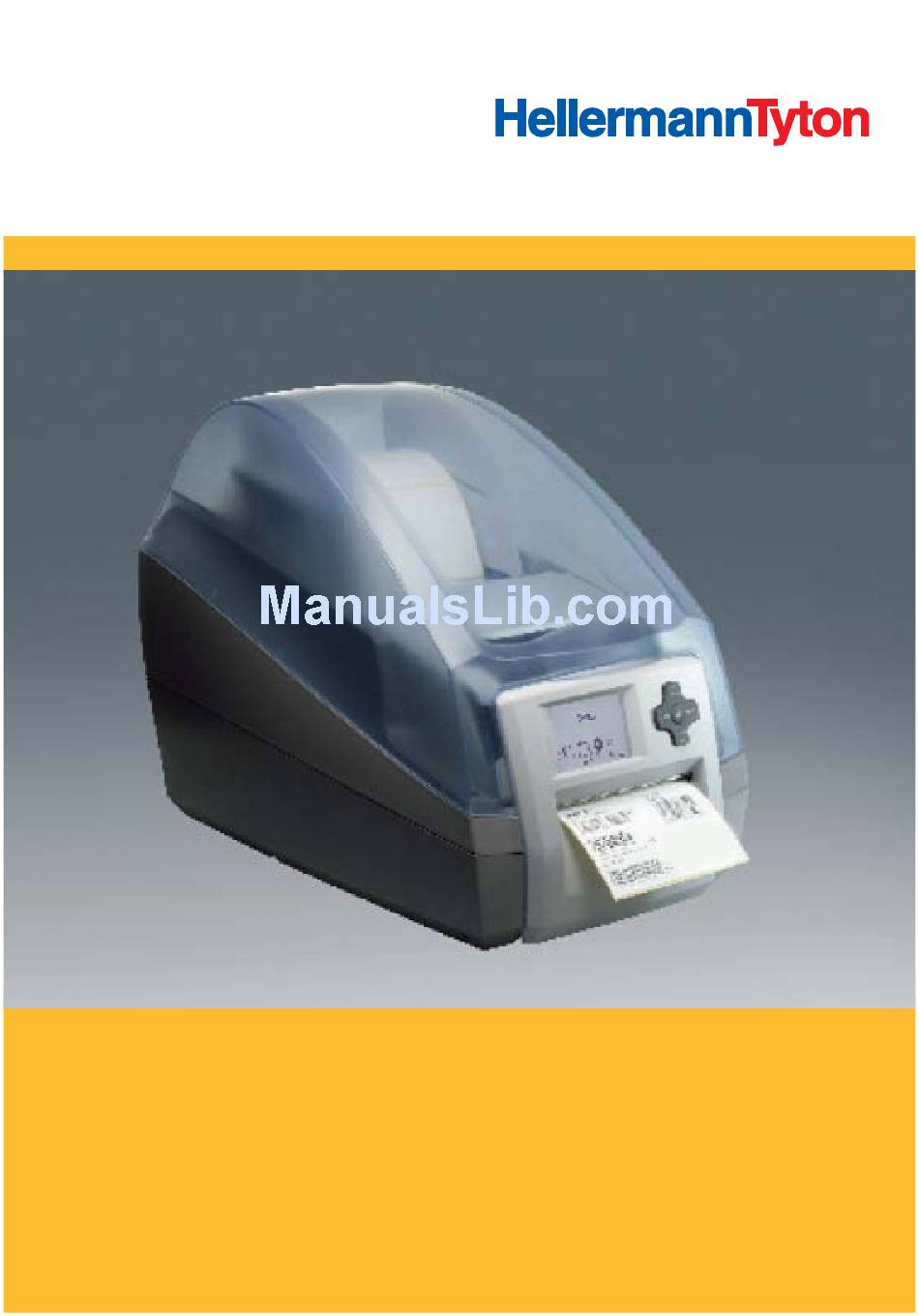

  • Page 1 Operator's Manual TTM430 Barcode/Label printer...
  • Page 2 Operator's Manual TTM430 Barcode/Label printer Trademark Centronics ® is a registered trademark of the Data Computer Corporation. ® Microsoft is a registered trademark of the Microsoft Corporation. Windows 2000 ® , 2003 ® , XP ® are registered trademarks of the Microsoft Corporation.

  • Page 3: Table Of Contents

    Contents Introduction ............................4 Instructions ............................... 4 Intended Use ............................4 Safety Instructions ............................ 4 Environment ............................. 5 Installation .............................. 6 Device Overview ............................6 Unpacking and Installing the Device ......................7 Connecting the Device ..........................7 Switching on the Device ........................... 7 Control Panel ............................

  • Page 4: Introduction

    Introduction Instructions Important information and instructions in this documentation are designated as follows: Danger! Draws your attention to an exceptionally grave, impending danger to your health or life. Warning! Indicates a hazardous situation that could lead to injuries or material damage. Attention! Draws attention to possible dangers, material damage or loss of quality.

  • Page 5: Environment

    Introduction • Unauthorized interference with electronic modules or their software can cause malfunctions. • Other unauthorized work on or modifi cations to the device can also endanger operational safety. • Always have service work done in a qualifi ed workshop, where the personnel have the technical knowledge and tools required to do the necessary work.

  • Page 6: Installation

    Installation Device Overview View A View B Fig. 1 Overview 1 RS-232 serial interface 10 Roll hub 2 USB 2.0 High Speed Slave interface 11 Holder slots 3 Two USB master interfaces for keyboard and 12 Ribbon rewind hub scanner 13 Printhead mounting with printhead 4 Ethernet 10/100 Base T interface 14 Release button of the print module...

  • Page 7: Unpacking And Installing The Device

    Installation Unpacking and Installing the Device Lift the label printer out of the carton by the straps. Check the label printer for any possible transportation damage. Check that the delivery is complete. Delivery scope: • Label printer • Power cable •...

  • Page 8: Control Panel

    Control Panel Structure of the Control Panel The user can control the operation of the printer with the control panel, for example: • Issuing, interrupting, continuing and canceling print jobs, • Setting printing parameters, e.g. heat level of the printhead, print speed, interface confi guration, language and time of day ( Confi...

  • Page 9: Printer States

    Control Panel Printer States State Display Description Ready The printer is in the ready state and can receive Ready data. and confi gured symbol displays, such as time and date Printing label The printer is currently processing an active print Printing label job.

  • Page 10: Key Functions

    Control Panel Key Functions • The key functions depend on the current printer state: Active functions: Labels and symbols on the navigator pad keys light up. Active functions light up white in print mode (e. g. menu or feed). Active functions light up orange in the offl ine menu (arrows, key Display State Function...

  • Page 11: Loading Material

    Loading Material Loading Label Rolls 4.1.1 Adapting the Roll Hub Label rolls are supplied with different diameters. The roll hub can hold label rolls with a core diameter of 38 - 75 mm, or 76 mm with the detachable adapters fi tted. Fig.

  • Page 12: Loading Labels

    Loading Material 4.1.2 Loading Labels The method of loading label rolls applies to both thermal paper labels and labels that are printed by means of a transfer ribbon. Fig. 4 Roll holder and path of the label stock Open the cover and hinge down the control panel. Take the roll hub (10 - fi...

  • Page 13: Loading Fanfold Labels

    Loading Material Loading Fanfold Labels The method of loading fanfold labels applies to both thermal paper labels and labels that are printed by means of a transfer ribbon. View A Fig. 5 Loading fanfold labels Stack the fan-folded labels (1) behind the printer. Ensure that the labels on the strip are facing upwards. Open the cover and hinge down the control panel (5).

  • Page 14: Loading Labels For Peel-Off Mode

    Loading Material Loading Labels for Peel-off Mode Notice! Place the printer in such a position that the liner can run down without hindrance. A label jam can cause malfunctions in printing operations. Fig. 6 Setting up the Peel-off Mode Loading the label stock item 4.1 or item 4.2, steps 1 to 10.

  • Page 15: Selecting And Positioning Label Sensors

    Loading Material Selecting and Positioning Label Sensors 4.4.1 Gap Sensors Fig. 7 Selecting the gap sensor The printer has two gap sensors (1, 2) to detect the start of a label and the end of the material, which can be used alternatively.

  • Page 16: Loading Transfer Ribbon

    Loading Material Loading Transfer Ribbon Notice! Do not insert a transfer ribbon for direct thermal printing. Attention! When inserting the transfer ribbon ensure that the coated side faces the labels, as otherwise the printhead can become soiled. Fig. 9 Loading Transfer Ribbon...
  • Page 17 Loading Material Open the cover and hinge down the control panel. Press the release button and hinge the print module up. Press the ribbon supply hub (2) to the right until there is perceptible resistance, pull it to the left out of the guide slot (1) and remove it.

  • Page 18: Printing Operation

    Printing Operation Attention! Printhead damage caused by improper handling! Do not touch the underside of the printhead with the fi ngers or sharp objects. Ensure that the labels are clean. Ensure that the label surfaces are smooth. Rough labels act like emery paper and reduce the service life of the printhead.

  • Page 19: Cleaning

    Cleaning Cleaning Information Danger! Danger to life and limb from electric shock! Disconnect the printer from the electricity supply before starting any maintenance work. The label printer requires very little maintenance. It is important to clean the thermal printhead regularly. This guarantees a consistently good printed image and plays a major part in preventing premature wear of the printhead.

  • Page 20: Cleaning The Cutter

    Cleaning Cleaning the Cutter Attention! When cutting through the label material remains of adhesive may accumulate on the blades. If operating in backfeed mode, such remains of adhesive may be deposited on the drive roller as well. Both, the drive roller and the cutter blades, must be cleaned often. Fig.

  • Page 21: Fault Correction

    Fault Correction Types of Errors The diagnostic system indicates on the screen if an error has occurred. The printer is set into one of the three possible error states according to the type of error. State Display Remark Correctable error pause fl...

  • Page 22: Error Messages And Fault Correction

    Fault Correction Error Messages and Fault Correction Error messages Cause Remedy ADC malfunction Hardware error Switch the printer off and then on. If error recurs call service. Barcode error Invalid barcode content, e.g. alphanumeric Correct the barcode content. characters in a numerical barcode Barcode too big The barcode is too big for the allocated Reduce the size of the barcode or move it.
  • Page 23 Fault Correction Error messages Cause Remedy No Link No network link Check network cable and connector. Please contact your network administrator. No record found Refers to the optional memory card; Check programming and card contents. database access error No SMTP server The printer is confi...

  • Page 24: Licences

    Index Adapter Label outlet in the control panel..6 Tear-off mode ........18 dismounting ........ 11 Label rolls Transfer ribbon mounting ........11 loading ........11 loading ........16 winding direction ......17 Label sensor cleaning ........19 Cleaning ........19, 20 positioning ........15 cutter ...........20 Unpacking...........7 selecting ........15 label sensors .......19...
